3-Bedroom, 1634 Sq Ft Country Plan with Vaulted Ceilings

Country home (ThePlanCollection: Plan #108-1159)

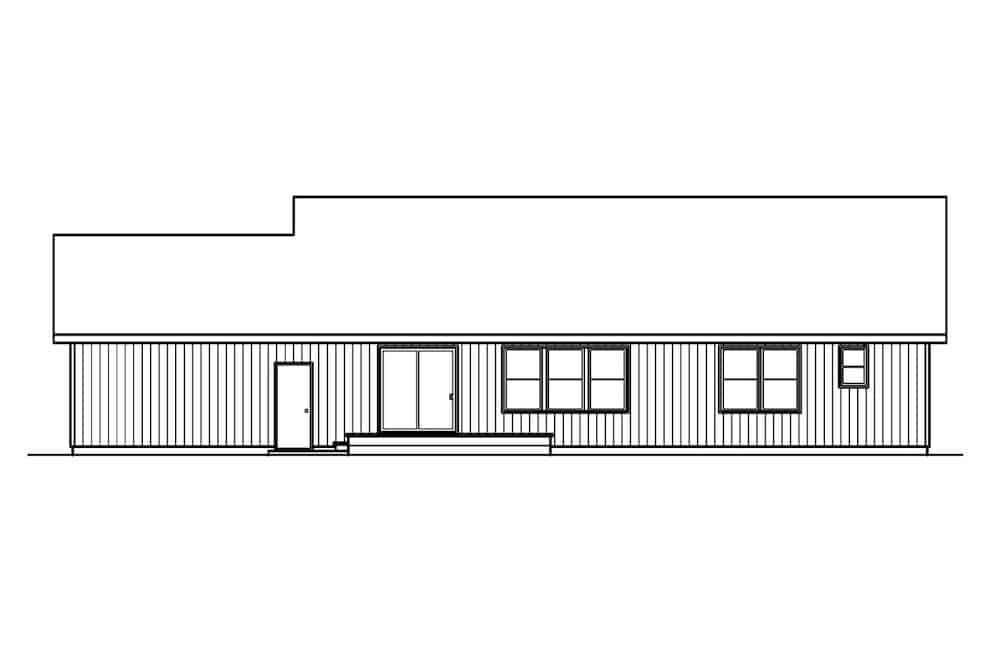

108-1159: Home Plan Rear Elevation

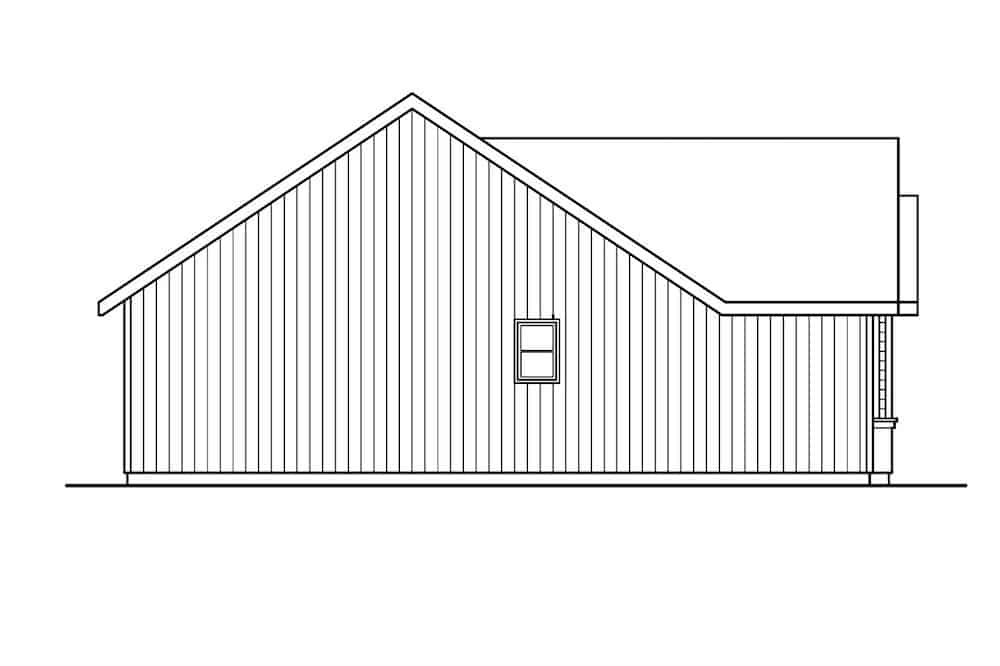

108-1159: Home Plan Left Elevation

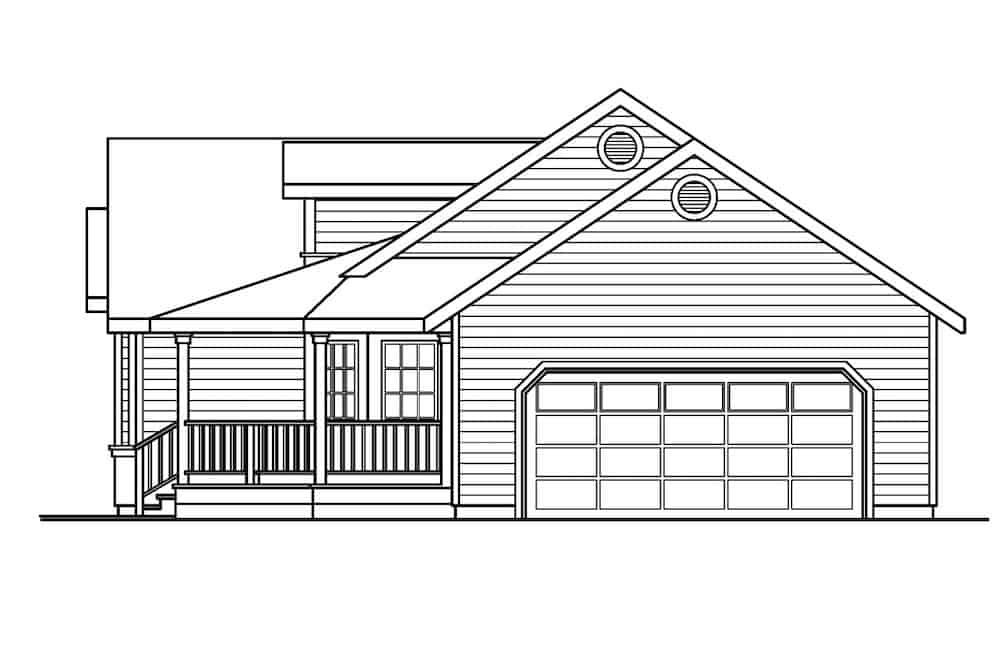

108-1159: Home Plan Right Elevation
3-Bedroom, 1634 Sq Ft Country Home - Plan #108-1159 - Main Exterior
108-1159: Home Plan Rear Elevation
108-1159: Home Plan Left Elevation
108-1159: Home Plan Right Elevation

About Plan # 108-1159

About Plan # 108-1159

1634 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 68' 0" WIDTH 40' 0" DEPTH 2 GARAGE BAY

Despite — or perhaps because of — its low profile, this country ranch makes a lasting first impression. The railed wrap-around porch is inviting. The dormers add interest to the rooflines. WIth only 1634 living square feet, the floor plan offers so much more.

  • Vaulted entry foyer leads to a wide, open and also vaulted Great Room.
  • The vaulted dining area is open to the Great Room and leads out to the rear deck.
  • Windows along the rear of the home allow natural light to pour into the space.
  • The kitchen is efficiently laid out with workspace on all four sides while a peninsula with a raised eating bar separates the kitchen from the vaulted breakfast nook.
  • Off the kitchen is a utility room with laundry and counterspace which acts as a drop-zone to the attached 2-car garage.
  • The owners' suite is vaulted and includes a huge walk-in closet plus a master bath with his-and-her sinks.
  • Bedroom #2 and #3 share a hall bathroom.

Each plan set includes the following:

  • ARTIST'S RENDERING: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • MAIN FLOOR PLAN: Each plan set is drawn at 1/4"=1' scale. Showing the placement and dimensions of all walls, windows, and doors. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • SECOND FLOOR PLAN (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • FOUNDATION PLAN: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
  • ROOF FRAMING PLAN: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
  • SECTIONS AND DETAILS: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints. These details can be helpful for the contractor.
  • ELECTRICAL PLAN: A schematic layout of all lighting, switches, and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

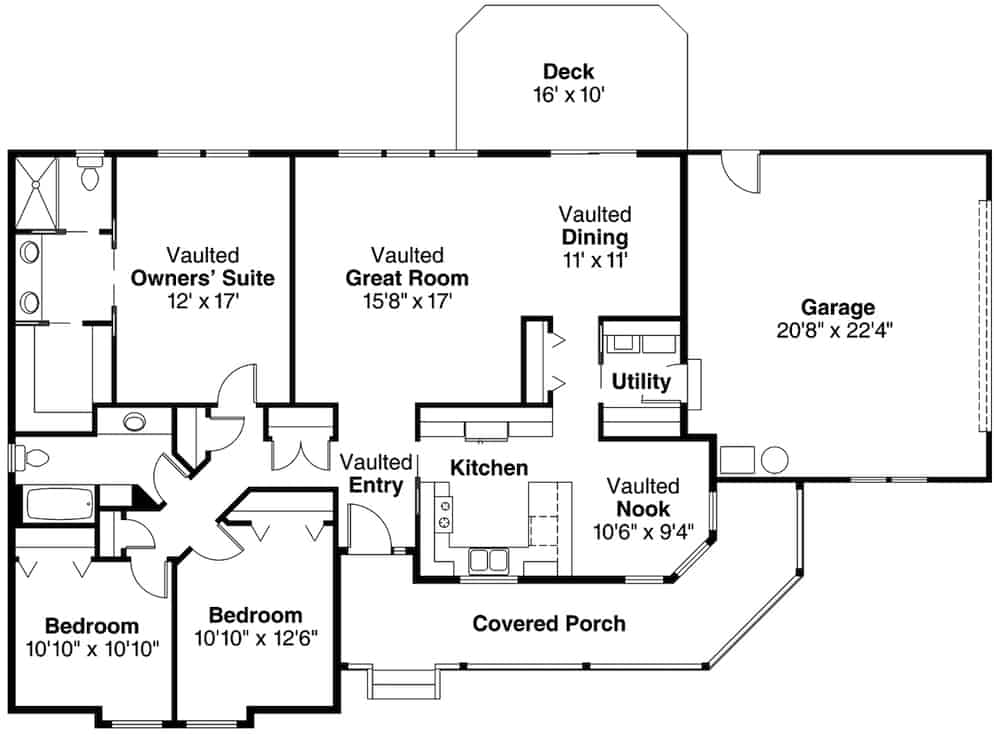

Home Plan: #108-1159 Floor Plan First Story - main level Floor Plan Main Level of Country Plan #108-1159

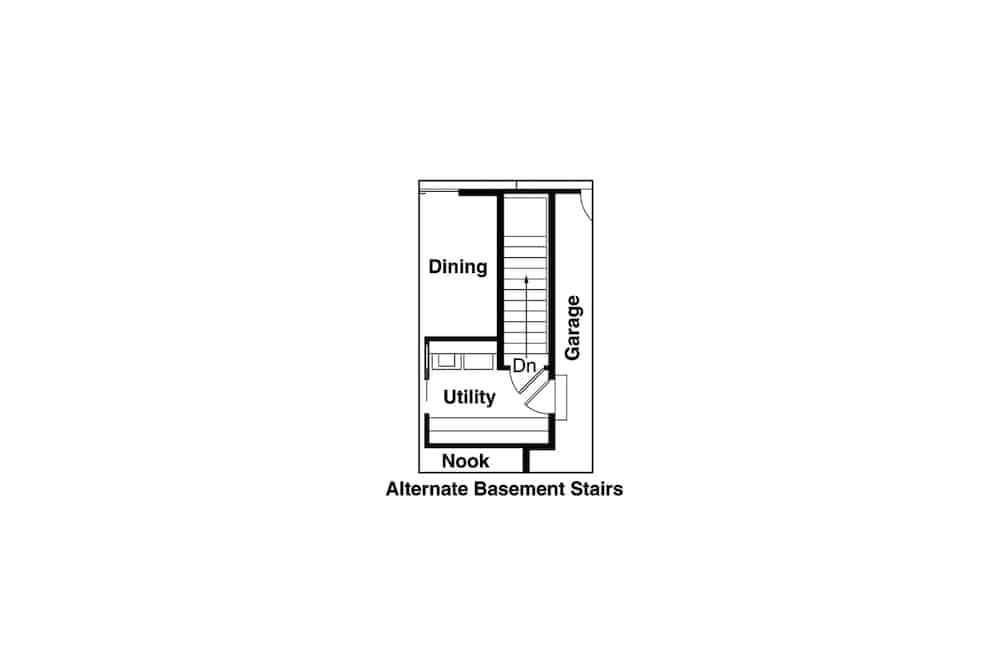

#108-1159 Floor Plan First Story - basement option stair location Floor Plan Main Level of Country Plan #108-1159
Home Plan: #108-1159 Floor Plan First Story - main level Floor Plan Main Level of Country Plan #108-1159
#108-1159 Floor Plan First Story - basement option stair location Floor Plan Main Level of Country Plan #108-1159
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 108-1159
Floors:
1
Bedrooms:
3
Full Baths:
2
Garage :
2

Square Footage

Heated Sq Feet:
1634
Main Floor:
1634
Unfinished Sq Ft:
Garage :
477

Dimensions

Width:
68' 0"
Depth:
40' 0"
Ridge Height:
20' 6"

Architectural Styles

Country
Farmhouse
Ranch
Transitional

Exterior Wall Material

Vinyl Siding

Roofing Type

Gable
Gable/Dormer

Roofing Material

Wood Shakes

Roof Pitch

8/12

Ceiling Height

8 Foot Ceiling

Special Feature

Dining Room
Family Room
Main Level Laundry
Open Floor Plan
Vaulted Ceilings

Garage Type

Attached Garage
Side Entry

Exterior Wall Framing

2x6

Building Lot Type

Corner Lot

Kitchen Features

Nook/Breakfast Area
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Sundeck
Wrap Around Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

PLEASE NOTE!! For this designer, The PDF that comes with the PRINT Packages (5 set+PDF and 8 set+PDF) is NOT Modifiable - it is for printing ONLY! PLEASE NOTE!! Optional Foundations (foundations that cost extra money) will take 5-10 business days to complete.

PRICING OPTIONS

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

Eight printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 8 sets ship. Comes with a license to build one home.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

Stamped "Not for Construction," this set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
