Ranch style house (ThePlanCollection: Plan #120-2647)

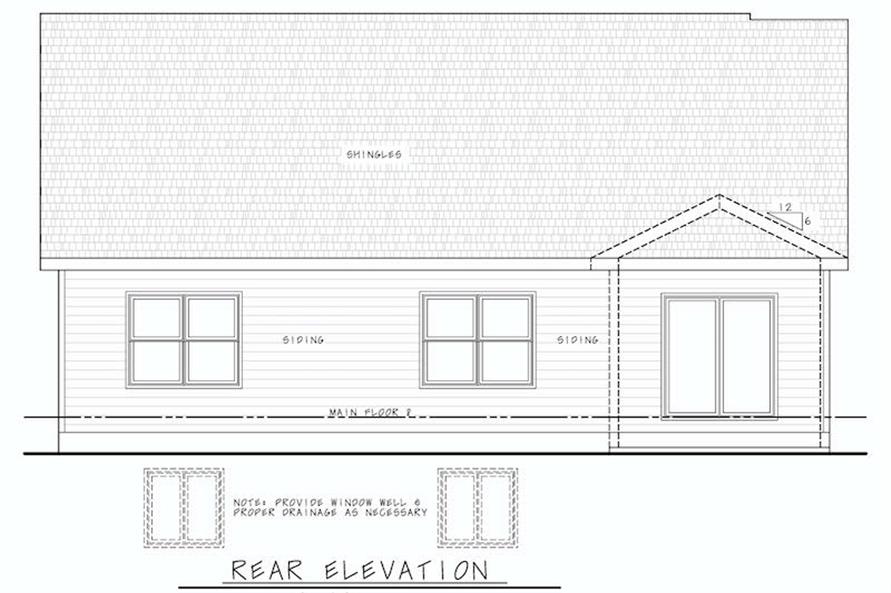

120-2647: Home Plan Rear Elevation

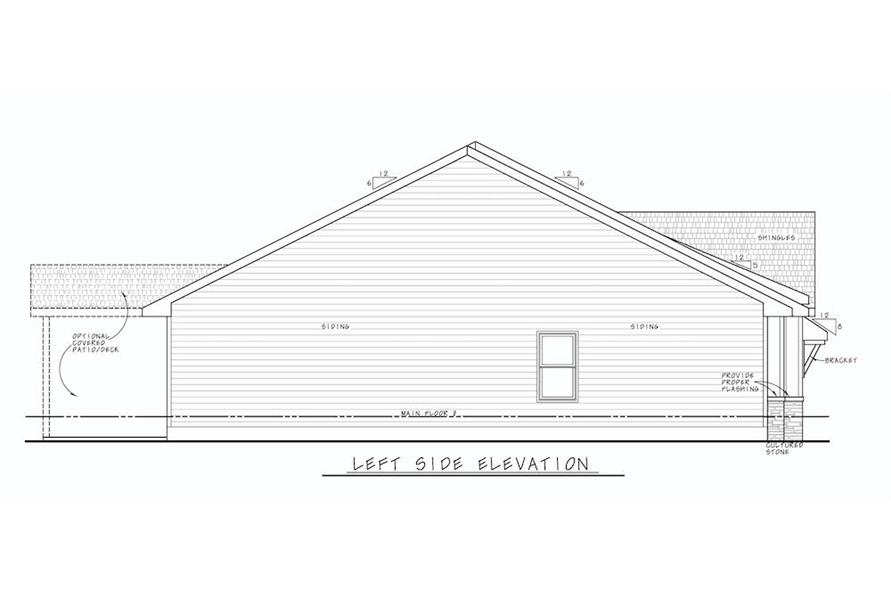

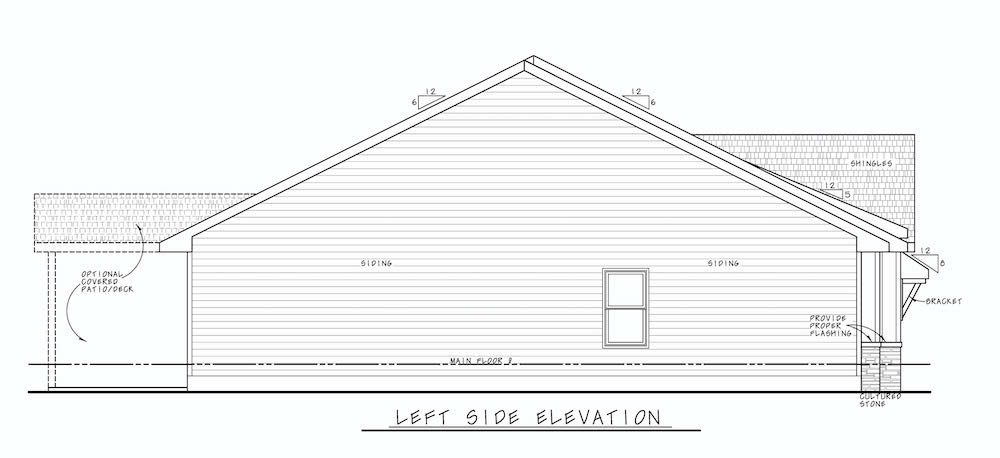

120-2647: Home Plan Left Elevation
120-2647: Home Plan Right Elevation
120-2647: Home Other Image-Front View

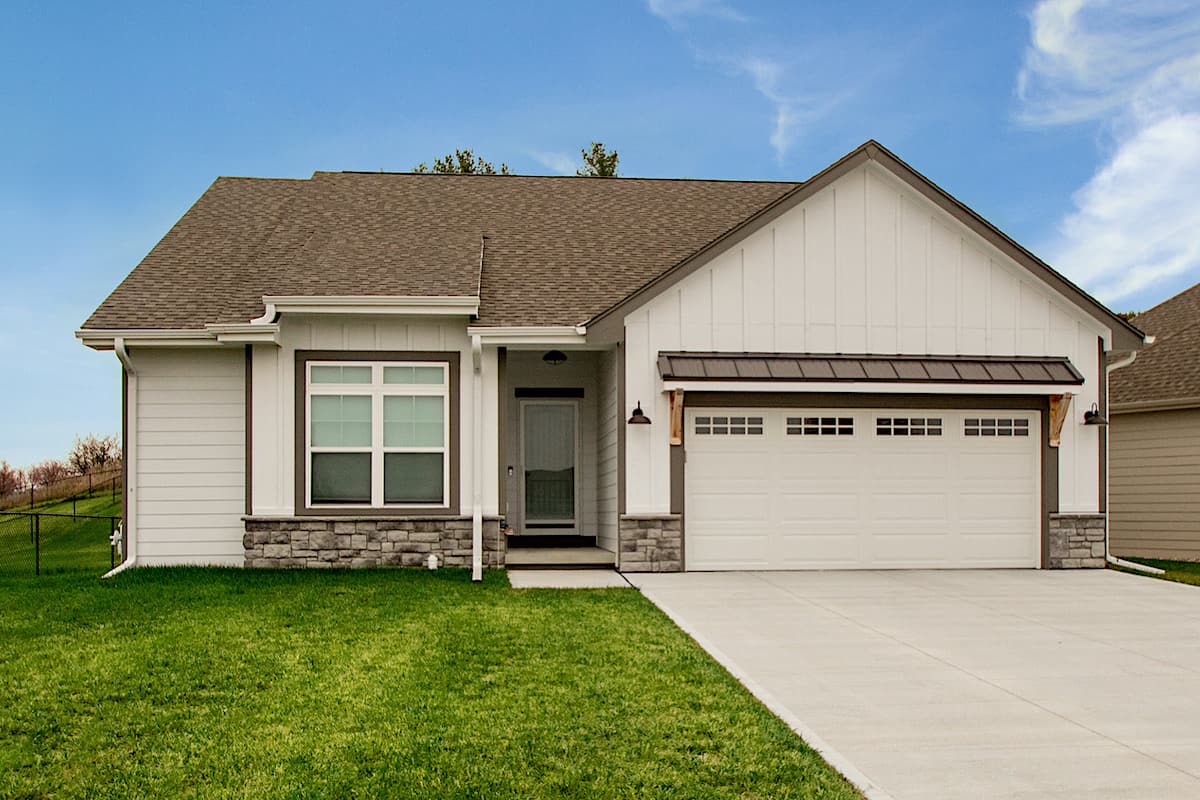

3-Bedroom, 1603 Sq Ft Ranch Home - Plan #120-2647 - Main Exterior
120-2647: Home Plan Rear Elevation
120-2647: Home Plan Left Elevation
120-2647: Home Plan Right Elevation
120-2647: Home Other Image-Front View

About Plan # 120-2647

About Plan # 120-2647

1603 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 42' 0" WIDTH 51' 0" DEPTH 2 GARAGE BAY

Easy and relaxing living is embodied in this Contemporary Ranch style home, with its calm and homey ambiance. The white vertical siding, stone wainscoting, and metal roofing accent give the house a gorgeous curb appeal. The well-done home's 1-story floor plan has 1603 square feet of heated and cooled living space and includes three bedrooms.

Most plan sets include the following:

  • Cover Page. Each home plan features the front elevation and informative reference sections including, general notes and design criteria*, abbreviations, and symbols for your plan.
  • Elevations. Scaled elevations for the front, rear, and sides are provided. All elevations are detailed and an aerial view of the roof is provided.
  • Foundations. Foundations are fully engineered for each design, whether slab or basement.
  • Main Level Floor Plan
  • Second Level Floor Plan
  • Electrical layout
  • Wall & Stair Sections

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

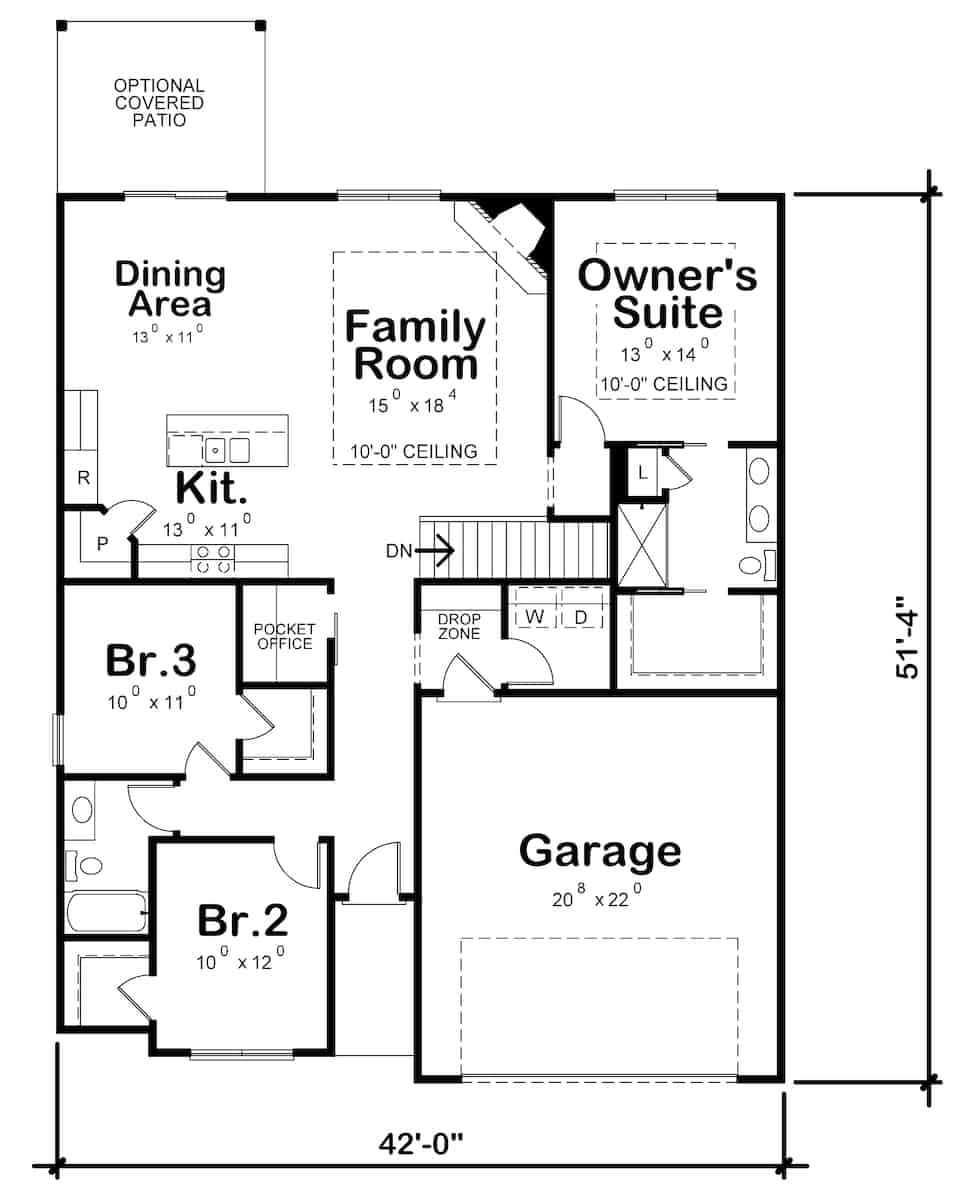

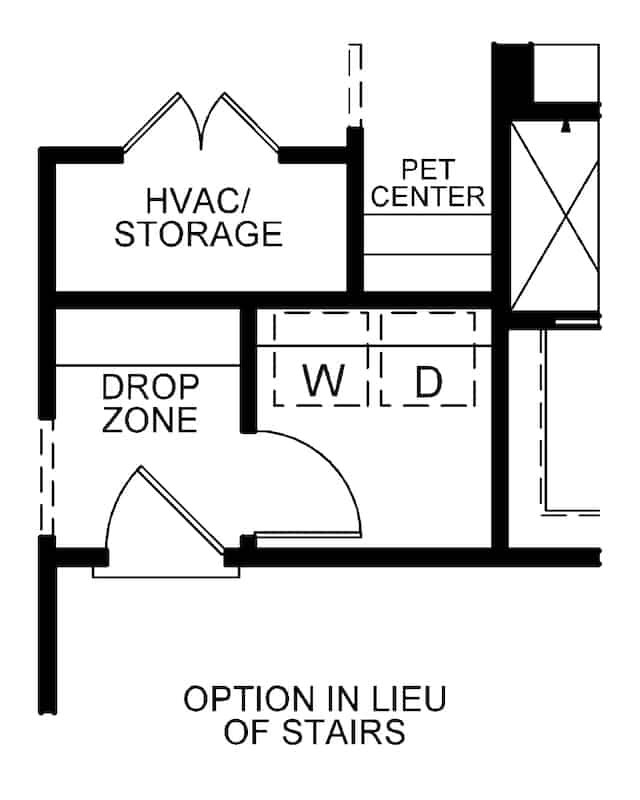

Home Plan: #120-2647 Floor Plan First Story - first story Floor Plan Main Level of Ranch Plan #120-2647
