3-Bedroom, 1585 Sq Ft Craftsman Plan with Main Floor Master
Related House Plans
Photographs may reflect modified designs. Copyright held by designer.
3-Bedroom, 1585 Sq Ft Craftsman Plan with Main Floor Master
| 1585 SQUARE FEET | 3 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 2 FLOOR | 36' 0" WIDTH | 40' 4" DEPTH | 2 GARAGE BAY |
This two-story home offers a functional plan perfect for a growing family. When you have guests, you can entertain them in the formal living and dining rooms, which are open to one another to create a sense of space. The kitchen is perfect because of the amount of space provided and the openness to the family room. You can even enjoy meals outdoors on the rear deck. Upstairs, all three bedrooms have plenty of closet space. The master bedroom has a private bath and the other two bedrooms share a bathroom in the hall. This home also includes a laundry area, a half bath, and a two-car garage; it is sure to be the perfect space for your family.
Each plan set includes the following:
- Front, Back & Side Elevations
- Floor Plans
- Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
- Roof Plan (Birdseye view)
- Foundation Layout
- Wall & Stair Sections
- Cross Section
- Kitchen Layout
- General Notes
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Framing layouts with beam sizes and locations.
- Energy calculations - handled locally when required.
Write Your Own Review
FLOOR PLANS Flip Images

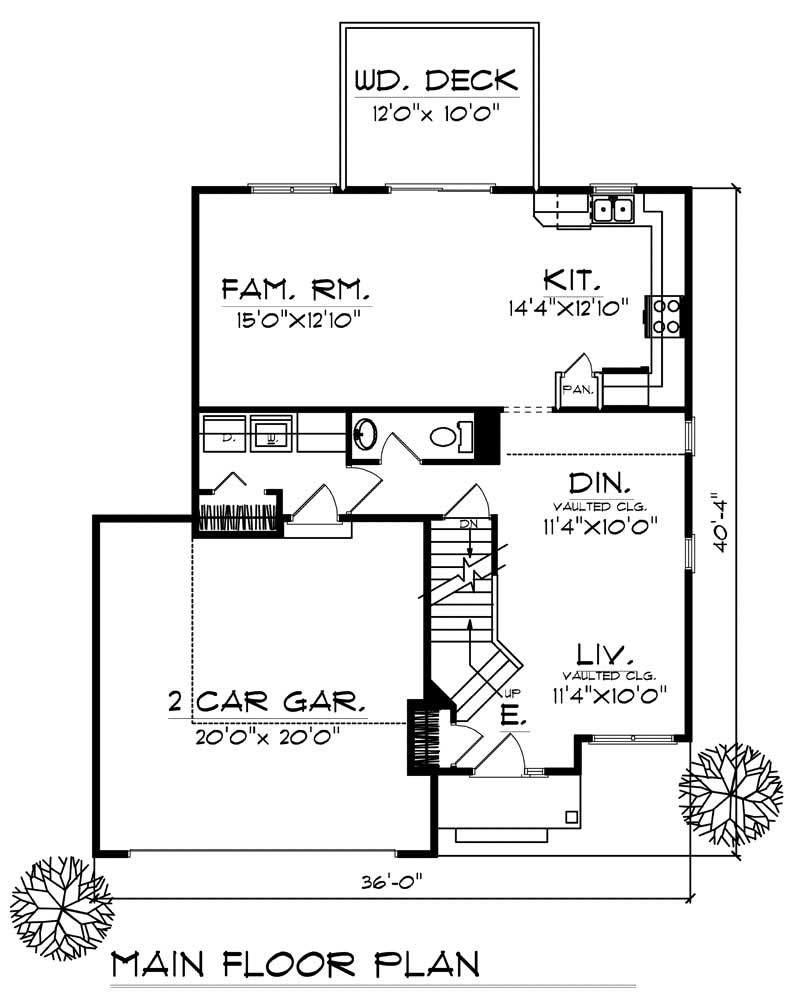

Home Plan: #101-1613 Floor Plan First Story
-
main
![Floor Plan First Story of Craftsman Plan #101-1613]( "MAIN FLOOR PLAN")

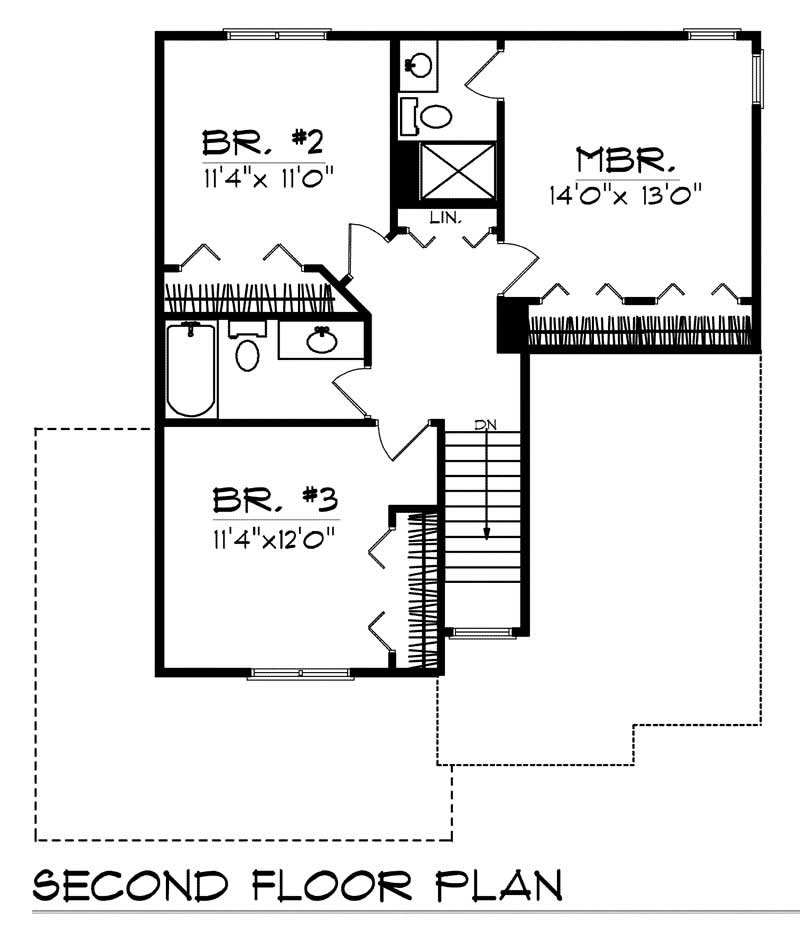

#101-1613 Floor Plan Second Story
-
second
![Floor Plan Second Story of Craftsman Plan #101-1613]( "SECOND FLOOR PLAN")
Home Plan: #101-1613 Floor Plan First Story
-
main
![Floor Plan First Story of Craftsman Plan #101-1613]( "MAIN FLOOR PLAN")
#101-1613 Floor Plan Second Story
-
second
![Floor Plan Second Story of Craftsman Plan #101-1613]( "SECOND FLOOR PLAN")
Special Offer
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Plan #:
# 101-1613
Floors:
2
Bedrooms:
3
Full Baths:
2
Square Footage
Heated Sq Feet:
1585
Main Floor:
854
Upper Floor:
731
Unfinished Sq Ft:
Dimensions
Width:
36' 0"
Depth:
40' 4"
Architectural Styles
Craftsman
Traditional
Exterior Wall Material
Vinyl Siding
Roof Pitch
6/12
Ceiling Height
8 Foot Ceiling
Special Feature
Dining Room
Family Room
Guest Room
Garage Type
Attached Garage
Building Lot Type
Narrow Lot Design
Additional Notes from Designer
HOLIDAY HOURS FOR THIS DESIGNER: Please note that this designer's office will be closed from 12/22/2021 until 1/4/2022. Any orders placed in this time frame will be fulfilled after the Designer returns on 1/4/2022.
PRICING OPTIONS
Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.
Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.
A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.
A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.
For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
