Transitional Homeplans - Home Design HPD-B2008

About House Plan #140-1059

1217

Sq Ft

2

Bedrooms

2

Baths

0

Half Baths

2

Cars

1

Stories

39' 0'

Width

47

Depth

Starting at$745.00What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Free Cost Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

Share Plans

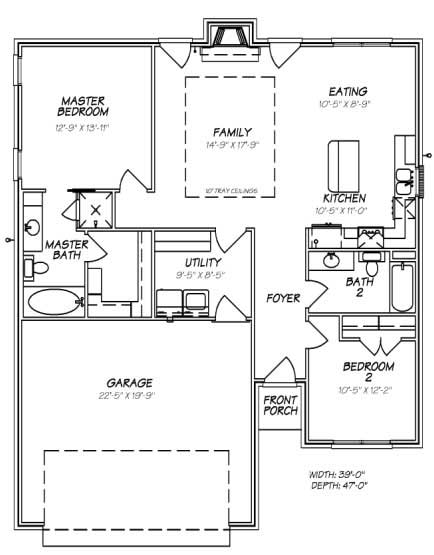

Floor Plan First Story

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

House Plan Description

This House Plan is HPD-B2008, and it is all about fulfilling needs. It is a very practical design with a cozy floor plan and tons of curb appeal.

Home Details

Summary

Plan #:140-1059

Starting at:$745.00

Floors:1

Bedrooms:2

Full Baths:2

Half Baths:0

Garage:

Square Footage

Heated Area:1217 Sq. Ft.

First Floor:1217 Sq. Ft.

Unheated Area:

Dimensions

Architectural Styles

Transitional

Exterior Wall Material

Brick

Roofing Type

Hip

Roofing Material

Asphalt Shingles

Roof Pitch

7/12

Special Feature

FireplaceDining RoomMud RoomFamily RoomMain Level LaundrySplit BathroomVaulted Ceilings

Garage Type

Attached GarageFront Entry

Fireplaces

One Fireplace

Building Lot Type

Flat SiteNarrow Lot Design

Kitchen Features

Kitchen IslandNook/Breakfast AreaEat-In Kitchen

Master Suite Features

Main Floor MasterMaster BathroomWalk In Closet

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.

GENERAL NOTES

FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.

FRONT, REAR, AND SIDE ELEVATIONS:The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.

CROSS SECTIONS AND INTERIOR DETAILS:Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Window Specifications to e provided by Manufacturer

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
