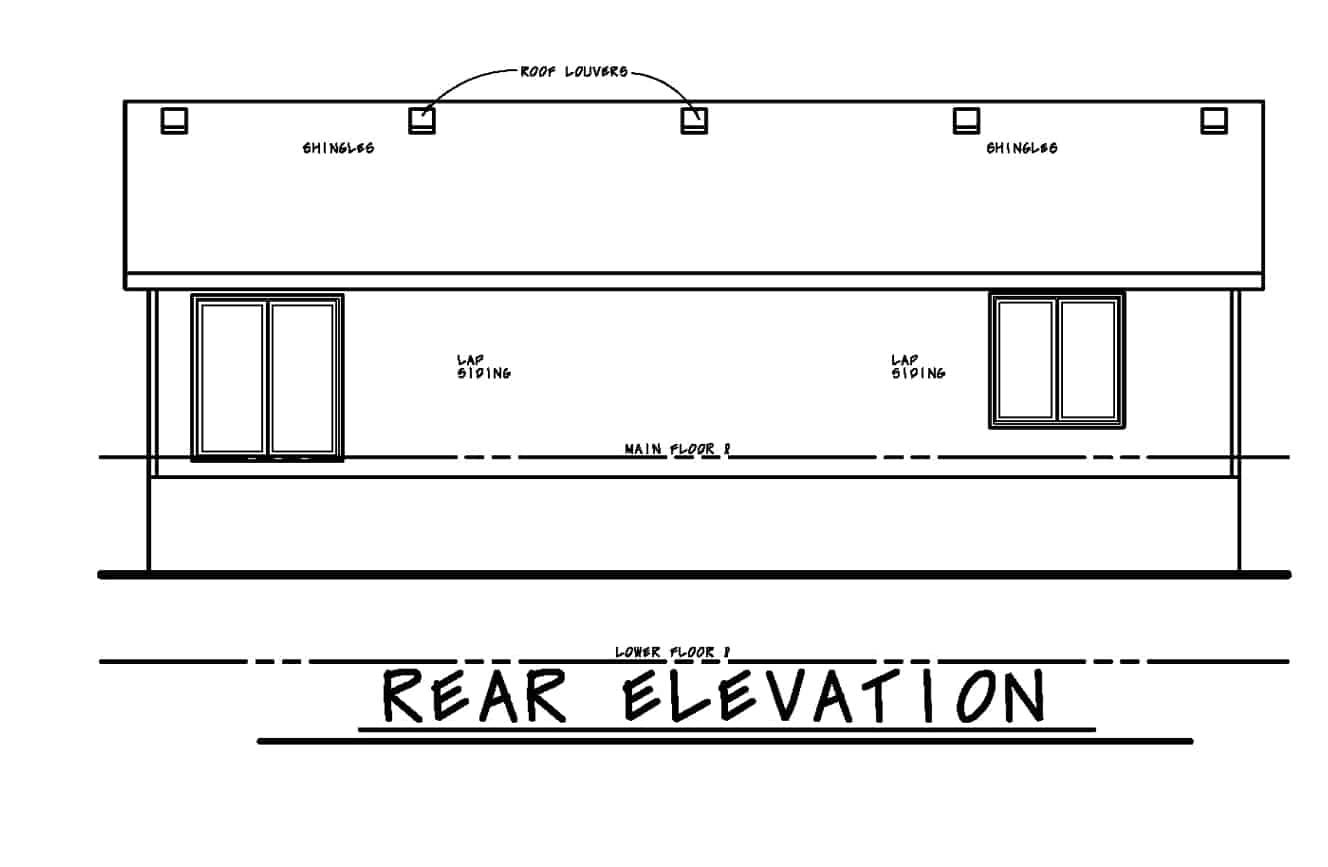

120-2614: Home Plan Rear Elevation

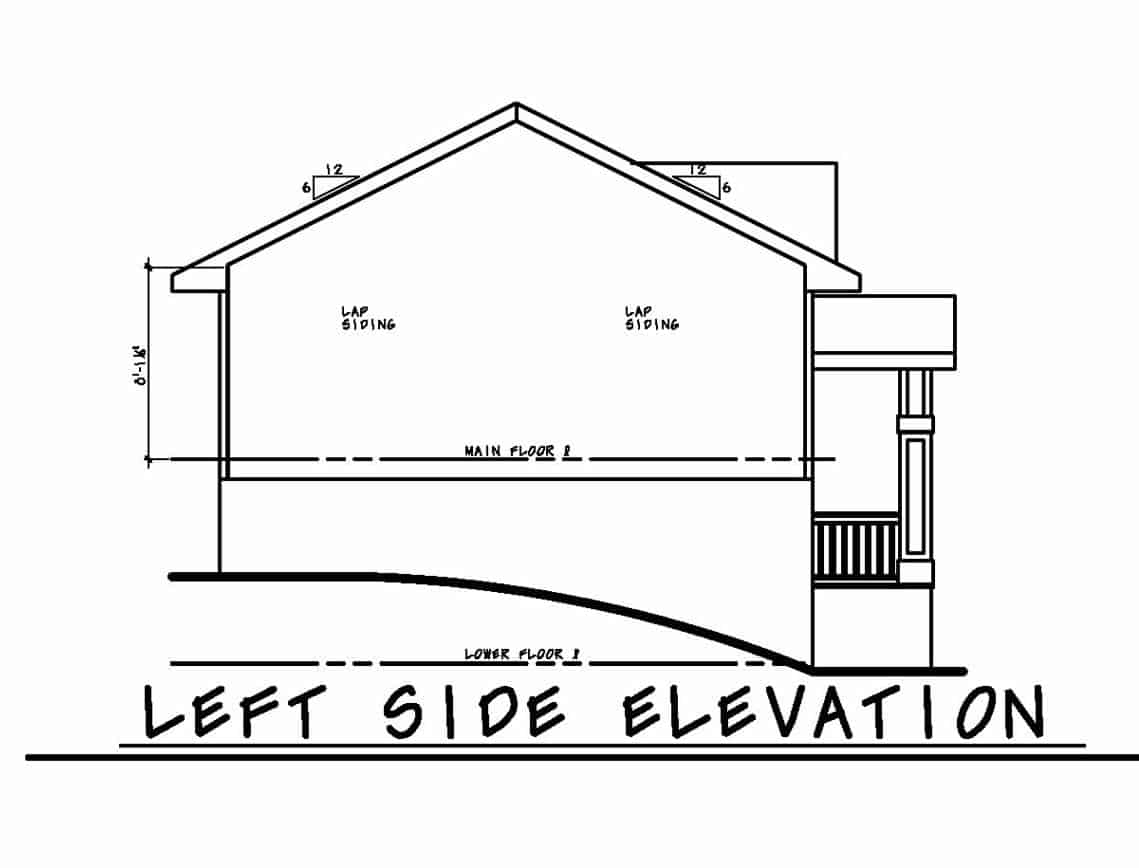

120-2614: Home Plan Left Elevation

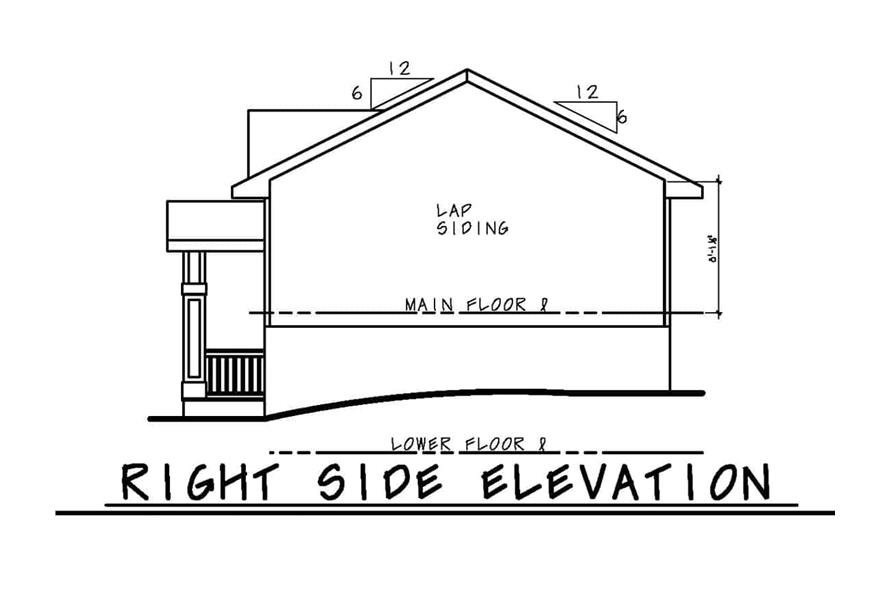

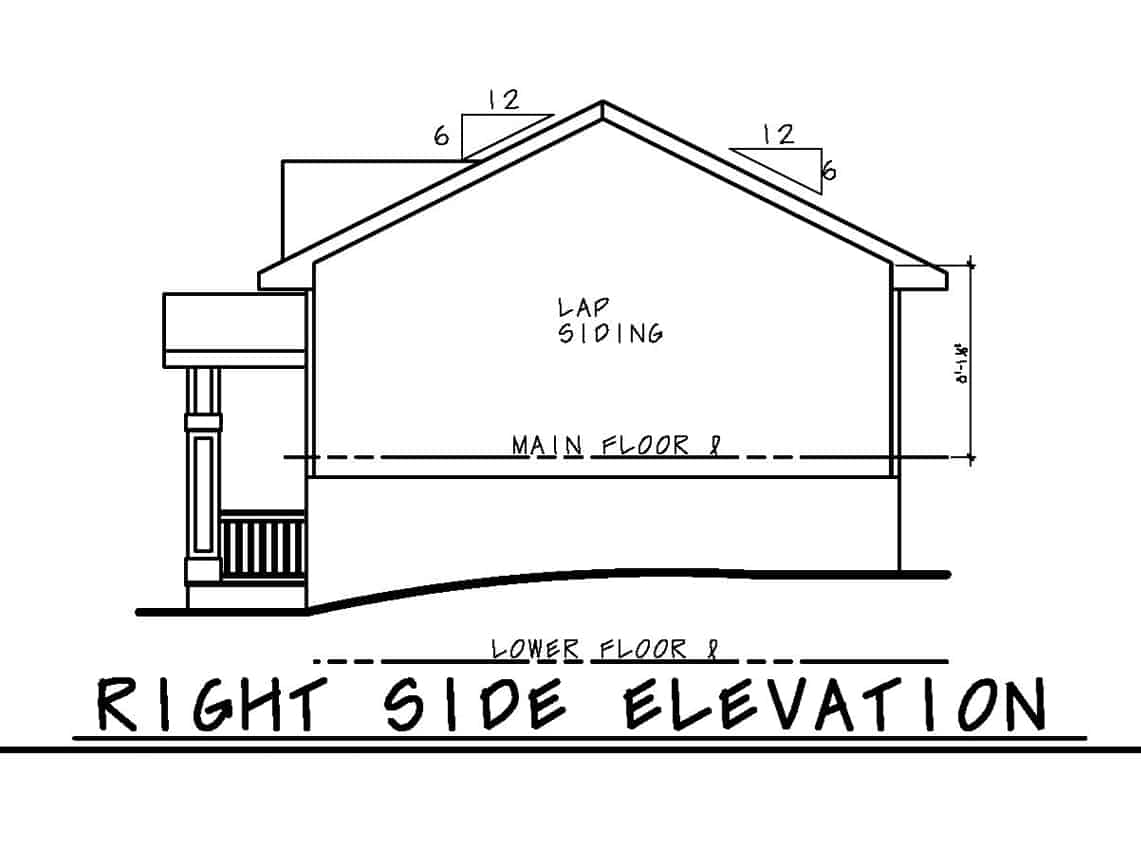

120-2614: Home Plan Right Elevation
120-2614: Home Exterior Photograph-Right Side View
120-2614: Home Other Image-Left Side View
3-Bedroom, 1150 Sq Ft Multi-Level Home - Plan #120-2614 - Main Exterior

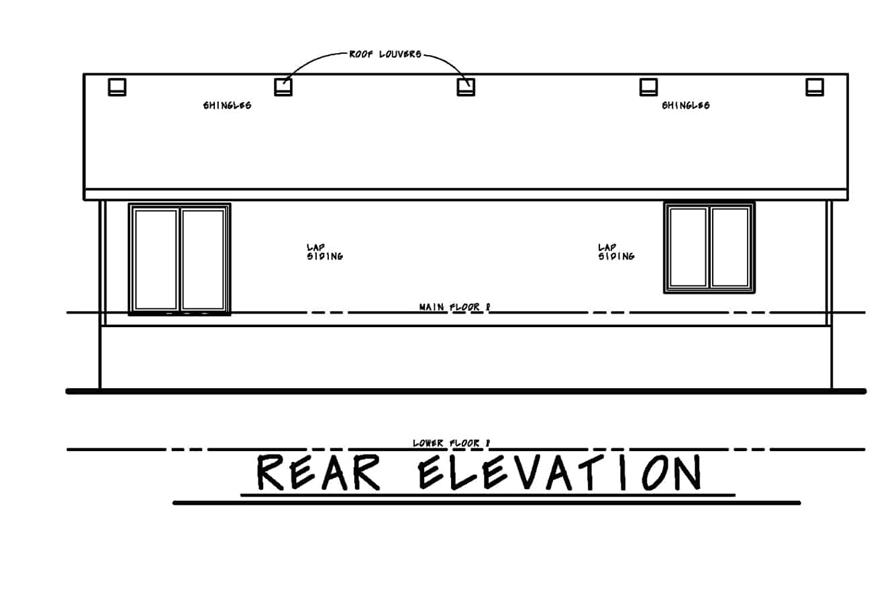

120-2614: Home Plan Rear Elevation

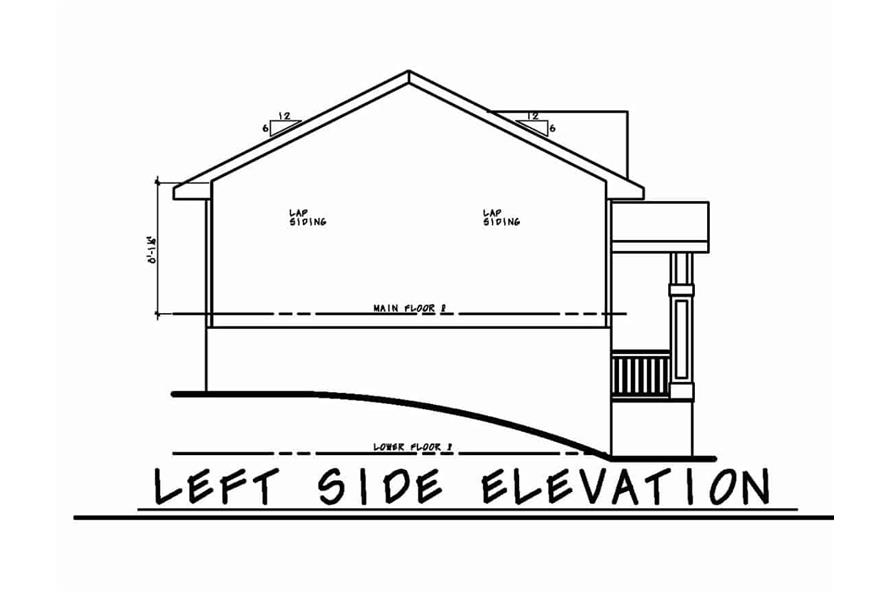

120-2614: Home Plan Left Elevation
120-2614: Home Plan Right Elevation
120-2614: Home Exterior Photograph-Right Side View
120-2614: Home Other Image-Left Side View

About Plan # 120-2614

About Plan # 120-2614

1150 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 46' 0" WIDTH 30' 0" DEPTH 2 GARAGE BAY

You'll appreciate the practical design and layout of this wonderful split-level Traditional style home. This house covers a total heated and cooled floor area of 1,150 square feet of comfort and convenience for its residents.



Most plan sets include the following:

  • Cover Page. Each home plan features the front elevation and informative reference sections including, general notes and design criteria*, abbreviations, and symbols for your plan.
  • Elevations. Scaled elevations for the front, rear, and sides are provided. All elevations are detailed and an aerial view of the roof is provided.
  • Foundations. Foundations are fully engineered for each design, whether slab or basement.
  • Main Level Floor Plan
  • Second Level Floor Plan
  • Electrical layout
  • Wall & Stair Sections

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

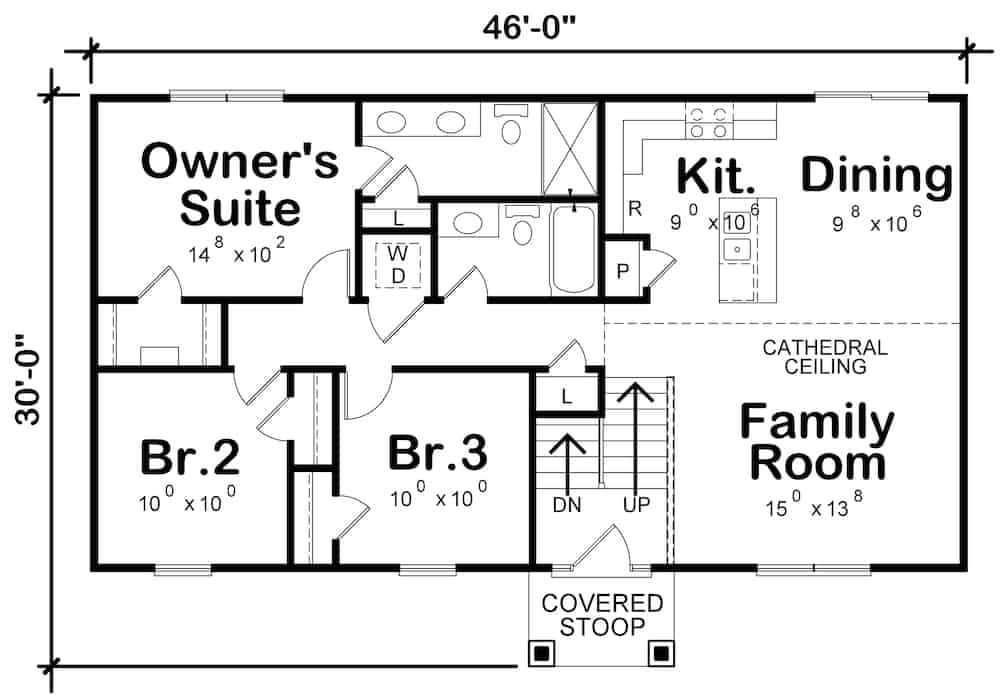

Home Plan: #120-2614 Floor Plan First Story - main level Floor Plan Main Level of Traditional Plan #120-2614
#120-2614 Floor Plan Basement - basement Floor Plan Basement of Traditional Plan #120-2614
Home Plan: #120-2614 Floor Plan First Story - main level Floor Plan Main Level of Traditional Plan #120-2614
#120-2614 Floor Plan Basement - basement Floor Plan Basement of Traditional Plan #120-2614
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 120-2614
Floors:
1
Bedrooms:
3
Full Baths:
2
Garage :
2

Square Footage

Heated Sq Feet:
1150
Main Floor:
1150
Unfinished Sq Ft:
Garage :
641

Dimensions

Width:
46' 0"
Depth:
30' 0"
Ridge Height:
24' 0"

Architectural Styles

Country
Multi-Level
Traditional

Exterior Wall Material

Vinyl Siding
Rock/Stone
Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Ceiling Height

9 Foot Ceiling
8 Foot Ceiling

Special Feature

Mud Room
Family Room
Main Level Laundry
Open Floor Plan

Garage Type

Attached Garage
Under Main Floor Entry

Exterior Wall Framing

2x4

Building Lot Type

Down Site
Side Slope Site

Kitchen Features

Kitchen Island
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Portico

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

PLEASE NOTE! If you order an optional foundation and a materials list, the materials list will NOT include the optional foundation, only the standard foundation. The designer can provide an updated materials list for a fee, so please ask for a quote!
