3-Bedroom, 1070 Sq Ft Ranch Plan with Eat-In Kitchen

Front elevation of Ranch home (ThePlanCollection: House Plan #153-1717)
3-Bedroom, 1070 Sq Ft Narrow Lot Ranch Home Plan - 153-1717 - Main Exterior

About Plan # 153-1717

About Plan # 153-1717

1070 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 29' 0" WIDTH 47' 2" DEPTH 1 GARAGE BAY

This bungalow ranch house plan offers excellent street appeal with its columns and rooflines. The design itself is ideal for a narrow lot, empty nesters, or a small family just starting out. Through the covered front entryway, you approach the main door to the home and enter a hallway that leads you to the hub of this home -- the great room and open-concept, eat-in kitchen. An eating bar with seating four divides the kitchen itself from the great room. At the rear of the home are the master suite with its own private bath and a large walk-in closet. Two additional bedrooms are at the front of the home and share a hall bath.

Each plan set includes the following:

  • FLOOR PLAN(S): Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF OVERVIEW PLAN: Dimensioned bird's-eye view of the roof showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • BUILDING SECTIONS AND MISCELLANEOUS DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • KITCHEN AND BATH ELEVATIONS: Showing the kitchen and bath details such as cabinets.
  • ELECTRICAL DIAGRAM: Bird's-eye view of rooms defining the location of lights, fans, switches, etc.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

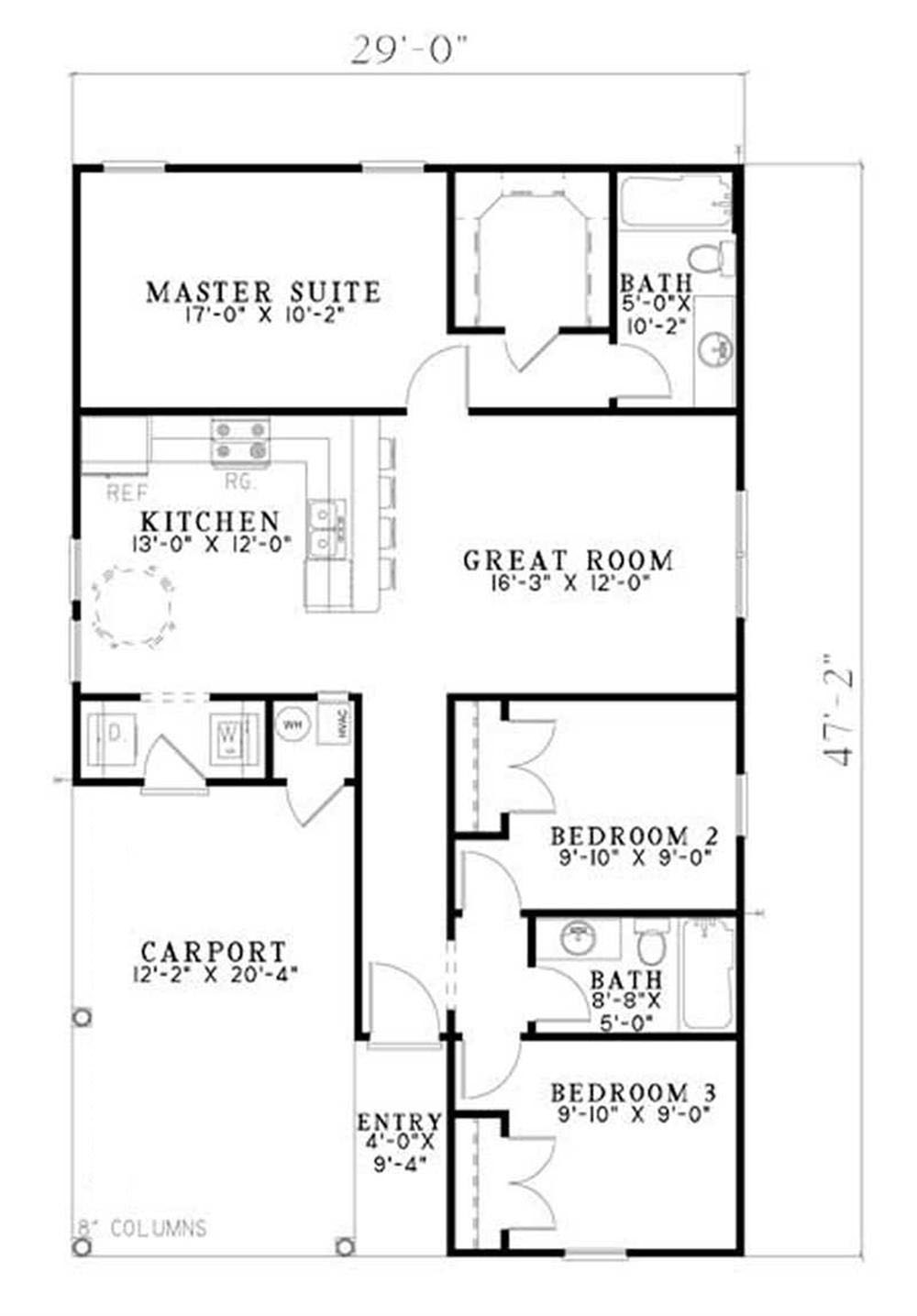

Home Plan: #153-1717 Floor Plan First Story - main level Floor Plan Main Level of Ranch Plan #153-1717
Home Plan: #153-1717 Floor Plan First Story - main level Floor Plan Main Level of Ranch Plan #153-1717
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 153-1717
Floors:
1
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
1070
Main Floor:
1070
Unfinished Sq Ft:
Garage :
260
Porch :
37

Dimensions

Width:
29' 0"
Depth:
47' 2"
Ridge Height:
16' 0"

Architectural Styles

Bungalow
Ranch
Small House Plans
Traditional

Exterior Wall Material

Vinyl Siding

Roof Pitch

6/12

Ceiling Height

9 Foot Ceiling

Special Feature

Main Level Laundry
Open Floor Plan

Garage Type

Carport
Front Entry

Exterior Wall Framing

2x4

Building Lot Type

Narrow Lot Design

Kitchen Features

Eat-In Kitchen
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch

Master Suite Features

Main Floor Master
Master Bathroom
Split Master Bedroom
Walk In Closet

Additional Notes from Designer

PLEASE NOTE: Plans by this designer do NOT usually come with FRAMING - some plans may have framing available for an extra fee - please contact us to find out about a specific plan & we will check with the designer!! Additionally: For this designer, if you choose optional features such as but not limited to: 2x6 framing, reverse or optional basement, the designer will need an additional 2-5 business days to adjust the plan accordingly. Please keep this in mind when choosing your shipping option. If you would like Express or Priority shipping, the designer will ship the plan to you using the method you choose but you will still have the 2-5 business day waiting period BEFORE they ship! Please feel free to contact us with any questions! PLEASE NOTE: Multi-licenses are available. Please contact us with any questions.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
