2-Bedroom, 2400 Sq Ft Coastal Plan with Master Bathroom

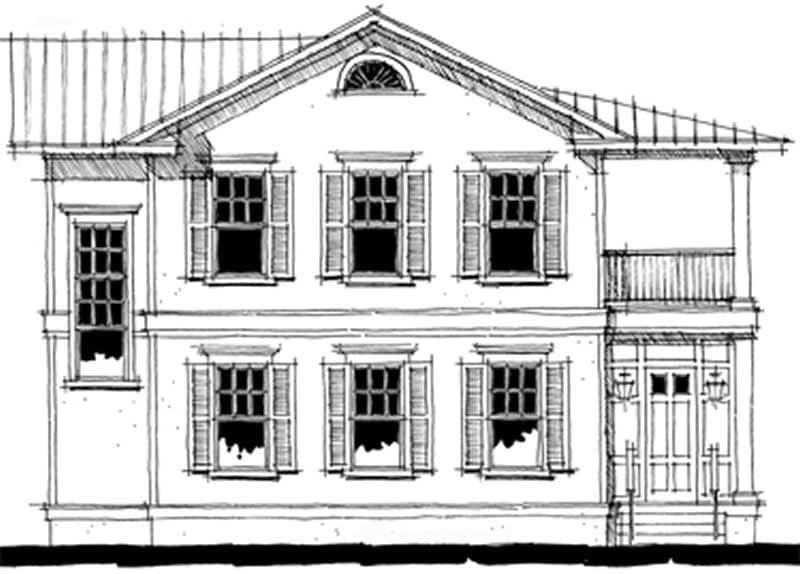

Front elevation of Coastal home (ThePlanCollection: House Plan #116-1055)

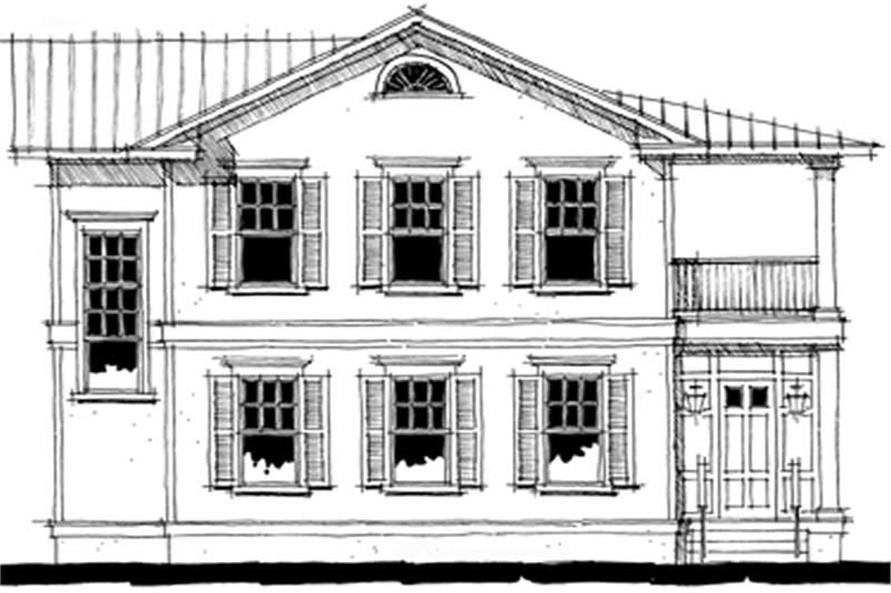

2-Bedroom, 2400 Sq Ft Coastal Home Plan - 116-1055 - Main Exterior

About Plan # 116-1055

About Plan # 116-1055

2400 SQUARE FEET 2 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 42' 0" WIDTH 101' 0" DEPTH 2 GARAGE BAY

Plan 116-1055 is perfect for entertaining, and provides elegant views through the porch to the pool beyond. Upstairs the master bedroom is spacious and the bath is perfect for two with a large shower, and spa tub. The second bedroom doubles as a guest room or home office.

Each plan set includes the following:

  • FLOOR PLAN: Showing views of each floor, looking down from above. The plans show window and door locations, room sizes, cabinets and fixtures.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings and concrete slabs.
  • ROOF & FLOOR STRUCTURE LAYOUTS: Shows the outline of the floor truss systems and slopes, valleys, ridges and hips on the roof.
  • ELECTRICAL LAYOUT: Shows the location of lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes wall sections.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

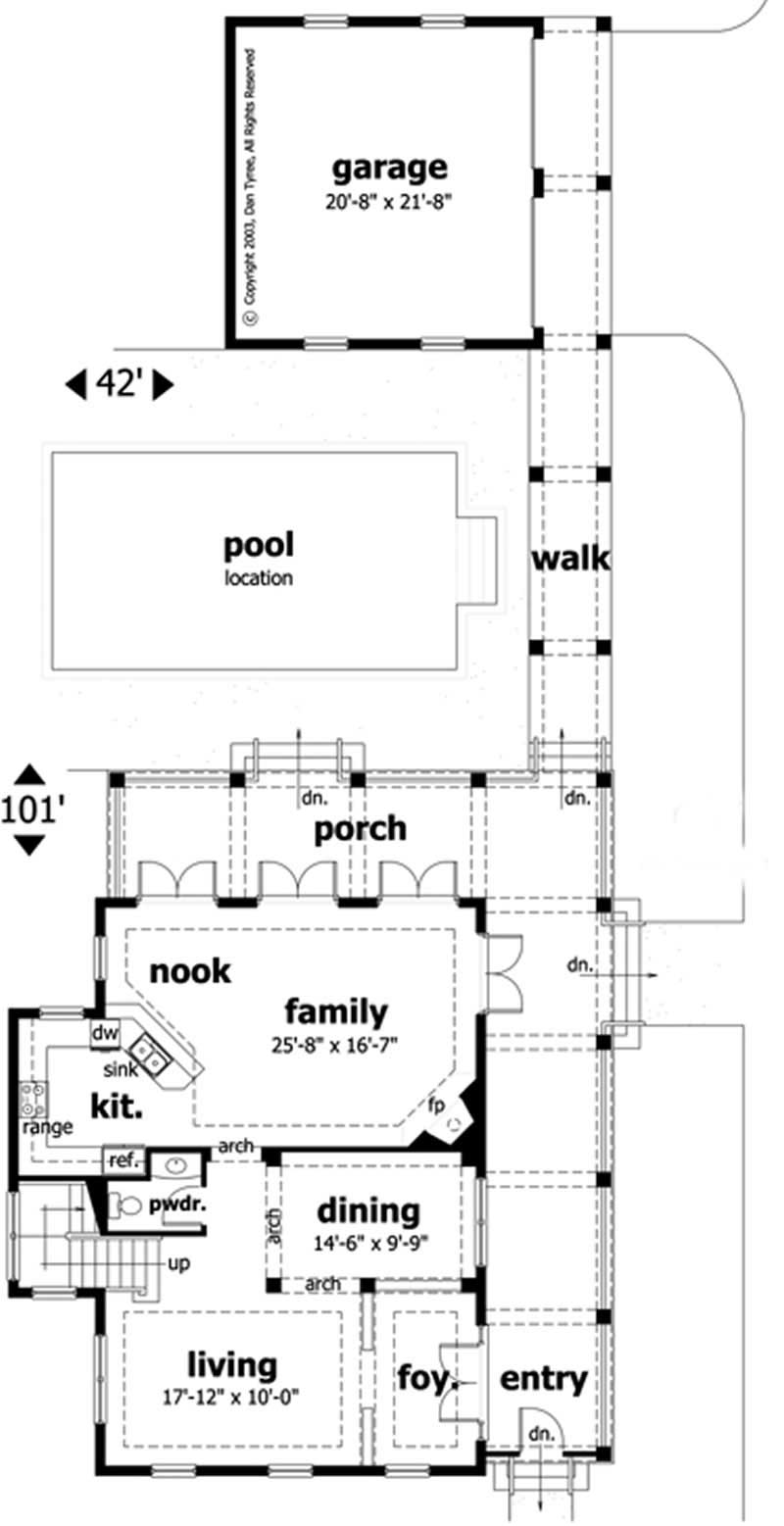

Home Plan: #116-1055 Floor Plan First Story - first s Floor Plan First Story of Coastal Plan #116-1055

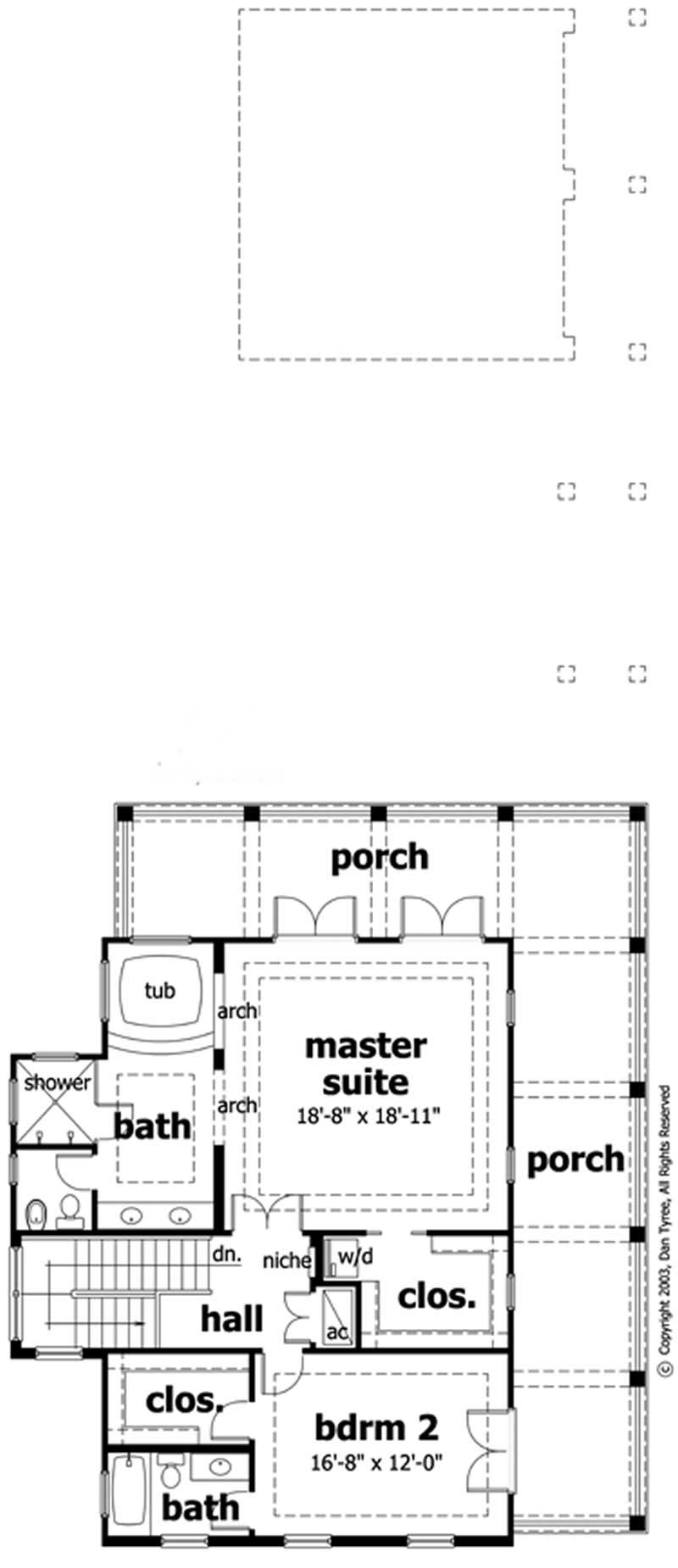

#116-1055 Floor Plan Second Story - second s Floor Plan Second Story of Coastal Plan #116-1055
Home Plan: #116-1055 Floor Plan First Story - first s Floor Plan First Story of Coastal Plan #116-1055
#116-1055 Floor Plan Second Story - second s Floor Plan Second Story of Coastal Plan #116-1055
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 116-1055
Floors:
2
Bedrooms:
2
Full Baths:
2

Square Footage

Heated Sq Feet:
2400
Main Floor:
1200
Upper Floor:
1200
Garage:
506
Unfinished Sq Ft:

Dimensions

Width:
42' 0"
Depth:
101' 0"
Ridge Height:
32' 0"

Architectural Styles

Coastal
Vacation Homes

Roofing Material

Metal

Roof Pitch

6/12

Ceiling Height

10 Foot Ceiling

Special Feature

Guest Room
Home Office
Main Level Laundry

Exterior Wall Framing

2x4

Building Lot Type

Narrow Lot Design

Porches and Exterior Features

Covered Front Porch

Additional Notes from Designer

CAD files for this plan will be delivered in both DXF (AutoCad readable) and Sketchup Pro formats.

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
