4-Bedroom, 3114 Sq Ft Colonial Plan with Master Bathroom

Main image for house plan # 9930
4-Bedroom, 3114 Sq Ft Colonial House Plan - 105-1078 - Front Exterior

About Plan # 105-1078

About Plan # 105-1078

3114 SQUARE FEET 4 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 40' 0" WIDTH 47' 0" DEPTH 2 GARAGE BAY
This home's facade features shuttered windows, keystones and transoms, as well as a two-story columned entry with elegant sidelights. Inside, the living room features a bow window, while on the other side of the foyer, the formal dining room enjoys windows on two sides. The kitchen serves the bright dinette over a handy snack bar. Through French doors, a backyard terrace provides an ideal location for a family barbecue or picnic. The terrace can also be accessed by another set of French doors from the family room, which boasts a fireplace. Upstairs, the master suite offers a walk-in closet and a private balcony accessed through French doors. The private, sky lighted bath features a whirlpool tub and an oversized shower. Three additional bedrooms each provide walk-in closets. They share a vaulted balcony and a centrally located hall bath with a linen closet. The blueprints include plans for a detached two-car garage.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes a typical wall section, special detail sections, and kitchen cabinet elevations.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and location
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

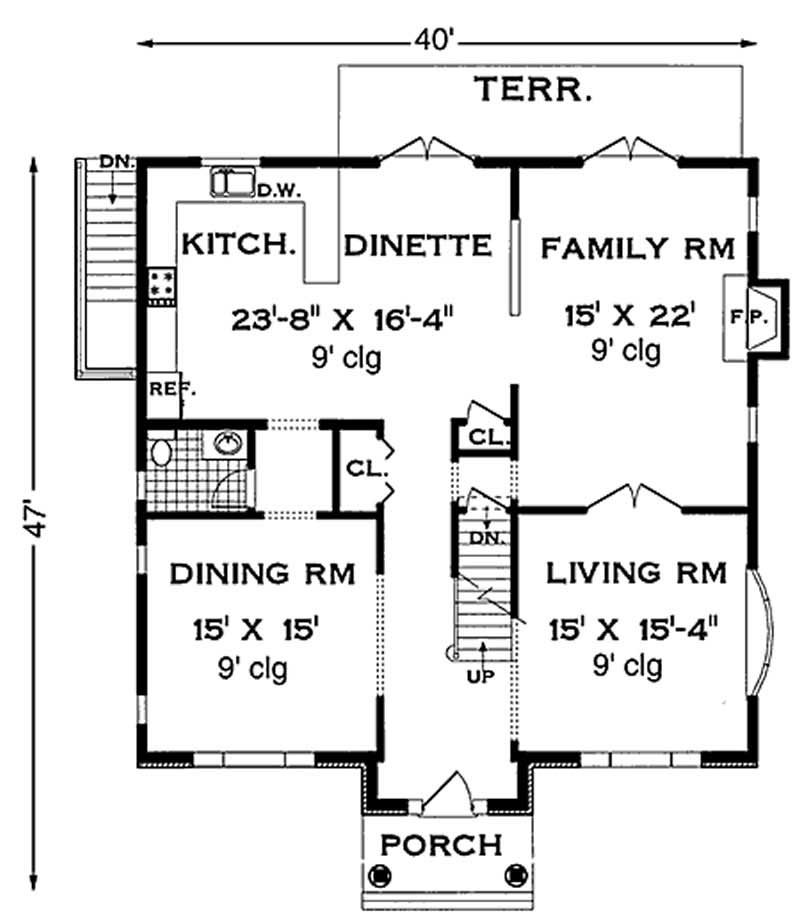

Home Plan: #105-1078 Floor Plan First Story - first s Floor Plan First Story of Colonial Plan #105-1078

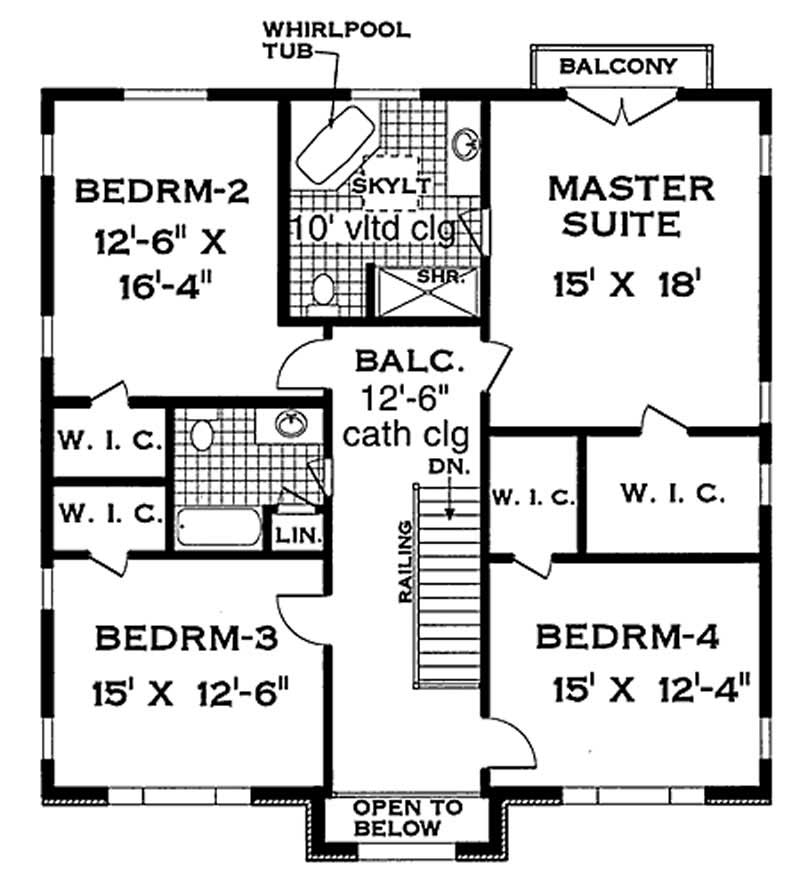

#105-1078 Floor Plan Second Story - second s Floor Plan Second Story of Colonial Plan #105-1078
Home Plan: #105-1078 Floor Plan First Story - first s Floor Plan First Story of Colonial Plan #105-1078
#105-1078 Floor Plan Second Story - second s Floor Plan Second Story of Colonial Plan #105-1078
