3-Bedroom, 1864 Sq Ft Ranch Plan with Covered Front Porch

About House Plan #132-1180

1864

Sq Ft

3

Bedrooms

2

Baths

0

Half Baths

2

Cars

1

Stories

54' 0'

Width

28

Depth

Starting at$1370.00What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Free Cost Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

Share Plans

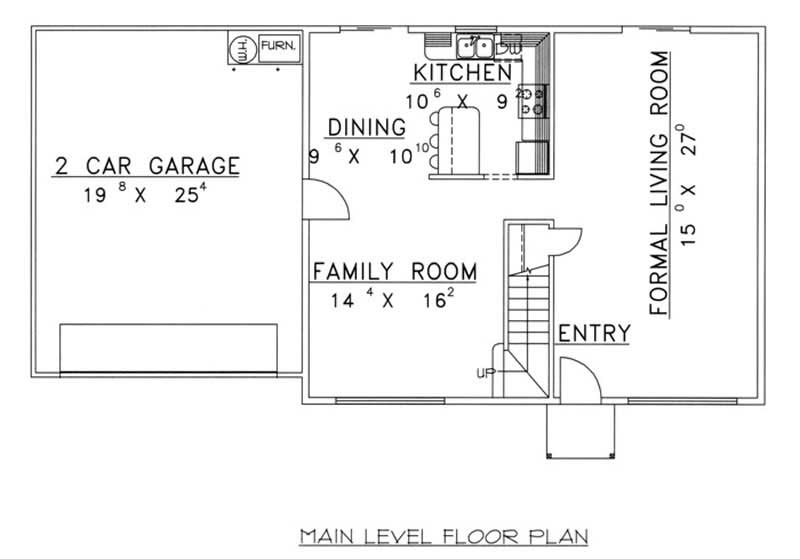

MAIN LEVEL FLOOR PLAN

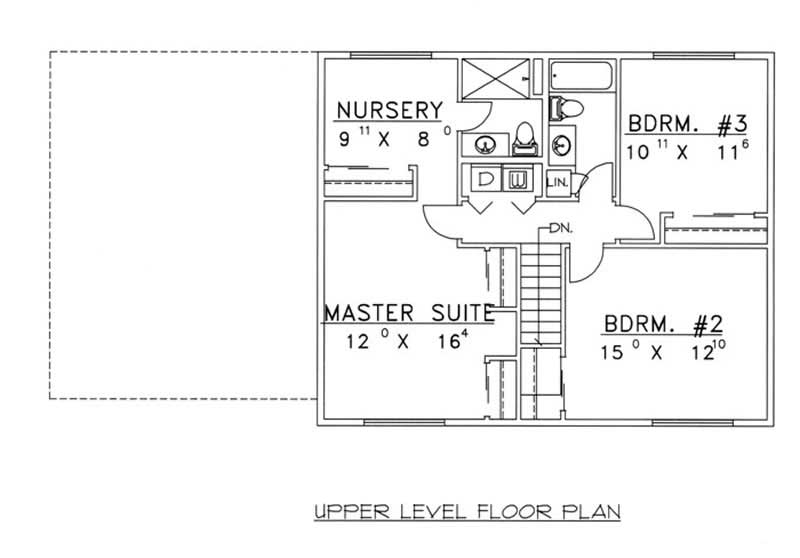

UPPER LEVEL FLOOR PLAN

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

PLEASE NOTE! The CAD - Unlimited package is NOT an unlimited license - it is a license to build up to 5 homes. ATTENTION! Printed sets can ONLY be sent via ground shipping. NO priority or express shipping is available. ATTENTION! Printed sets can ONLY be sent by ground - NO priority or express shipping on printed sets!

House Plan Description

Are you looking for a new home to call your refuge from the outside world? Your solutions have never been more clear. This 3-bedroom, 2-bathroom 1864 square foot floor plan is worth a closer look. The kitchen has a breakfast bar and an open informal dining space. There's also generous storage throughout plus enough room for the entire family! Don't forget about the inclusion of a nursery or an extra living area on top of everything else!

Home Details

Summary

Plan #:132-1180

Starting at:$1370.00

Floors:1

Bedrooms:3

Full Baths:2

Half Baths:0

Garage:

Square Footage

Heated Area:1864 Sq. Ft.

First Floor:952 Sq. Ft.

Second Floor:912 Sq. Ft.

Unheated Area:

Garage:572 Sq. Ft.

Dimensions

Ridge Height:24'5' 0''

Architectural Styles

Ranch Vacation Homes

Exterior Wall Material

Vinyl Siding

Roof Pitch

5/12

Ceiling Height

8 Foot Ceiling

Special Feature

Family Room

Garage Type

Attached Garage

Exterior Wall Framing

2x6

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

Exterior elevations: shows the home on all four sides, calls out exterior finishes, rooflines, window and door locations.

Floor plans: includes interior and exterior dimensions, window/door schedule, wall framing details.

Foundation plan: shows footing, stem wall, and slab placement, including all connection details.

Floor and roof framing plans show truss/rafter placements, including all beams/connection details.

Cross-sections: cut-through view of the structure from roof to foundation, shows framing, plate heights, insulation, etc.

Electrical layout

General notes/details to cover the entirety of the project

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
