3-Bedroom, 3091 Sq Ft Coastal Plan with Main Floor Master

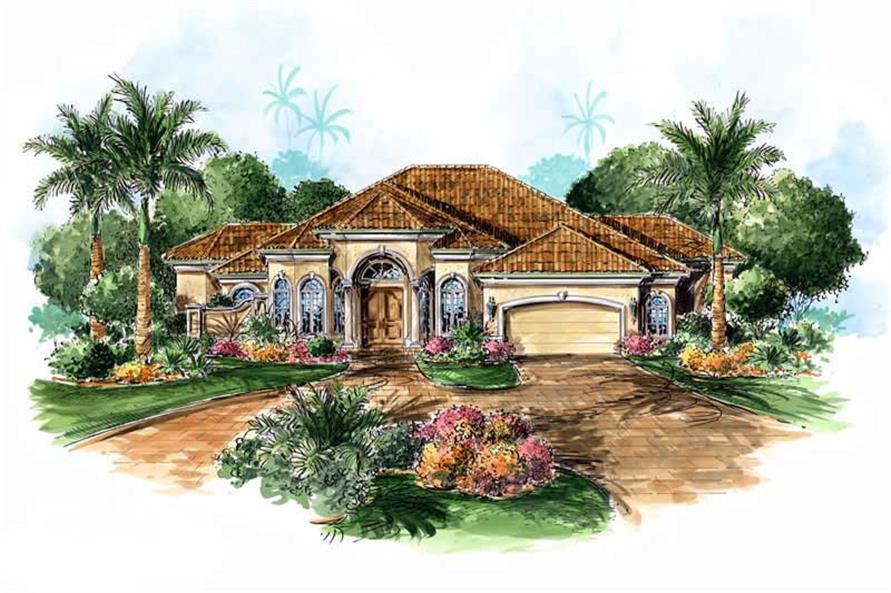

This image shows the Front Elevation for these Mediterranean House Plans.
3-Bedroom, 3091 Sq Ft Coastal House Plan - 175-1078 - Front Exterior

About Plan # 175-1078

About Plan # 175-1078

3091 SQUARE FEET 3 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 68' 4" WIDTH 84' 8" DEPTH 2 GARAGE BAY

Unforgettable rooms for living and entertaining in grand fashion highlight this elegant residence. Almost every ceiling features a different coffer detail. A distinctive octagonally shaped kitchen is spacious and multi functional, flowing into the breakfast nook and family room. The bedrooms feature a gallery entry, each having it's own bathroom. You can retreat to the master suite and enjoy a private garden view while relaxing in the jetted spa tub. All of the glass walls looking out onto the pool and lanai area will surely entice you. This plan is not for sale for use in Collier County, Florida or Lee County, Florida without the consent of the designer. Please contact us if you want to build this plan in those areas. Concrete block exterior construction

Each plan set includes the following:

  • Elevations
  • Floor Plans
  • Building Section Markers
  • Electrical Layout
  • Slab Plan
  • Roof Plan
  • Building Sections
  • Typical Wall Sections
  • Miscellaneous Notes & Details



Not Included with the Plan:

  • NO MEPs, NO Framing,
  • No Trusses: The client gets that from the truss manufacturer
  • No Engineering, You will need to get the plans stamped and engineered locally
  • HVAC and Plumbing is not included




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

Home Plan: #175-1078 Floor Plan First Story - first story Floor Plan First Story of Coastal Plan #175-1078
Home Plan: #175-1078 Floor Plan First Story - first story Floor Plan First Story of Coastal Plan #175-1078
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 175-1078
Floors:
1
Bedrooms:
3
Full Baths:
3

Square Footage

Heated Sq Feet:
3091
Main Floor:
3091
Unfinished Sq Ft:
Garage :
603

Dimensions

Width:
68' 4"
Depth:
84' 8"
Ridge Height:
27' 0"

Architectural Styles

Mediterranean
Coastal
Spanish
Concrete Block/ ICF Design
Florida Style

Exterior Wall Material

Stucco

Roofing Material

Tiles

Roof Pitch

6/12

Special Feature

Dining Room
Home Office
Family Room
Main Level Laundry
Split Bathroom
Storage
Den

Garage Type

Attached Garage
Front Entry

Building Lot Type

View Lot

Kitchen Features

Kitchen Island
Butler's Pantry
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar

Porches and Exterior Features

Covered Rear Porch
Covered Lanai

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

PLEASE NOTE: This designer has zip code restrictions and a 5-7 day processing time for their CAD and PDF orders. Please contact us to verify your zip code BEFORE you order!! 2x6 and Right-Reading Reverse options are available. PLEASE NOTE: The designer is currently not providing modifications. We suggest you purchase a CAD file and work with a local engineer for changes. Additionally, orders (including electronic formats) could take up to 5 days to be delivered or shipped. Thank you!

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
