About Plan # 139-1036

About Plan # 139-1036

3206 SQUARE FEET 3 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 97' 4" WIDTH 59' 5" DEPTH 3 GARAGE BAY

Master bedroom is on the first floor Isolated master bedroom This house plan can be modified Full reverse is available on this home plan Material list is not available Specifications available for this plan Baby blues not available Vellum available for this plan CAD file not available Full reverse available for this plan 2x4 exterior wall

Each plan set includes the following:

  • Foundation Plan
  • Floor Plan
  • Window Listing
  • Square Footage Breakdown
  • Electrical Layout
  • Elevations
  • Building/Cross Sections
  • Roof Layout (Birdseye View)

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

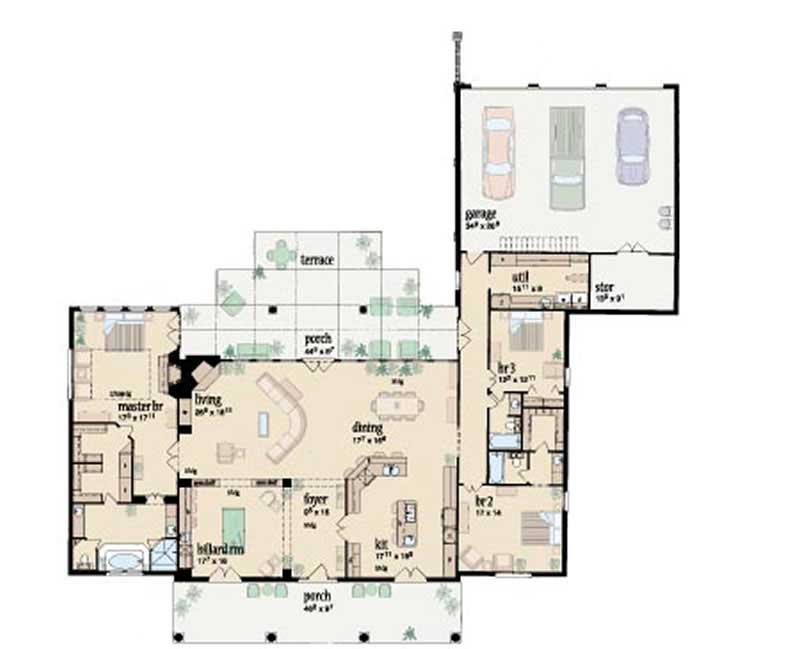

Home Plan: #139-1036 Floor Plan First Story - main Floor Plan First Story of Ranch Plan #139-1036
