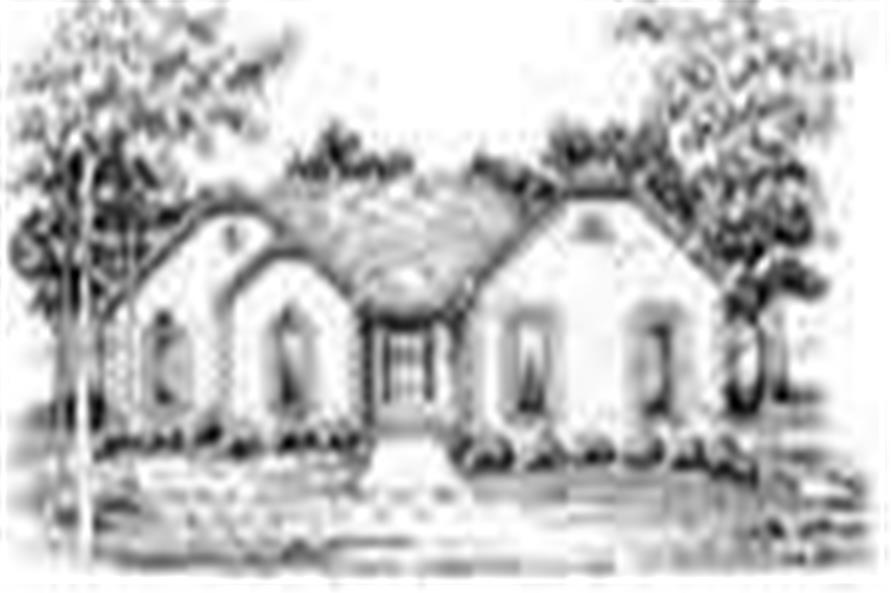

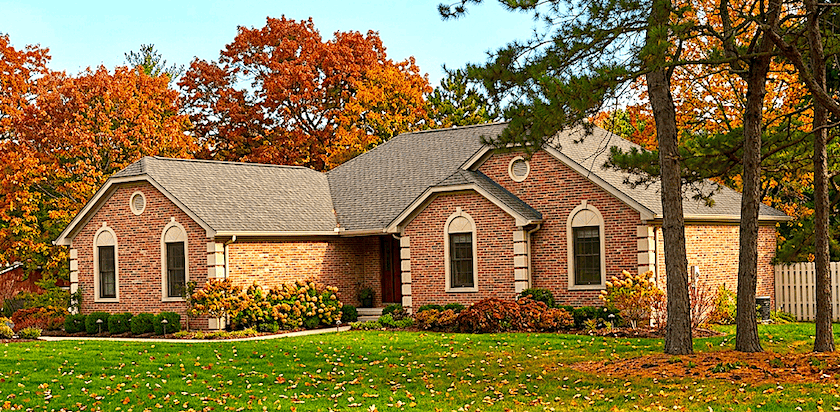

Front elevation of Ranch home (ThePlanCollection: House Plan #124-1016)
3-Bedroom, 1741 Sq Ft Ranch House Plan - 124-1016 - Front Exterior

About Plan # 124-1016

About Plan # 124-1016

1741 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 56' 0" WIDTH 52' 0" DEPTH 2 GARAGE BAY

This attractive Ranch style home with Traditional aspects has 1741 living sq ft. The 1-story floor plan includes 3 bedrooms.

Each plan set includes the following:

  • Cover sheet
  • Foundation plan
  • Floor plans
  • Exterior elevations
  • Building cross-sections
  • Typical wall section
  • Basic details
  • Specification notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

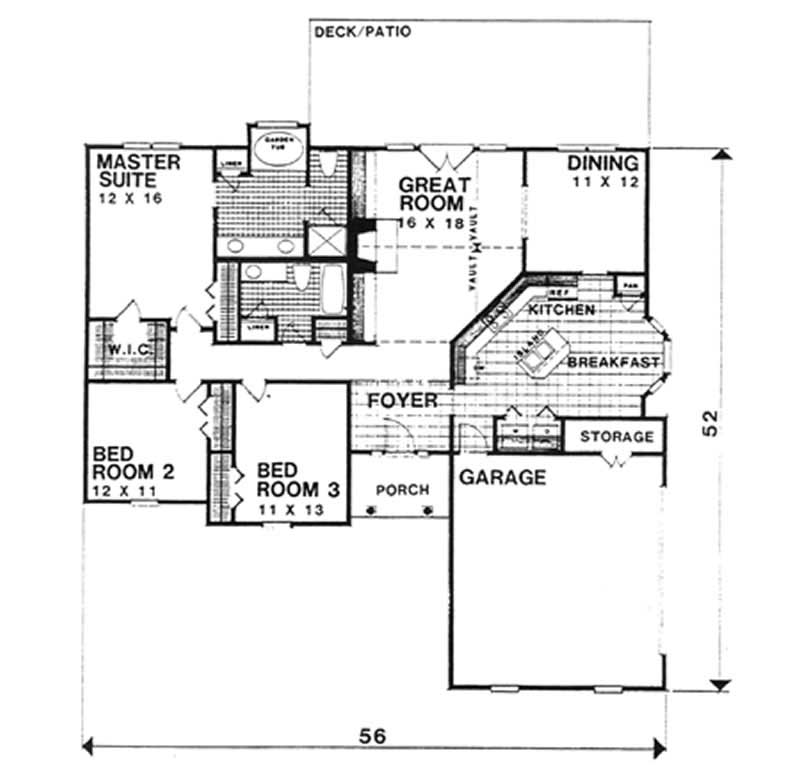

Home Plan: #124-1016 Floor Plan First Story - first Floor Plan First Story of Ranch Plan #124-1016
Home Plan: #124-1016 Floor Plan First Story - first Floor Plan First Story of Ranch Plan #124-1016
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 124-1016
Floors:
1
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
1741
Main Floor:
1741
Unfinished Sq Ft:

Dimensions

Width:
56' 0"
Depth:
52' 0"

Architectural Styles

Ranch
Traditional

Exterior Wall Material

Stucco

Garage Type

Attached Garage

Fireplaces

One Fireplace

Porches and Exterior Features

Covered Front Porch
Patio

Master Suite Features

Main Floor Master

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
