3-Bedroom, 1620 Sq Ft Small House Plans Plan with Sundeck

Front elevation of Small House Plans home (ThePlanCollection: House Plan #124-1159)

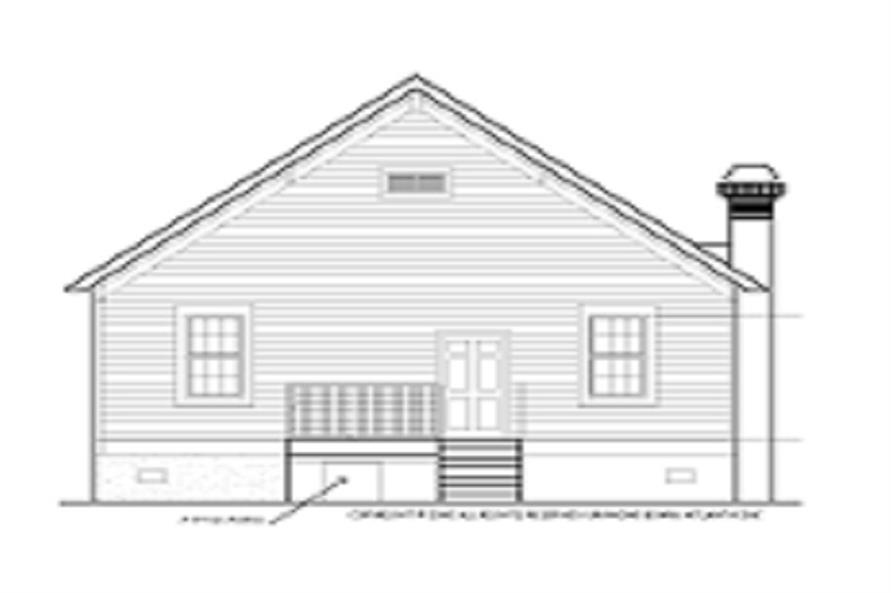

124-1159 house plan rear elevation
3-Bedroom, 1620 Sq Ft Small House Plans - 124-1159 - Front Exterior
124-1159 house plan rear elevation

About Plan # 124-1159

About Plan # 124-1159

1620 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 32' 0" WIDTH 64' 0" DEPTH 0 GARAGE BAY

This lovely bungalow-style home (House Plan #124-1159) has 1620 square feet of living space. The 1 story floor plan includes 3 bedrooms. This is a great house plan for narrow lots in urban areas.

Each plan set includes the following:

  • COVER SHEET
  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes typical wall section.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

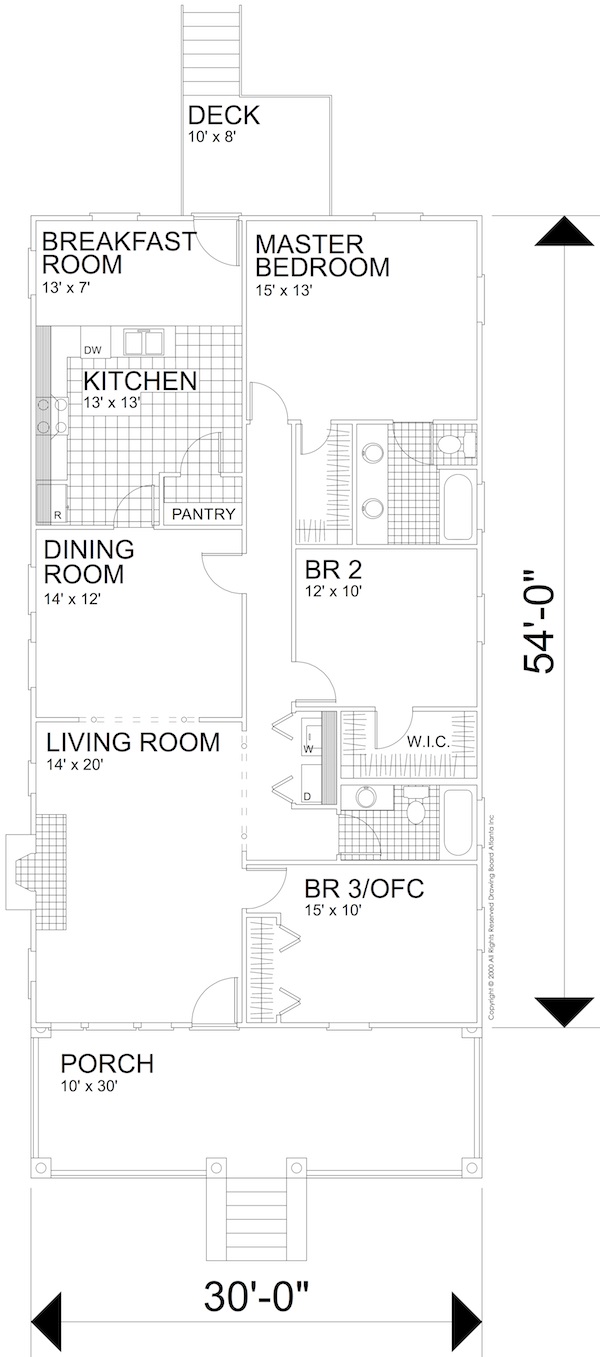

Home Plan: #124-1159 Floor Plan Basement - main level Floor Plan Basement of Small House Plans #124-1159
