5-Bedroom, 4991 Sq Ft Colonial Plan with Pet Grooming Room

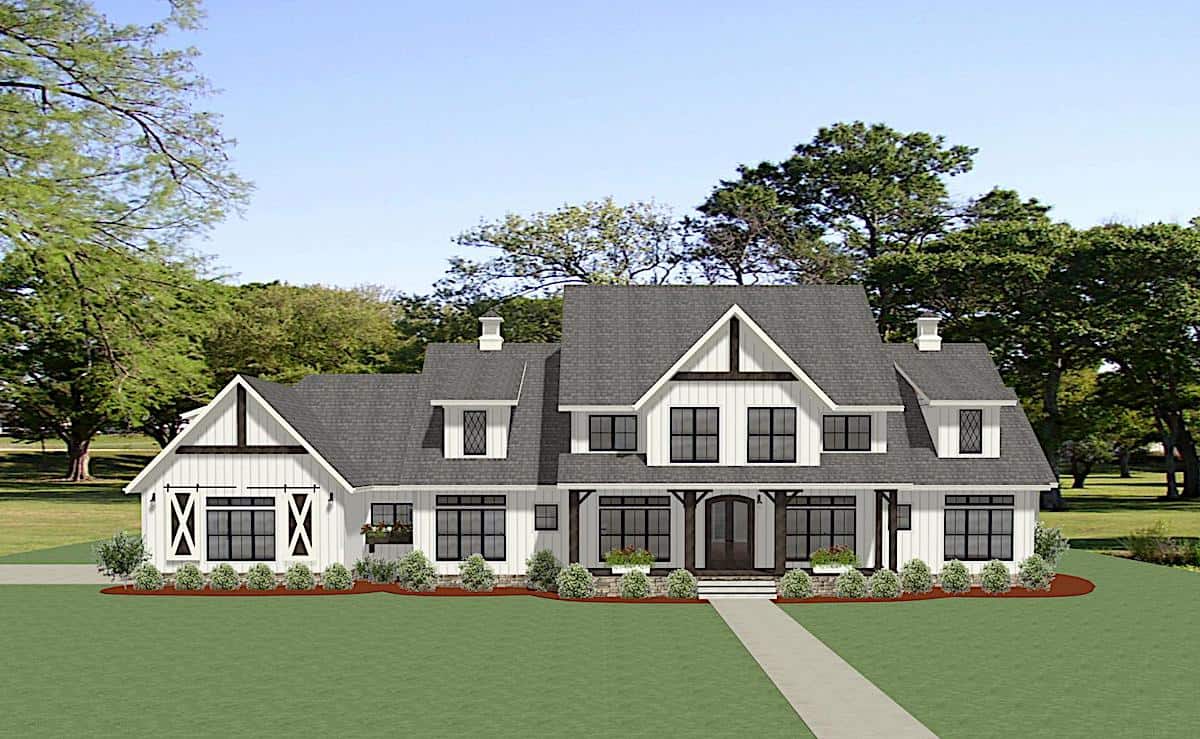

Front elevation of Colonial home (ThePlanCollection: House Plan #189-1138)

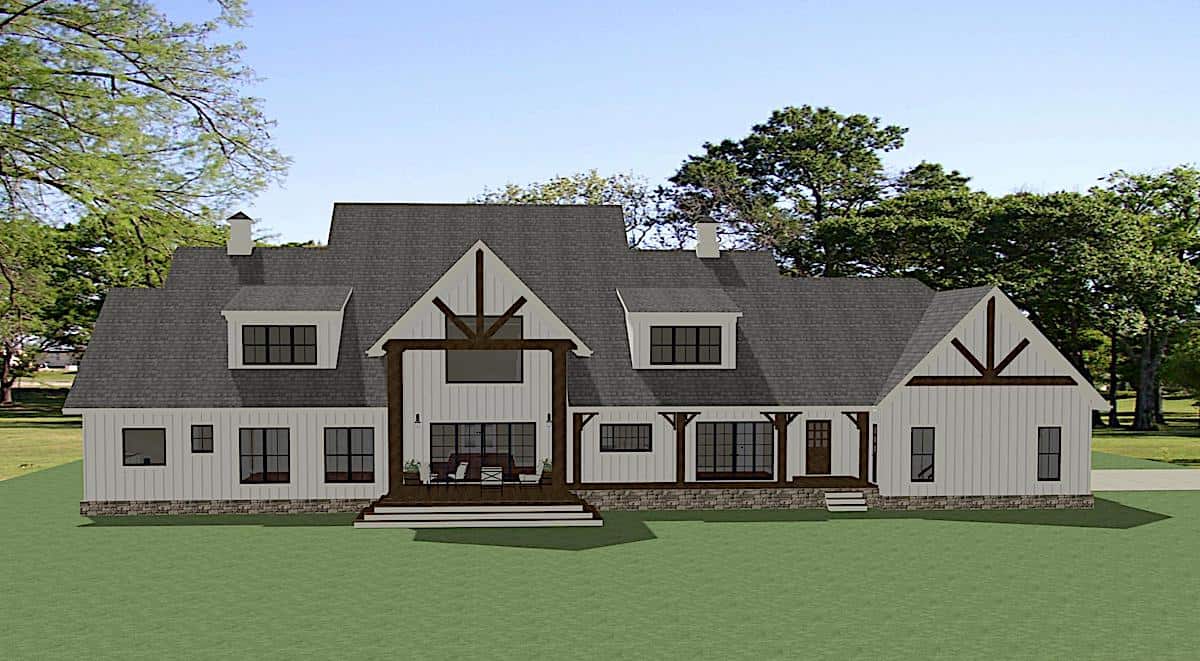

189-1138: Home Plan Rendering-Rear View

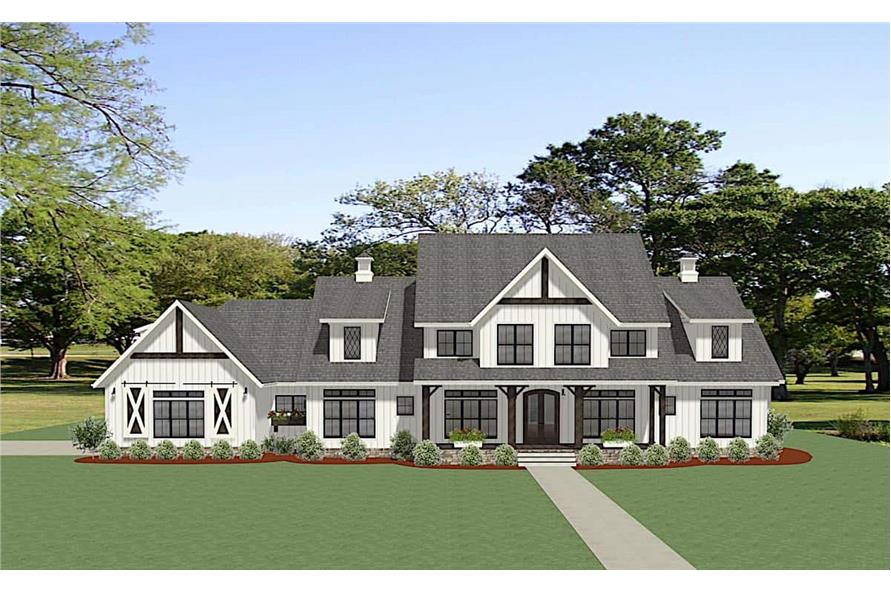

5-Bedroom, 4991 Sq Ft Colonial Home Plan - 189-1138 - Main Exterior
189-1138: Home Plan Rendering-Rear View

About Plan # 189-1138

About Plan # 189-1138

2 FLOOR 108' 10" WIDTH 65' 0" DEPTH 3 GARAGE BAY

The perfect blend of luxurious living and elegant design is found in this Colonial style home with Farmhouse characteristics. The house features lots of windows for an abundance light and lots of living space that combine to make this home the perfect place for relaxing and entertaining – and living! The awesome 2-story floor plan has 4991 square feet of heated-cooled living space on the main and upper-level areas and includes 5 bedrooms.

Each plan set includes the following:

  • PERSPECTIVES: Front exterior color rendering of what the house would look like once built. Aerial view of what the house would look like once built.
  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • FIRST FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications. Includes window and door schedule.
  • SECOND FLOOR PLAN (if any): Includes the same details as found on the first floor plan.
  • FOUNDATION PLAN: Dimensioned plan detailing the layout and construction of the foundation.
  • ROOF PLAN: Dimensioned bird's-eye view of the roof showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys. Includes roof framing plan.
  • FRAMING PLANS: Includes the first floor framing, second floor framing, and the second floor ceiling framing plans.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and schematic defining the location of lighting fixtures, switches, outlets, fans, etc.
  • BUILDING SECTIONS AND DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes eave detail and typical stair detail.
  • INTERIOR PERSPECTIVES & ELEVATIONS: Includes interior perspectives where deemed necessary and kitchen elevations.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

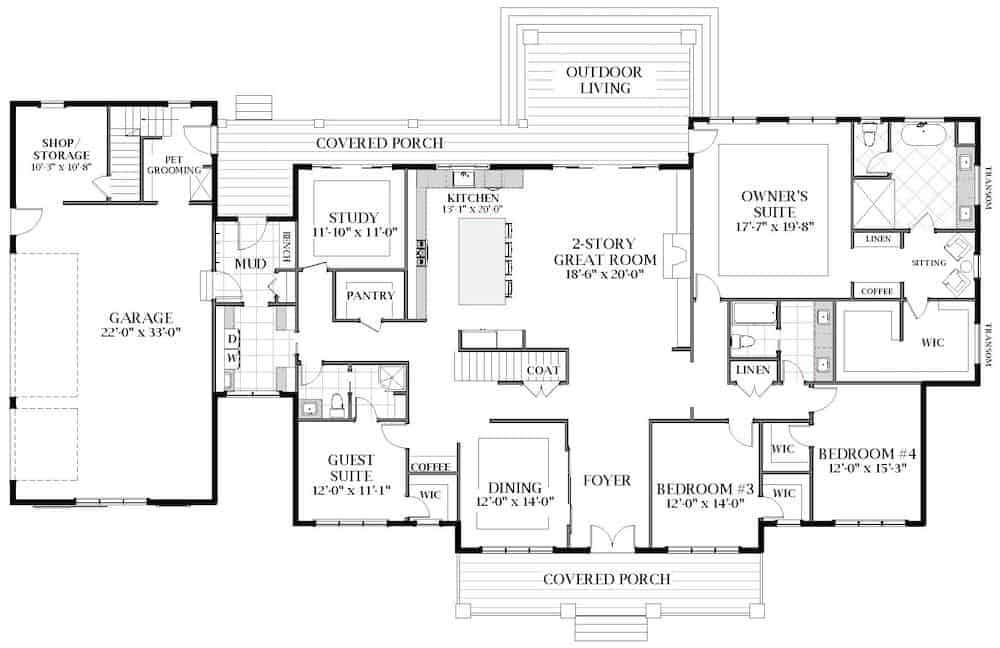

Home Plan: #189-1138 Floor Plan First Story - main level Floor Plan Main Level of Farmhouse Plan #189-1138

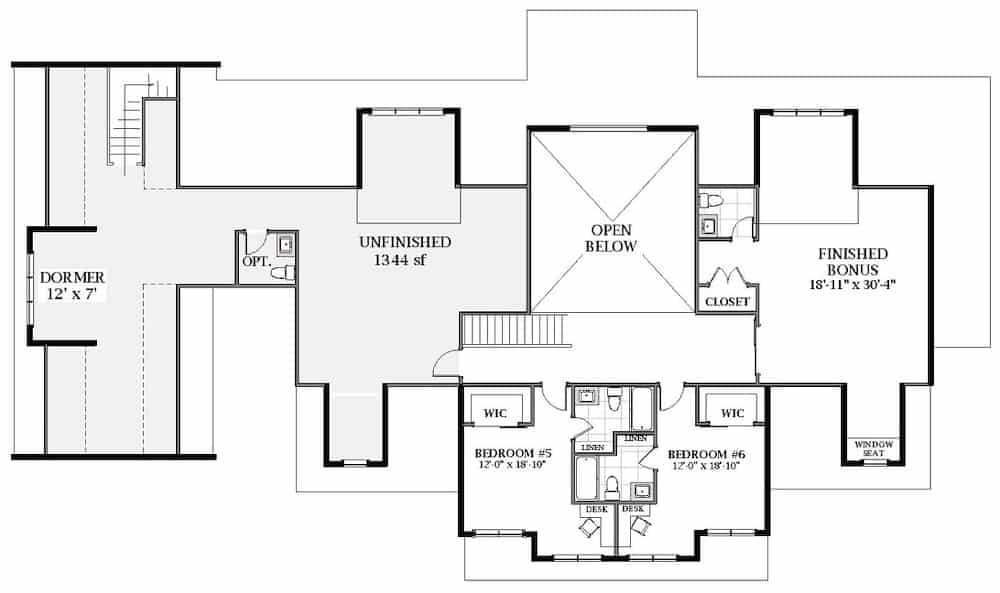

#189-1138 Floor Plan Second Story - upper level Floor Plan Upper Level of Farmhouse Plan #189-1138
