4-Bedroom, 3461 Sq Ft Traditional Plan with Walk-in Kitchen Pantry

Traditional home (ThePlanCollection: House Plan #198-1134)

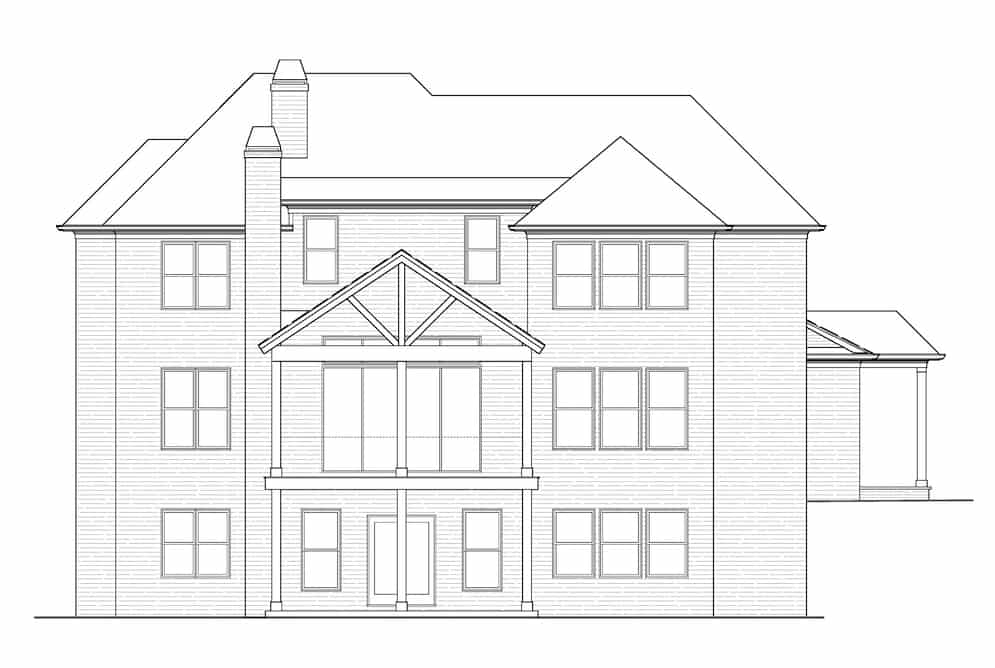

198-1134: Home Plan Rear Elevation

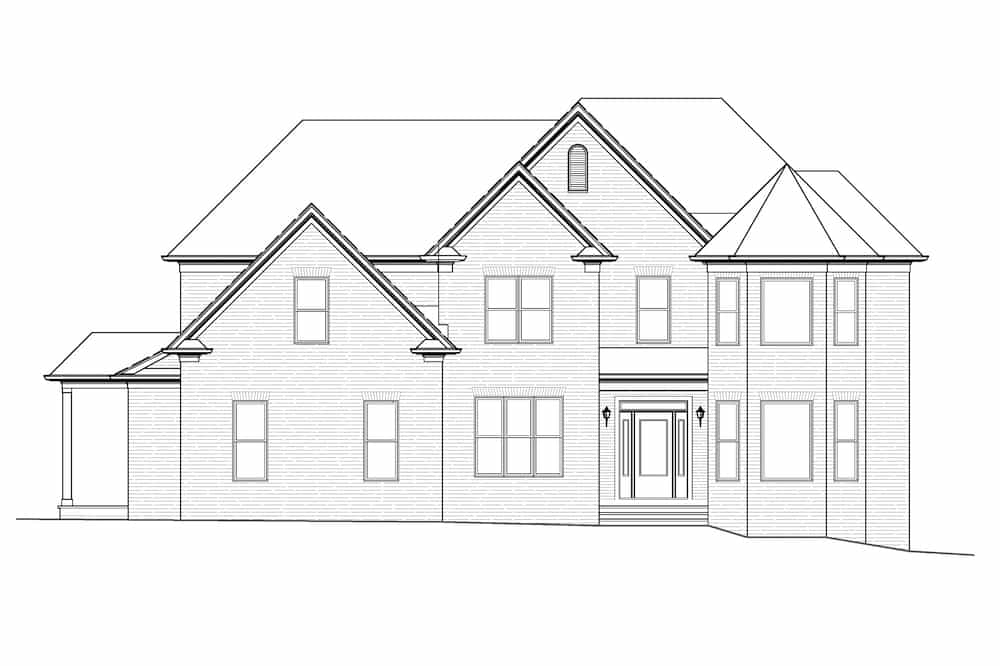

198-1134: Home Plan Front Elevation
4-Bedroom, 3461 Sq Ft Traditional House - Plan #198-1134 - Front Exterior

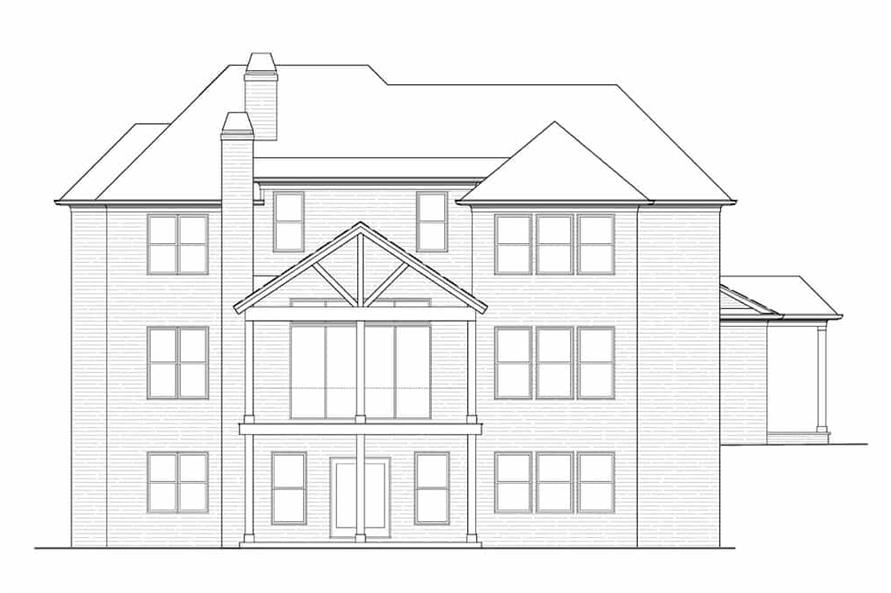

198-1134: Home Plan Rear Elevation
198-1134: Home Plan Front Elevation

About Plan # 198-1134

About Plan # 198-1134

3461 SQUARE FEET 4 BEDROOMS 4 FULL BATH 0 HALF BATH
2 FLOOR 59' 10" WIDTH 63' 0" DEPTH 2 GARAGE BAY

A spectacular achievement of architectural design, this luxurious French Country style home has steep hip and gable roof lines and a spectacular turret on the right. The house features lovely multi-pane windows that provide lots of light and a desirable ambiance throughout the house. The well-designed home's 2-story floor plan has 3461 square feet of heated and cooled living space and includes 4 bedrooms and an unfinished basement that you may finish at your option.



Each plan set includes the following:

  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. Includes exterior materials, exterior finishes, and other construction details that are necessary to give the home exterior architectural styling.
  • FOUNDATION PLAN: Dimensioned plan including the layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • DETAILED FLOOR PLANS: Showing the layout of each floor of the house, including room dimensions, window and door sizes, and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist, and roof plans are NOT included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • ROOF PLAN: Dimensioned plan showing the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • CROSS SECTION DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. Important changes in floor, ceiling, and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown. These details can be helpful for the contractor.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and schematics defining the location of panels, lighting fixtures, switches, outlets, fans, etc. for the first and second floors.
  • INTERIOR DETAILS: These drawings show the specific details and design of special interior features.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

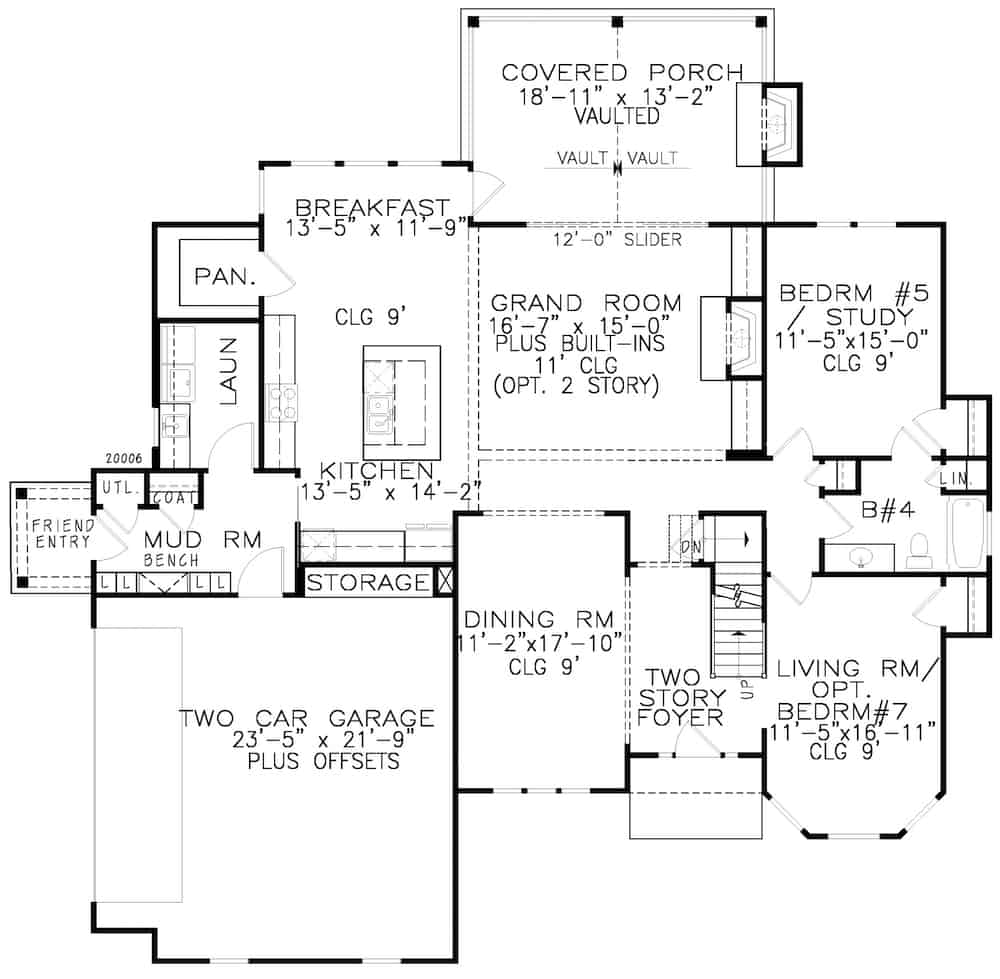

Home Plan: #198-1134 Floor Plan First Story - main level Floor Plan Main Level of Acadian Plan #198-1134

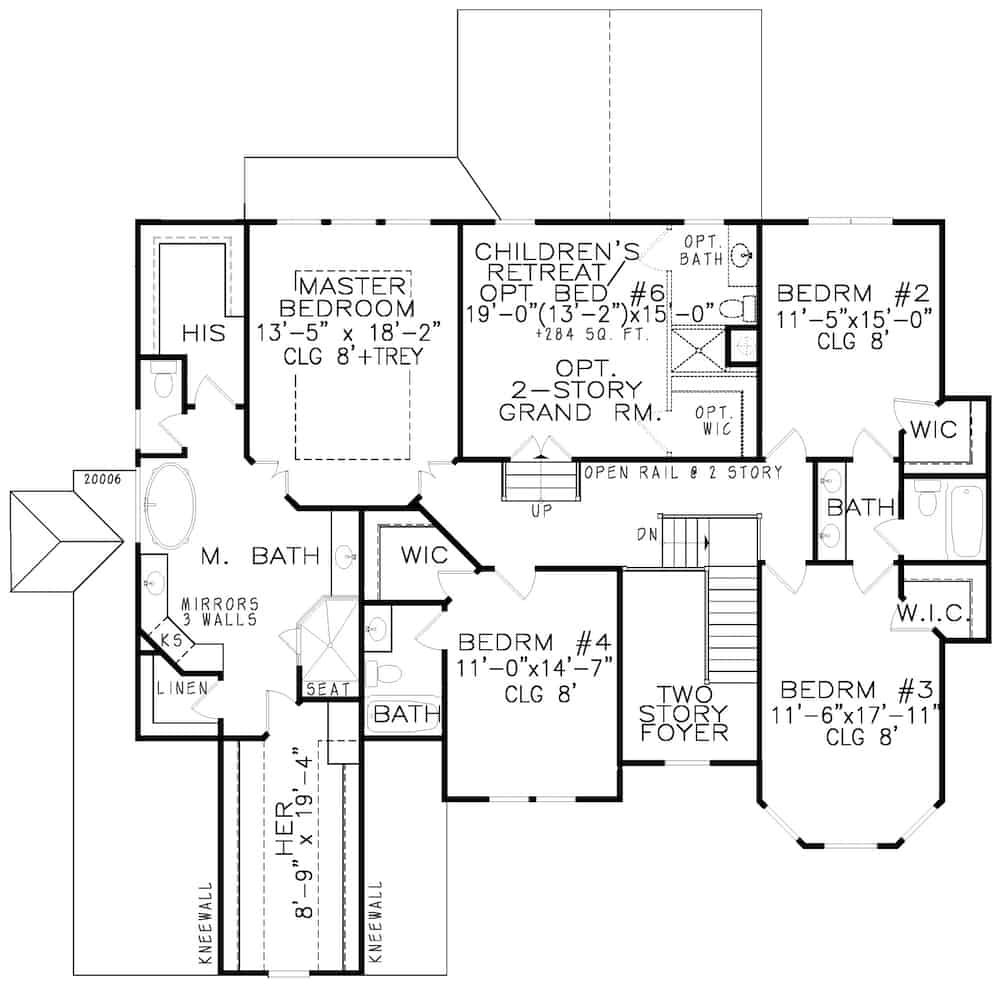

#198-1134 Floor Plan Second Story - upper level Floor Plan Upper Level of Acadian Plan #198-1134

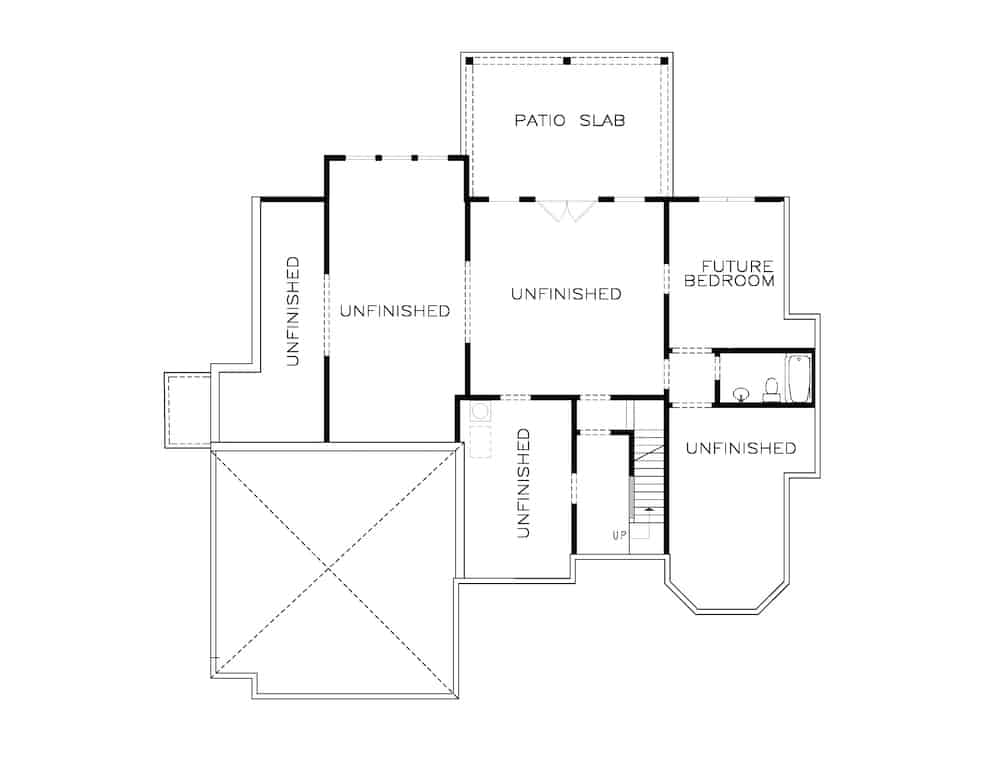

#198-1134 Floor Plan Basement - basement Floor Plan Basement of Acadian Plan #198-1134
