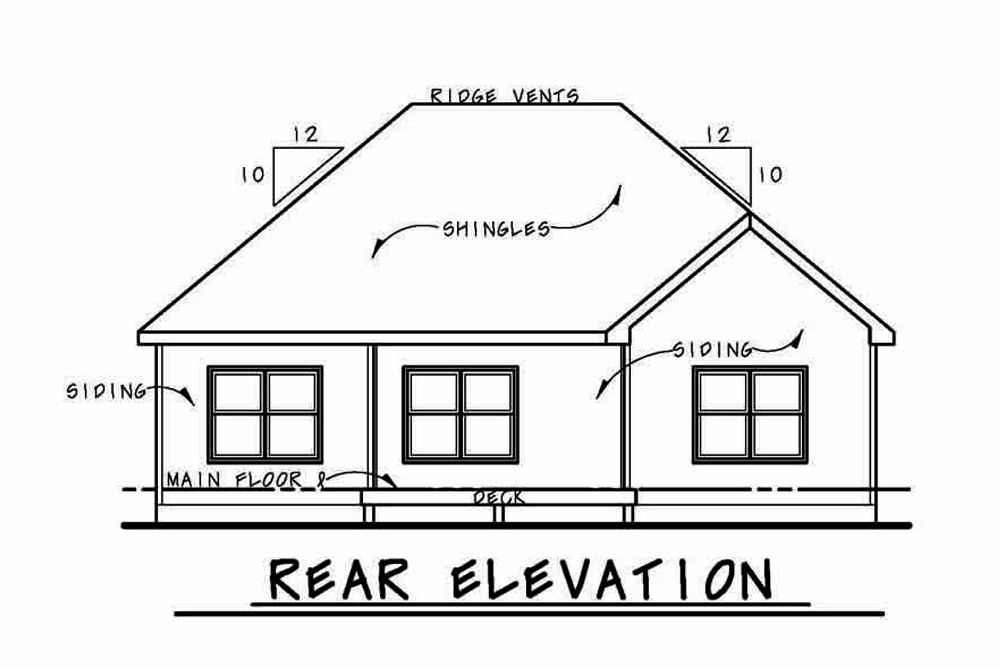

120-2563: Home Plan Rear Elevation

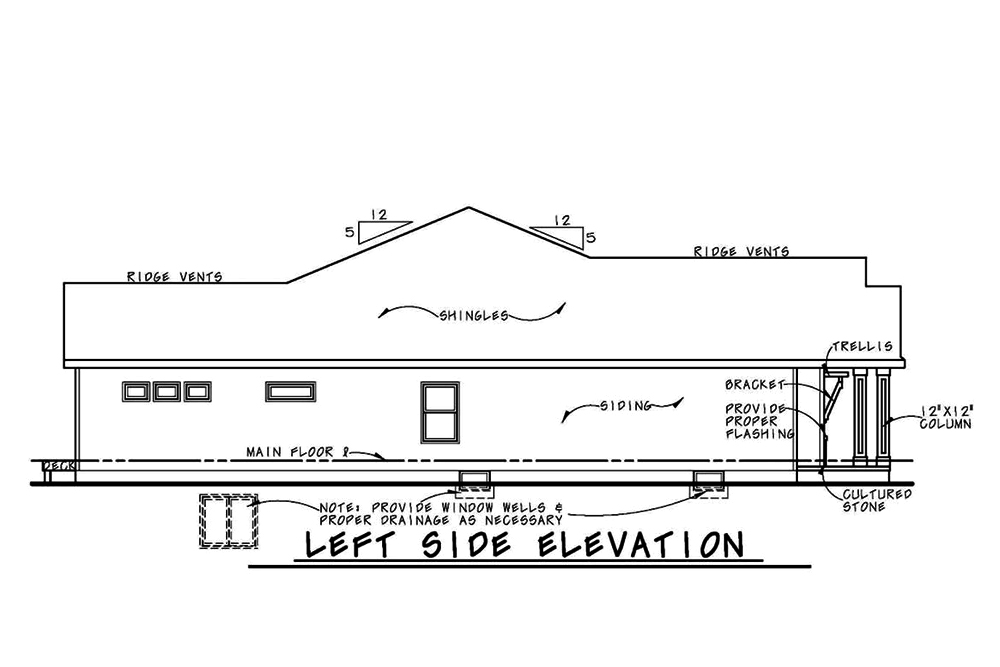

120-2563: Home Plan Left Elevation

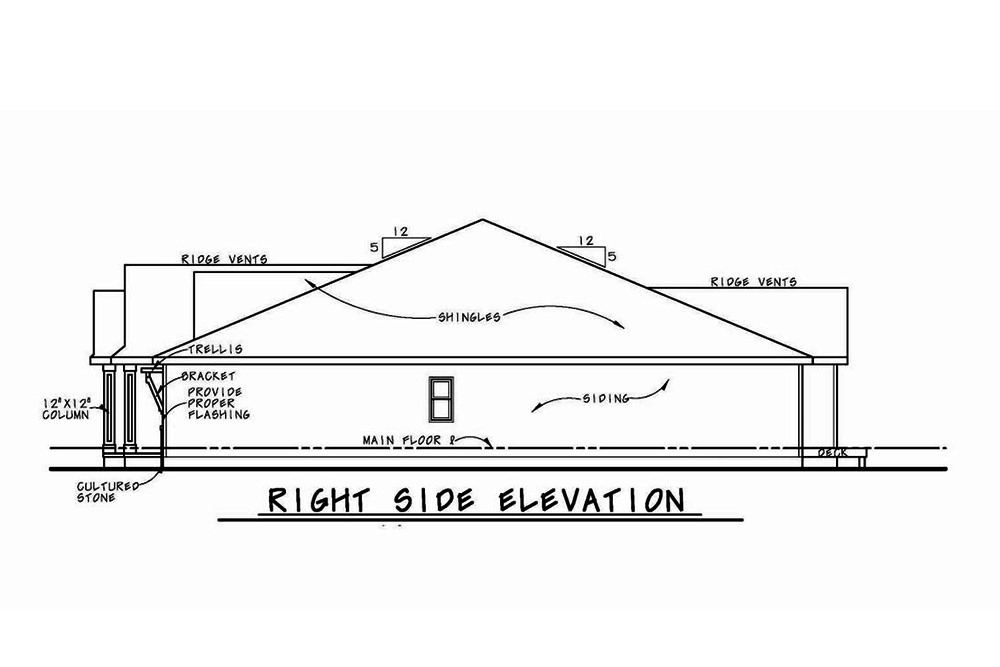

120-2563: Home Plan Right Elevation
3-Bedroom, 1886 Sq Ft Craftsman House - Plan #120-2563 - Front Exterior
120-2563: Home Plan Rear Elevation

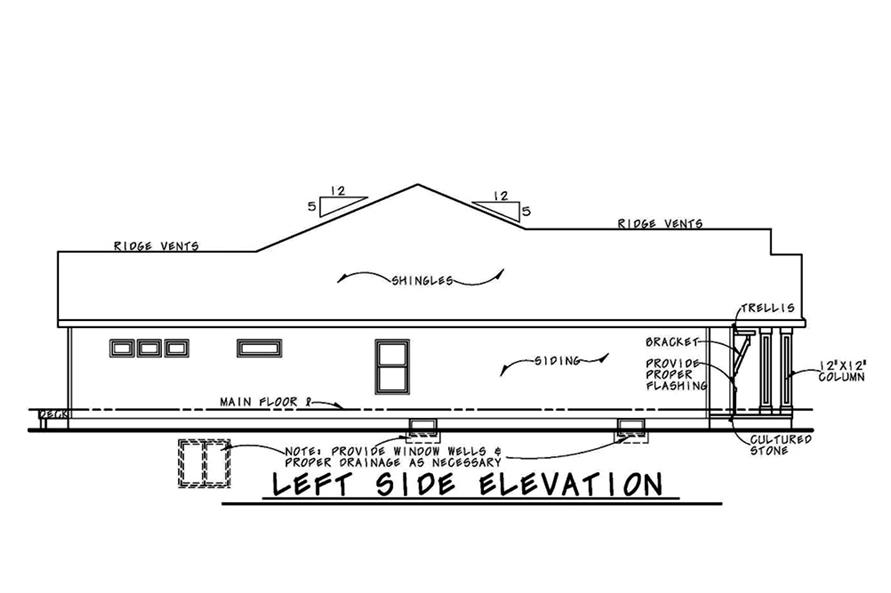

120-2563: Home Plan Left Elevation
120-2563: Home Plan Right Elevation

About Plan # 120-2563

About Plan # 120-2563

1886 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 40' 0" WIDTH 70' 8" DEPTH 2 GARAGE BAY

With a classic Craftsman-influenced exterior, this well-designed home has a truly up-to-date interior (Plan #120-2563). Even though only 1886 living square feet, this narrow-lot, ranch floor plan includes 3 bedrooms and 2.5 baths. The family room boasts 11-foot ceilings, a fireplace and access to the rear deck. Only steps away, the kitchen is open to the eating area and includes an island and pantry. We especially like the master suite's bath with its dual vanities and water closet.

Most plan sets include the following:

  • Cover Page. Each home plan features the front elevation and informative reference sections including, general notes and design criteria*, abbreviations, and symbols for your plan.
  • Elevations. Scaled elevations for the front, rear, and sides are provided. All elevations are detailed and an aerial view of the roof is provided.
  • Foundations. Foundations are fully engineered for each design, whether slab or basement.
  • Main Level Floor Plan
  • Second Level Floor Plan
  • Electrical layout
  • Wall & Stair Sections

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

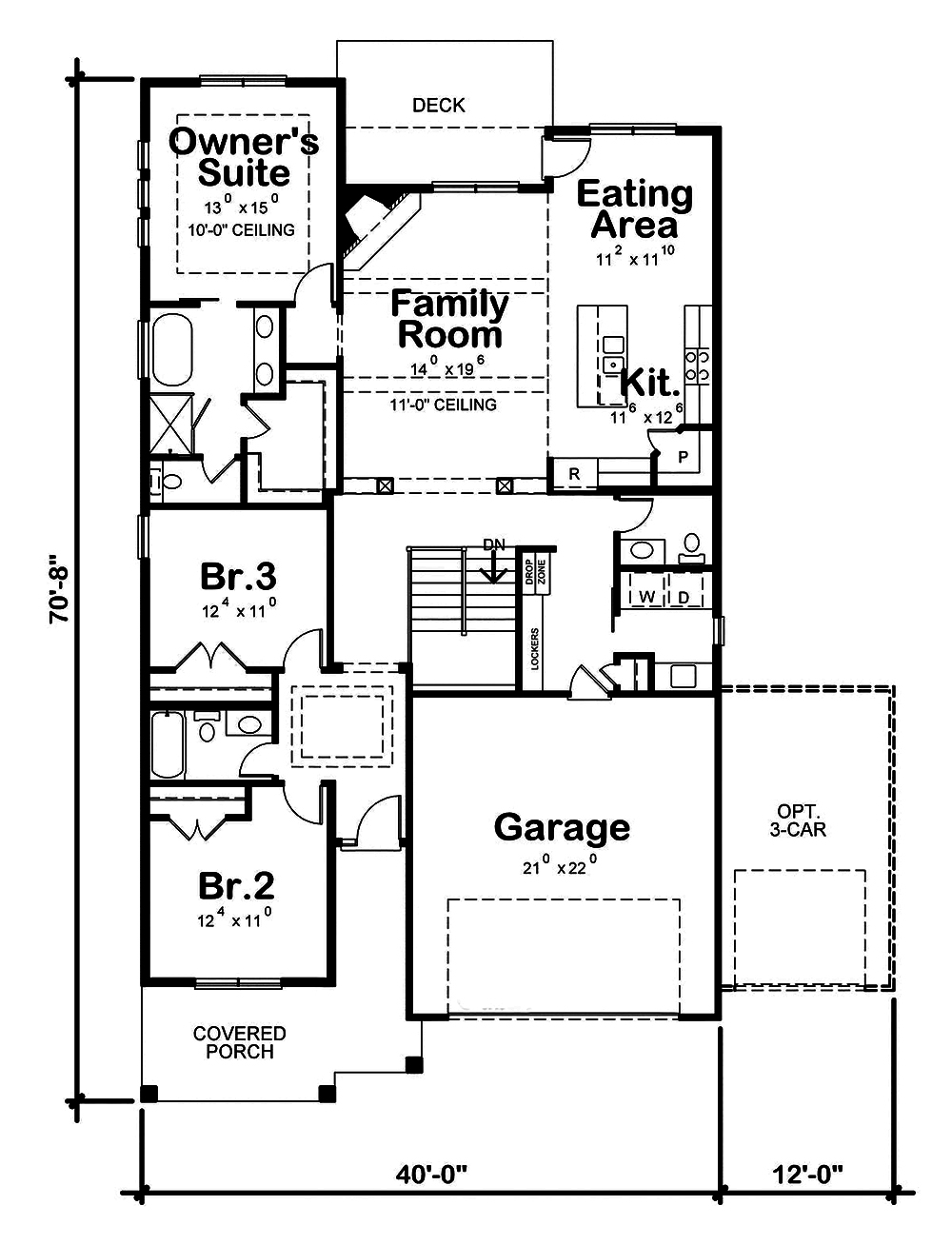

Home Plan: #120-2563 Floor Plan First Story - main level Floor Plan First Story of Craftsman Plan #120-2563
#120-2563 Floor Plan First Story - main level Floor Plan First Story of Craftsman Plan #120-2563
Home Plan: #120-2563 Floor Plan First Story - main level Floor Plan First Story of Craftsman Plan #120-2563
#120-2563 Floor Plan First Story - main level Floor Plan First Story of Craftsman Plan #120-2563
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 120-2563
Floors:
1
Bedrooms:
3
Full Baths:
2
Half Baths:
1
Garage :
2

Square Footage

Heated Sq Feet:
1886
Main Floor:
1886
Unfinished Sq Ft:
Garage :
481
Porch :
245

Dimensions

Width:
40' 0"
Depth:
70' 8"
Ridge Height:
24' 1"

Architectural Styles

Country
Ranch
Traditional
Craftsman

Exterior Wall Material

Vinyl Siding
Rock/Stone
Wood Siding
Shakes

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

5/12
10/12

Ceiling Height

9 Foot Ceiling

Special Feature

Fireplace
Home Office
Family Room
Main Level Laundry
Open Floor Plan

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Building Lot Type

Narrow Lot Design

Kitchen Features

Kitchen Island
Walk-in Pantry
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Sundeck

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

PLEASE NOTE! If you order an optional foundation and a materials list, the materials list will NOT include the optional foundation, only the standard foundation. The designer can provide an updated materials list for a fee, so please ask for a quote!
