4-Bedroom, 2660 Sq Ft Ranch Plan with Split Master Bedroom

Front elevation of Ranch home (ThePlanCollection: House Plan #108-1294)
4-Bedroom, 2660 Sq Ft Home Plan - 108-1294 - Main Exterior

About Plan # 108-1294

About Plan # 108-1294

2660 SQUARE FEET 4 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 73' 0" WIDTH 68' 0" DEPTH 3 GARAGE BAY

This single-story, traditional-style home has 2660 total living square feet. Skylit octagonal hallway nexus links garage, bedrooms, and kitchen of this traditional home plan. Gathering spaces include a family room, living & dining rooms, den. The wide and bright bayed nook expands the kitchen which has an island, as well as an eating bar.

Each plan set includes the following:

  • Artist’s rendering of the home,

  • Front/Rear/Left and Right Elevations,

  • Main floor plan, Second or Basement floor plans (if applicable),

  • Foundation plan and detail,

  • Floor framing plan,

  • Roof framing plan, supporting details and

  • Electric layout.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

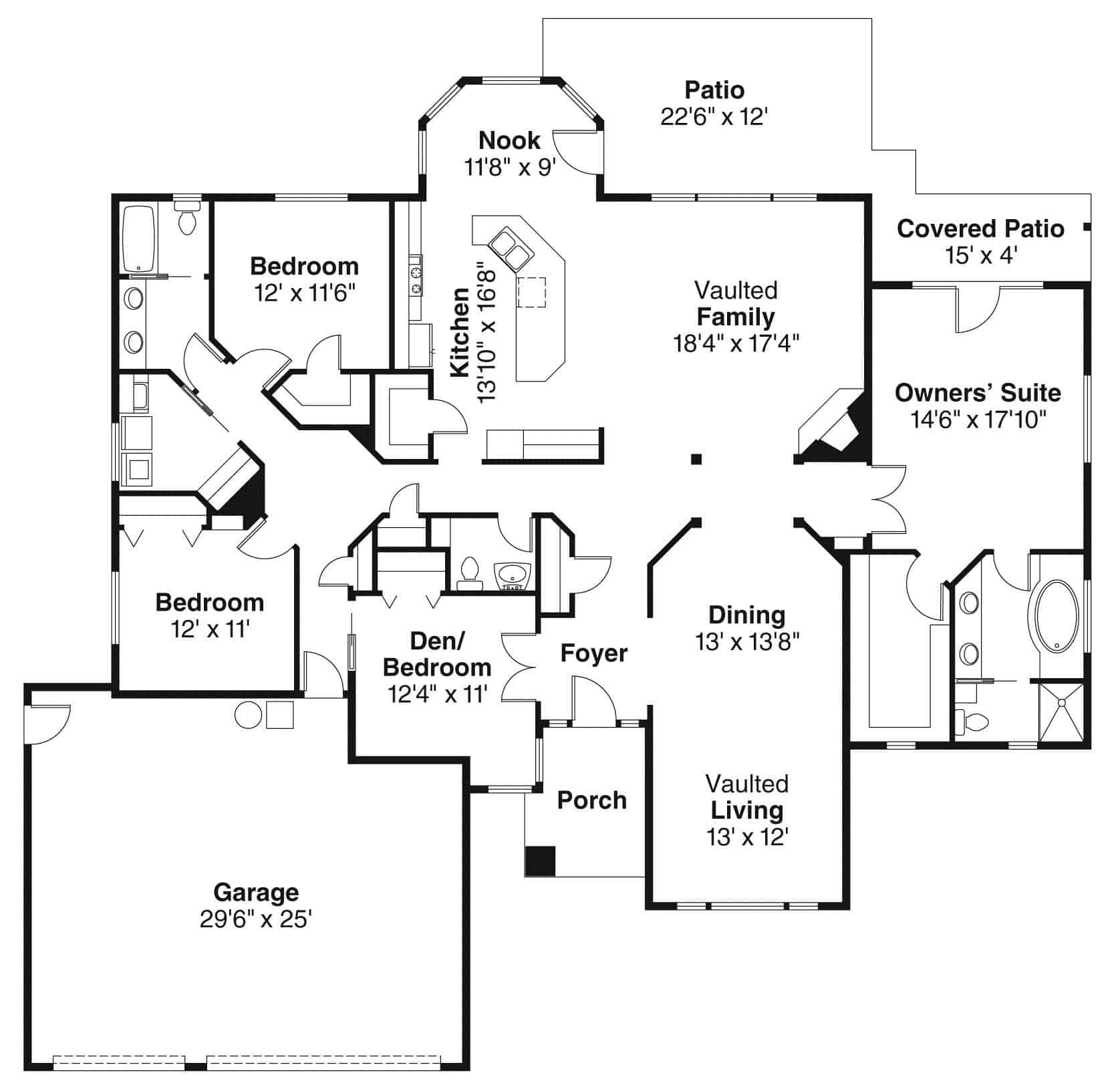

Home Plan: #108-1294 Floor Plan First Story - main level Main Level of Ranch Plan #108-1294
Home Plan: #108-1294 Floor Plan First Story - main level Main Level of Ranch Plan #108-1294
