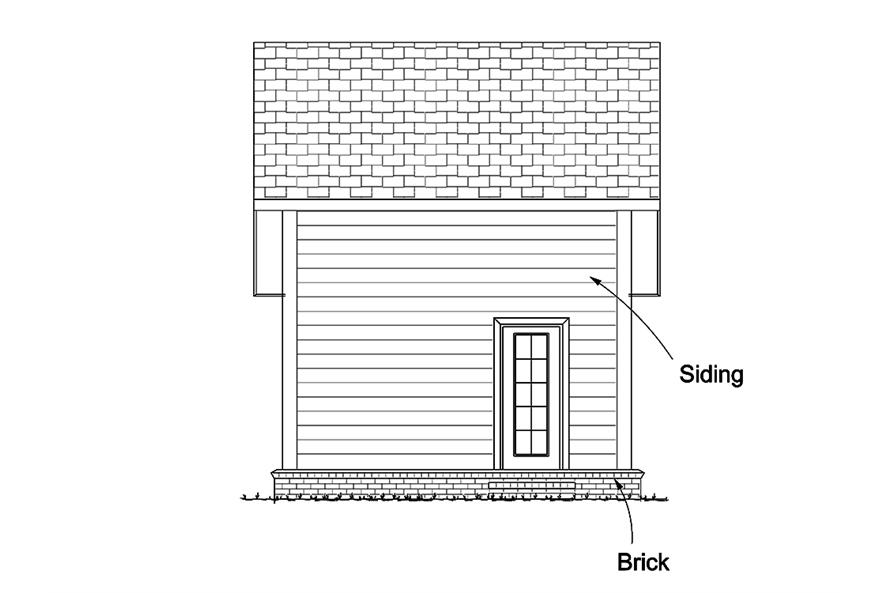

178-1346: Home Plan Rear Elevation
178-1346: Home Other Image-Front View
1-Bedroom, 597 Sq Ft Cottage Home Plan - 178-1346 - Main Exterior

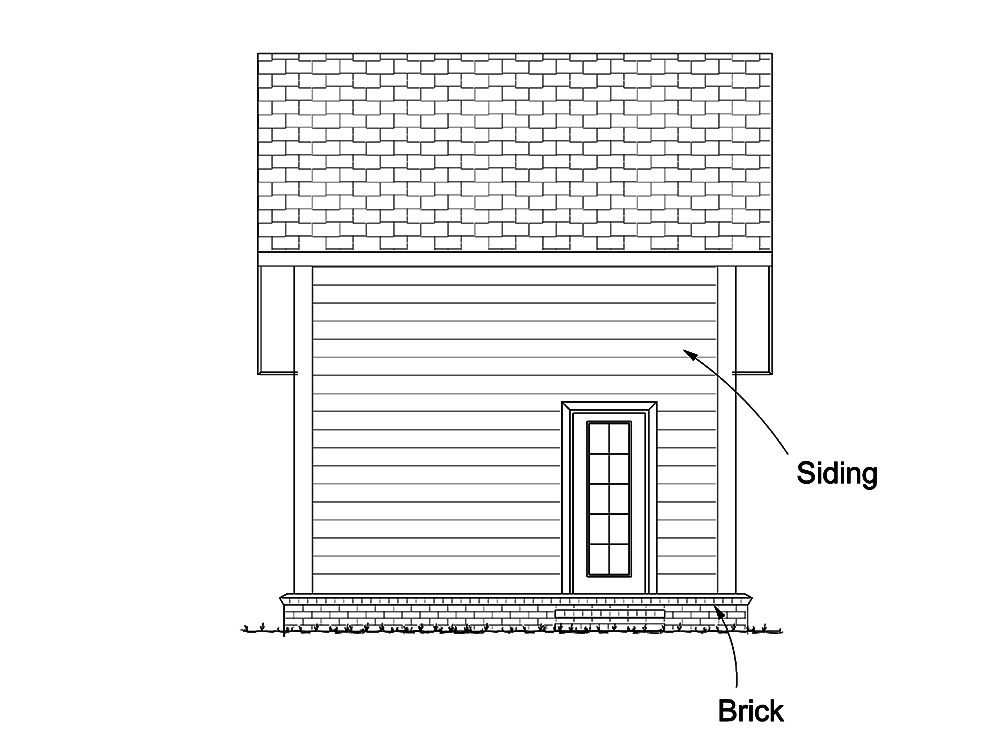

178-1346: Home Plan Rear Elevation
178-1346: Home Other Image-Front View

About Plan # 178-1346

About Plan # 178-1346

597 SQUARE FEET 1 BEDROOMS 1 FULL BATH 0 HALF BATH
1.5 FLOOR 16' 0" WIDTH 29' 0" DEPTH 0 GARAGE BAY

This tiny cottage has Craftsman details and sits nicely on a narrow lot. The living room is made more spacious with its sloped ceiling. While an open layout enables a seamless transition between the spaces. With 597 living sq ft, this 1.5-story home has 1 bedroom, 1 bathroom, an eating bar separating the dinette from the kitchen, and a study alcove.

Each plan set includes the following:

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan, including electrical, window and door sizes, floor joist span directions, and ceiling type notes (9’ ceiling, vault, etc)
  • Second-floor plan (if applicable) with the same info as shown on first-floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges & valleys.
  • Foundation plan
  • Full building section

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

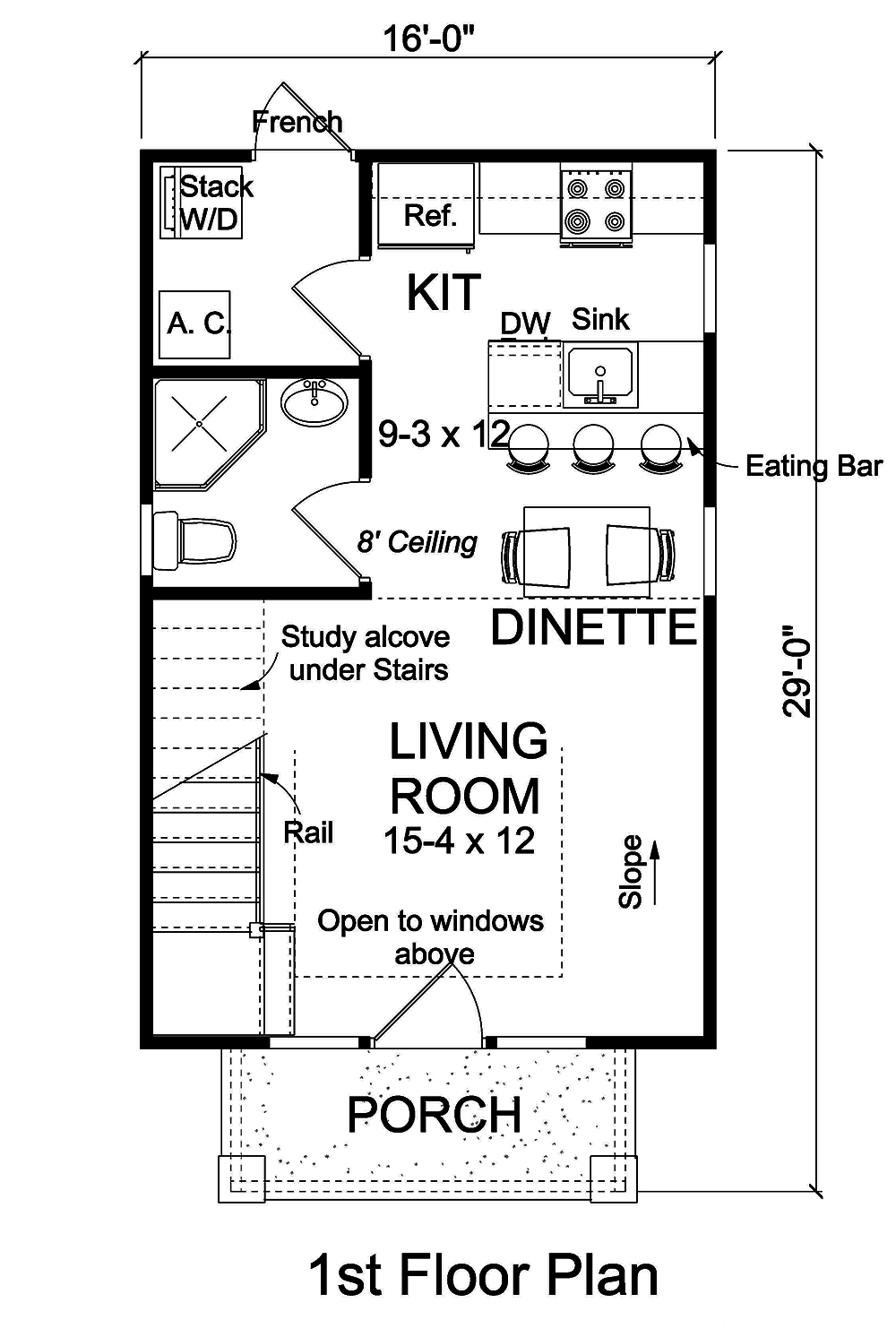

Home Plan: #178-1346 Floor Plan First Story - main level Floor Plan First Story of Cottage Plan #178-1346

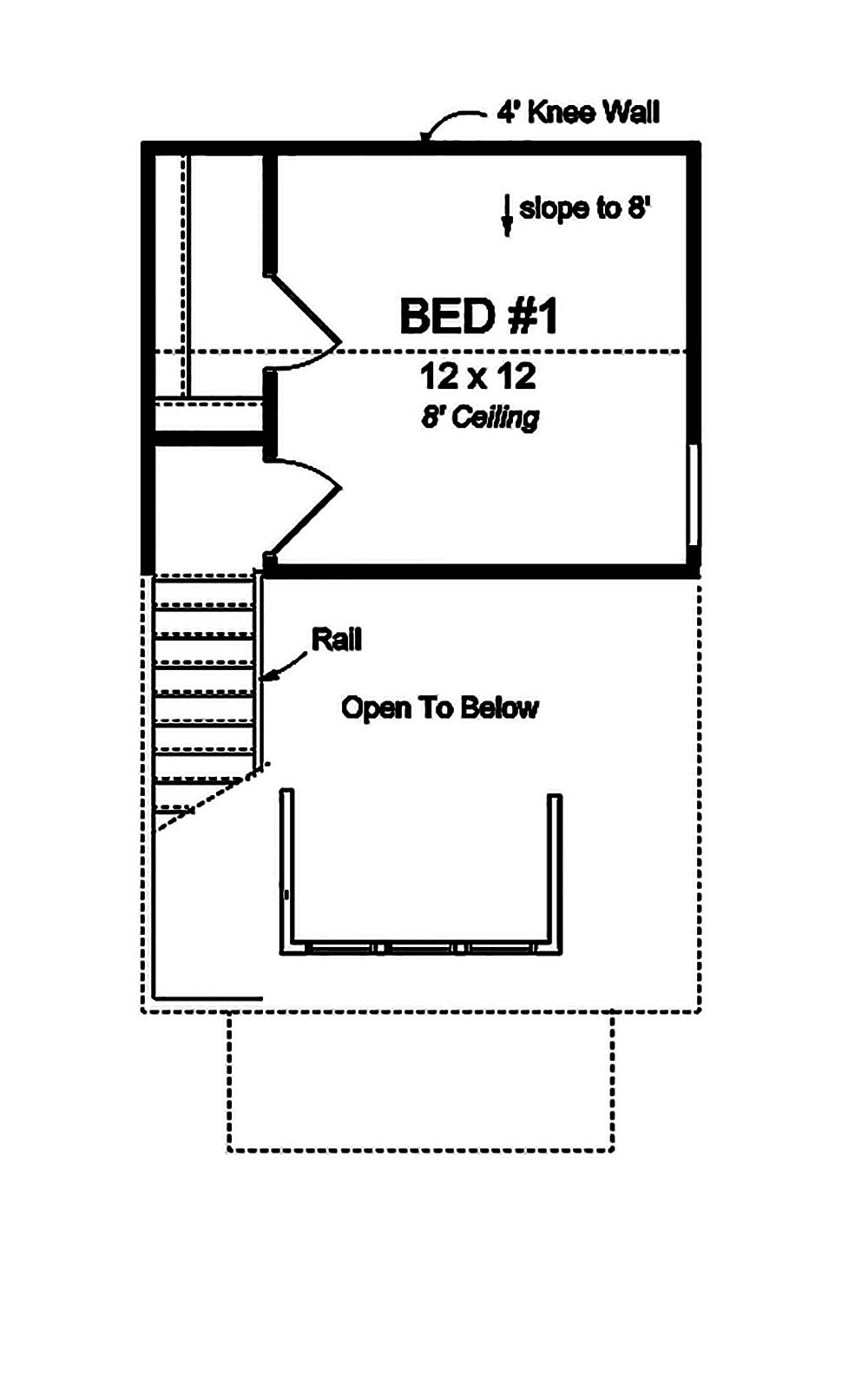

#178-1346 Floor Plan Second Story - upper level Floor Plan Second Story of Cottage Plan #178-1346
Home Plan: #178-1346 Floor Plan First Story - main level Floor Plan First Story of Cottage Plan #178-1346
#178-1346 Floor Plan Second Story - upper level Floor Plan Second Story of Cottage Plan #178-1346
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 178-1346
Floors:
1.5
Bedrooms:
1
Full Baths:
1

Square Footage

Heated Sq Feet:
597
Main Floor:
400
Upper Floor:
197
Unfinished Sq Ft:
Porch :
44

Dimensions

Width:
16' 0"
Depth:
29' 0"
Ridge Height:
20' 0"

Architectural Styles

Traditional
Craftsman
Small House Plans
Cottage

Exterior Wall Material

Vinyl Siding
Brick
Wood Siding

Roofing Type

Gable/Dormer

Roofing Material

Asphalt Shingles

Roof Pitch

8/12

Ceiling Height

8 Foot Ceiling

Special Feature

Main Level Laundry
Open Floor Plan

Exterior Wall Framing

2x4

Building Lot Type

Narrow Lot Design

Kitchen Features

Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch

Master Suite Features

Second Floor Master

Additional Notes from Designer

Please Note: This plan comes standard with a Construction License that gives the original purchaser the right to build the plan as many times as you like. PLEASE NOTE!! When purchasing a CAD file, the designer will also send the PDF. Duplex and Triplex Plans are Slab & 2x4 ONLY!! If you need to change either, please send in a modification request.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
