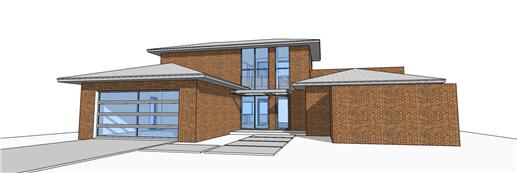

116-1079 front
116-1079 rear elevation
116-1079 house plan kitchen
116-1079 house plan bath
116-1079 house plan living room
116-1079 house plan porch view
3-Bedroom, 2459 Sq Ft Modern House Plan - 116-1079 - Front Exterior
116-1079 rear elevation
116-1079 house plan kitchen
116-1079 house plan bath
116-1079 house plan living room
116-1079 house plan porch view

About Plan # 116-1079

About Plan # 116-1079

2459 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 60' 0" WIDTH 65' 0" DEPTH 2 GARAGE BAY

This is a modern home styled after the luxury beach homes of the caribbean coast, and is part of the Barbados Collection. The theater room has a 2-story ceiling and a modern stair leading to the upper floor. The modern kitchen serves an eating bar and dining. Folding doors open the back of the house to the outdoor living space with fireplace and waterfall pool. The master bath is open to the private outdoor garden, and is full of natural lighting. The upper floor with 2 bedrooms, and office and bath, also opens to a rooftop observation deck with glass railings. This plan is designed with a concrete slab on grade. The exterior walls are 2x8 wood framing with r30+ spray foam insulation. First and second floor systems are pre-engineered wood trusses. The roof is standing seam metal, a plywood deck, and pre-engineered wood trusses. 10' ceilings downstairs 20' ceilings in theatre 9' ceilings upstairs

Each plan set includes the following:

  • Floor plans
  • Exterior elevations
  • Building sections
  • Foundation plan
  • Floor & Roof structure layouts
  • Wall section
  • Notes
  • Electrical layout (switches, outlets)
  • Unlimited license

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

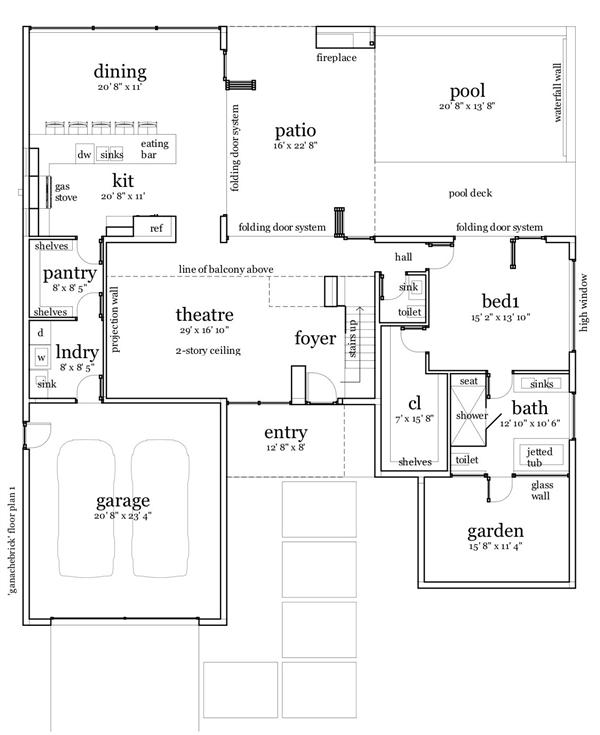

Home Plan: #116-1079 Floor Plan First Story - first floor Floor Plan First Story of Modern Plan #116-1079

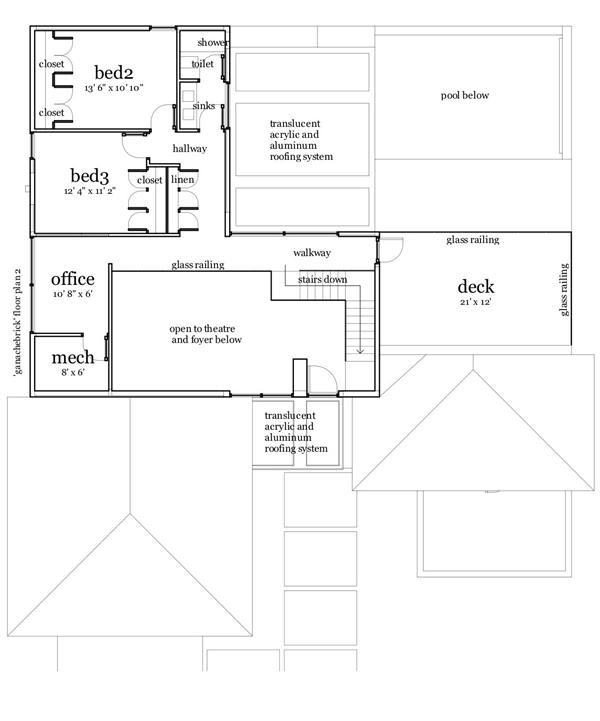

#116-1079 Floor Plan Second Story - second story Floor Plan Second Story of Modern Plan #116-1079
Home Plan: #116-1079 Floor Plan First Story - first floor Floor Plan First Story of Modern Plan #116-1079
#116-1079 Floor Plan Second Story - second story Floor Plan Second Story of Modern Plan #116-1079
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 116-1079
Floors:
2
Bedrooms:
3
Full Baths:
2
Half Baths:
1
Garage :
2

Square Footage

Heated Sq Feet:
2459
Main Floor:
1762
Upper Floor:
697
Unfinished Sq Ft:
Garage :
528

Dimensions

Width:
60' 0"
Depth:
65' 0"
Ridge Height:
26' 0"

Architectural Styles

Vacation Homes
Contemporary
Modern

Exterior Wall Material

Rock/Stone
Fiber Cement Product

Roofing Type

Flat

Roofing Material

Other Composites

Roof Pitch

Other

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Special Feature

Fireplace
Main Level Laundry
Color Photos

Garage Type

Attached Garage

Exterior Wall Framing

2x8

Building Lot Type

Flat Site

Kitchen Features

Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Split Master Bedroom

Additional Notes from Designer

CAD files for this plan will be delivered in both DXF (AutoCad readable) and Sketchup Pro formats.

PRICING OPTIONS

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
