Home > Floor Plans by Styles > Country House Plans > Plan Detail for 163-1014
This is a computer rendering of these Country House Plans.

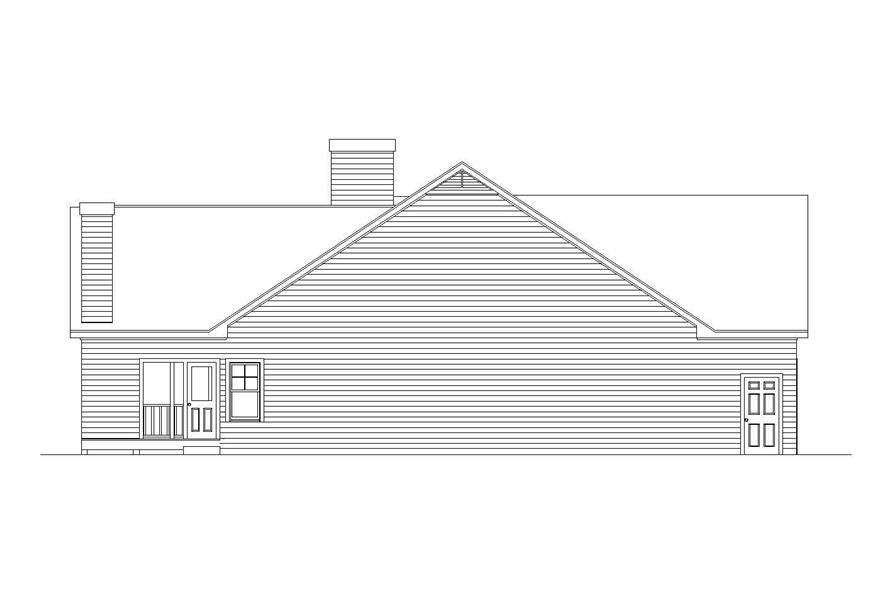

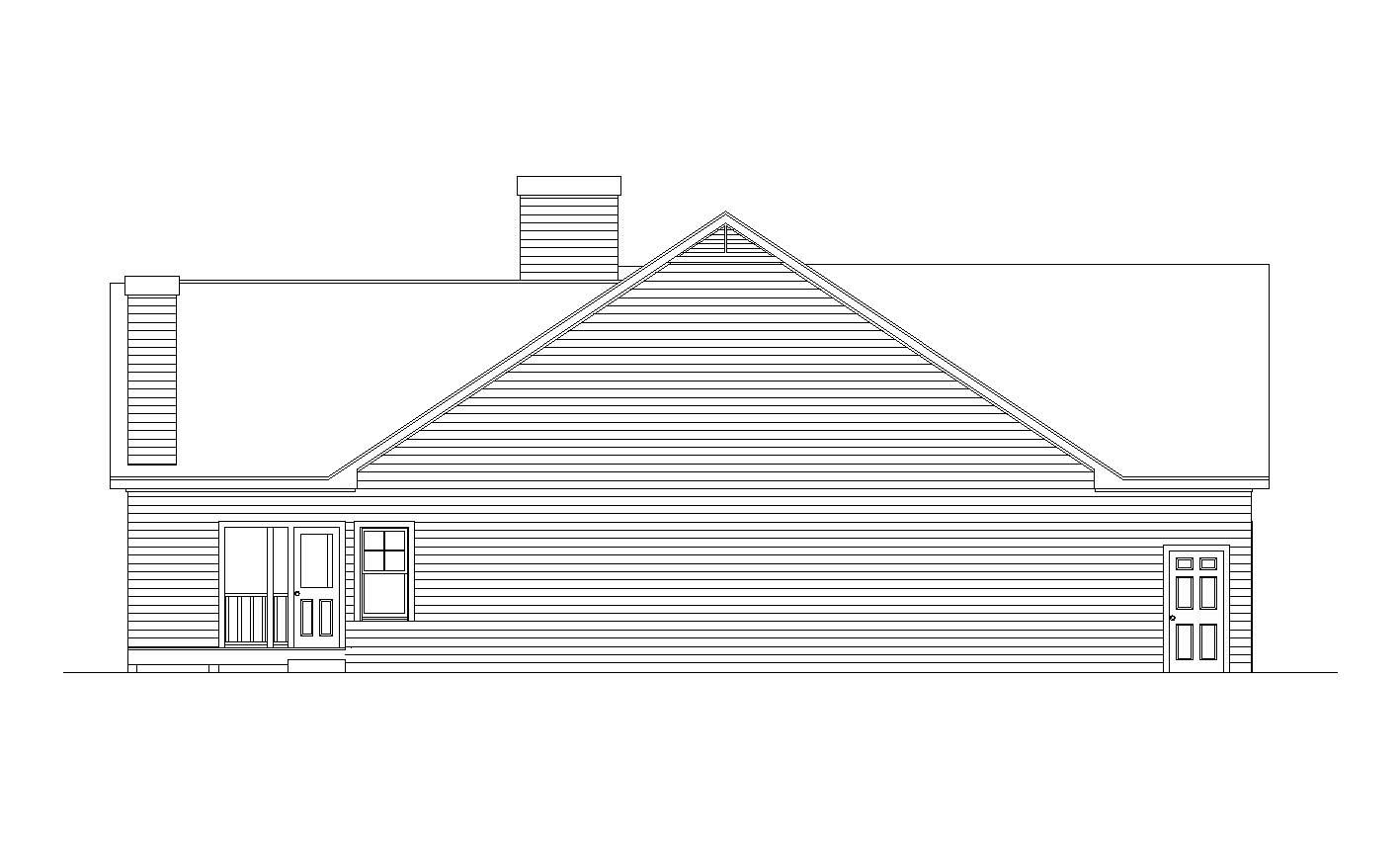

Home Plan Left Elevation

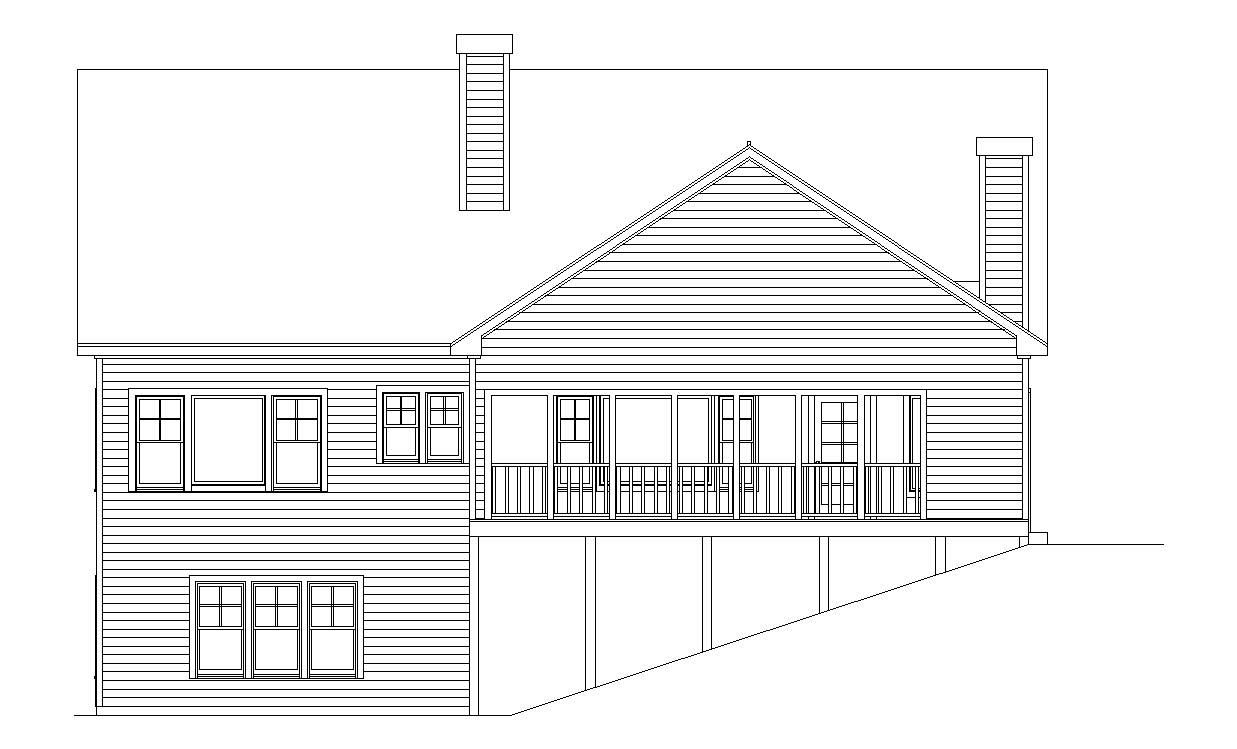

Home Plan Rear Elevation

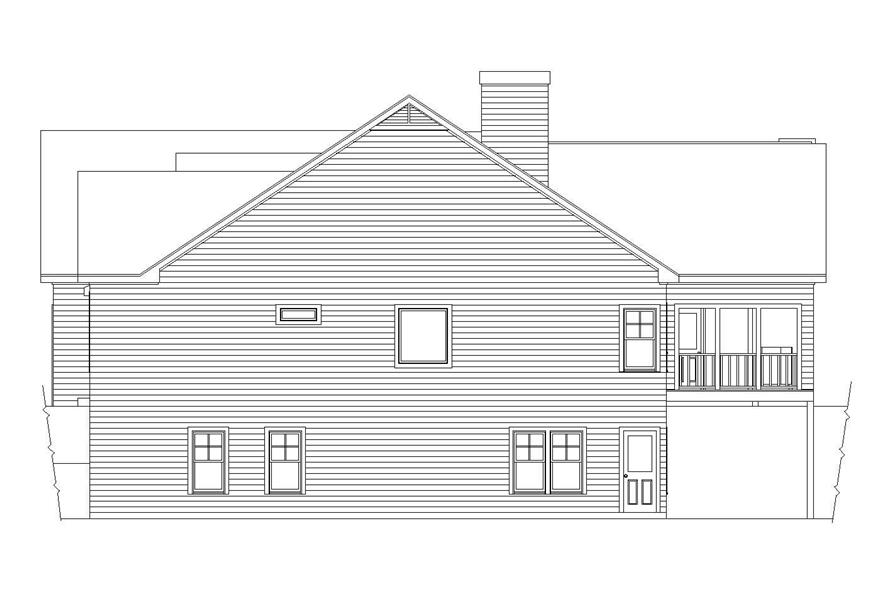

Home Plan Right Elevation
3-Bedroom, 3544 Sq Ft Country House Plan - 163-1014 - Front Exterior
Home Plan Left Elevation

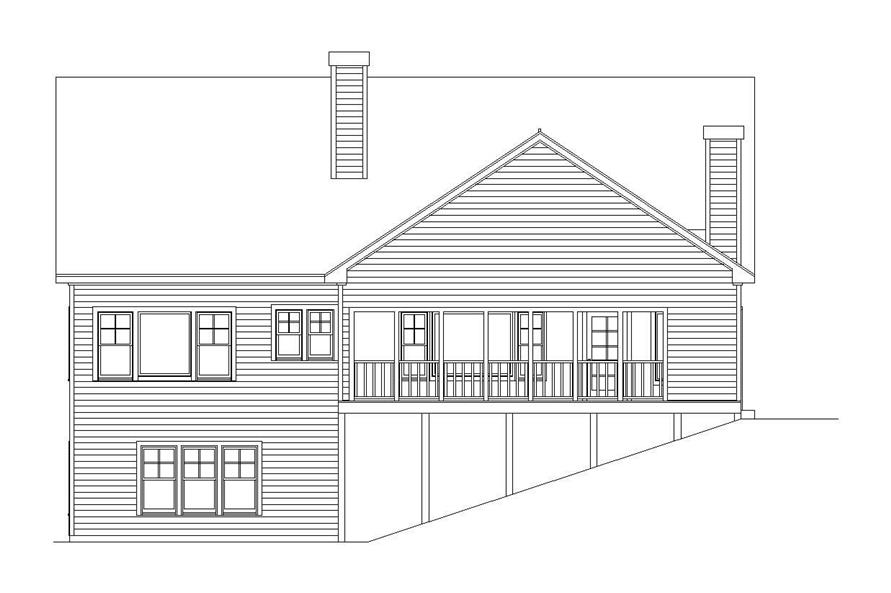

Home Plan Rear Elevation
Home Plan Right Elevation

About Plan # 163-1014

About Plan # 163-1014

3544 SQUARE FEET 3 BEDROOMS 3 FULL BATH 1 HALF BATH
2 FLOOR 49' 9" WIDTH 50' 0" DEPTH 2 GARAGE BAY
One of our smaller mountain plans, this home includes an attached garage, two bedrooms and a kitchen loaded with counter space on the main level. Also note the flexible space designated as an office on the plan - this could also be opened into the master suite. The terrace level takes advantage of the view from the rec area - as with all of our mountain plans, this area can be finished at a later date if desired. Actual plans may vary from photos or renderings.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.Includes cabinet details and typical details.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Electrical Layout (location of light fixtures, switches, and fans) - Although may be available for an additional charge.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

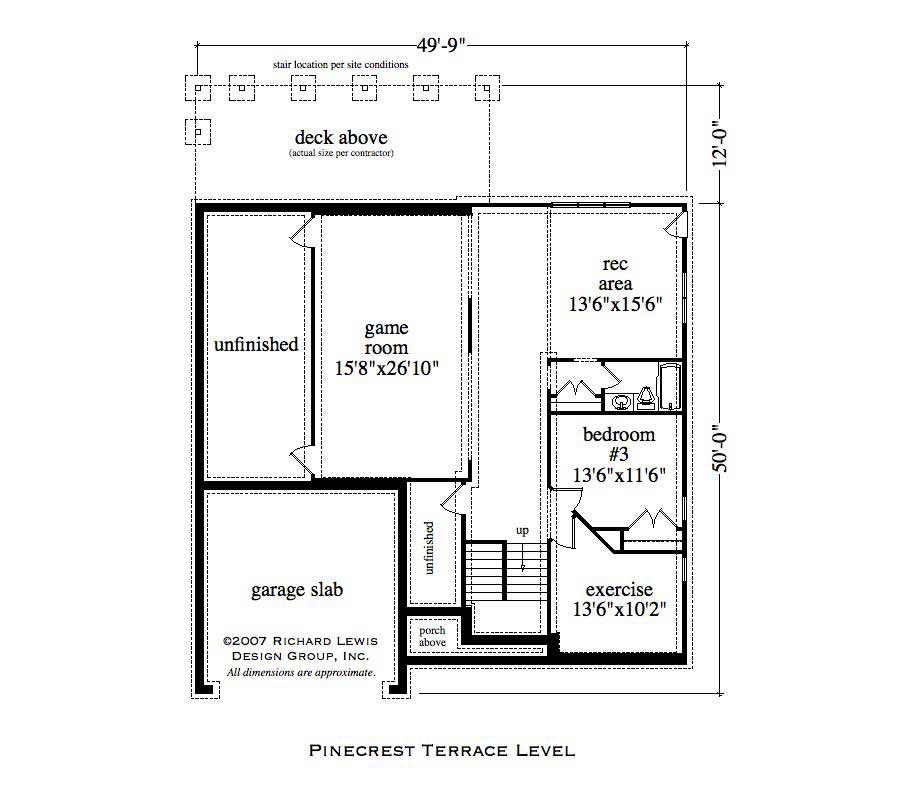

Home Plan: #163-1014 Floor Plan Basement - basement Floor Plan Basement of Country Plan #163-1014

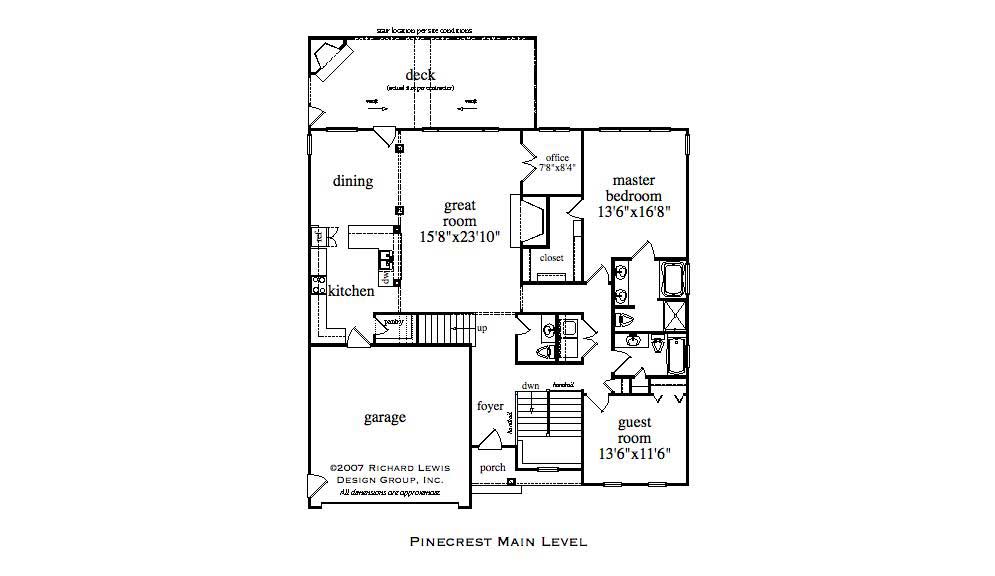

#163-1014 Floor Plan First Story - first story Floor Plan First Story of Country Plan #163-1014

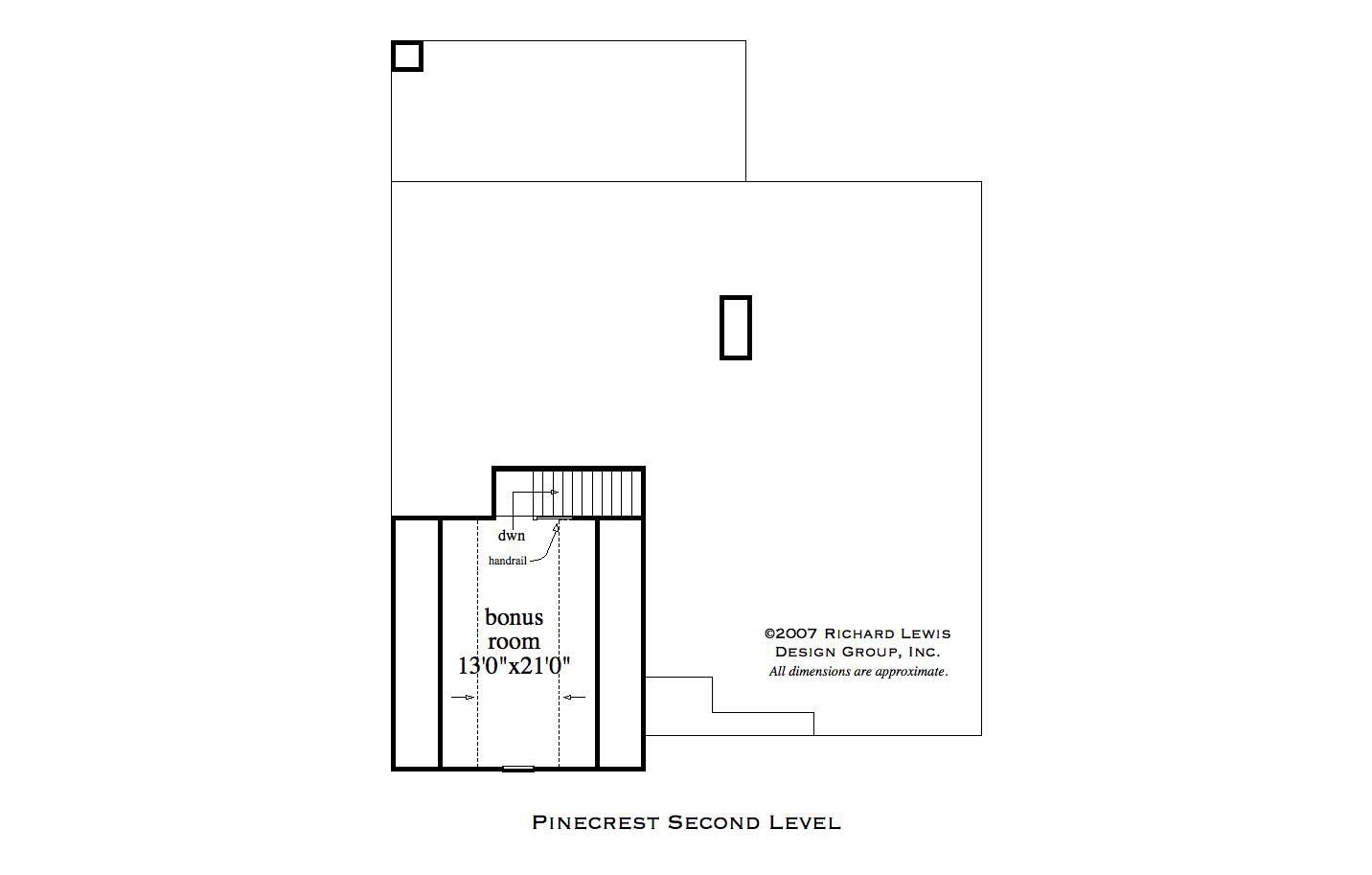

#163-1014 Floor Plan Second Story - second story Floor Plan Second Story of Country Plan #163-1014
