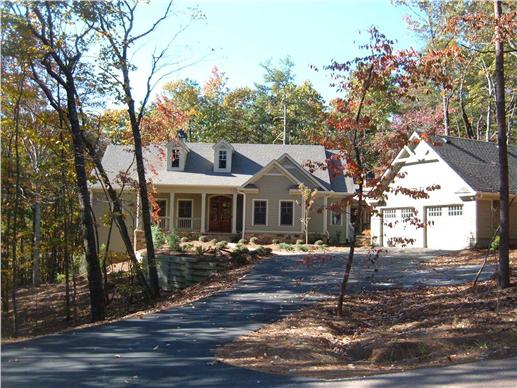

4-Bedroom, 2924 Sq Ft Country Home Plan - 163-1003 - Main Exterior
Home Plan Photograph
Home Plan Photograph
Home Plan Photograph
Home Plan Photograph
Home Plan Rear Elevation
Home Plan Right Elevation
163-1003: Home Plan Left Elevation

About Plan # 163-1003

About Plan # 163-1003

2924 SQUARE FEET 4 BEDROOMS 4 FULL BATH 0 HALF BATH
1 FLOOR 58' 8" WIDTH 34' 2" DEPTH 2 GARAGE BAY

This stunning country home with classic Colonial details has such a wonderful presence as you make your way up the drive. The front porch leads to the foyer which opens up to the large family room with a vaulted ceiling and fireplace. Windows line the rear of the family room and look out onto the deck. The open-concept kitchen looks out onto the family room and the breakfast area. An eating bar at the kitchen island is ideal for quick meals. Looking to dine outdoors or just relax by the fireplace? The screen porch off the breakfast area is just perfect. Bedroom #2 is located toward the front of the home and is not far from the mudroom. The master suite is on the other side of the home and boasts a huge, walk-in closet and a master bath.

On the lower level, the rec room is the hub of activity. on either side of the rec room are bedroom #3 and #4. Each of these bedrooms has its own bathroom.

For a related home, see Plan #163-1048.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.Includes cabinet details and typical details.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Electrical Layout (location of light fixtures, switches, and fans) - Although may be available for an additional charge.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

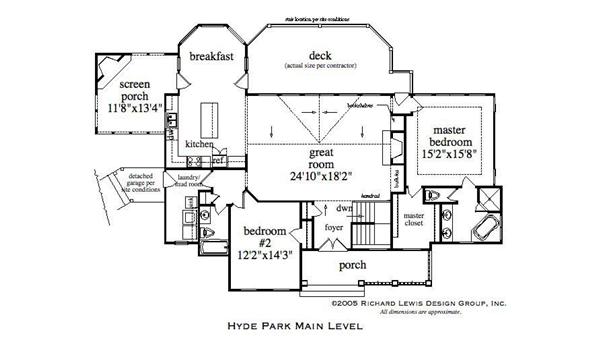

Home Plan: #163-1003 Floor Plan First Story - main level Floor Plan First Story of Country Plan #163-1003

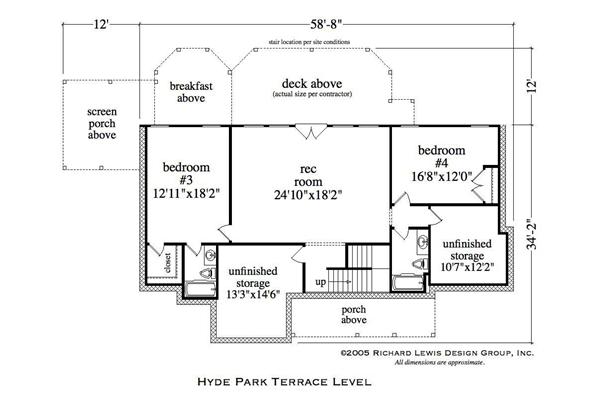

#163-1003 Floor Plan Basement - basement Floor Plan Basement of Country Plan #163-1003
