About Plan # 116-1020

About Plan # 116-1020

3820 SQUARE FEET 4 BEDROOMS 2 FULL BATH 1 HALF BATH
3 FLOOR 44' 0" WIDTH 78' 0" DEPTH 2 GARAGE BAY

A modern home styled after the luxury beach homes of the caribbean coast. The interior of the home faces the elevated deck with amazing views of your property and beyond. Living and dining are divided by a textured glass wall. The upper floor houses 4 bedrooms and sitting area. Stairs lead to the basement storage and bedroom suite.

Each plan set includes the following:

  • Floor plans
  • Exterior elevations
  • Building sections
  • Foundation plan
  • Floor & Roof structure layouts
  • Wall section
  • Notes
  • Electrical layout (switches, outlets)
  • Unlimited license

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

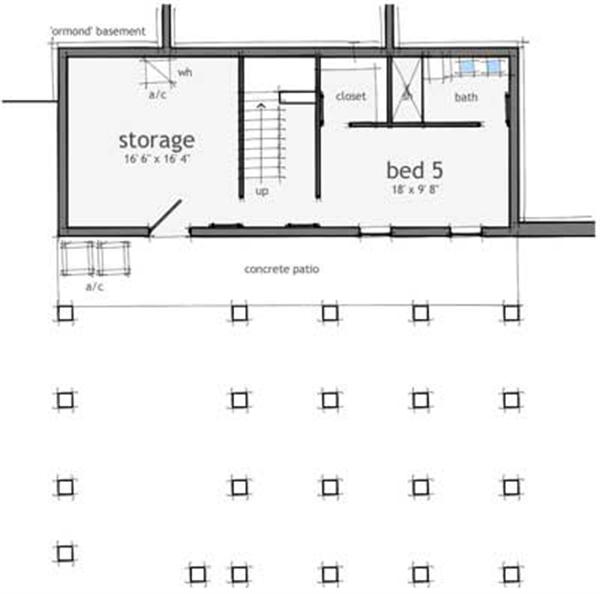

Home Plan: #116-1020 Floor Plan Basement - basement Floor Plan Basement of Coastal Plan #116-1020

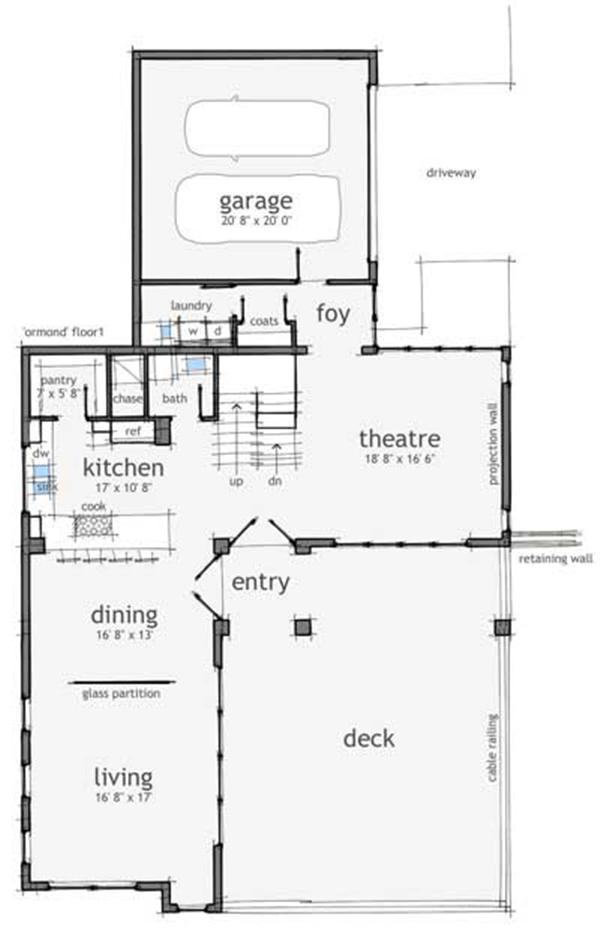

#116-1020 Floor Plan First Story - first story Floor Plan First Story of Coastal Plan #116-1020

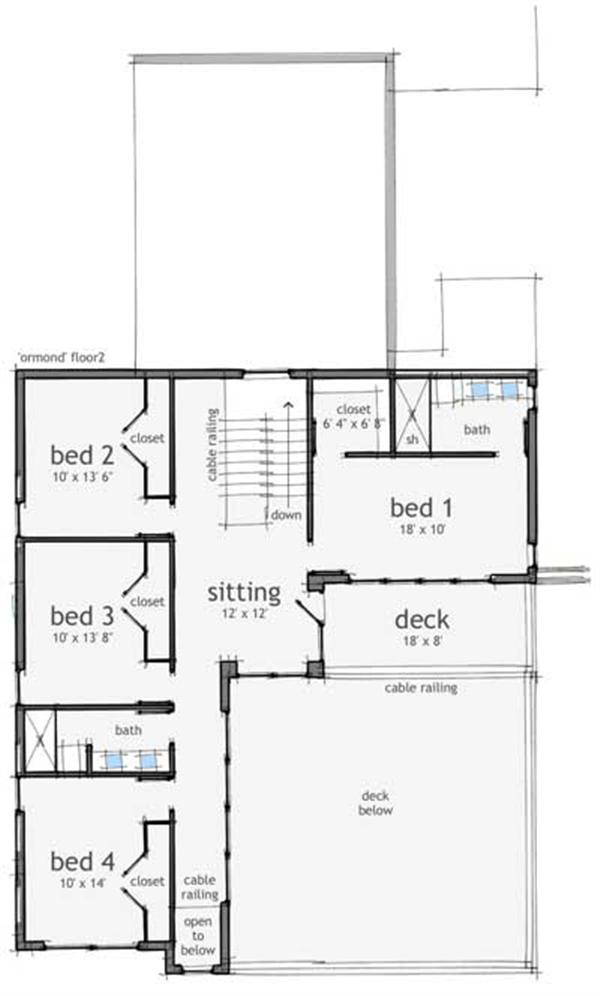

#116-1020 Floor Plan Second Story - second story Floor Plan Second Story of Coastal Plan #116-1020
