3-Bedroom, 3344 Sq Ft Cape Cod Plan with Sundeck

This shows the front elevation of these Southern House Plans LS-B-94011.
3-Bedroom, 3344 Sq Ft Cape Cod House Plan - 146-2753 - Front Exterior

About Plan # 146-2753

About Plan # 146-2753

3344 SQUARE FEET 3 BEDROOMS 4 FULL BATH 1 HALF BATH
2 FLOOR 76' 0" WIDTH 85' 0" DEPTH 3 GARAGE BAY
The attached three car garage is brought well back from the street to enhance the front facade character. The entry is flooded with sunlight from the soaring dormer windows above and opens to a staircase and bridge walkway above to the left is the formal dining room and to the right is the formal living room with columns and half-wall dividers. Straight ahead of the entry is the fireplace and flanking sliding glass doors of the vaulted family room. The island kitchen overlooks the semi-circular breakfast room with rear deck access. The main floor master suite mirrors the breakfast room with a curved sitting bay. It also features a walk-through closet and sumptuous master bath. The main floor den and upper floor bedrooms two and three all have private bathroom access.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

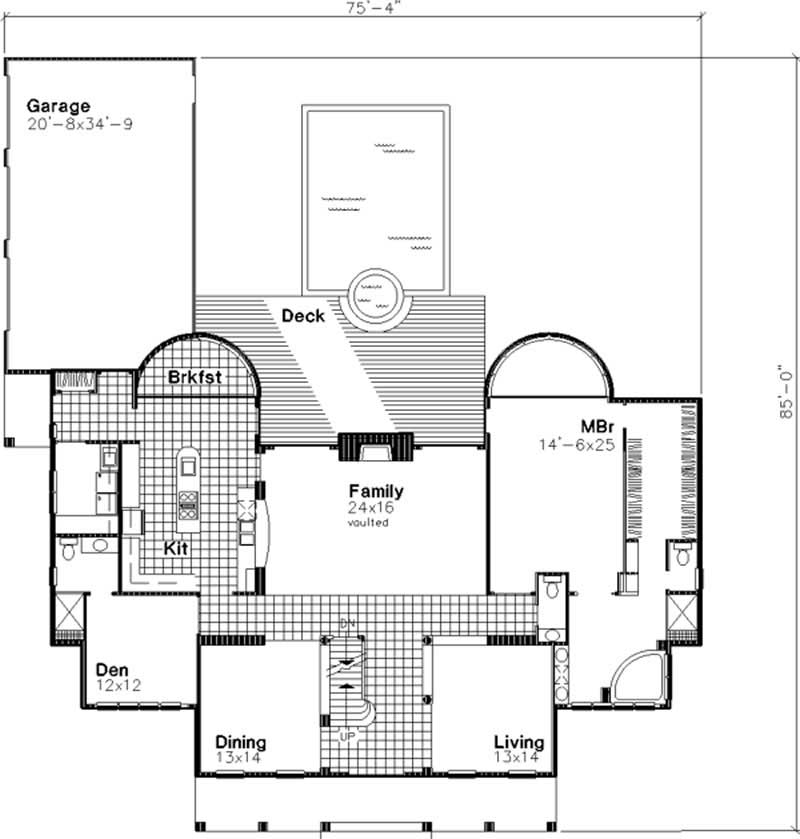

Home Plan: #146-2753 Floor Plan First Story - first story Floor Plan First Story of Cape Cod Plan #146-2753

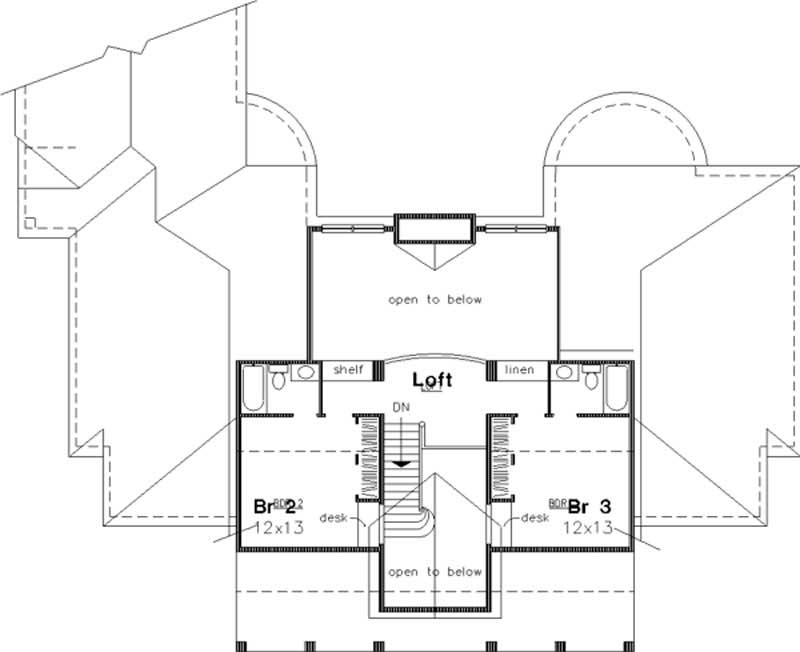

#146-2753 Floor Plan Second Story - second story Floor Plan Second Story of Cape Cod Plan #146-2753
Home Plan: #146-2753 Floor Plan First Story - first story Floor Plan First Story of Cape Cod Plan #146-2753
#146-2753 Floor Plan Second Story - second story Floor Plan Second Story of Cape Cod Plan #146-2753
