Craftsman Floor Plan - 3 Bedrms, 4.5 Baths - 2536 Sq Ft

Images/Plans copyrighted by designer. Photos may reflect homeowner modifications.

About House Plan #202-1003

2536

Sq Ft

3

Bedrooms

4

Baths

1

Half Baths

3

Cars

2

Stories

78' 0'

Width

87

Depth

From$1695What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Start with Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

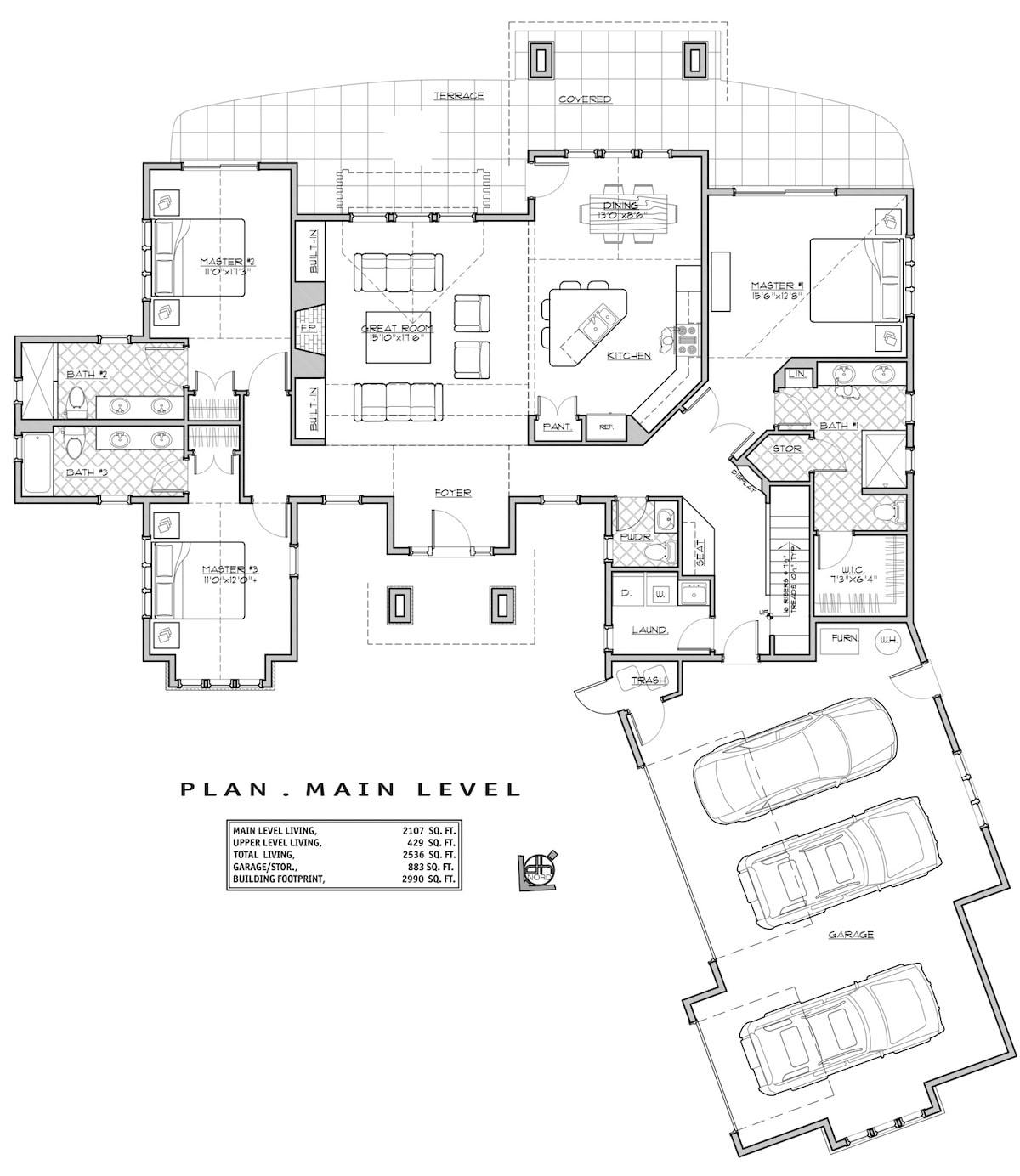

Floor Plan Main Level

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

PLEASE NOTE! If you order an optional foundation and a materials list, the materials list will NOT include the optional foundation, only the standard foundation. The designer can provide an updated materials list for a fee, so please ask for a quote!

House Plan Description

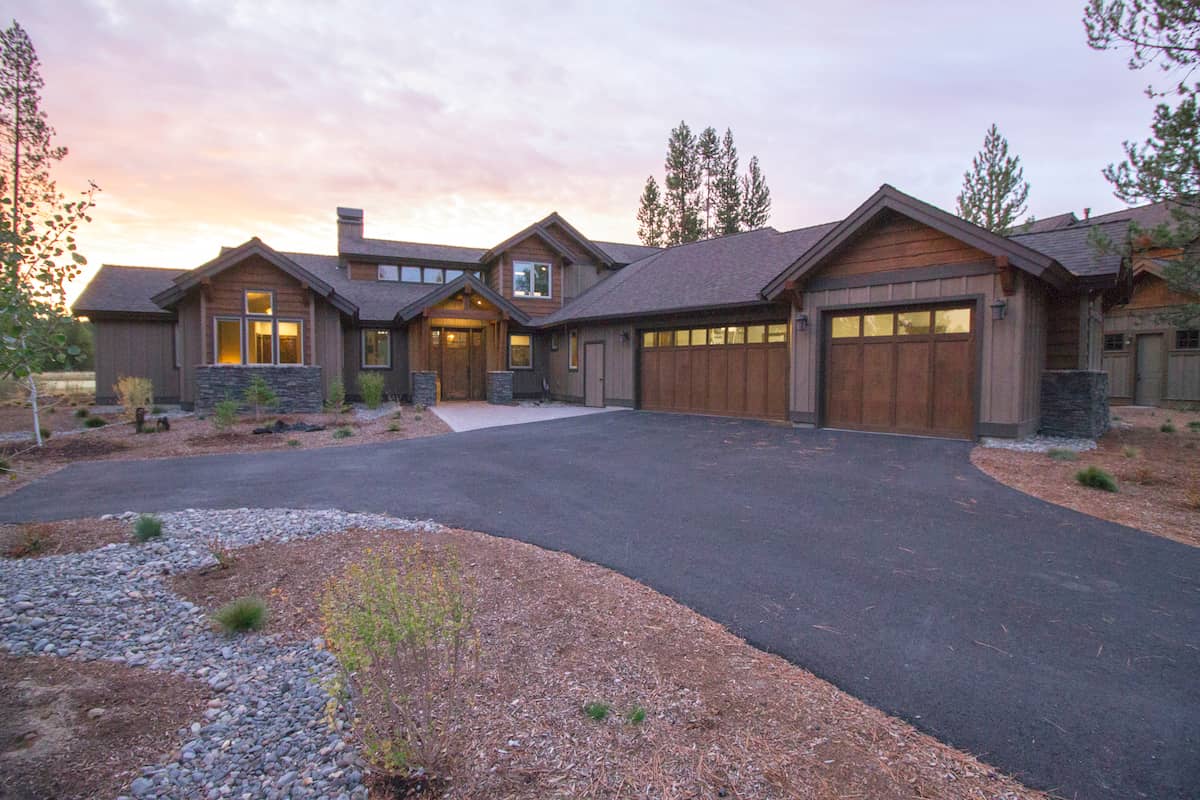

This lovely Craftsman style home with Ranch influences (Plan #202-1003) has 2536 square feet of living space. The 2-story floor plan includes three bedrooms.

Home Details

Summary

Plan #:202-1003

Floors:2

Bedrooms:3

Full Baths:4

Half Baths:1

Garage:

Square Footage

Heated Area::2536 Sq. Ft.

Main Floor:2107 Sq. Ft.

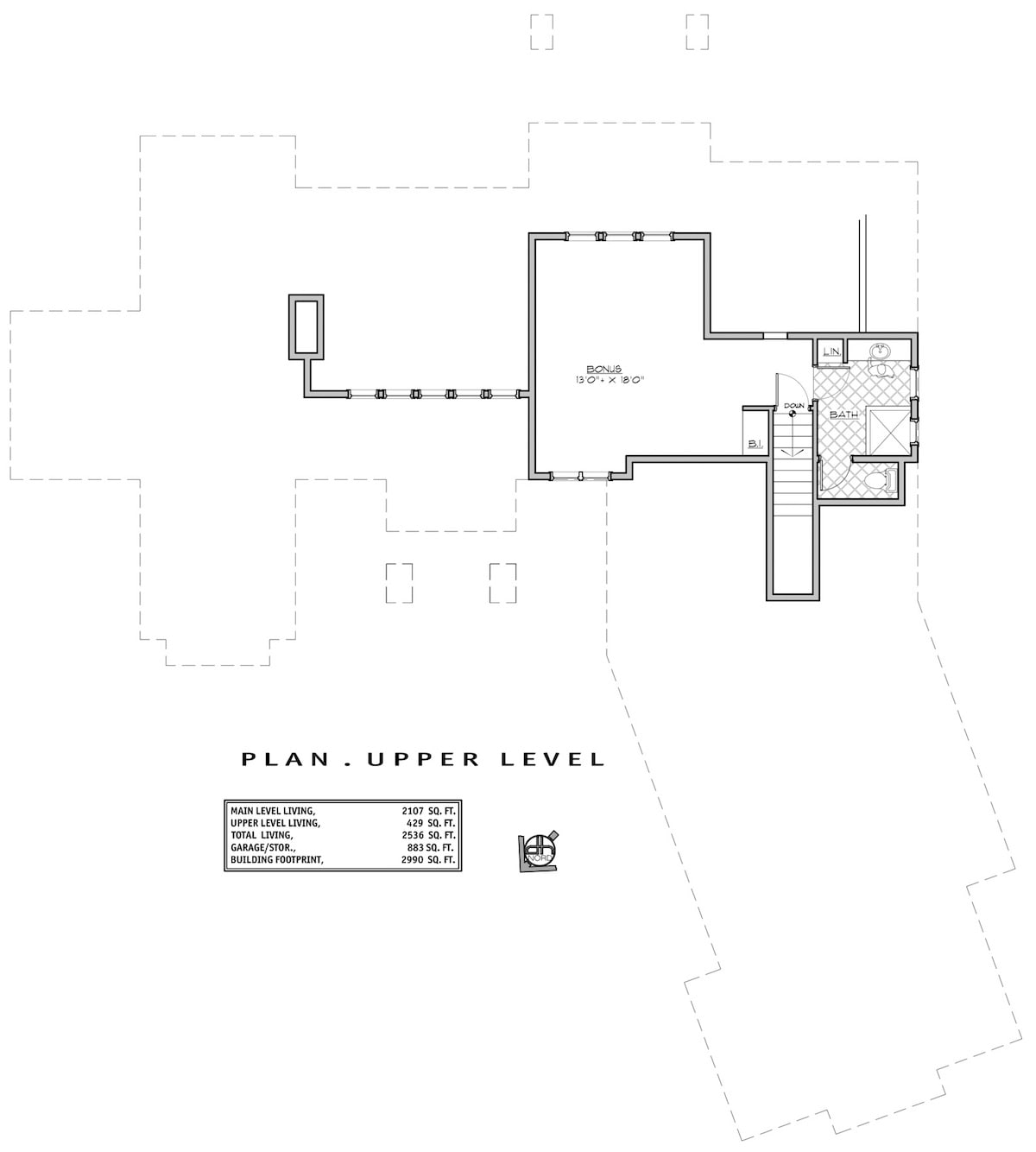

Upper Floor:429 Sq. Ft.

Dimensions

Architectural Styles

Ranch Bungalow Traditional Craftsman

Exterior Wall Material

Aluminum SidingRock/StoneWood SidingShakes

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

8/12

Ceiling Height

9 Foot Ceiling8 Foot Ceiling

Special Feature

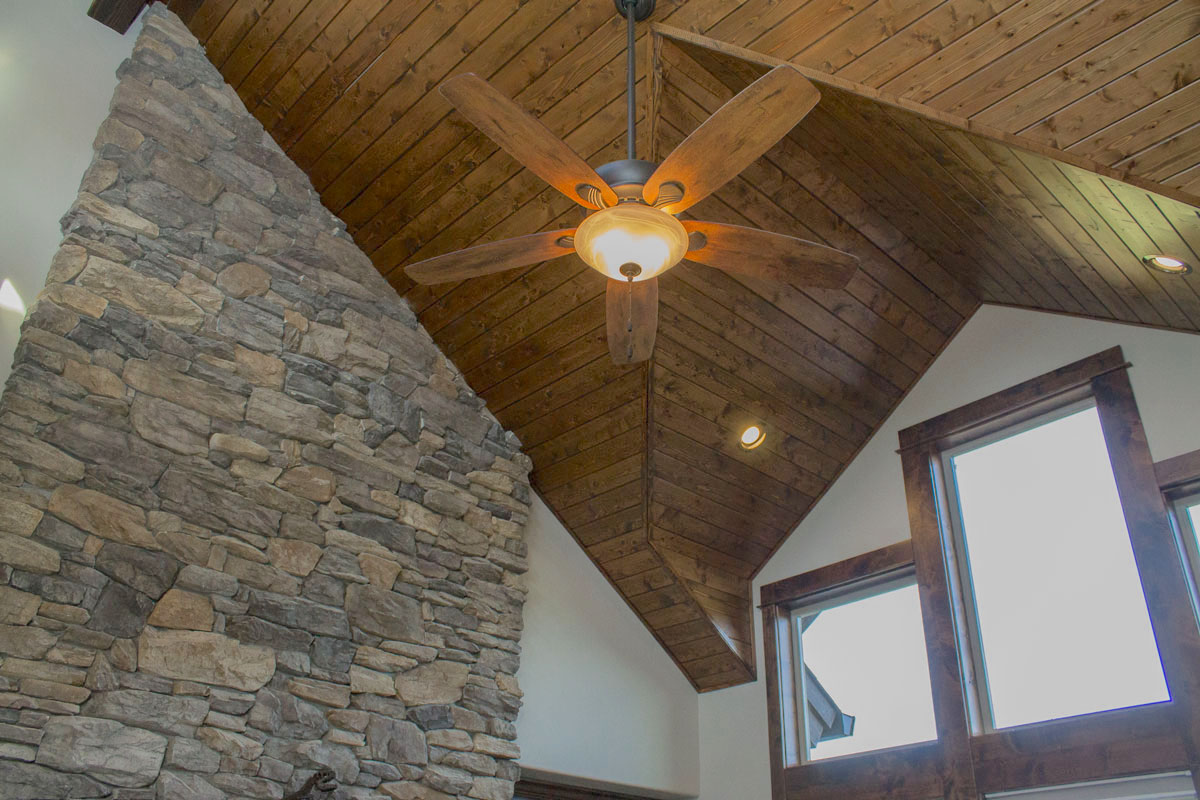

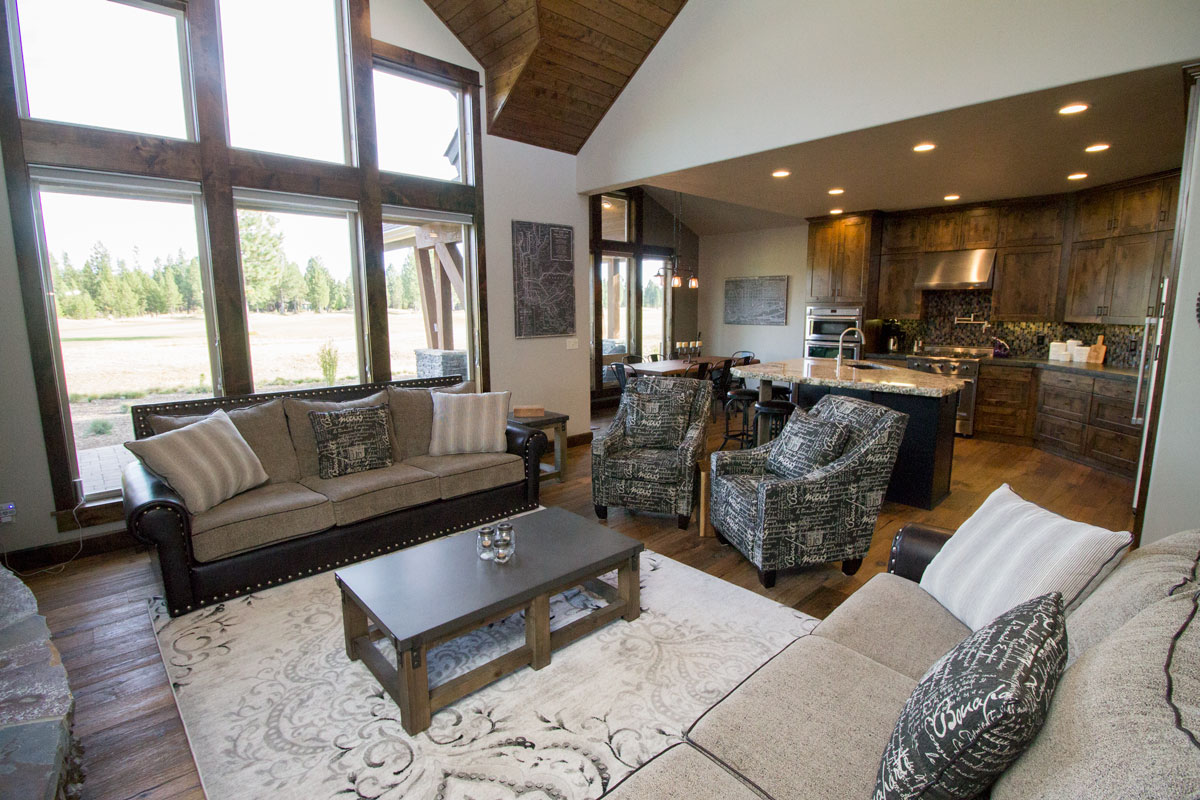

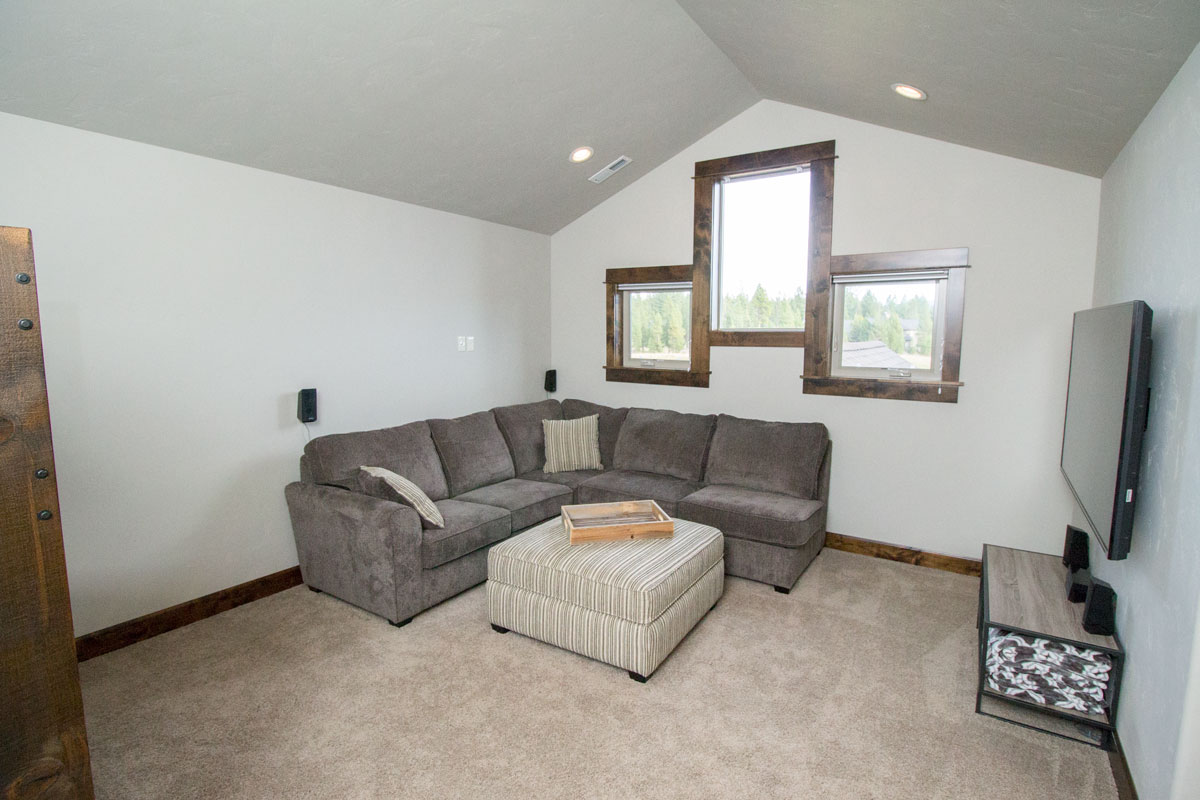

FireplaceMud RoomBonus RoomFamily RoomGame RoomMain Level LaundryColor PhotosColor PhotosSplit BathroomStorageVaulted CeilingsOpen Floor Plan

Garage Type

Attached GarageCourtyard Entry

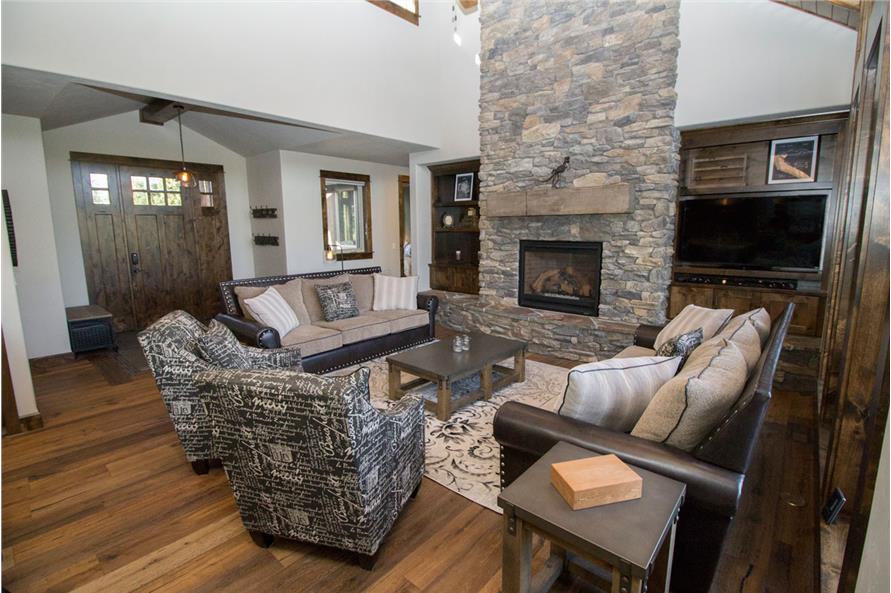

Fireplaces

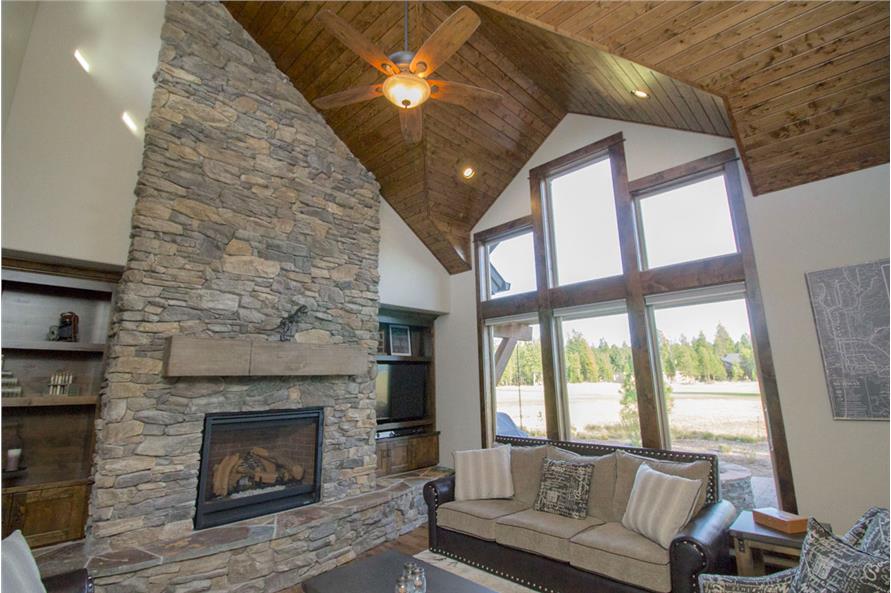

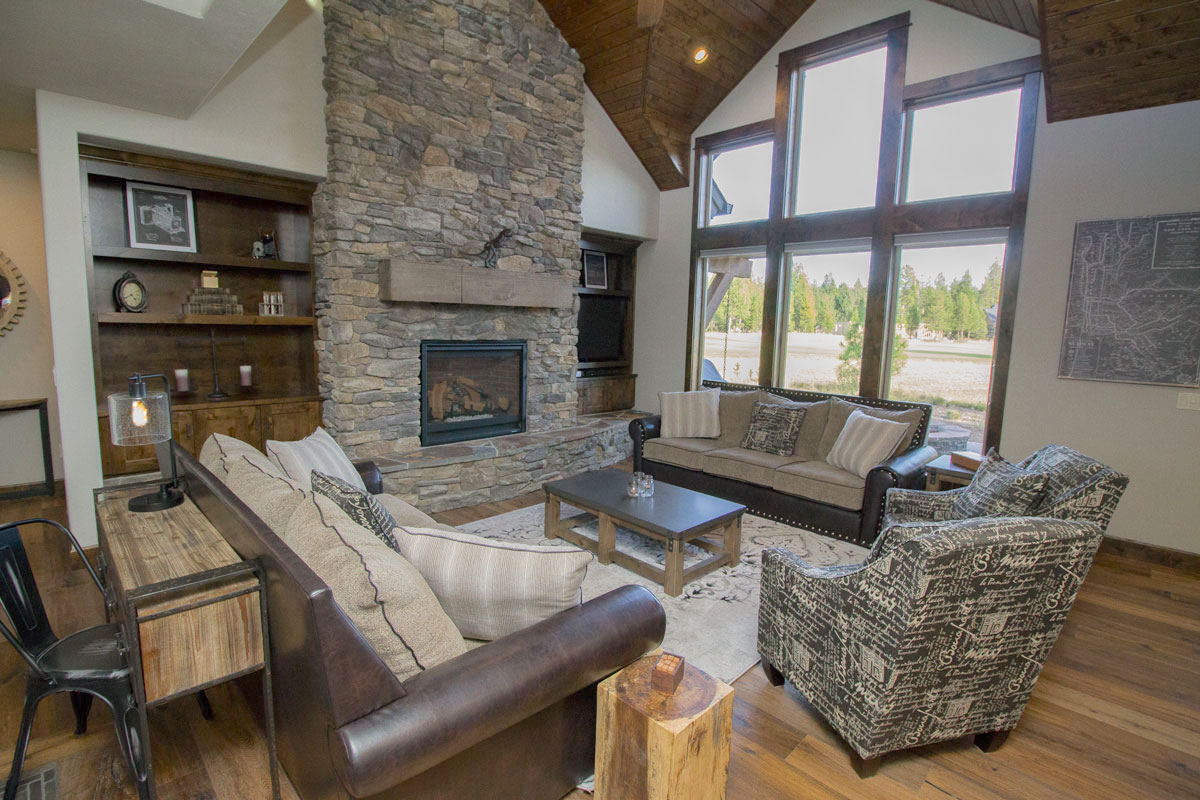

One Fireplace

Exterior Wall Framing

2x6

Kitchen Features

Kitchen IslandWalk-in PantryPeninsula/Eating Bar

Porches and Exterior Features

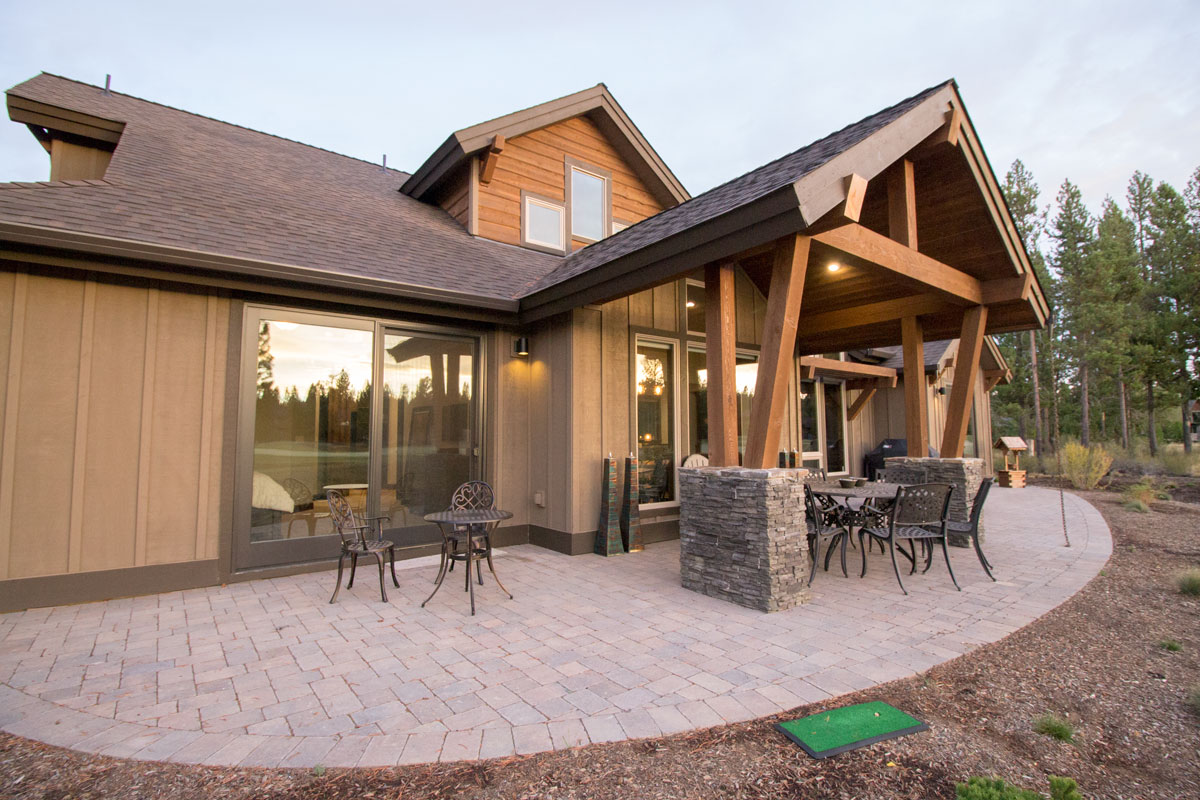

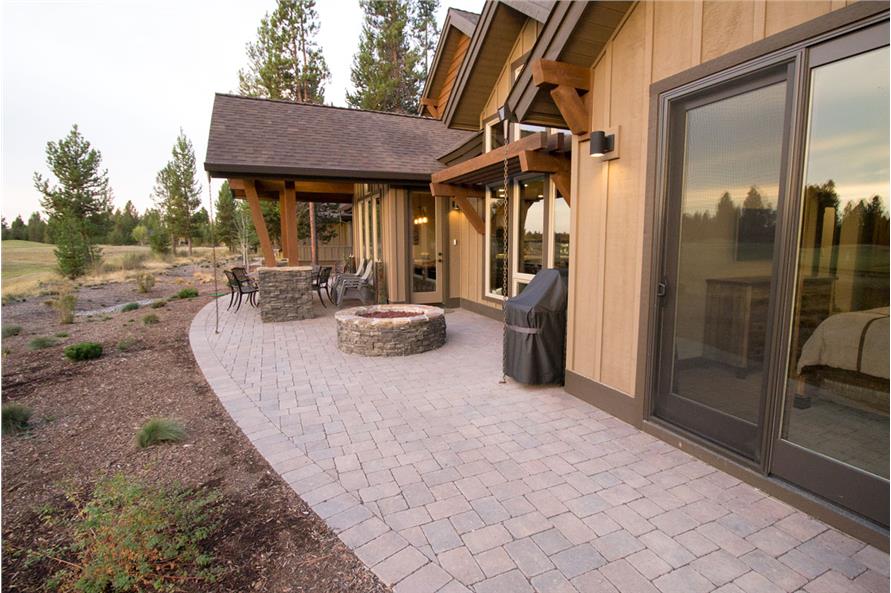

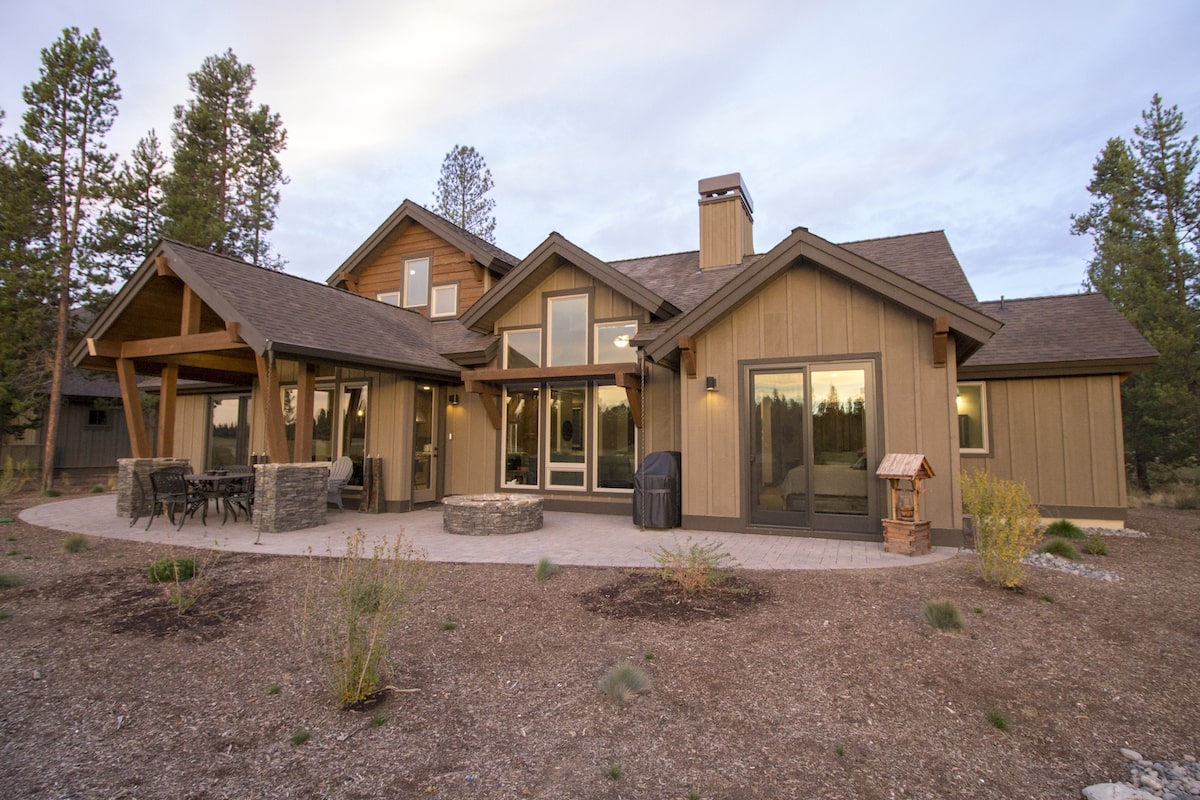

Covered Front PorchPatio

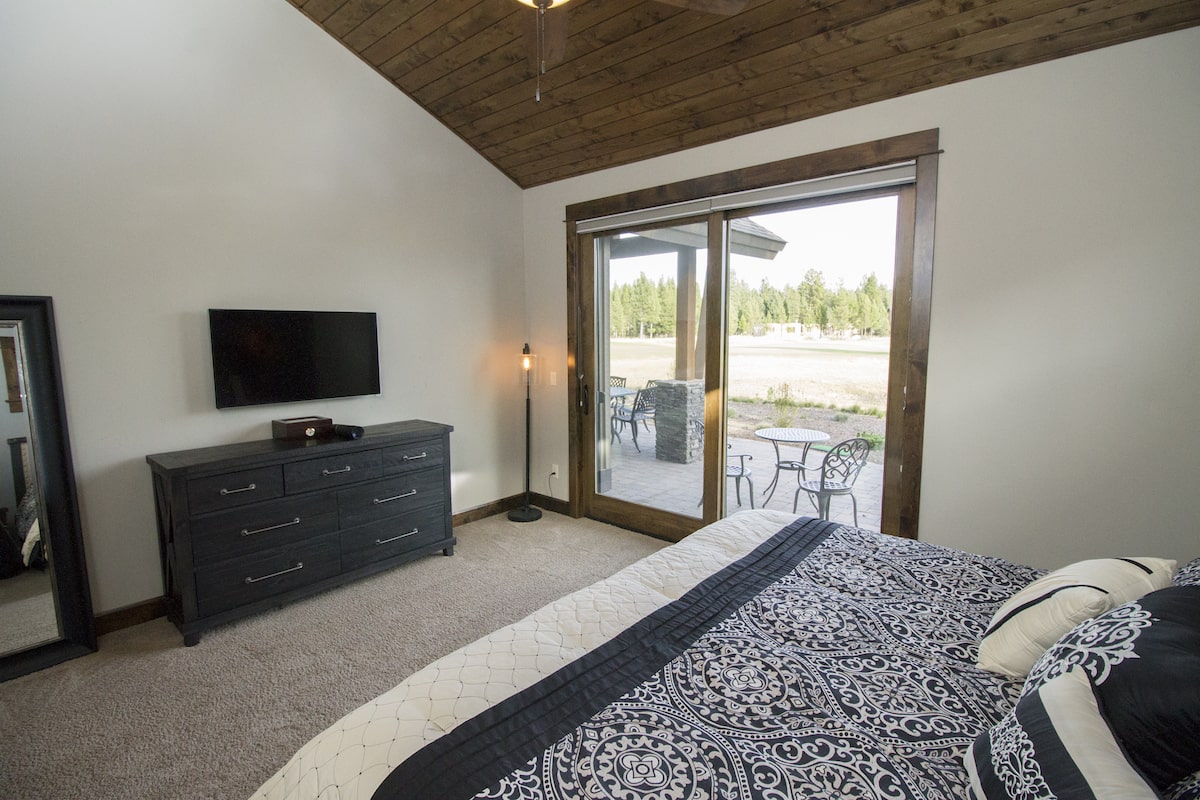

Master Suite Features

Main Floor MasterTwo or More Master SuitesMaster BathroomWalk In ClosetSplit Master Bedroom

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

Cover sheet with renderings or photos

Site plan sheet with an original site plan for reference

Floor plans

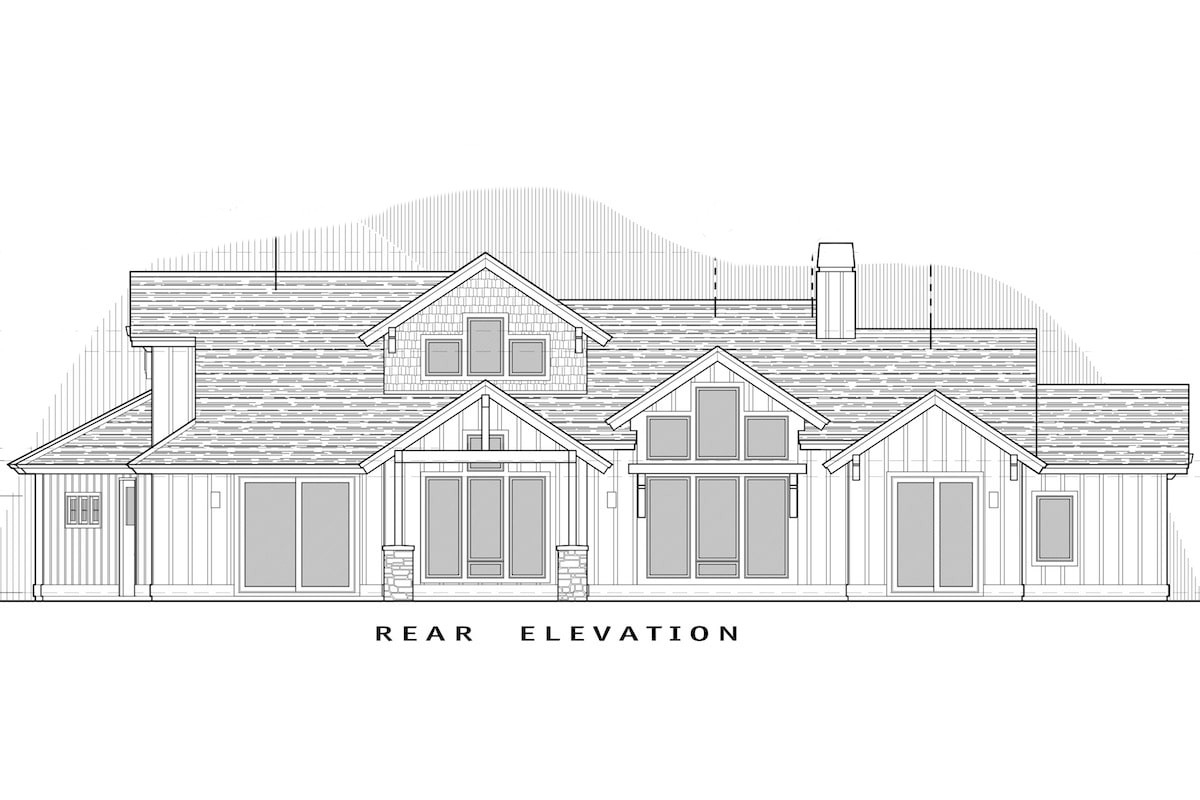

Exterior elevations

Sections

Typical detail sheets

Structural sheets

Foundation/floor framing

Roof framing

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
