5-Bedroom, 2936 Sq Ft European Plan with Kitchen Island

Main image for house plan # 2161

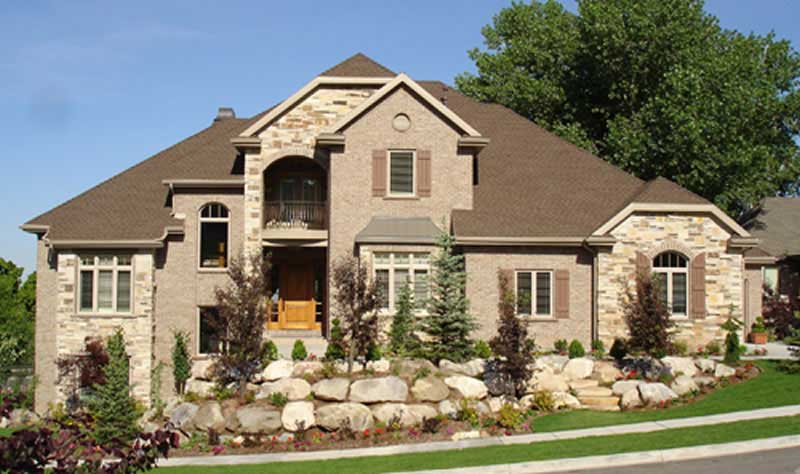

5-Bedroom, 2936 Sq Ft European Home Plan - 102-1037 - Main Exterior

About Plan # 102-1037

About Plan # 102-1037

2936 SQUARE FEET 5 BEDROOMS 4 FULL BATH 0 HALF BATH
2 FLOOR 57' 5" WIDTH 44' 7" DEPTH 2 GARAGE BAY
This home is a two-level home plan with 4 bedrooms, 4 baths, two-story foyer and family room, main level laundry room, kitchen with a breakfast area and spacious keeping room. Walk-in pantry, formal dining room. Upstairs linen room, large master bedroom with a sitting area.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Birdseye view showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. It does not have wiring schematics.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Cabinet details.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

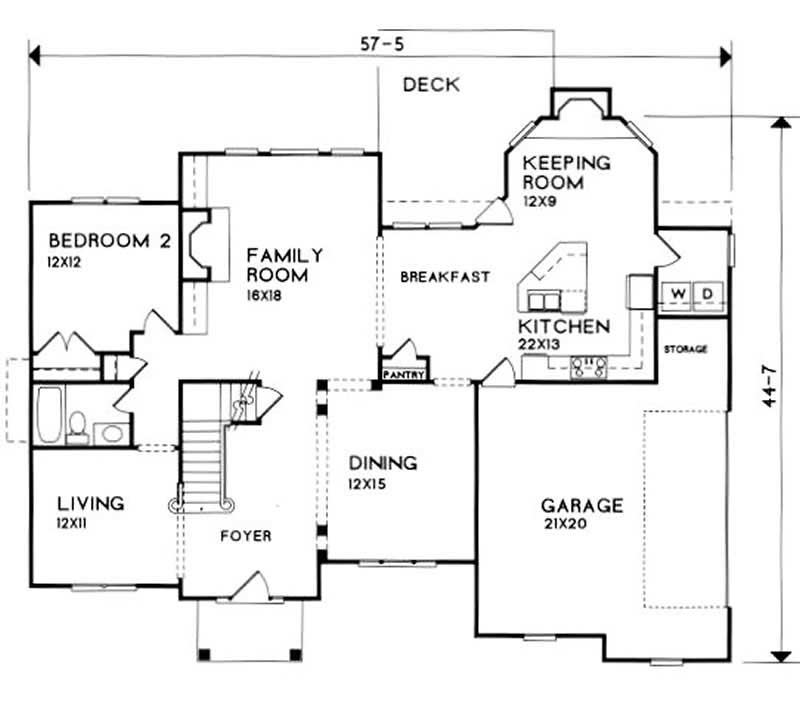

Home Plan: #102-1037 Floor Plan First Story - main Floor Plan First Story of European Plan #102-1037

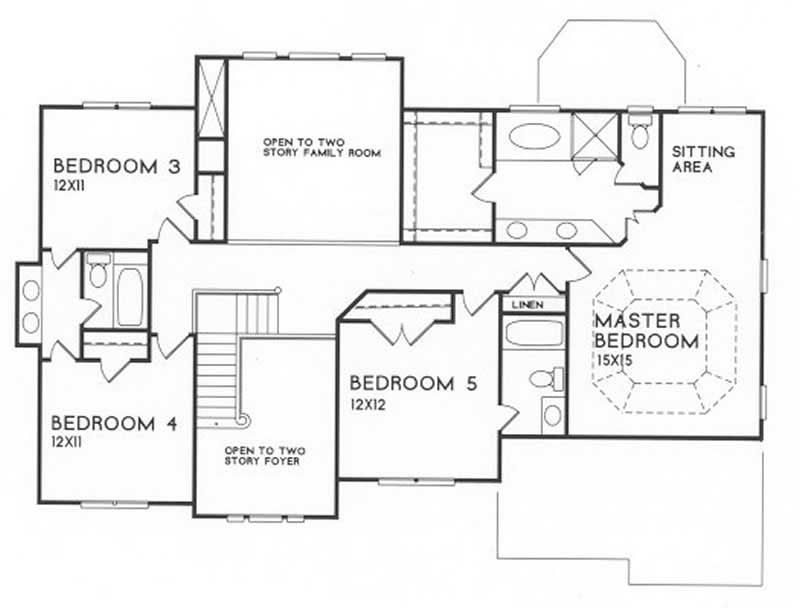

#102-1037 Floor Plan Second Story - upper level Floor Plan Second Story of European Plan #102-1037
Home Plan: #102-1037 Floor Plan First Story - main Floor Plan First Story of European Plan #102-1037
#102-1037 Floor Plan Second Story - upper level Floor Plan Second Story of European Plan #102-1037
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
