5-Bedroom, 3073 Sq Ft Mediterranean Plan with 2-Story Family Room

Front elevation of Mediterranean home (ThePlanCollection: House Plan #106-1258)
106-1258: Home Plan Rear Elevation
5-Bedroom, 3073 Sq Ft Mediterranean Home Plan - 106-1258 - Main Exterior
106-1258: Home Plan Rear Elevation

About Plan # 106-1258

About Plan # 106-1258

3073 SQUARE FEET 5 BEDROOMS 4 FULL BATH 0 HALF BATH
2 FLOOR 51' 0" WIDTH 48' 0" DEPTH 3 GARAGE BAY

This well-designed Mediterranean style home with Tuscan qualities has 3073 square feet of living space. The 2-story floor plan includes 4 bedrooms. Related Home Plans:#106-1021,#106-1261

Each plan set includes the following:

  • Foundation Plan
  • Floor plans
  • Electrical layout
  • Exterior elevations
  • Cross-section
  • Typical Call detail
  • Typical footing detail
  • Miscellaneous details
  • Window/Door sizes
  • Roof plan

These items are NOT included:

  • Framing.
  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

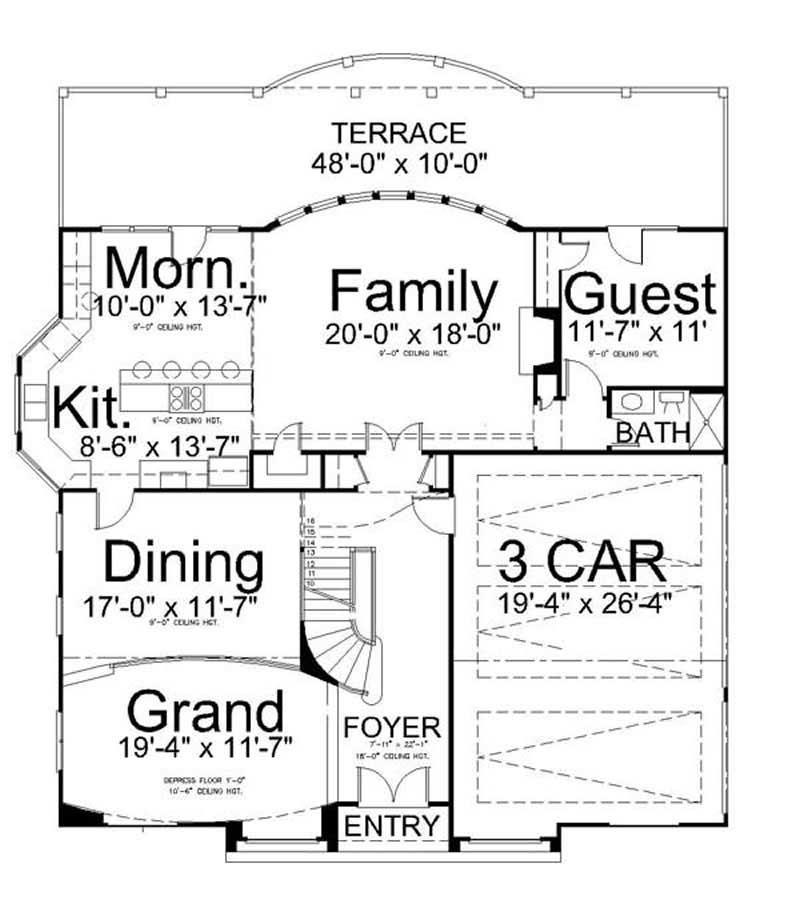

Home Plan: #106-1258 Floor Plan First Story - first story Floor Plan First Story of European Plan #106-1258

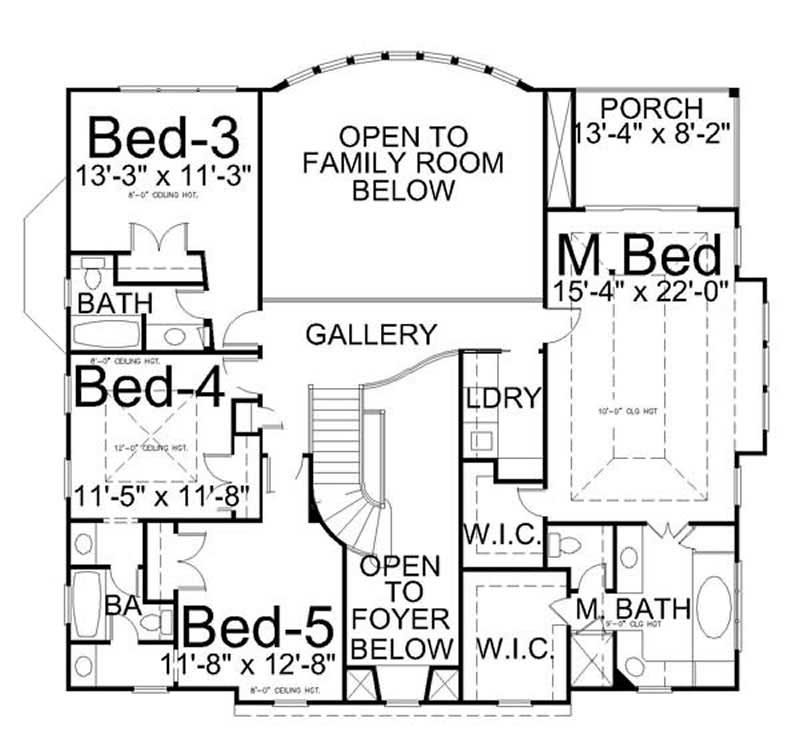

#106-1258 Floor Plan Second Story - second story Floor Plan Second Story of European Plan #106-1258
Home Plan: #106-1258 Floor Plan First Story - first story Floor Plan First Story of European Plan #106-1258
#106-1258 Floor Plan Second Story - second story Floor Plan Second Story of European Plan #106-1258
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 106-1258
Floors:
2
Bedrooms:
5
Full Baths:
4

Square Footage

Heated Sq Feet:
3073
Main Floor:
1593
Upper Floor:
1480
Unfinished Sq Ft:
Lower Floor:
1593
Garage :
547

Dimensions

Width:
51' 0"
Depth:
48' 0"
Ridge Height:
28' 1"

Architectural Styles

European
Mediterranean
Luxury
Traditional
Tuscan

Exterior Wall Material

Stucco

Roof Pitch

4/12

Ceiling Height

9 Foot Ceiling

Special Feature

Fireplace
Dining Room
Guest Room
Family Room
Loft
Second Level Laundry
Open Floor Plan

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace

Building Lot Type

Down Site

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Sundeck

Master Suite Features

Master Bathroom
Walk In Closet
Private Deck
Second Floor Master
Split Master Bedroom

Additional Notes from Designer

PLEASE NOTE: The plans by this designer do NOT include framing. PLEASE NOTE: An Unlimited Use License is available for purchase through the designer BUT YOU MUST purchase a CAD package!
