4-Bedroom, 3405 Sq Ft Luxury Plan with Peninsula/Eating Bar

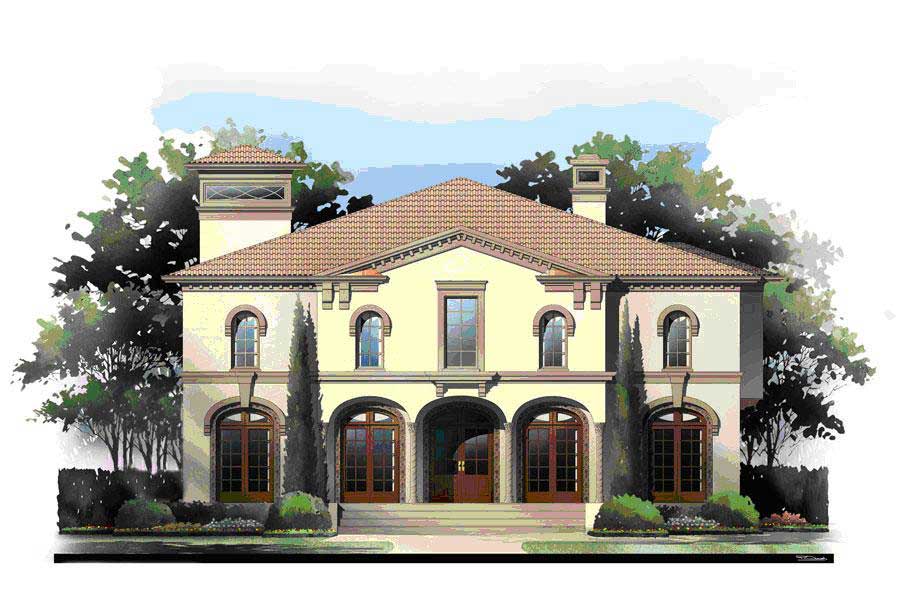

This is an artist's rendering of the front elevation of these Mediterranean House Plans.

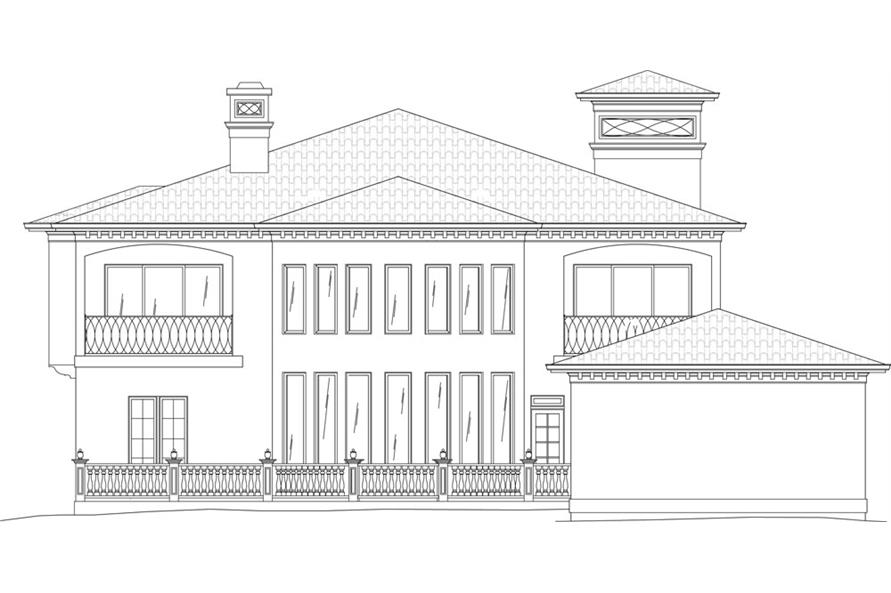

106-1051: Home Plan Rear Elevation

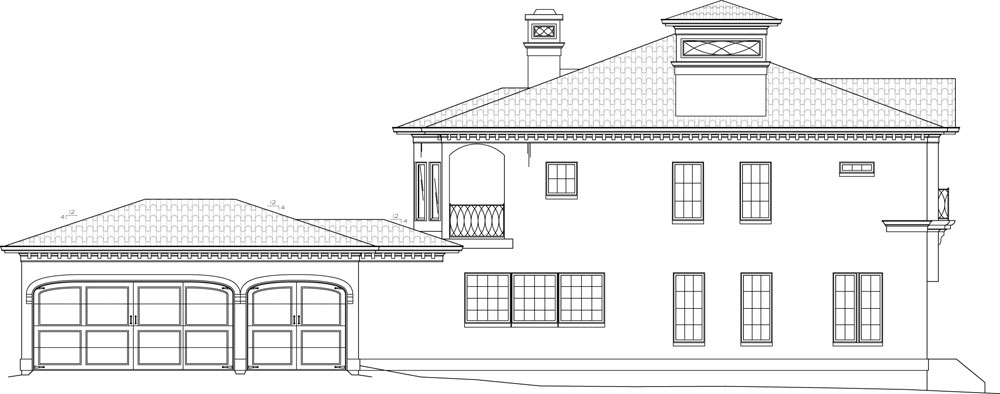

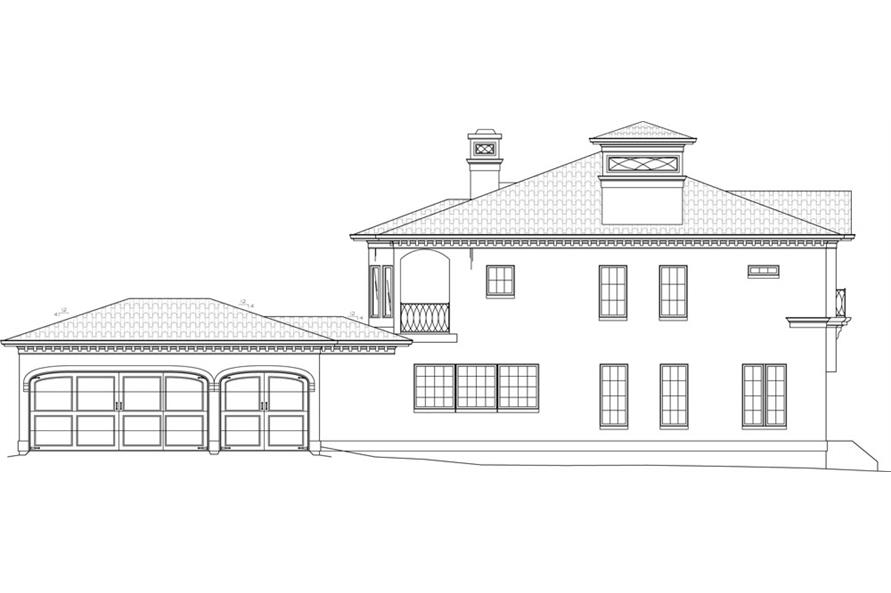

106-1051: Home Plan Left Elevation

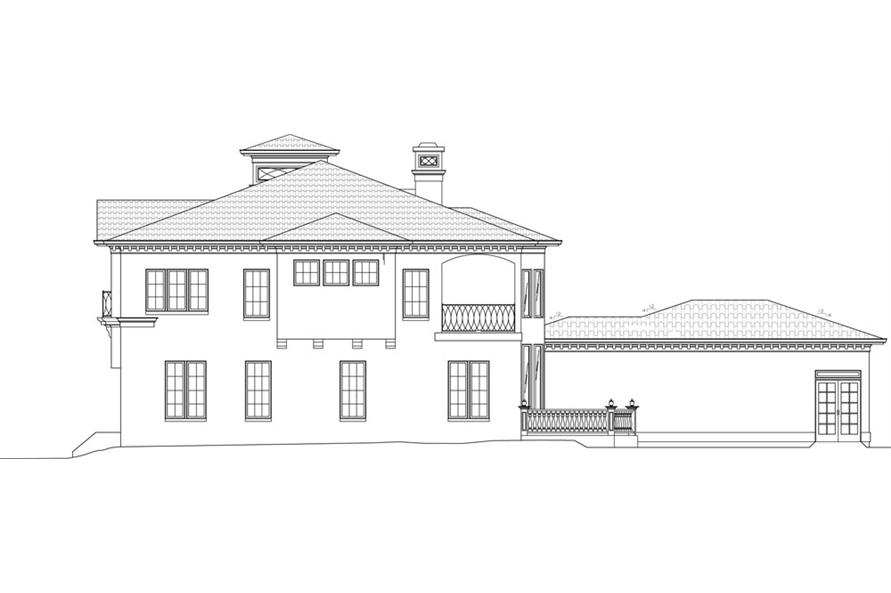

106-1051: Home Plan Right Elevation

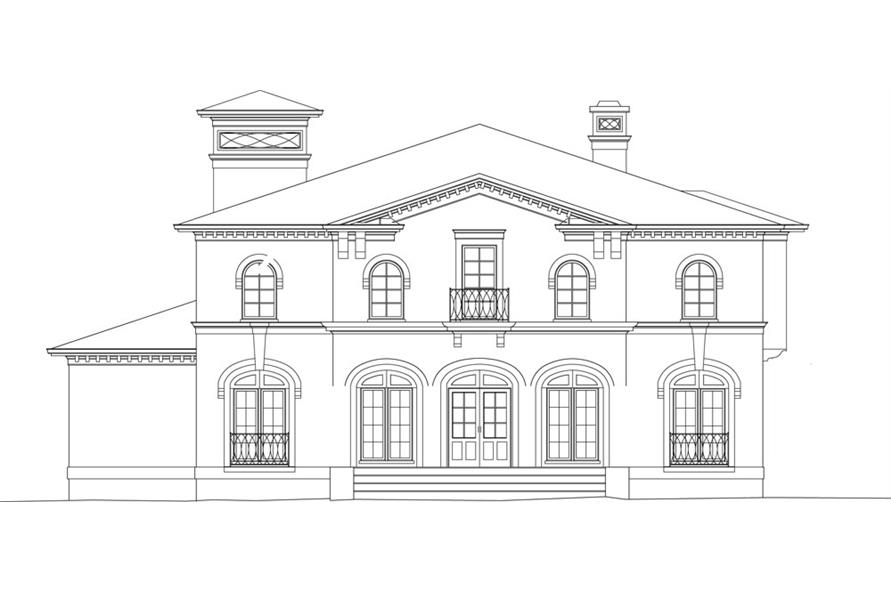

106-1051: Home Plan Front Elevation
4-Bedroom, 3405 Sq Ft Luxury Home Plan - 106-1051 - Main Exterior
106-1051: Home Plan Rear Elevation
106-1051: Home Plan Left Elevation
106-1051: Home Plan Right Elevation
106-1051: Home Plan Front Elevation

About Plan # 106-1051

About Plan # 106-1051

3405 SQUARE FEET 4 BEDROOMS 3 FULL BATH 2 HALF BATH
2 FLOOR 59' 0" WIDTH 81' 0" DEPTH 3 GARAGE BAY

By drawing in the symmetry of the villas found in Tuscany, the #106-1051 provides understated grandeur in only 3,000 square feet. Despite its compact size, no amenity is overlooked or deleted; such as the stylish family room, which is slightly oval, adjoining a spacious kitchen. The family room, located to the rear of the home, features a bowed wall of windows and a warming fireplace. The master on the first boasts large closets with cabinets and seats and double sinks in the lavish bath. An optional exercise room is available. Upstairs, the second master is full of amenities, including two walk-in closets, a sitting room, a private porch and a lavish bath. There are two family bedrooms, each with direct access to a bath. Enjoy the mini-kitchen where you're a step away from the private rear porch. There is a large area for an optional game room or theatre.

Each plan set includes the following:

  • FLOOR PLAN: Drawn to ¼”=1’-0” scale and includes exterior dimensions to build the home. The notes are precise directions for your builder. Important features such as built-ins, niches, and appliances are noted. Doors and windows are identified and specific sizing can be found on window and door schedules.
  • FOUNDATION PLAN: These drawings will detail and illustrate the foundation of the home, exterior and interior footings to support the floors and structure above. If a basement is purchased, it will show the stairs, bearing walls, and basement windows and doors.
  • ROOF PLAN: This drawing, usually at ¼”=1’-0” scale, is a bird’s eye view of the home. It will show the ridges, hips, and valleys. This page will show a beautifully designed roof.
  • ELECTRICAL PLAN: On this sheet, you have a schematic of the lights, electrical plugs, phone location, and code items such as smoke detectors. It is commonplace to build with your builder and/or electrician before the work starts to review this plan. Careful planning can make your home special and convenient for your family.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Cabinet elevations are included with most plans.
  • GENERAL NOTES: Separate sheets that provide standard construction notes, in addition, included are the details required to comply with International Residential Code (IRC) & Southern Building Code (SBC).
  • COVER SHEET: Features an elevation of the home, sheet number index for the plan, and contact information.

These items are NOT included:

  • Framing is not included.
  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

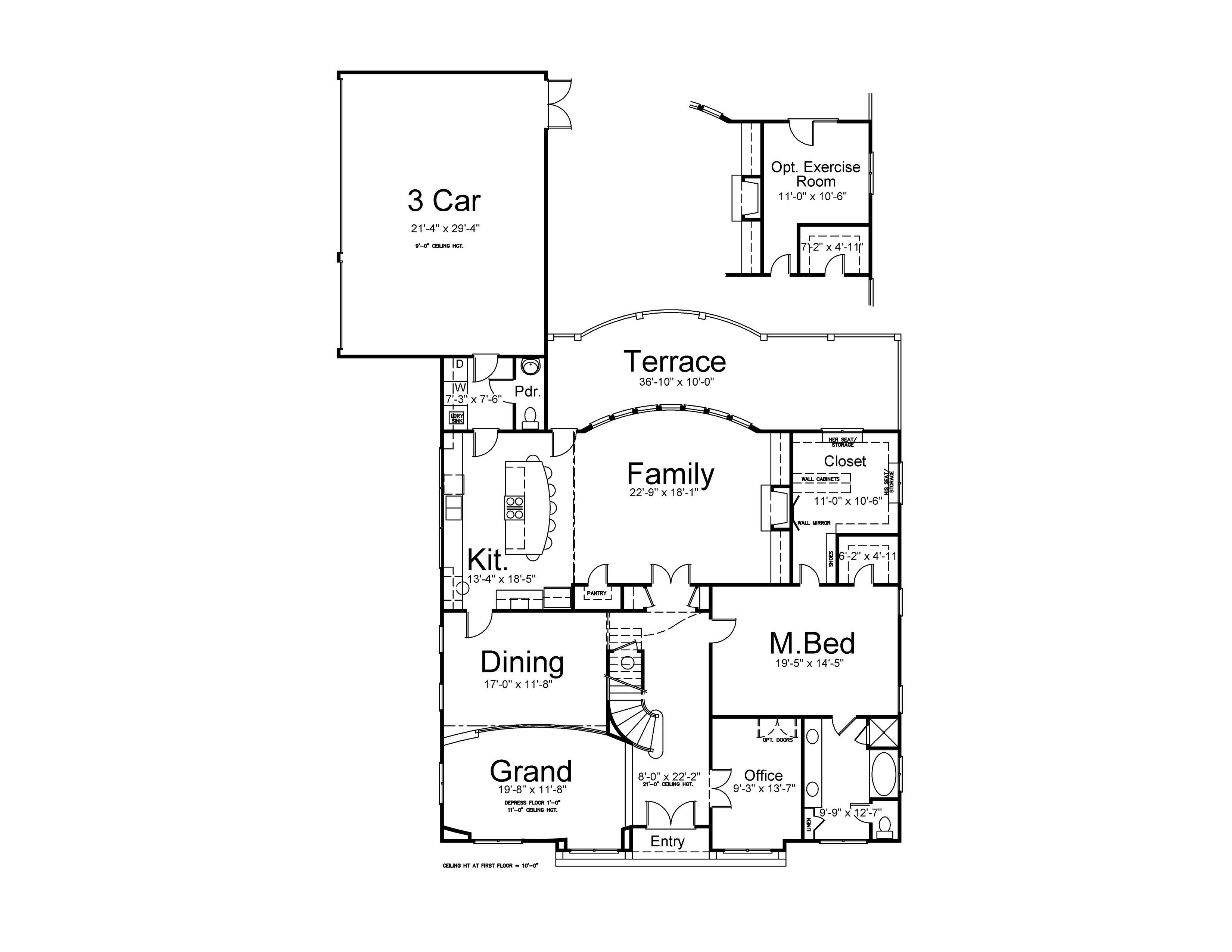

Home Plan: #106-1051 Floor Plan First Story - first story Floor Plan First Story of Luxury Plan #106-1051

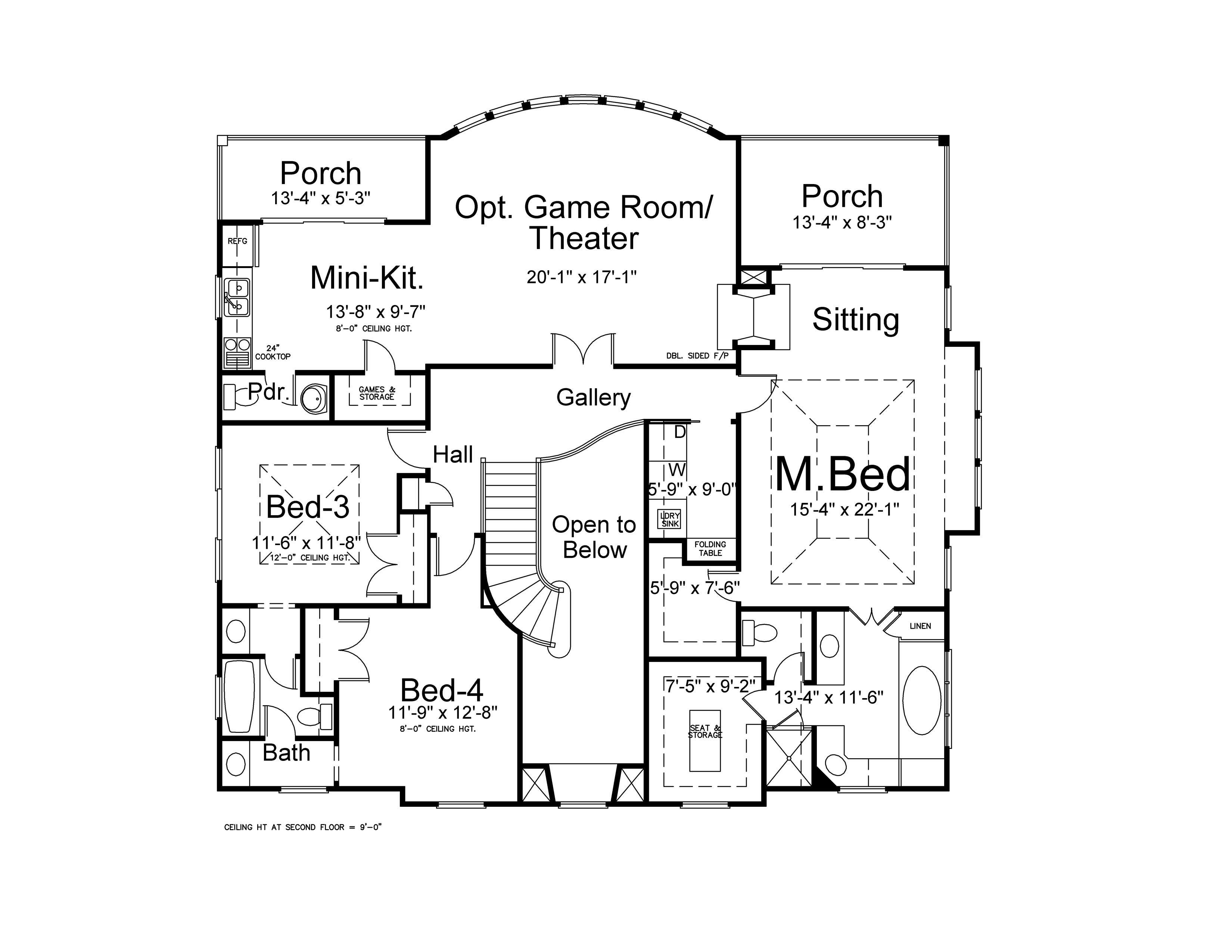

#106-1051 Floor Plan Second Story - second story Floor Plan Second Story of Luxury Plan #106-1051
Home Plan: #106-1051 Floor Plan First Story - first story Floor Plan First Story of Luxury Plan #106-1051
#106-1051 Floor Plan Second Story - second story Floor Plan Second Story of Luxury Plan #106-1051
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 106-1051
Floors:
2
Bedrooms:
4
Full Baths:
3
Half Baths:
2

Square Footage

Heated Sq Feet:
3405
Main Floor:
2187
Upper Floor:
1218
Garage:
653
Unfinished Sq Ft:
Bonus Room:
520
Porch :
563

Dimensions

Width:
59' 0"
Depth:
81' 0"
Ridge Height:
33' 0"

Architectural Styles

Luxury
Mediterranean

Exterior Wall Material

Stucco

Roofing Type

Hip

Roofing Material

Tiles

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Special Feature

Balcony
Den
Dining Room
Exercise Room
Family Room
Fireplace
Game Room
Home Office
Home Theater
Main Level Laundry
Mud Room
Second Level Laundry
Split Bathroom

Garage Type

Attached Garage
Side Entry

Fireplaces

Two Fireplaces

Building Lot Type

Flat Site

Kitchen Features

Eat-In Kitchen
Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
Secondary Kitchen
Walk-in Pantry

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Fireplace in Master
Main Floor Master
Master Bathroom
Private Deck
Second Floor Master
Sitting Area
Split Master Bedroom
Two or More Master Suites
Walk In Closet

Additional Notes from Designer

PLEASE NOTE: The plans by this designer do NOT include framing. PLEASE NOTE: An Unlimited Use License is available for purchase through the designer BUT YOU MUST purchase a CAD package!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
