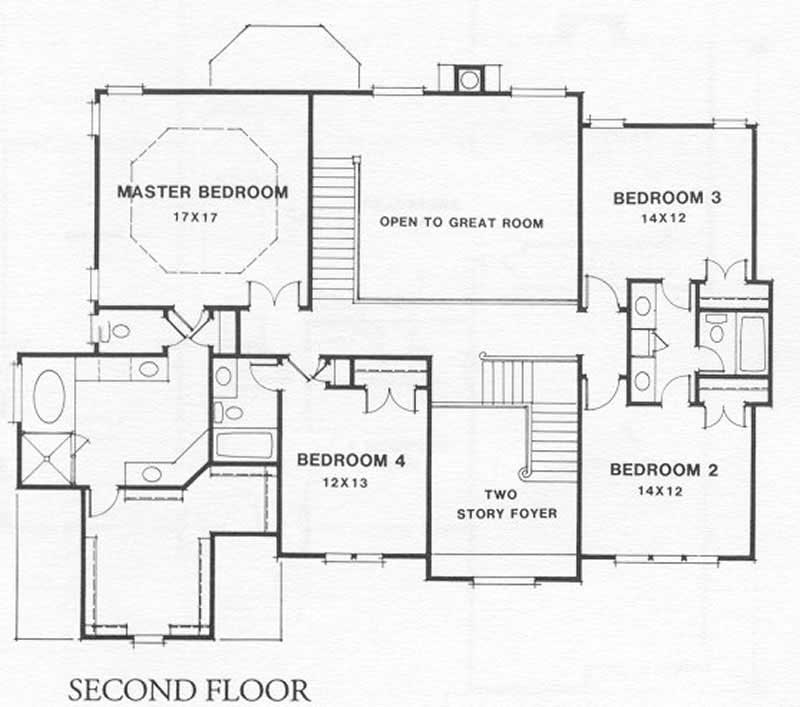

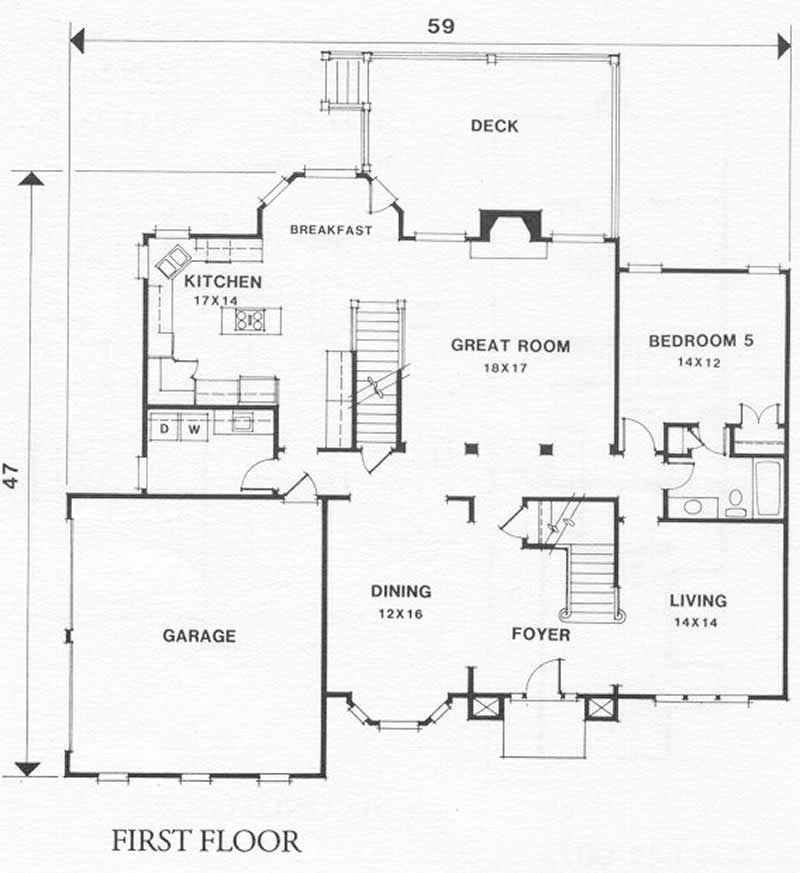

This home is a two-level home with 5 bedrooms, 4 baths, two-story foyer and great room, spacious dining area, large main level laundry room, breakfast nook, exterior deck, and an attached two-car garage.
Each plan set includes the following:
Front Elevation & Cabinet Details
Floor Plan with Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
Roof Plan (Birdseye view)
Foundation Plan & Details
Cross Sections & Details
Connection Details & Trim
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
