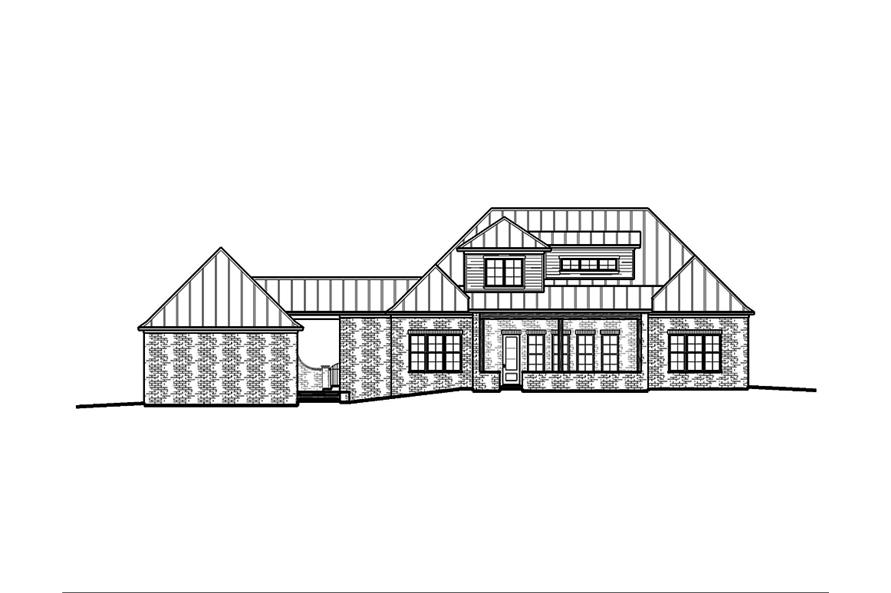

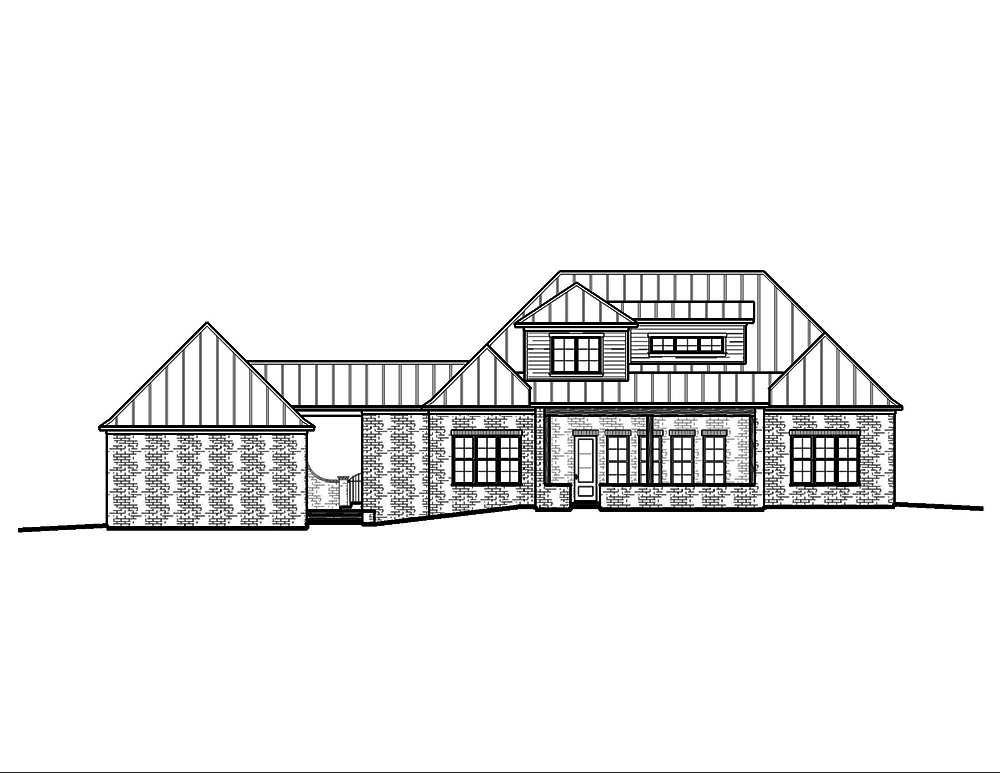

197-1009: Home Plan Rear Elevation

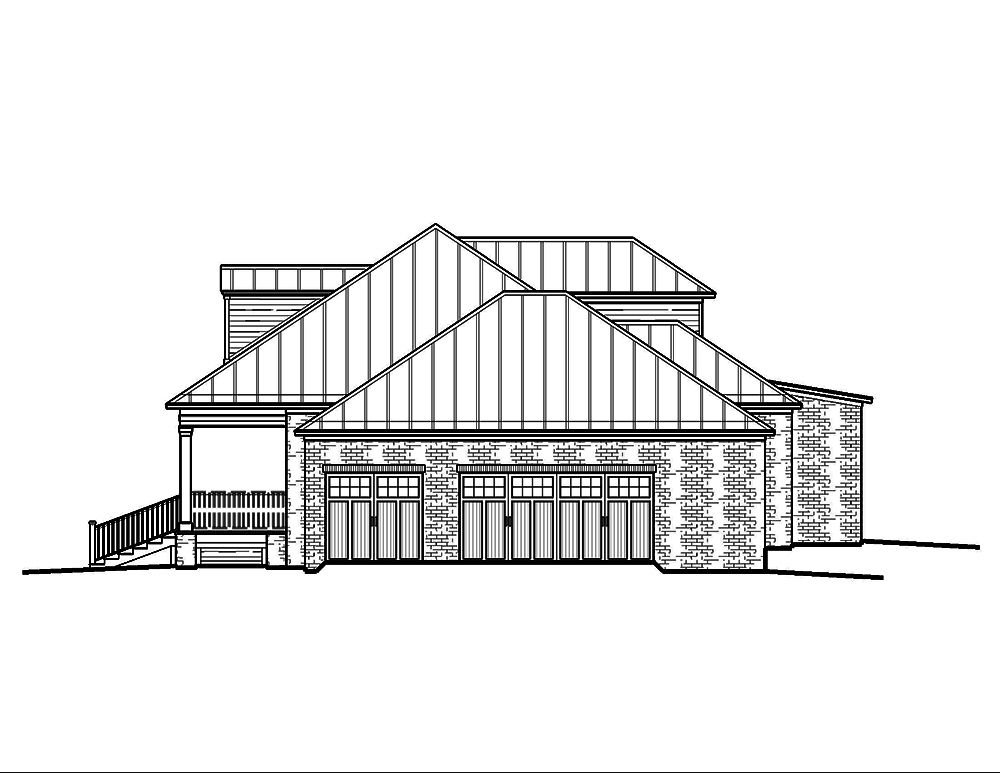

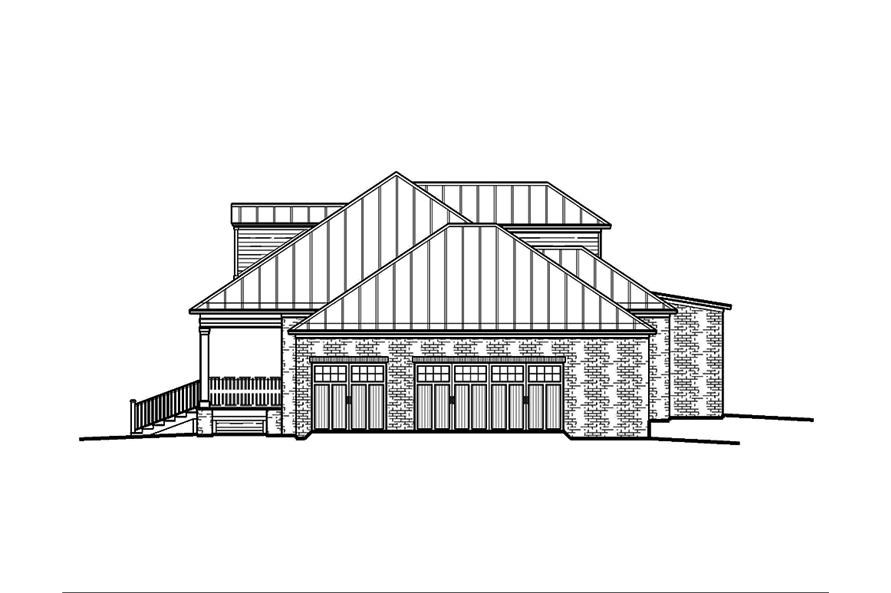

197-1009: Home Plan Left Elevation

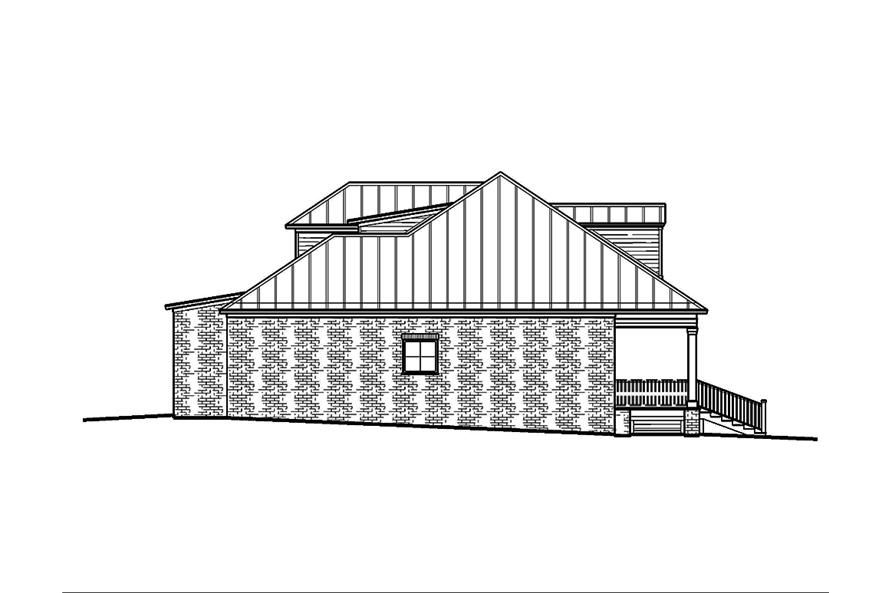

197-1009: Home Plan Right Elevation
5-Bedroom, 3616 Sq Ft Acadian House Plan - 197-1009 - Front Exterior
197-1009: Home Plan Rear Elevation
197-1009: Home Plan Left Elevation

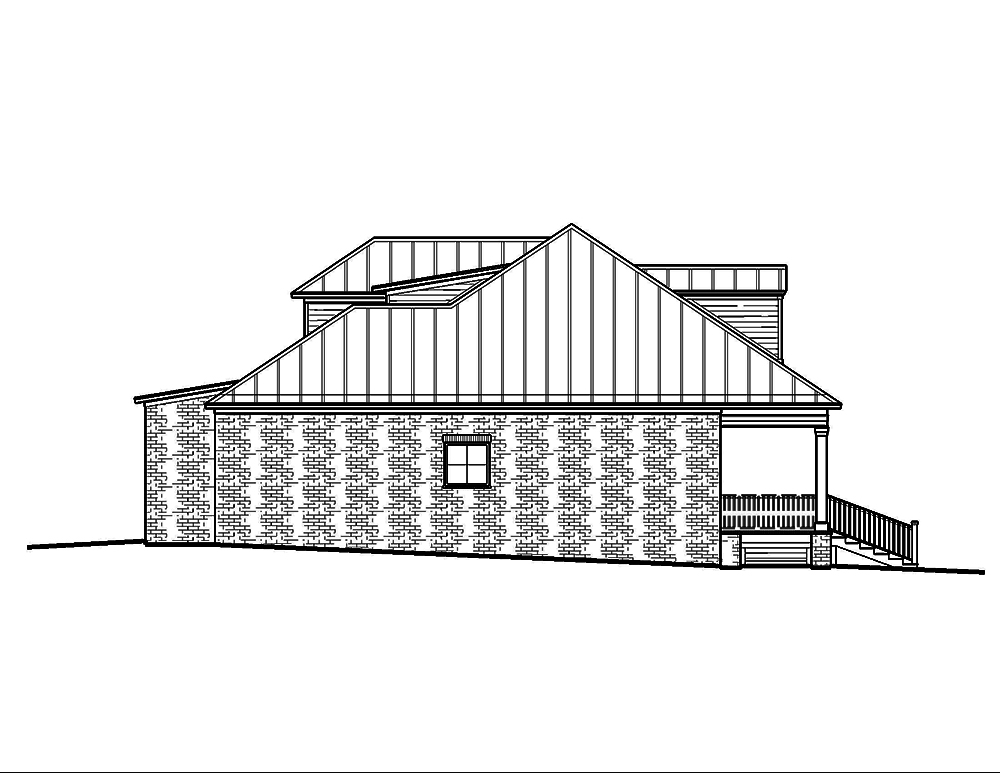

197-1009: Home Plan Right Elevation

About Plan # 197-1009

About Plan # 197-1009

3616 SQUARE FEET 5 BEDROOMS 4 FULL BATH 0 HALF BATH
2 FLOOR 97' 10" WIDTH 63' 10" DEPTH 3 GARAGE BAY

This lovely Acadian style home with French influences (House Plan #197-1009) has 3616 square feet of living space. The 2 story floor plan includes 5 bedrooms.

Each plan set includes the following:

  • Cover Sheet
  • Foundation Plan & Footing Details
  • Floor Plans
  • Exterior Elevations
  • Roof Plan
  • Building Section
  • Electrical Layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

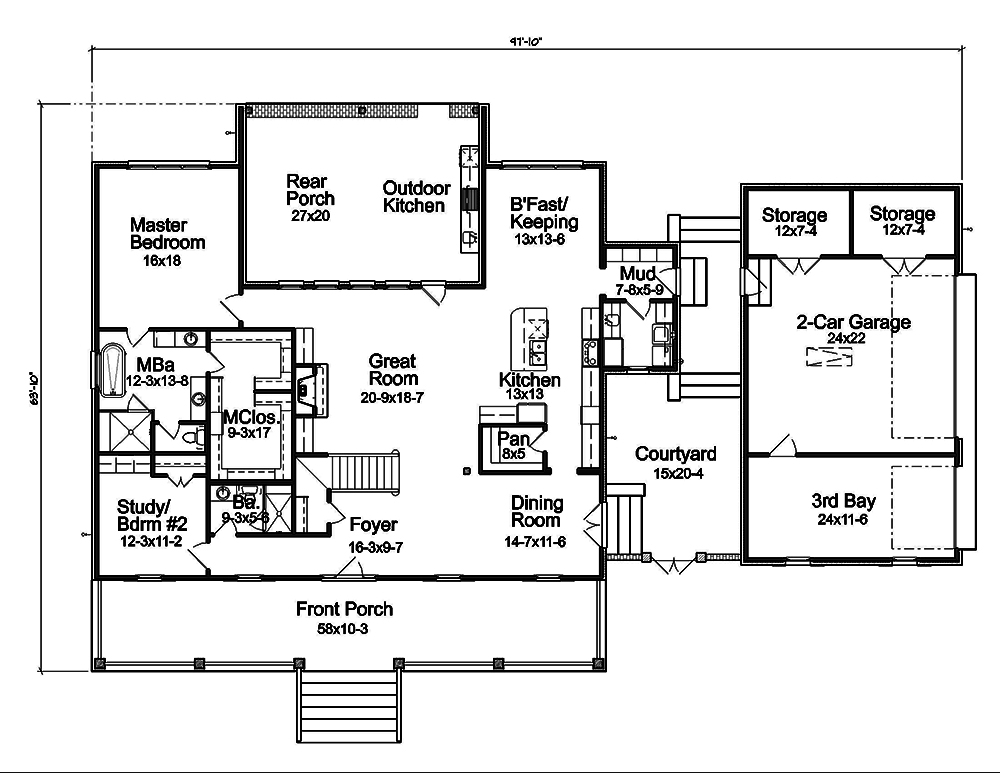

Home Plan: #197-1009 Floor Plan First Story - main level Floor Plan First Story of Acadian Plan #197-1009

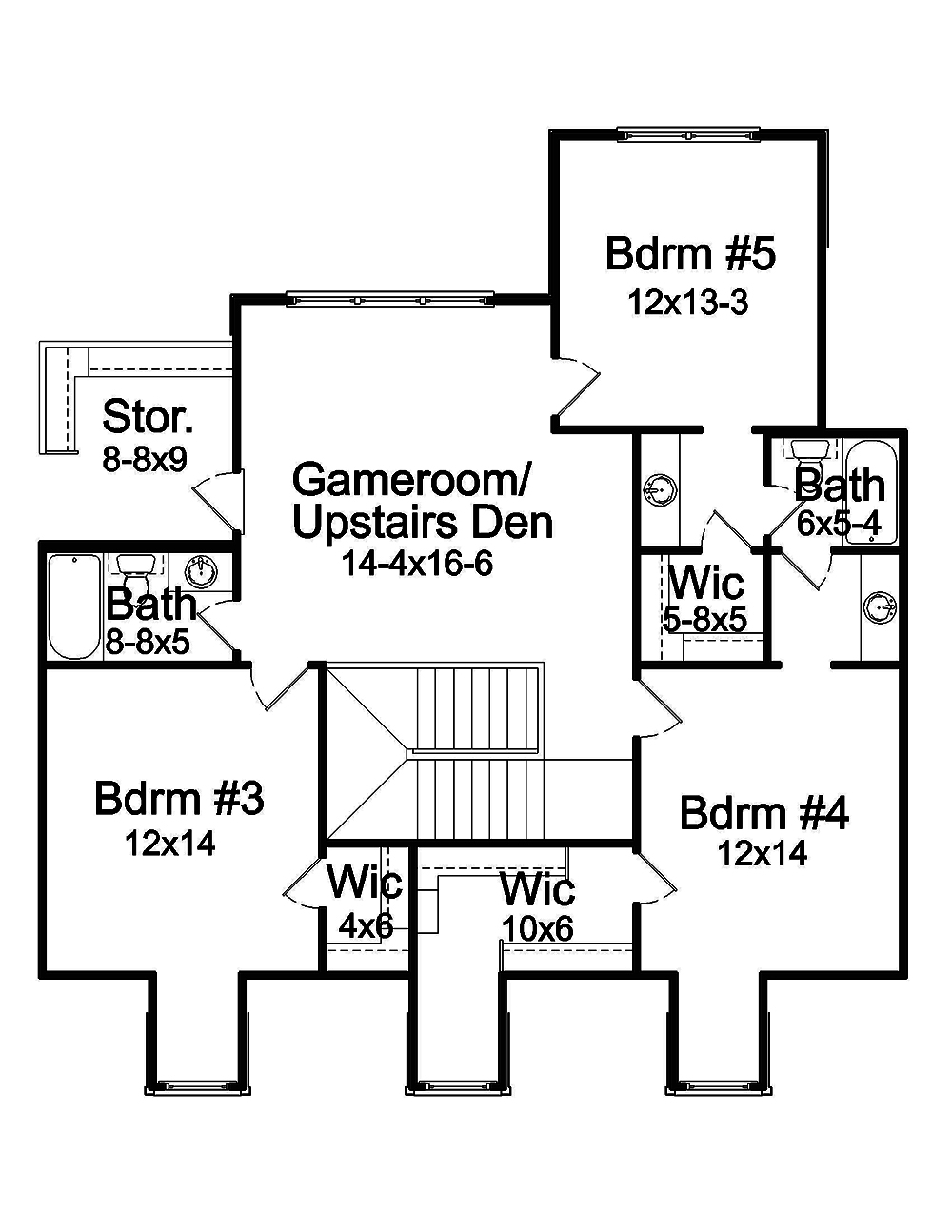

#197-1009 Floor Plan Second Story - upper level Floor Plan Second Story of Acadian Plan #197-1009
Home Plan: #197-1009 Floor Plan First Story - main level Floor Plan First Story of Acadian Plan #197-1009
#197-1009 Floor Plan Second Story - upper level Floor Plan Second Story of Acadian Plan #197-1009
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 197-1009
Floors:
2
Bedrooms:
5
Full Baths:
4
Garage :
3

Square Footage

Heated Sq Feet:
3616
Main Floor:
2402
Upper Floor:
1214
Unfinished Sq Ft:
Garage :
1008
Porch :
1235

Dimensions

Width:
97' 10"
Depth:
63' 10"
Ridge Height:
28' 5"

Architectural Styles

French
Luxury
Craftsman
Acadian

Exterior Wall Material

Vinyl Siding
Brick
Wood Siding

Roofing Type

Hip

Roofing Material

Metal

Roof Pitch

12/12
8/12

Ceiling Height

9 Foot Ceiling
12 Foot Ceiling

Special Feature

Fireplace
Dining Room
Mud Room
Game Room
Main Level Laundry
Split Bathroom
Storage
Den
Open Floor Plan

Garage Type

Attached Garage
Side Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Walk-in Pantry
Outdoor Kitchen
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Wrap Around Porch
Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

PLEASE NOTE! If doing modifications, you MUST purchase a PDF, 5 Set + PDF or CAD

PRICING OPTIONS

A NON-modifiable, print-only PDF that is emailed. Includes a complete set of working drawings delivered in a digital format. Print as many sets as you need. No shipping costs. Comes with a license to build one home.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

Stamped "Not for Construction," this PDF file set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
