5-Bedroom, 3371 Sq Ft European Plan with Covered Rear Porch

This is a color photo of a luxury traditional house.
5-Bedroom, 3371 Sq Ft European House Plan - 135-1248 - Front Exterior

About Plan # 135-1248

About Plan # 135-1248

3371 SQUARE FEET 5 BEDROOMS 4 FULL BATH 0 HALF BATH
2 FLOOR 87' 0" WIDTH 52' 9" DEPTH 3 GARAGE BAY

This luxurious European-style home has tremendous curb appeal. From the front porch, you enter into a beautiful foyer that opens onto the great room with an impressive fireplace and windows to the sun deck at the rear of the home. The open-style floor plan includes a spacious kitchen and dining area - ideal for entertaining and spending time with family. The master bedroom suite is on the first floor and includes double walk-in closets and a master bathroom with his-and-her vanities. Upstairs are two additional bedrooms and an attractive loft overlooking the great room below.

Each plan set includes the following:

  • FLOOR FRAMING PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF FRAMING PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

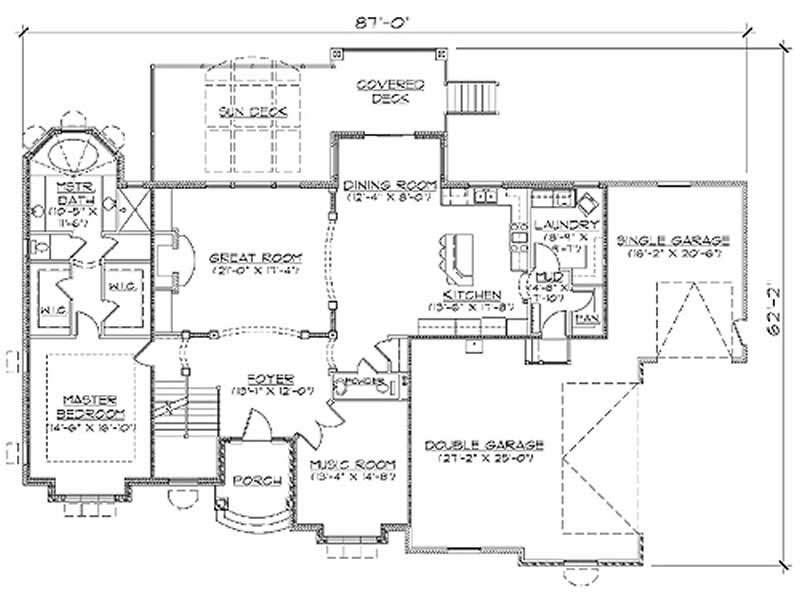

Home Plan: #135-1248 Floor Plan First Story - first Floor Plan First Story of European Plan #135-1248

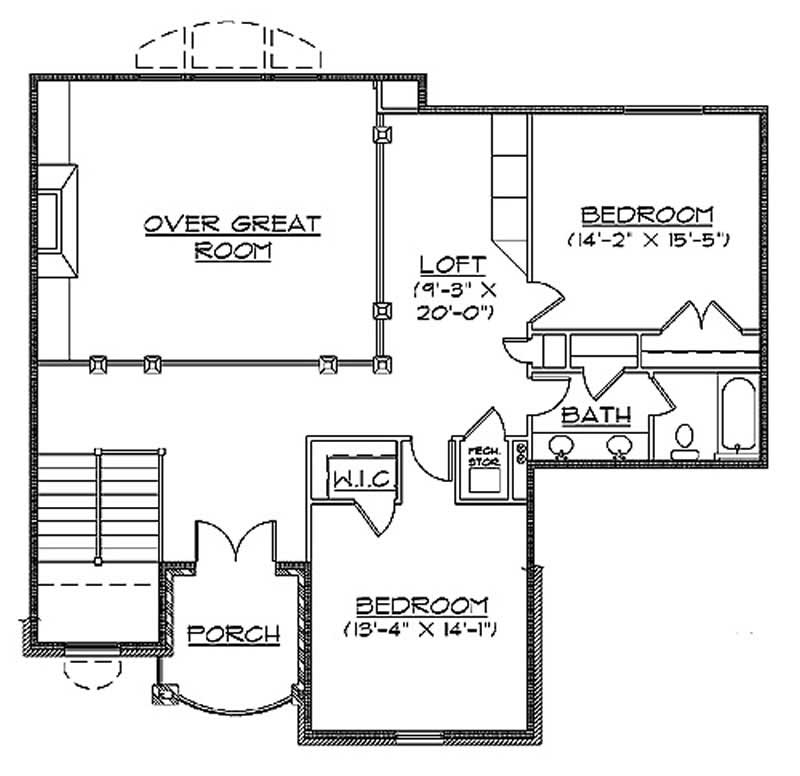

#135-1248 Floor Plan Second Story - second Floor Plan Second Story of European Plan #135-1248
