6-Bedroom, 6170 Sq Ft Luxury Plan with Cabana

Color rendering of Luxury home plan (ThePlanCollection: House Plan #107-1058)

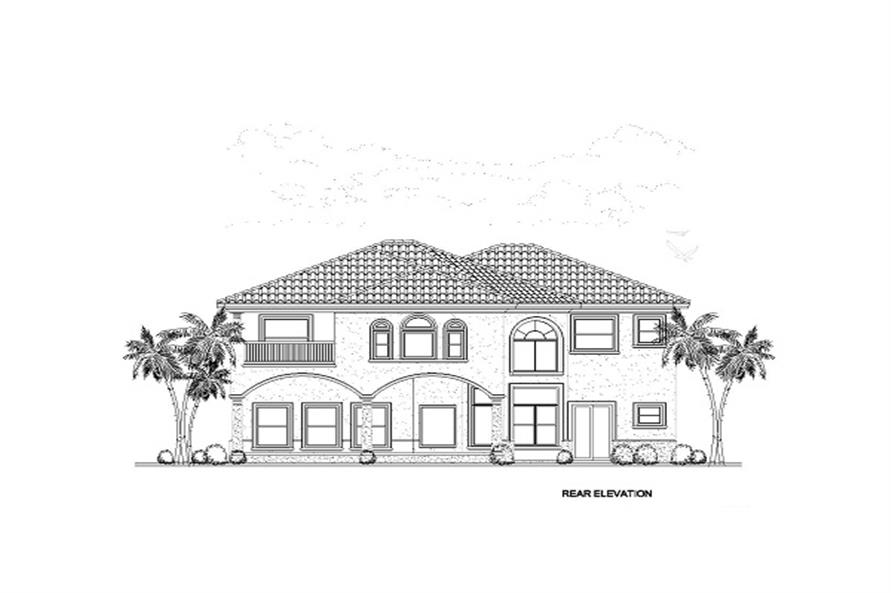

107-1058 rear

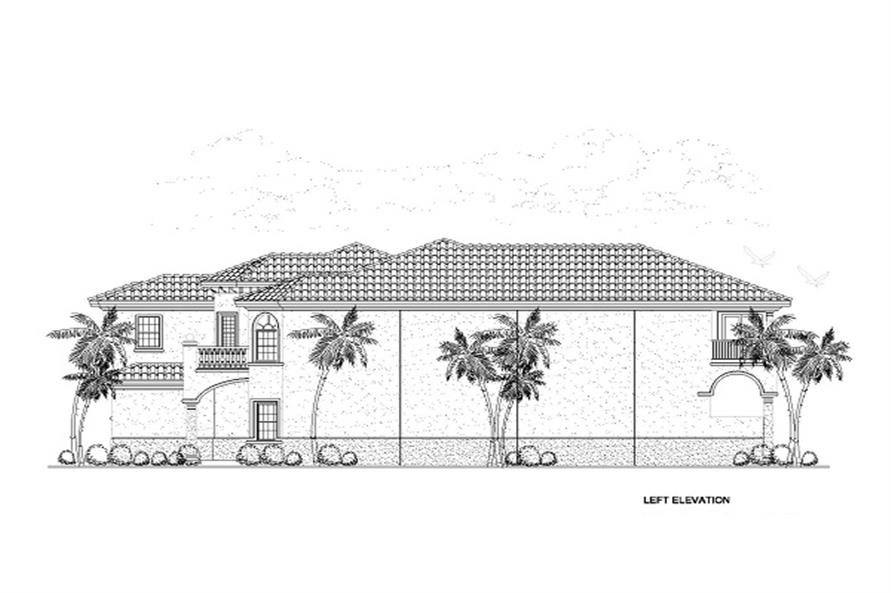

107-1058 left

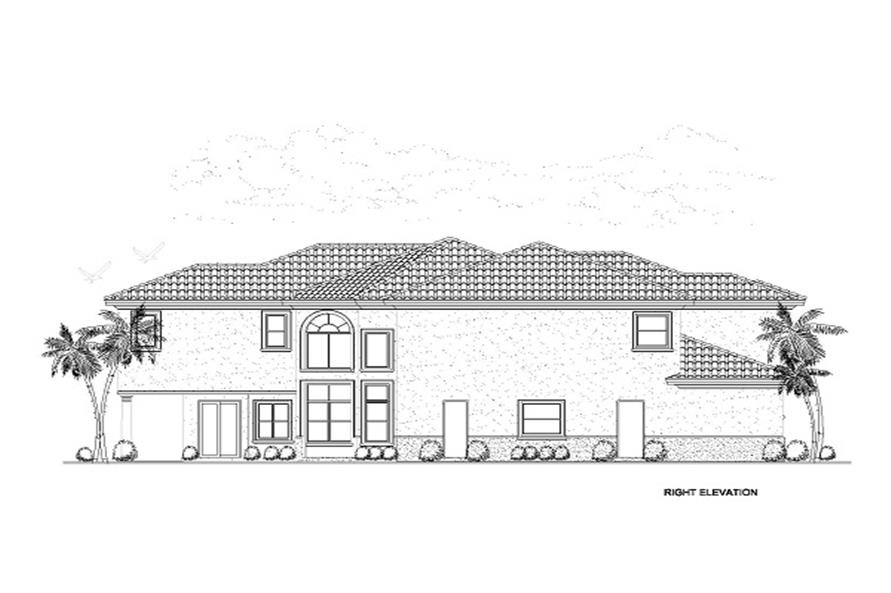

107-1058 right
6-Bedroom, 6170 Sq Ft Luxury Home Plan - 107-1058 - Main Exterior
107-1058 rear
107-1058 left
107-1058 right

About Plan # 107-1058

About Plan # 107-1058

6170 SQUARE FEET 6 BEDROOMS 4 FULL BATH 1 HALF BATH
2 FLOOR 54' 9" WIDTH 82' 2" DEPTH 3 GARAGE BAY

Large family? Love to entertain? This luxurious Mediterranean-inspired home boasts an open floor plan — but with defined spaces — allowing family and friends to gather in the double-height living room or the family room. For more privacy or quiet, there is the den. For more formal occasions, there is the dining room. The kitchen is only a few feet away from the family room has plenty of space for a breakfast nook. The family room overlooks the covered patio which has an outdoor kitchen. There is also a guest bedroom on the first floor with a cabana bathroom which accesses the outside — perfect if you have a swimming pool!

 Upstairs is the master suite. The master bedroom has its own balcony. The master bath enjoys separate his-and-her sink vanities. Completing the suite are his-and-her walk-in closets. Completing the second floor are three more bedrooms, each with its own walk-in closet, and two full baths. In all, there are six bedrooms, 4.5 bathrooms, and 6170 square feet.

Each plan set includes the following:

  • FLOOR PLAN: Fully dimensioned floor plan indicating the size and location of all walls, doors, windows, and special features. Fireplace details are included where applicable. Door and window schedules are included to provide detailed information regarding opening sizes and window types. Each plan is supplemented with specific and general notes, room labels, area calculations, light and ventilation calculations, and ceiling heights.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Aerial view showing the elements that make up the roof, including roof slopes, ridges, hips, and valleys. In addition to the basic rooflines, our roof plans have specifically engineered truss drawings that show the length, spacing, and layout of all roof structural members.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Includes kitchen and bath layout.
  • KITCHEN & BATH LAYOUTS: The general layout of kitchens and baths is shown on the floor plan and includes fixtures and cabinetry.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

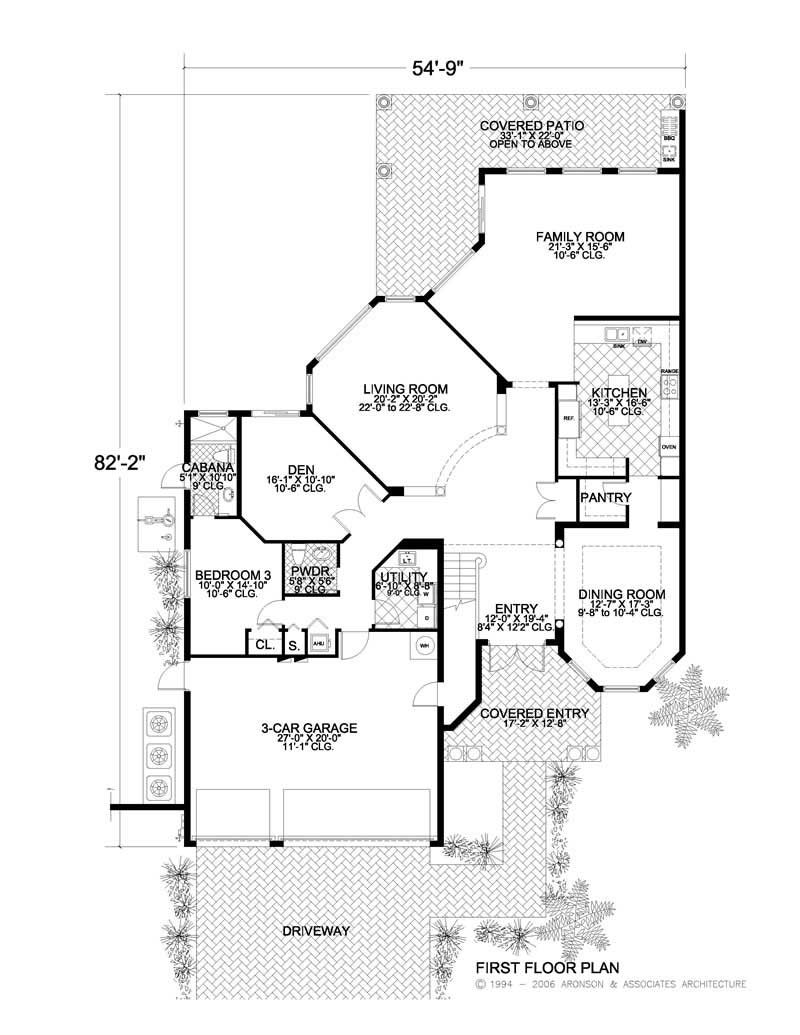

Home Plan: #107-1058 Floor Plan First Story - main level Floor Plan First Story of Luxury Plan #107-1058

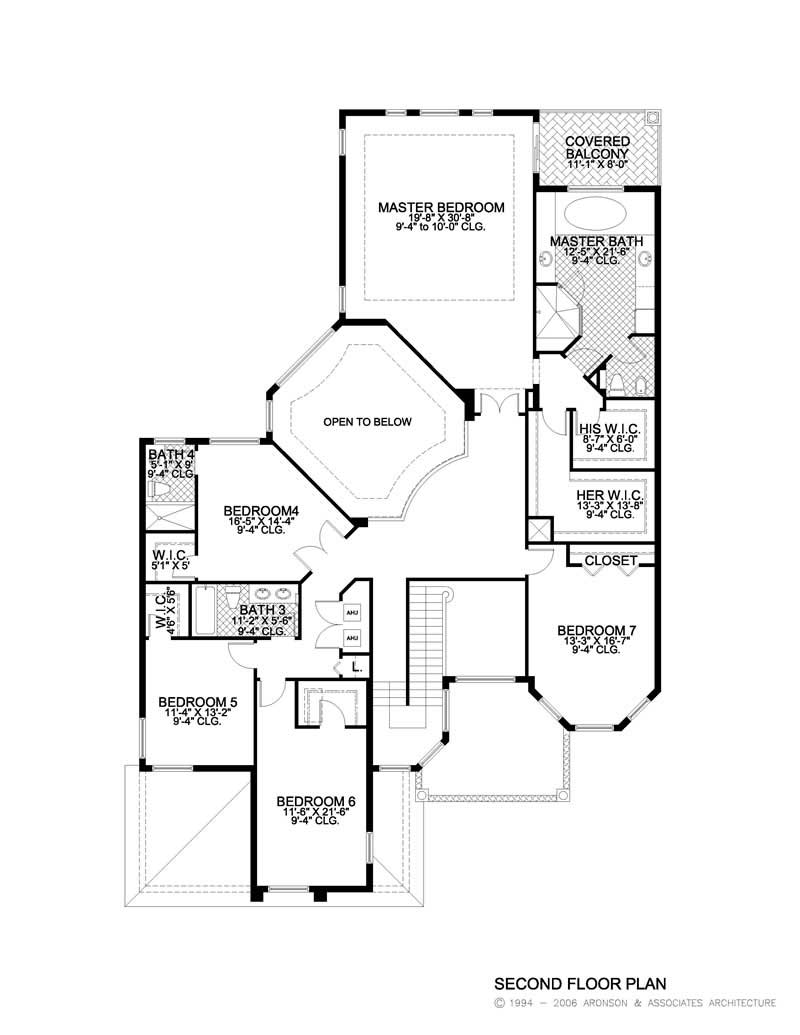

#107-1058 Floor Plan Second Story - upper floor Floor Plan Second Story of Luxury Plan #107-1058
Home Plan: #107-1058 Floor Plan First Story - main level Floor Plan First Story of Luxury Plan #107-1058
#107-1058 Floor Plan Second Story - upper floor Floor Plan Second Story of Luxury Plan #107-1058
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 107-1058
Floors:
2
Bedrooms:
6
Full Baths:
4
Half Baths:
1
Garage :
3

Square Footage

Heated Sq Feet:
6170
Main Floor:
2327
Upper Floor:
2554
Unfinished Sq Ft:
Garage :
611

Dimensions

Width:
54' 9"
Depth:
82' 2"
Ridge Height:
31' 5"

Architectural Styles

Luxury
Mediterranean
Southwest
Spanish
Tuscan

Exterior Wall Material

Stucco

Roofing Type

Hip

Roofing Material

Tiles

Roof Pitch

5/12

Ceiling Height

9 Foot Ceiling

Special Feature

Color Photos
Den
Dining Room
Family Room
Guest Room
Main Level Laundry
Mother in law apartment
Open Floor Plan
Vaulted Ceilings

Garage Type

Attached Garage
Front Entry

Exterior Wall Framing

Concrete

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island
Outdoor Kitchen
Walk-in Pantry

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch
Sundeck

Master Suite Features

Master Bathroom
Private Deck
Second Floor Master
Walk In Closet

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
