Craftsman Home - 6 Bdrm, 4.5 Bath, 5828 Sq Ft

Images/Plans copyrighted by designer. Photos may reflect homeowner modifications.

About House Plan #132-1621

5828

Sq Ft

6

Bedrooms

4

Baths

1

Half Baths

3

Cars

2

Stories

74' 6'

Width

57

Depth

From$1760What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Start with Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

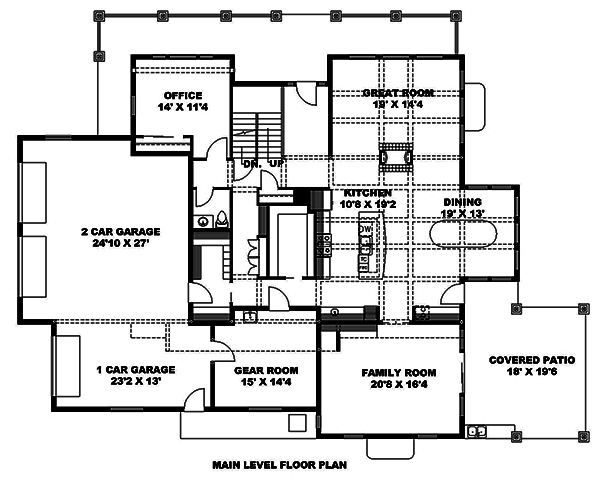

Floor Plan Main Level

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

PLEASE NOTE! If you order an optional foundation and a materials list, the materials list will NOT include the optional foundation, only the standard foundation. The designer can provide an updated materials list for a fee, so please ask for a quote!

House Plan Description

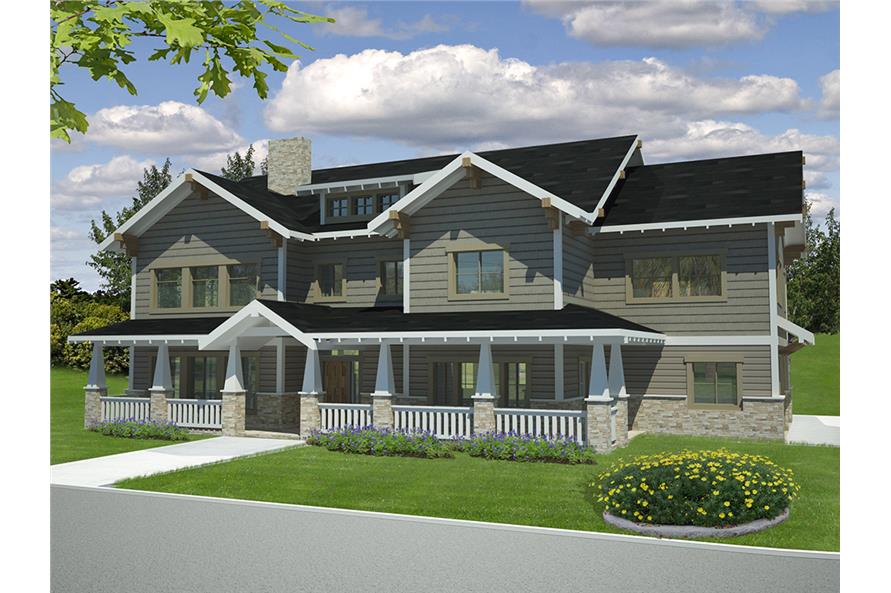

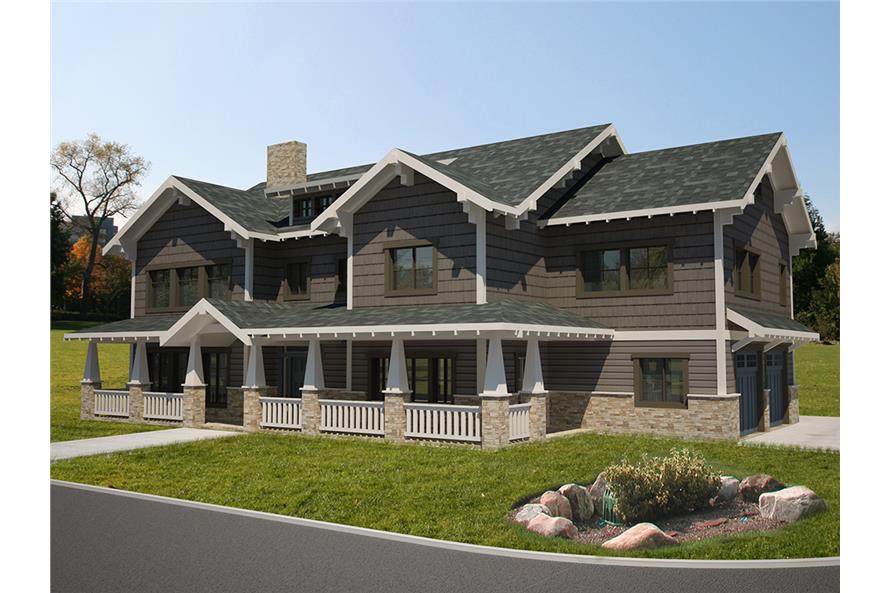

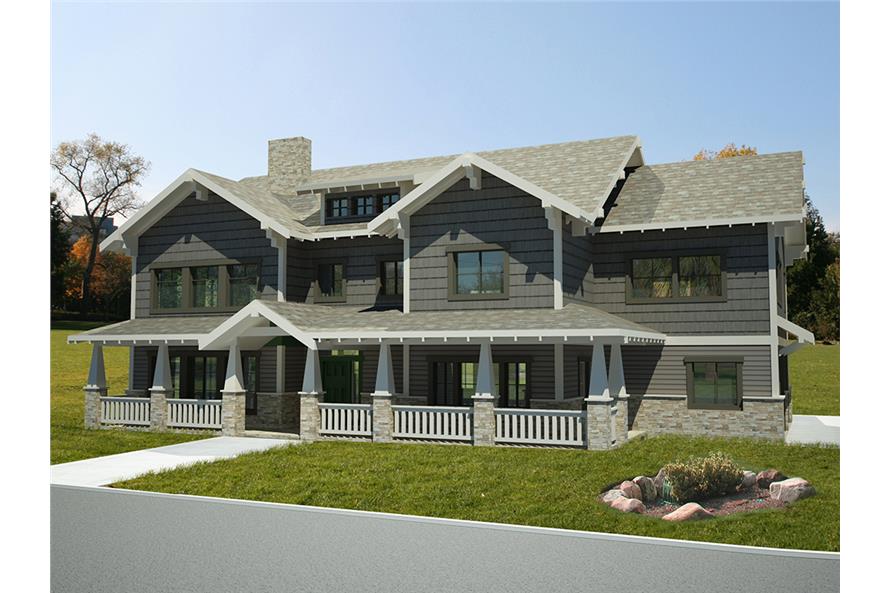

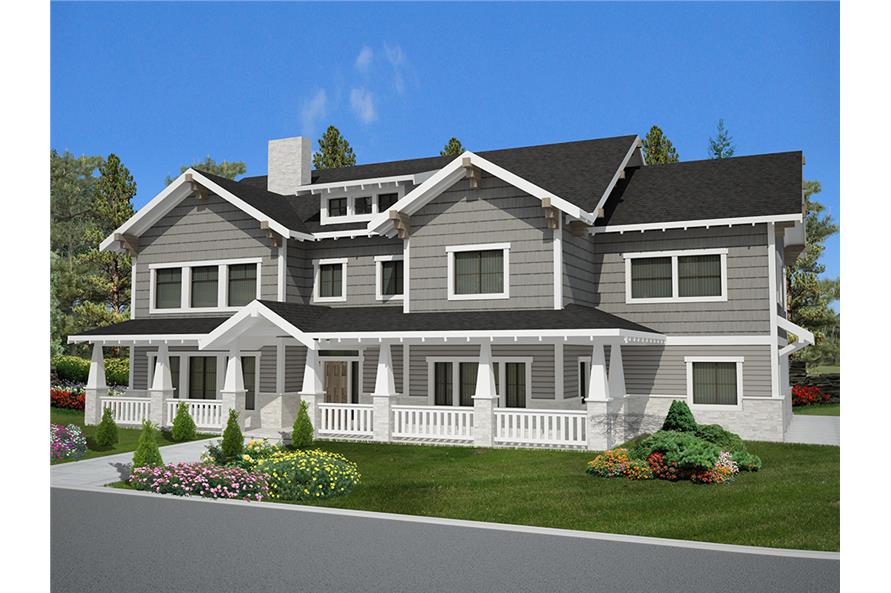

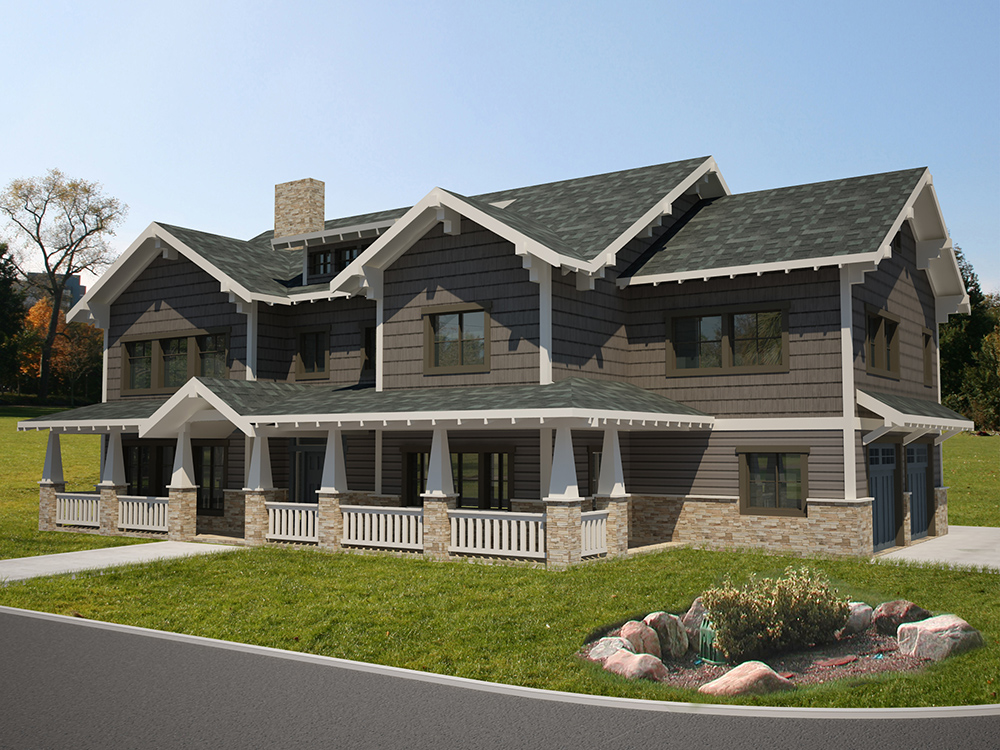

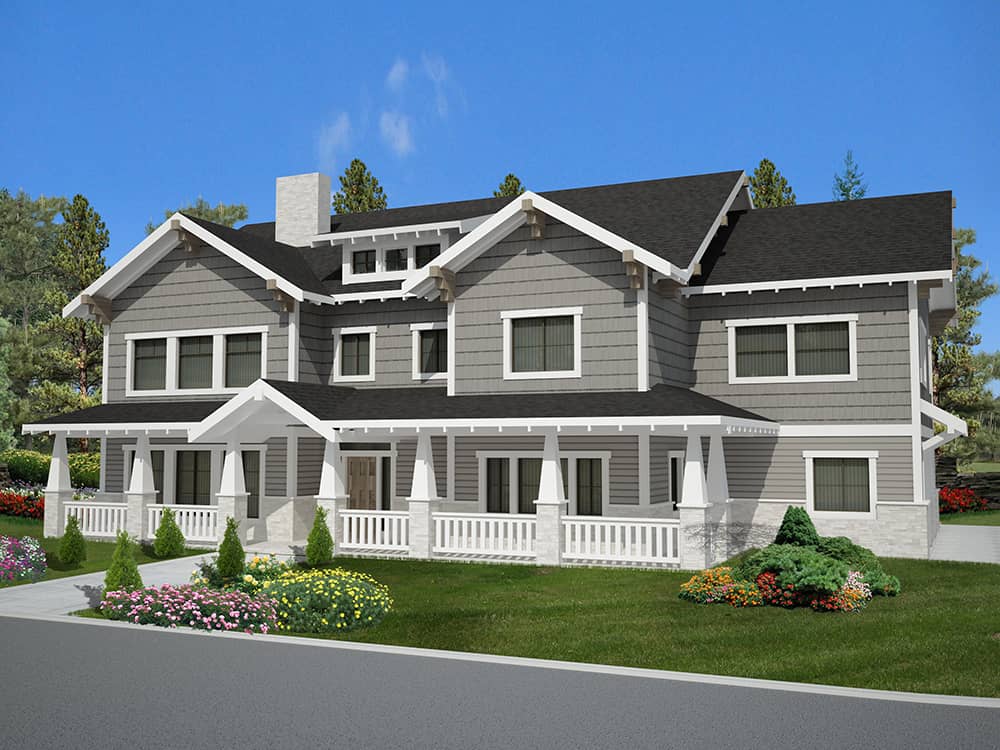

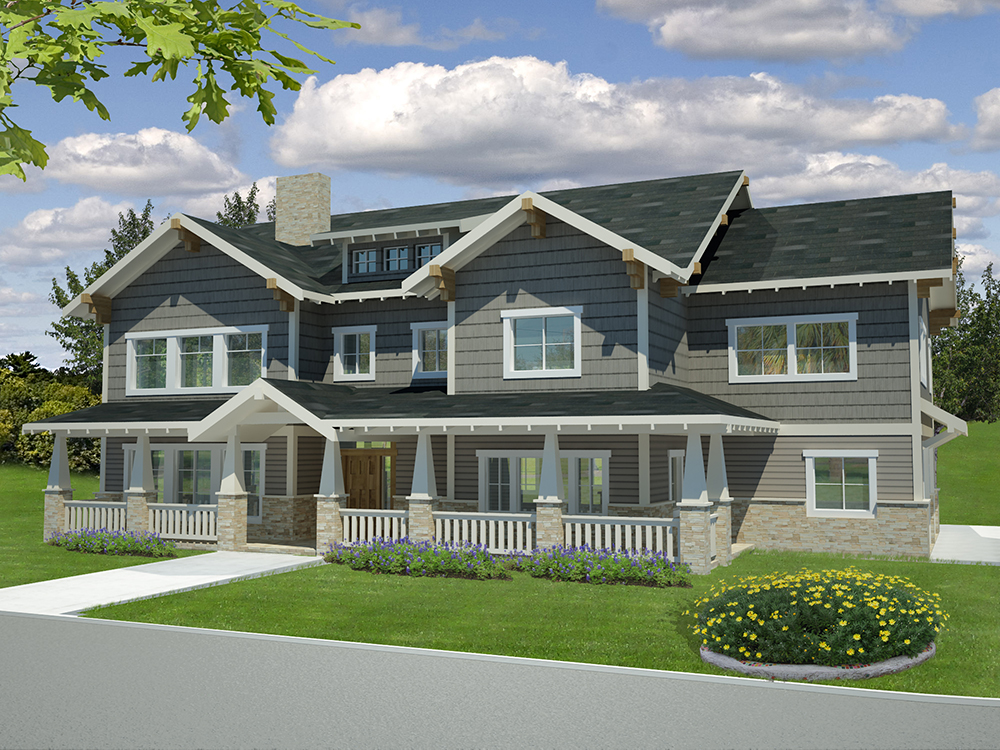

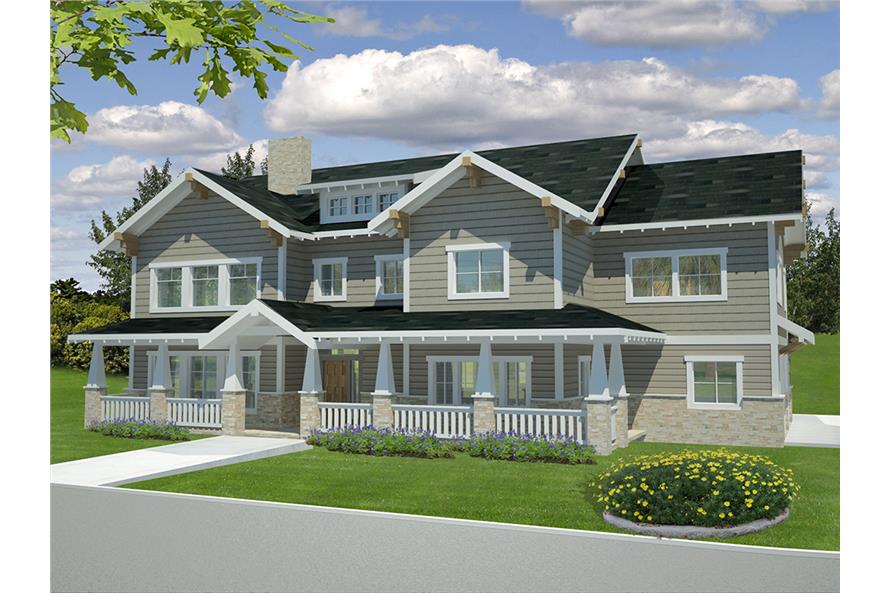

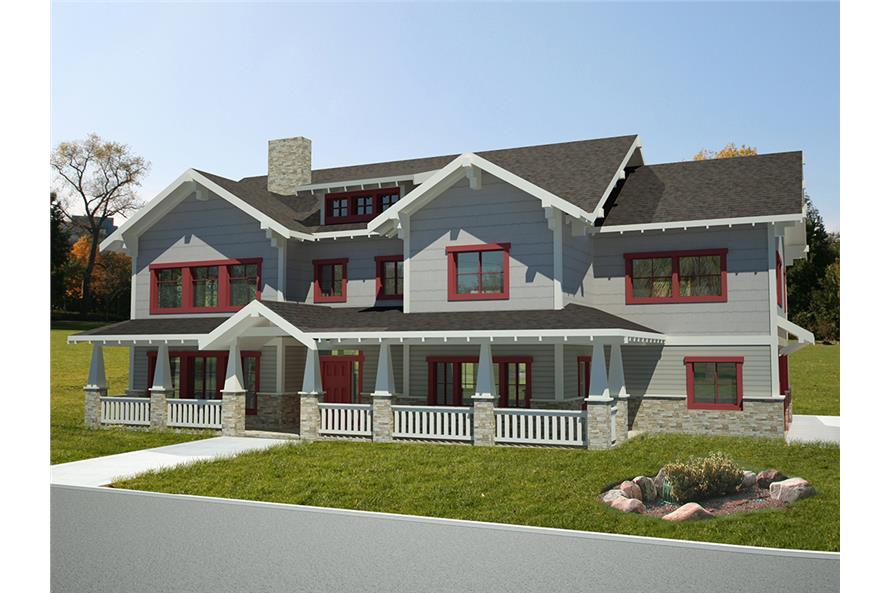

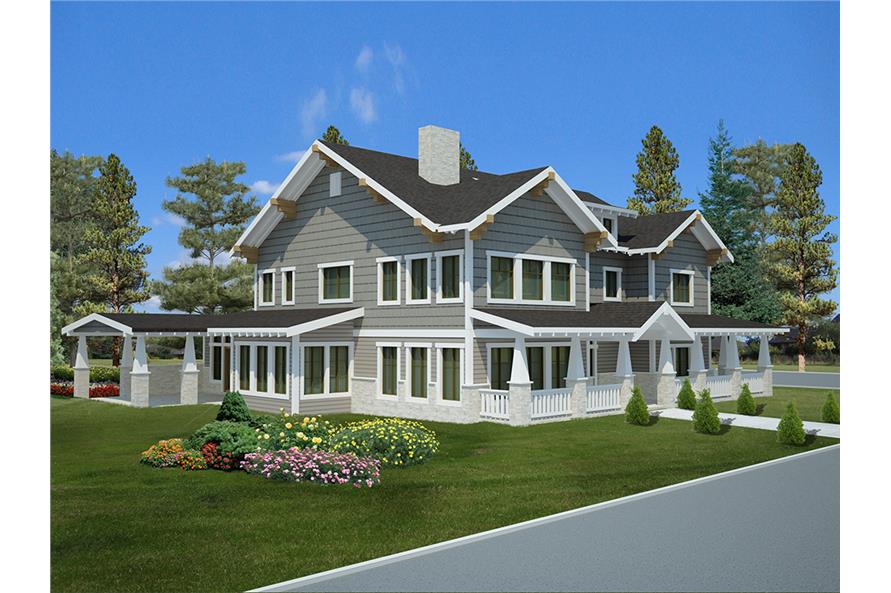

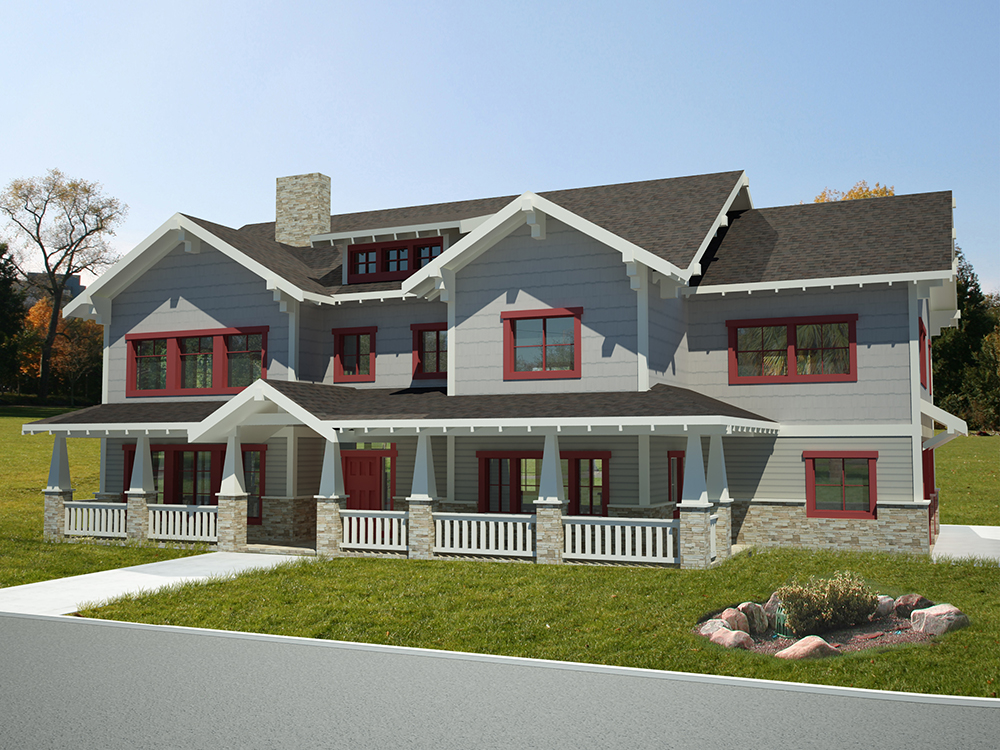

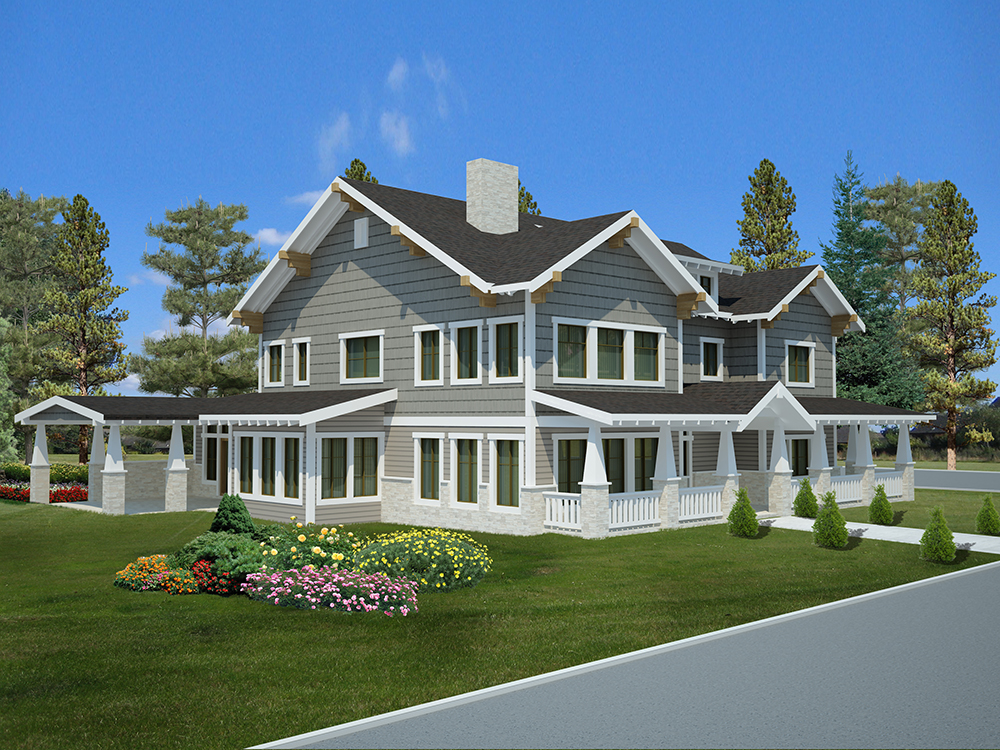

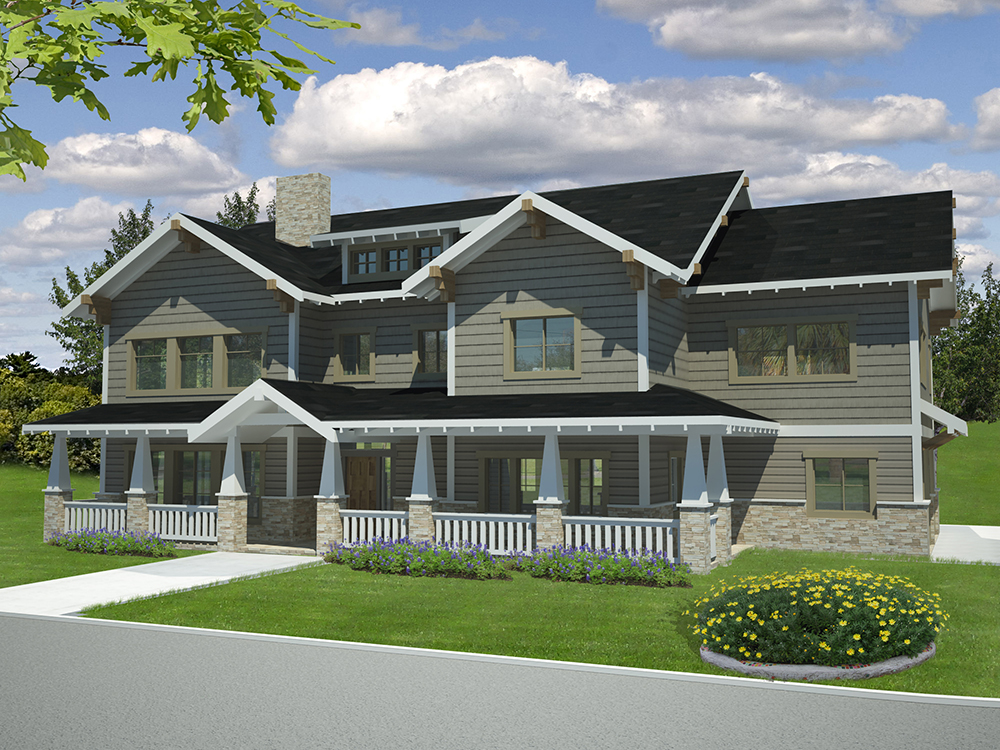

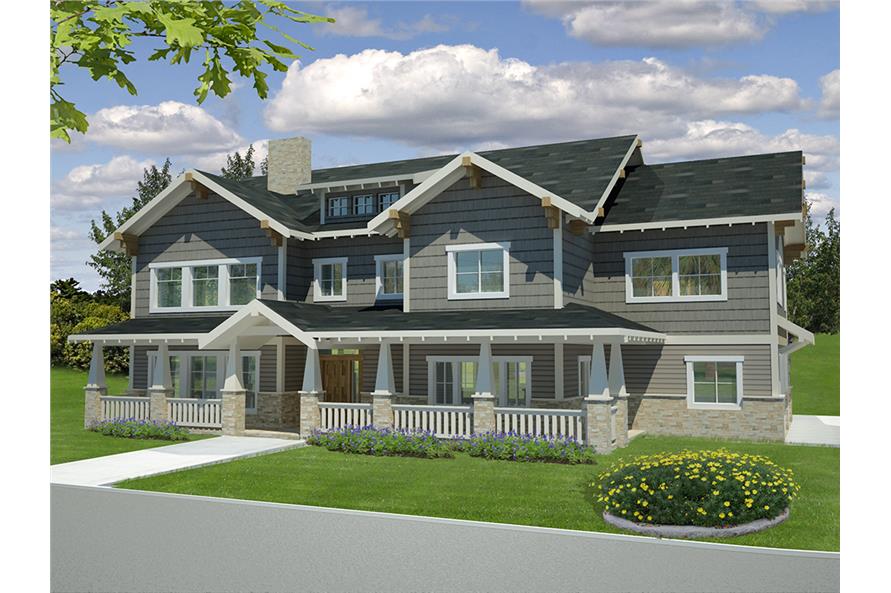

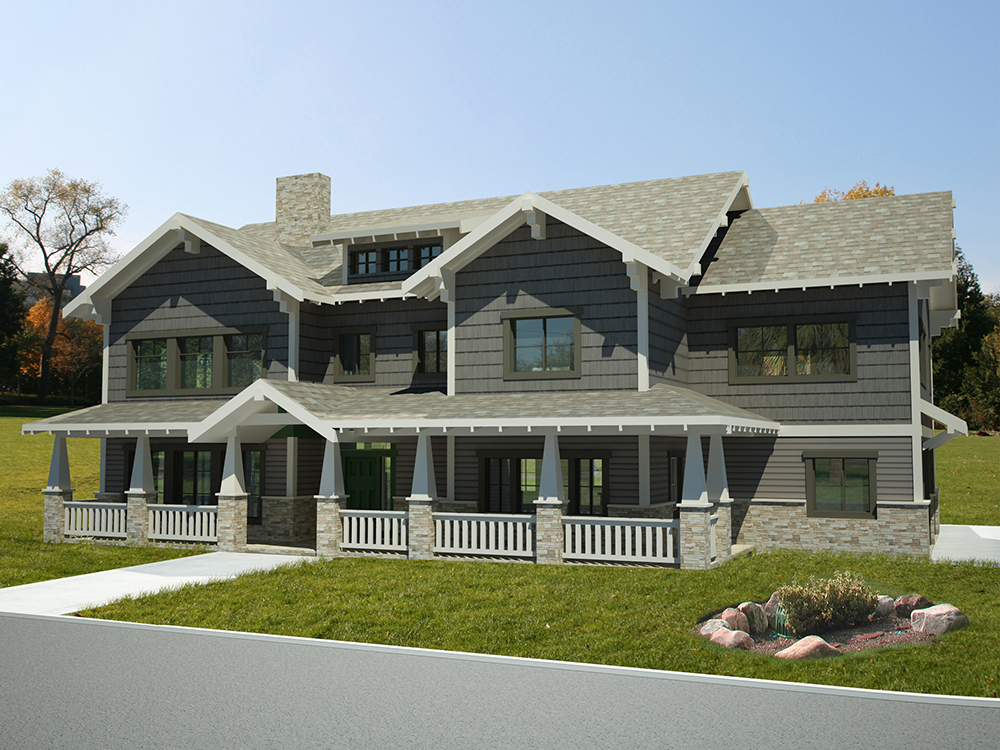

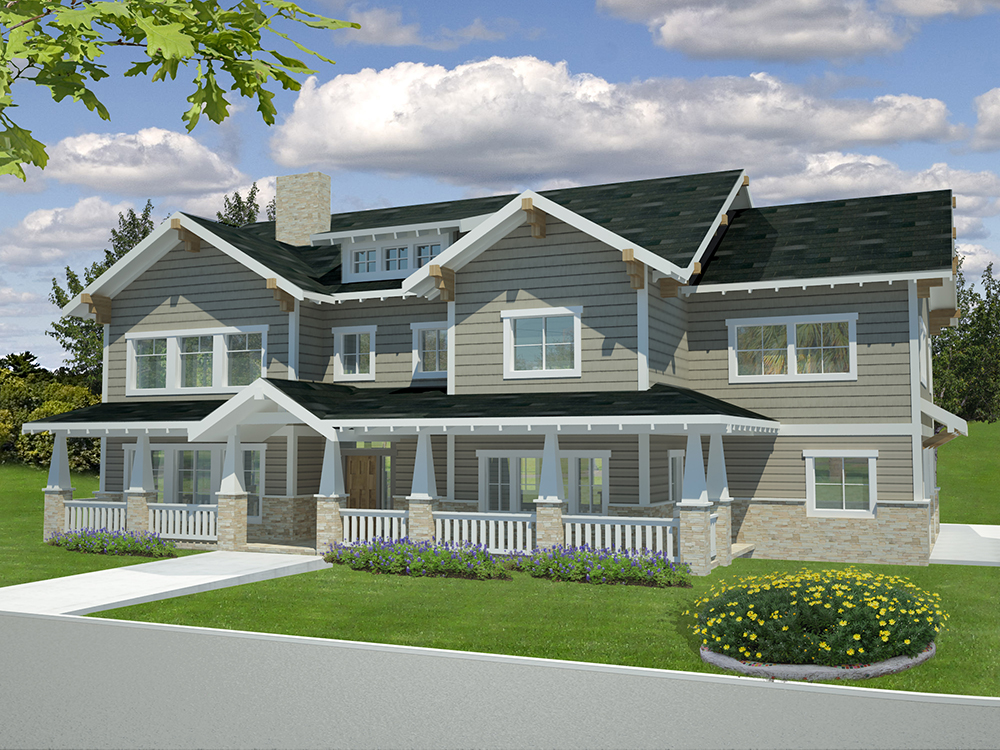

This remarkable Craftsman style home has 5828 square feet of living space. The two-story floor plan includes 6 bedrooms and 4.5 bathrooms. The exterior of this home has a graceful covered front porch. Inside, this house design's floor plan includes a well-designed fireplace in master.

Home Details

Summary

Plan #:132-1621

Floors:2

Bedrooms:6

Full Baths:4

Half Baths:1

Garage:

Square Footage

Heated Area::5828 Sq. Ft.

Main Floor:2180 Sq. Ft.

Upper Floor:2054 Sq. Ft.

Dimensions

Width:74' 6''

Architectural Styles

Luxury Traditional Craftsman

Exterior Wall Material

Vinyl SidingWood SidingShakes

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

7/12

Ceiling Height

9 Foot Ceiling

Special Feature

FireplaceHome OfficeFamily RoomGame RoomSplit BathroomSecond Level Laundry

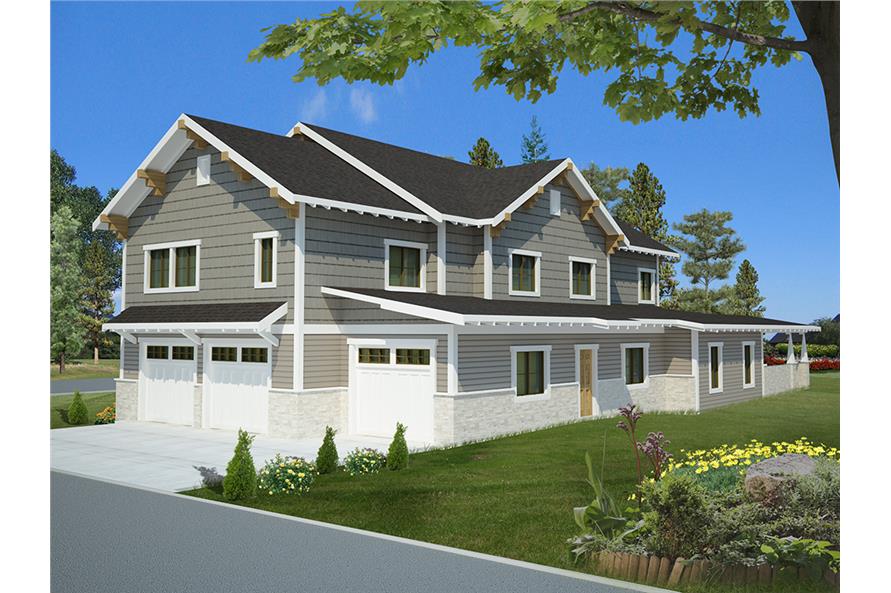

Garage Type

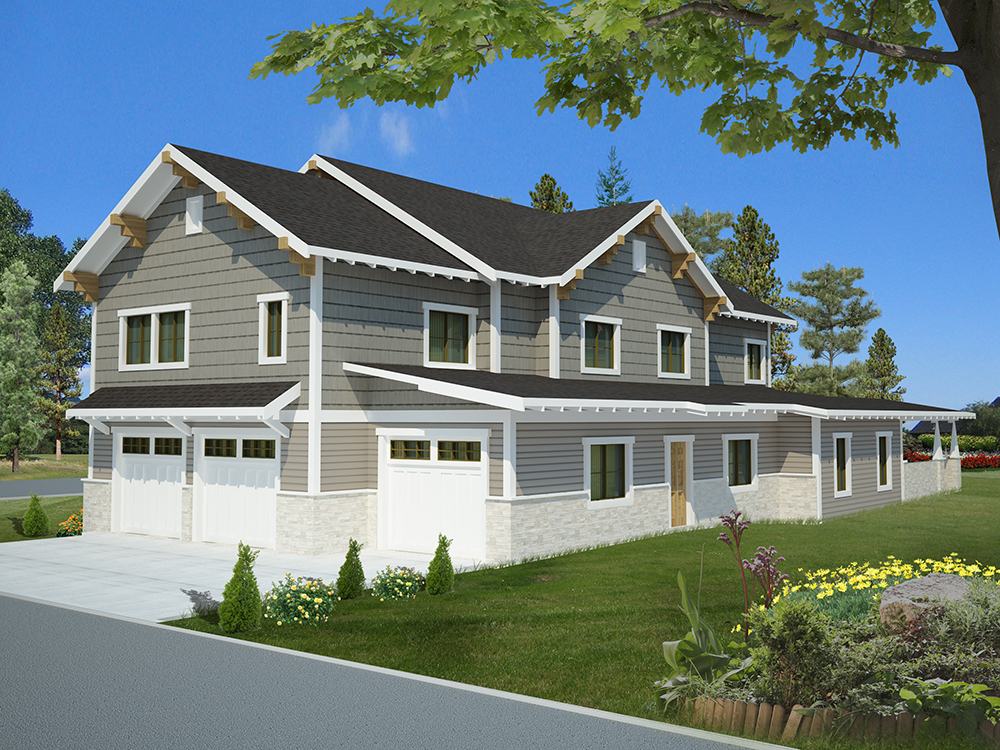

Attached GarageSide Entry

Fireplaces

Two Fireplaces

Exterior Wall Framing

2x8

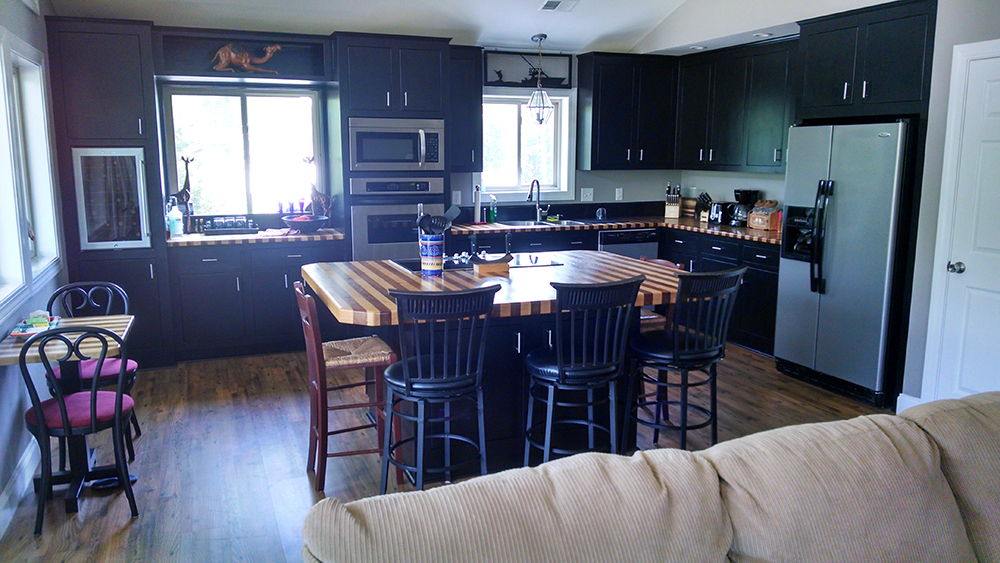

Kitchen Features

Kitchen IslandPeninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch

Master Suite Features

Fireplace in MasterMaster BathroomWalk In ClosetSecond Floor Master

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

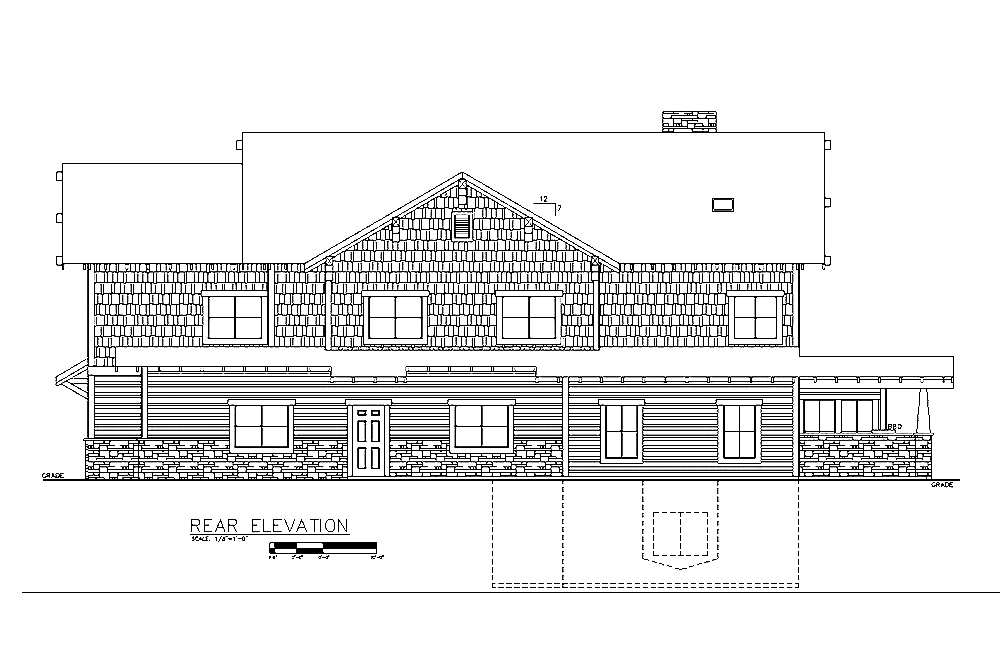

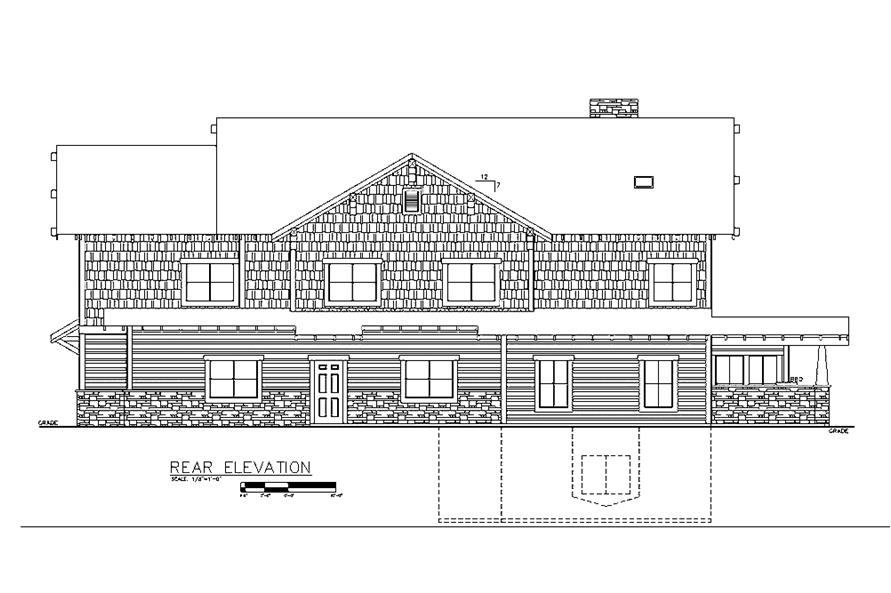

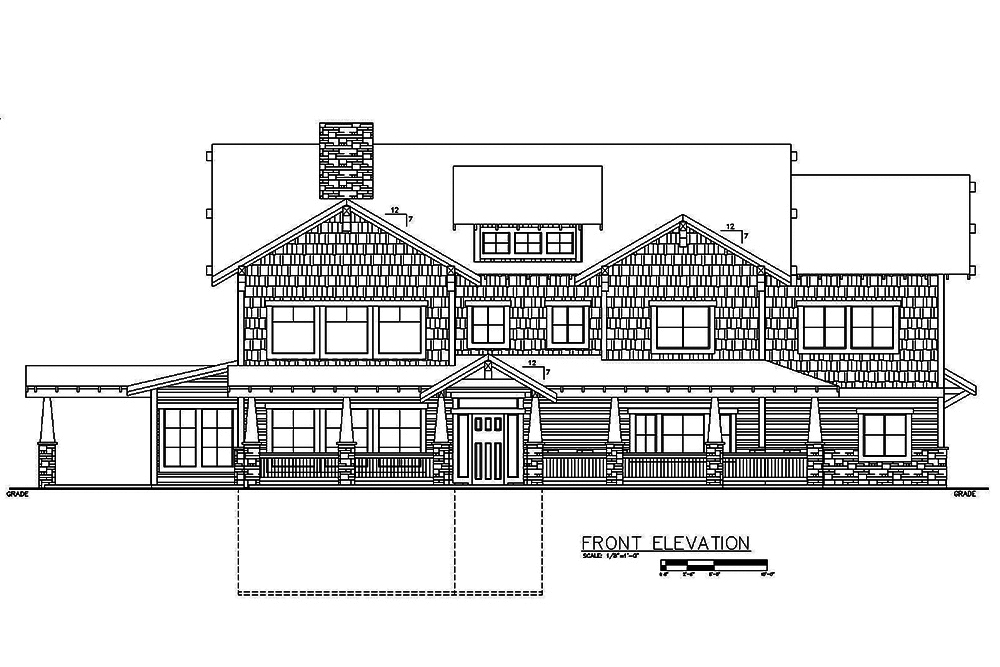

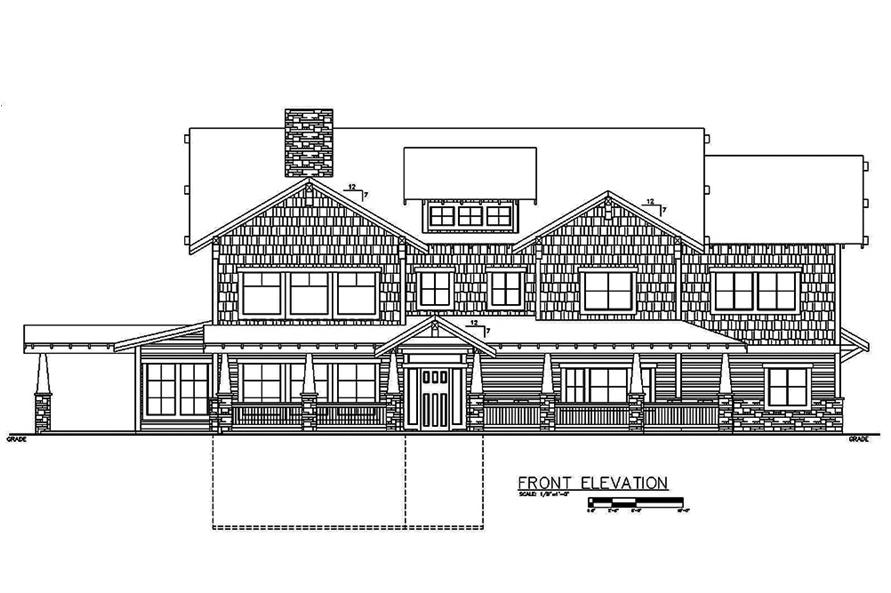

Exterior elevations: shows the home on all four sides, calls out exterior finishes, rooflines, window and door locations.

Floor plans: includes interior and exterior dimensions, window/door schedule, wall framing details.

Foundation plan: shows footing, stem wall, and slab placement, including all connection details.

Floor and roof framing plans show truss/rafter placements, including all beams/connection details.

Cross-sections: cut-through view of the structure from roof to foundation, shows framing, plate heights, insulation, etc.

Electrical layout

General notes/details to cover the entirety of the project

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
