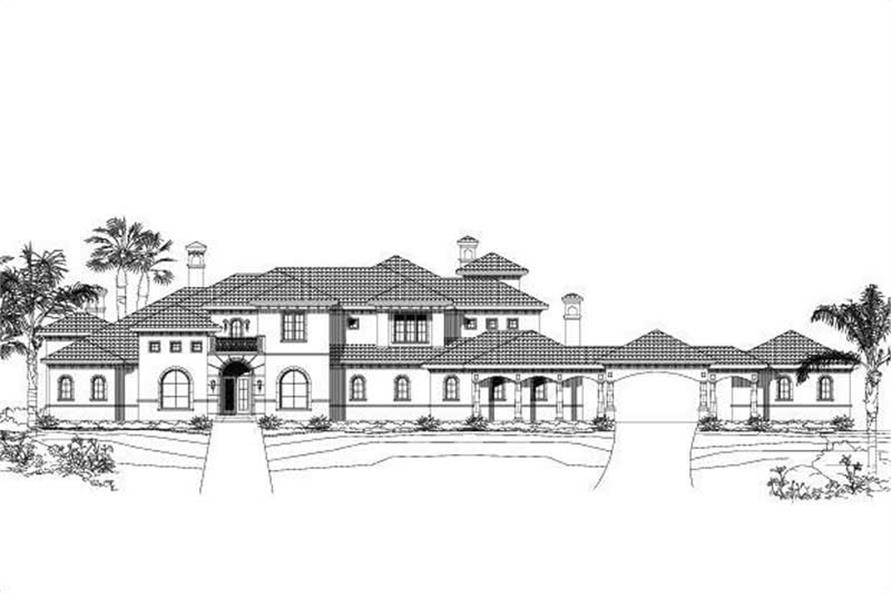

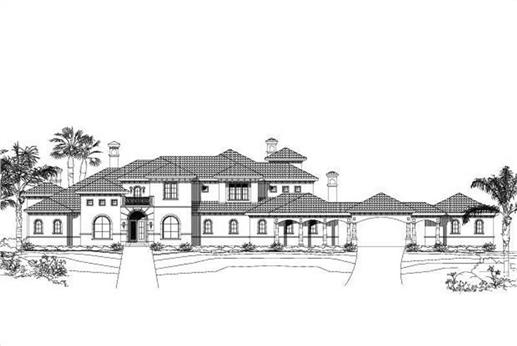

Home plan number 30001 is a two story, Mediterranean style home with a total square footage of 7,511. There are 5 bedrooms and 5 bathrooms, along with a split entry, front loading, 4 car garage. The master bedroom includes a fireplace, sitting area, and seperate closets. Plan number 30001 has a covered front porch, rear porch, pavillion, side porch, and terrace. There are also interior and exterior balconies. Special features include a cabana bath, motor court, optional elevator, outdooor kitchen, porte cochere, theater/media area, casita, outdoor fireplace, playroom, tile roof and a wine room. Other features include a bar, coffee/juice bar, foyer, unfinished storage, butler pantry, computer alcove, gallery and mud entry.
Each plan set includes the following:
- Floor Plans
- Electrical Layout
- Building Sections
- Roofing Plan
- Interior Elevations
- General Details
- Wall Sections
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
