4-Bedroom, 4124 Sq Ft Mediterranean Plan with Patio

Main image for house plan # 15854

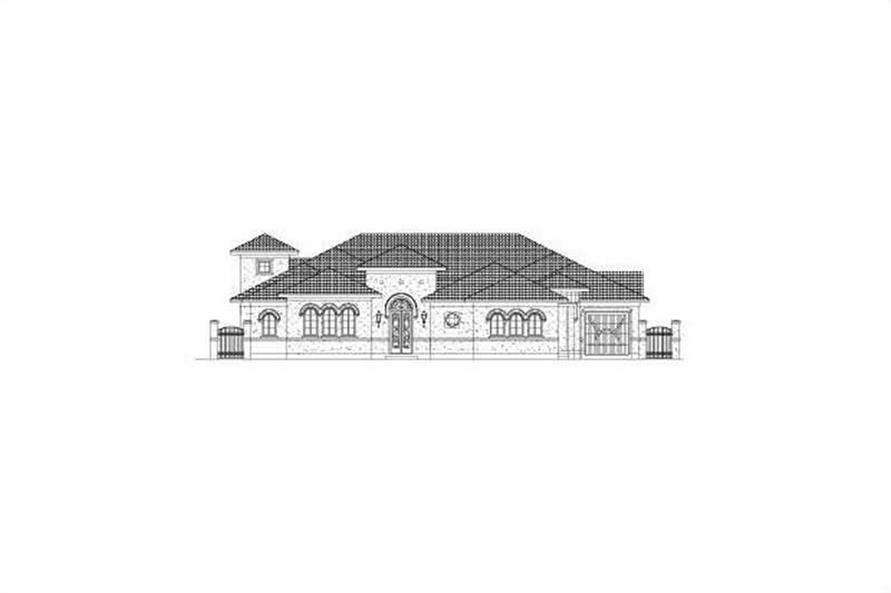

4-Bedroom, 4124 Sq Ft Mediterranean House Plan - 156-1190 - Front Exterior

About Plan # 156-1190

About Plan # 156-1190

4124 SQUARE FEET 4 BEDROOMS 4 FULL BATH 0 HALF BATH
1 FLOOR 74' 0" WIDTH 105' 0" DEPTH 3 GARAGE BAY
Home Plan #990135-4-01 is a single story mediterranean style home with stucco exterior and 4124 total living square feet. It has 4 bedrooms, 4 baths, and a swing front load 3 car garage. This house plan also has 2 living areas, 2 dining areas, a bar, a butler pantry, a covered rear porch, a golf cart storage, a master with sitting area, a separate master closet, a bonus room, a casita, an entry courtyard, a home office, a portico, and a theater/media.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. This includes wall sections.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

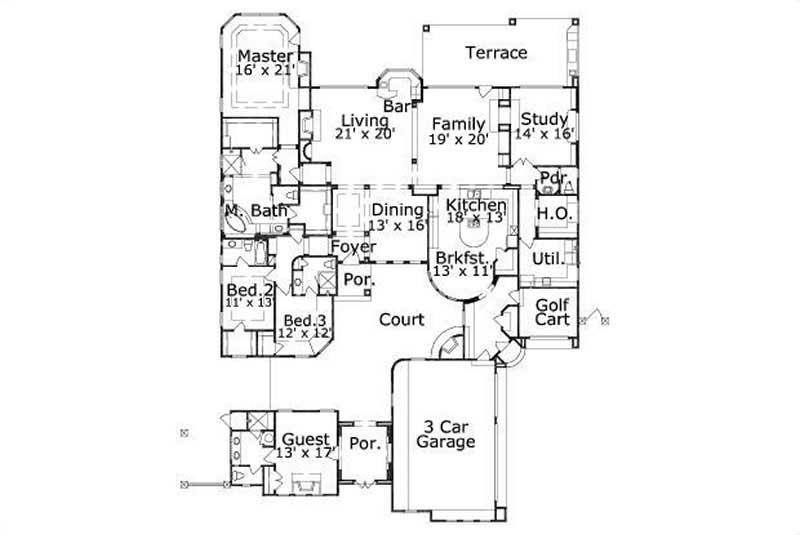

Home Plan: #156-1190 Floor Plan First Story - first Floor Plan First Story of Mediterranean Plan #156-1190
Home Plan: #156-1190 Floor Plan First Story - first Floor Plan First Story of Mediterranean Plan #156-1190
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 156-1190
Floors:
1
Bedrooms:
4
Full Baths:
4

Square Footage

Heated Sq Feet:
4124
Main Floor:
4124
Unfinished Sq Ft:

Dimensions

Width:
74' 0"
Depth:
105' 0"
Ridge Height:
23' 0"

Architectural Styles

Mediterranean
Texas Style

Exterior Wall Material

Stucco

Ceiling Height

10 Foot Ceiling

Special Feature

Bonus Room
Home Office

Garage Type

Front Entry

Porches and Exterior Features

Courtyard
Covered Rear Porch

Additional Notes from Designer

Please Note: CAD files may take up to 3 business days to receive - please contact us for availability.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
