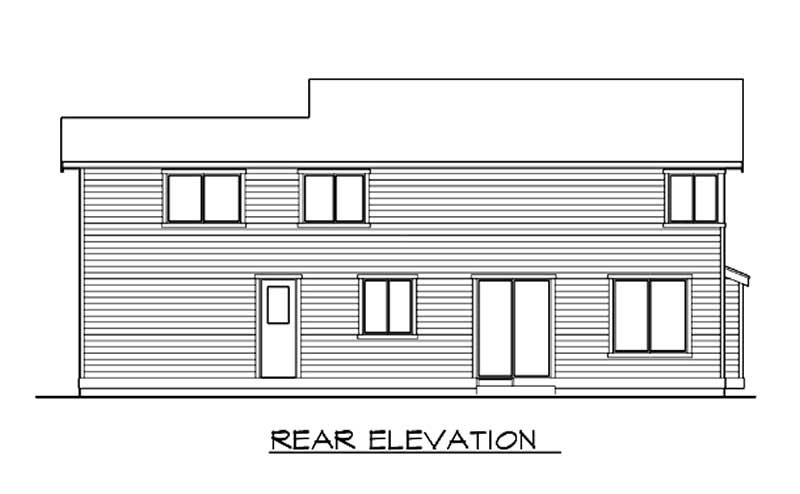

Rear Elevation
115-1066: Home Other Image-Front View
3-Bedroom, 1974 Sq Ft Multi-Level House Plan - 115-1066 - Front Exterior

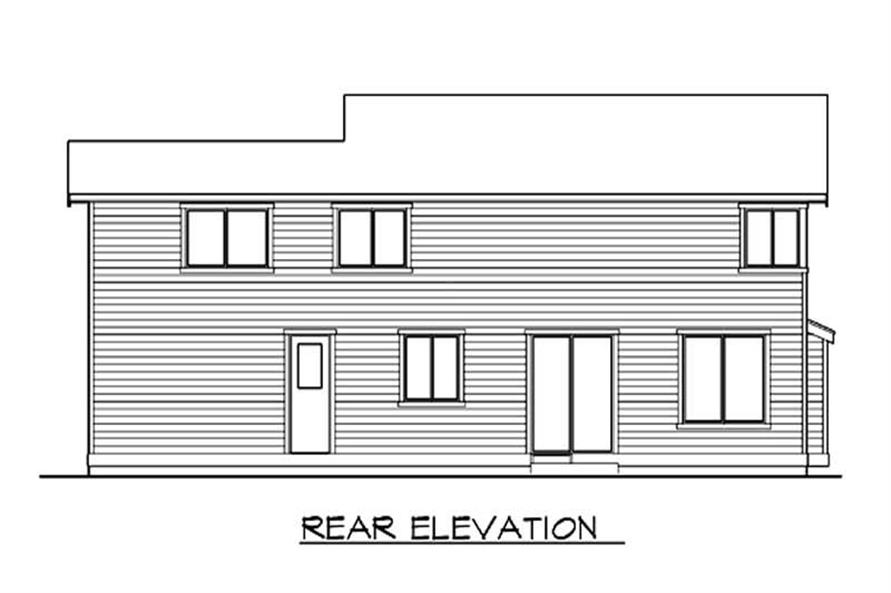

Rear Elevation
115-1066: Home Other Image-Front View

About Plan # 115-1066

About Plan # 115-1066

1974 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 52' 0" WIDTH 34' 0" DEPTH 2 GARAGE BAY
As you make your way through the entrance of this houseplan you have a nice covered porch to watch the stars on. This open feel of the floor plan gives you plenty of room to move around. In the family room you have a nice fireplace where your family can gather around the warmth. Next to the dining area you have a nice powder room where guests can freshen up in. Located upstairs you have the master bedroom. The master suite has the nice features of a master bath and a walk-in closet.

Each plan set includes the following:

  • Cover Sheet
  • Schedule Sheet
  • Detail Sheet
  • Foundation Plan Sheet
  • Floor Plan/Floor Framing Sheet(s)
  • Roof Framing Plan Sheet
  • Elevation Sheet
  • Building Section Sheet

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

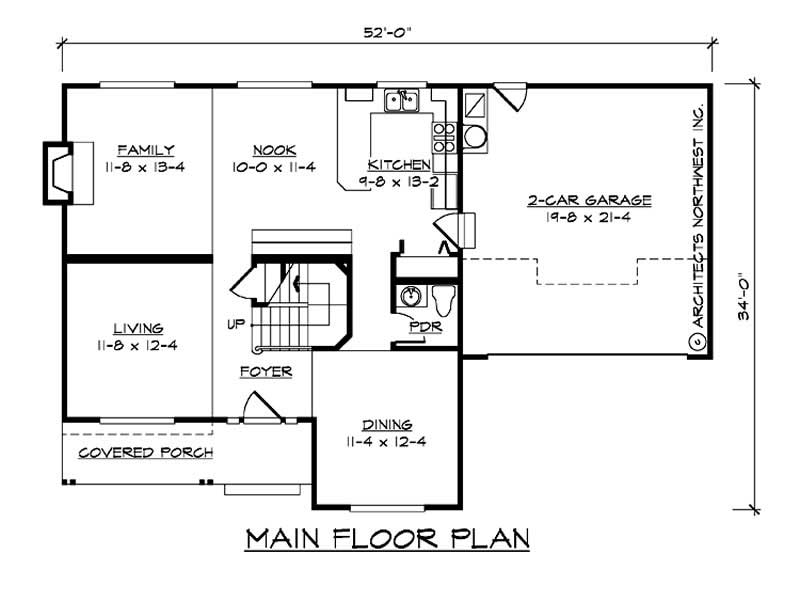

Home Plan: #115-1066 Floor Plan First Story - main Floor Plan First Story of Multi-Level Plan #115-1066

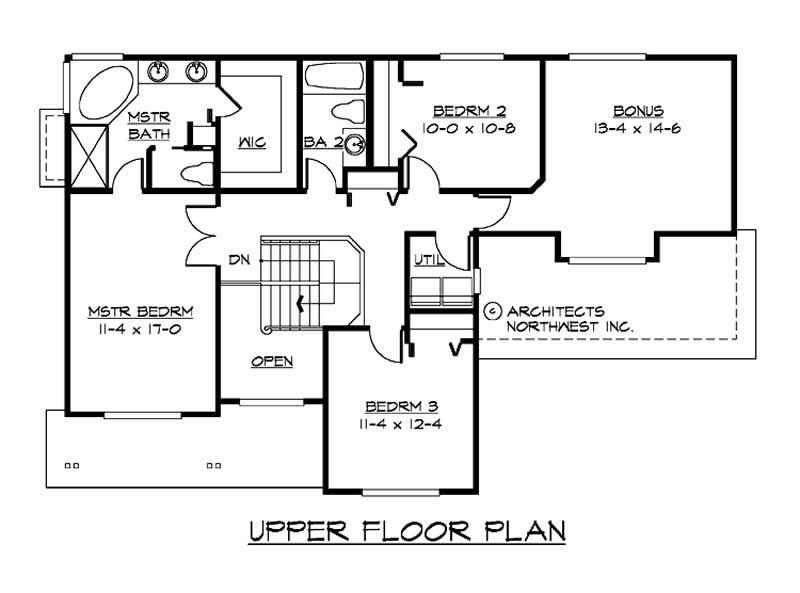

#115-1066 Floor Plan Second Story - second Floor Plan Second Story of Multi-Level Plan #115-1066
Home Plan: #115-1066 Floor Plan First Story - main Floor Plan First Story of Multi-Level Plan #115-1066
#115-1066 Floor Plan Second Story - second Floor Plan Second Story of Multi-Level Plan #115-1066
