Craftsman Home with 3 Bdrms, 2306 Sq Ft

About House Plan #101-1664

2306

Sq Ft

3

Bedrooms

2

Baths

0

Half Baths

3

Cars

1

Stories

70' 8'

Width

66

Depth

Starting at$1090.00What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Free Cost Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

Share Plans

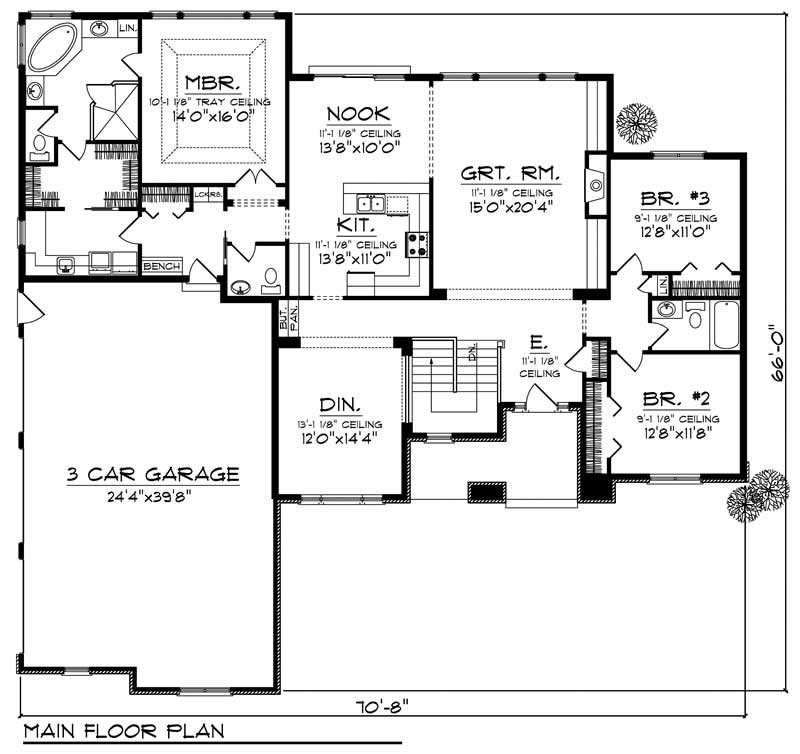

MAIN FLOOR PLAN

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

House Plan Description

A traditional brick front makes this ranch home a attractive to any buyer. Upon entering, you’ll be impressed with the 11-foot ceilings and the view through the great room windows to the back yard. The kitchen nook combination creates a living space perfect for casual dining, while the formal dining room at the front of the house can be reserved for those special occasions. The master suite features a spacious bedroom with tray ceiling, large walk-in closet and corner Jacuzzi tub. On the opposite side of the house, you’ll find two additional bedrooms and a full bath. A three-car side-load...

Home Details

Summary

Plan #:101-1664

Starting at:$1090.00

Floors:1

Bedrooms:3

Full Baths:2

Half Baths:0

Garage:

Square Footage

Heated Area:2306 Sq. Ft.

First Floor:2306 Sq. Ft.

Unheated Area:

Dimensions

Width:70' 8''

Architectural Styles

French Arts and Crafts

Exterior Wall Material

Vinyl SidingBrick

Roof Pitch

10/12

Ceiling Height

9 Foot Ceiling

Special Feature

Dining Room

Garage Type

Attached Garage

Exterior Wall Framing

2x6

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

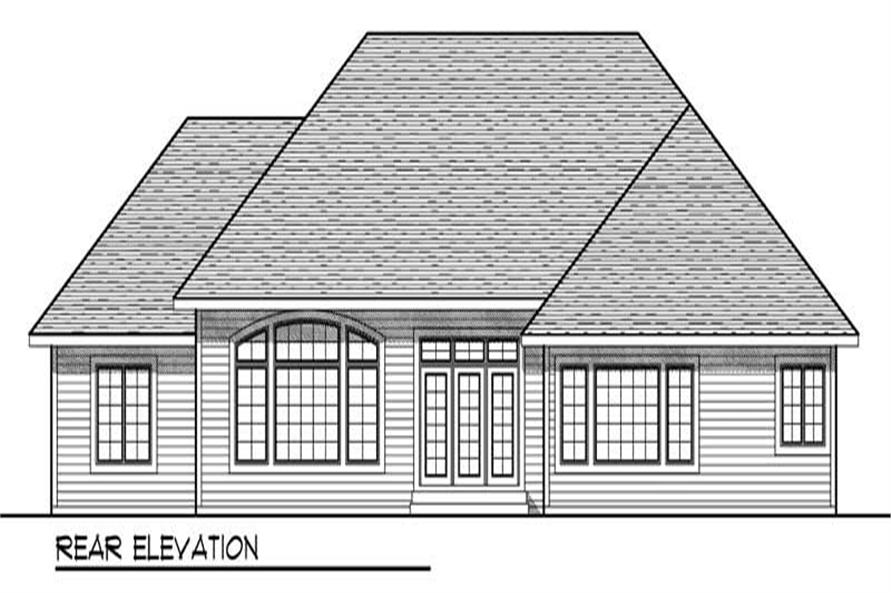

Front, Back & Side Elevations

Floor Plans

Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)

Roof Plan (Birdseye view)

Foundation Layout

Wall & Stair Sections

Cross Section

Kitchen Layout

General Notes

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Framing layouts with beam sizes and locations.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
