3-Bedroom, 1986 Sq Ft Country Plan with Main Floor Master

Main image for house plan # 13335

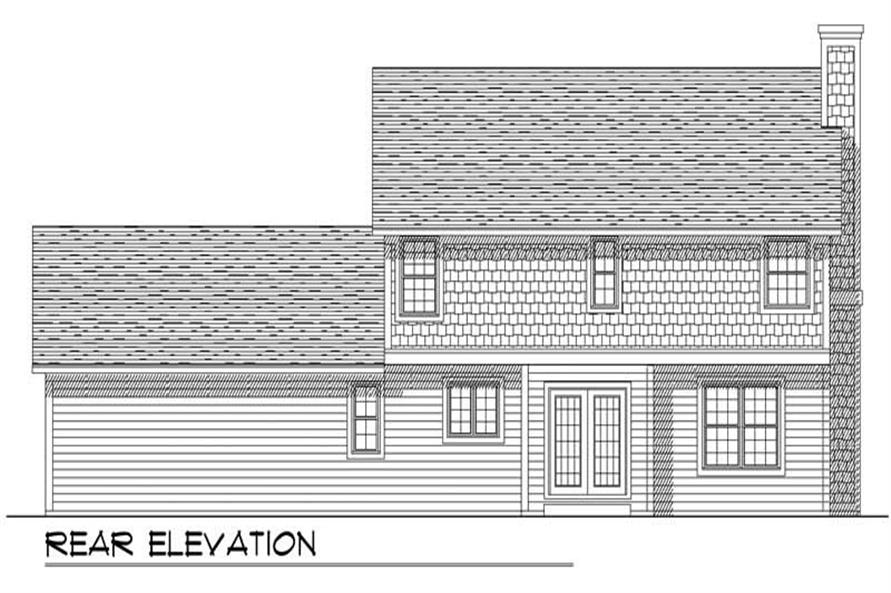

REAR ELEVATION
3-Bedroom, 1986 Sq Ft Country Home Plan - 101-1714 - Main Exterior
REAR ELEVATION

About Plan # 101-1714

About Plan # 101-1714

1986 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 60' 0" WIDTH 34' 0" DEPTH 2 GARAGE BAY
This charming cottage home features a large porch that’s perfect for enjoying warm evenings. The tiled entry leads to the dining room on the right and the breakfast nook and island kitchen to the back. The family room features a cozy fireplace and rear views, while the formal living room enjoys a bumped-out bay and double doors that open onto the family room. Upstairs, two family bedrooms share a hall bath--one bedroom features a tray ceiling. The master bedroom boasts a cathedral ceiling, walk-in closet, dual vanities and separate tub and shower.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION LAYOUT: Dimensioned plan detailing the layout and construction of the foundation.
  • ROOF PLAN: A birdseye view showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. It does not include wiring schematics.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. These can include wall and stair sections. Kitchen layout and cabinet elevations included.
  • RENDERING: Sketch of what the finished home may look like. Also includes general notes.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

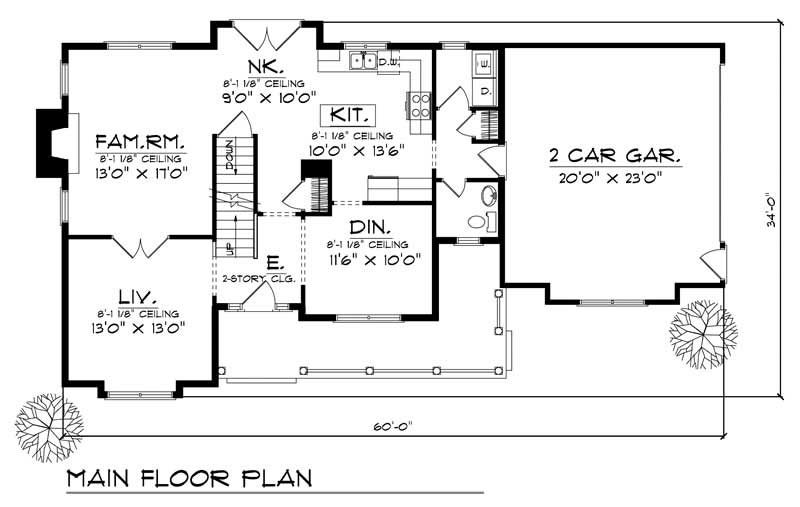

Home Plan: #101-1714 Floor Plan First Story - main Floor Plan First Story of Country Plan #101-1714

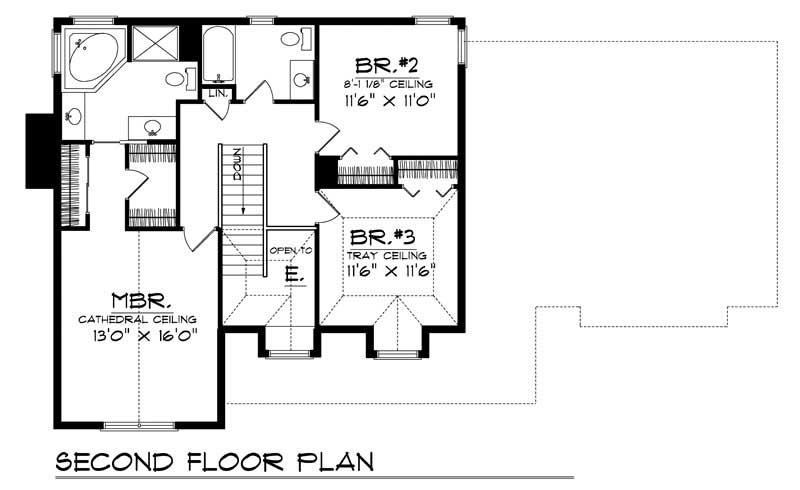

#101-1714 Floor Plan Second Story - second Floor Plan Second Story of Country Plan #101-1714
Home Plan: #101-1714 Floor Plan First Story - main Floor Plan First Story of Country Plan #101-1714
#101-1714 Floor Plan Second Story - second Floor Plan Second Story of Country Plan #101-1714
