3-Bedroom, 1370 Sq Ft Ranch Plan with Walk In Closet
Related House Plans
Photographs may reflect modified designs. Copyright held by designer.
3-Bedroom, 1370 Sq Ft Ranch Plan with Walk In Closet
| 1370 SQUARE FEET | 3 BEDROOMS | 2 FULL BATH | 0 HALF BATH |
| 1 FLOOR | 44' 0" WIDTH | 52' 0" DEPTH | 2 GARAGE BAY |
This beautiful ranch style house has everything you could ask for in a one-story home. A spacious two-car garage has plenty of room for your automobiles and adequate room for a tool bench. The living room, dining room, and kitchen all have vaulted ceilings, and offer a wide-open sensation. The master bedroom features a sliding glass door, and a full bathroom for your convenience. Two other bedrooms are perfect for overnight guests, or for the children to sleep in.
Each plan set includes the following:

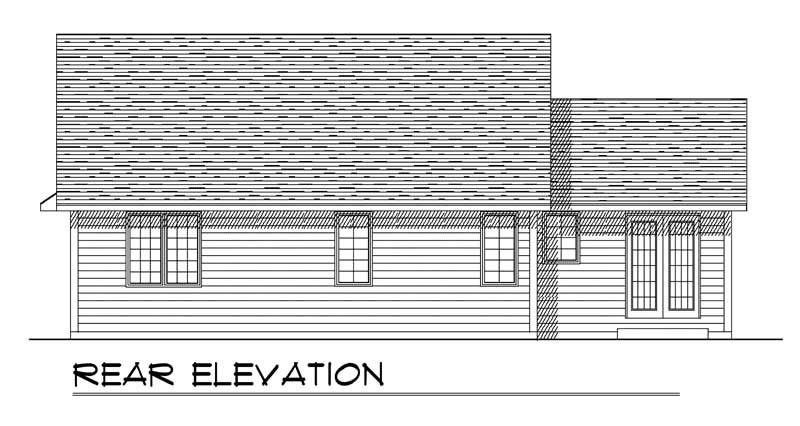

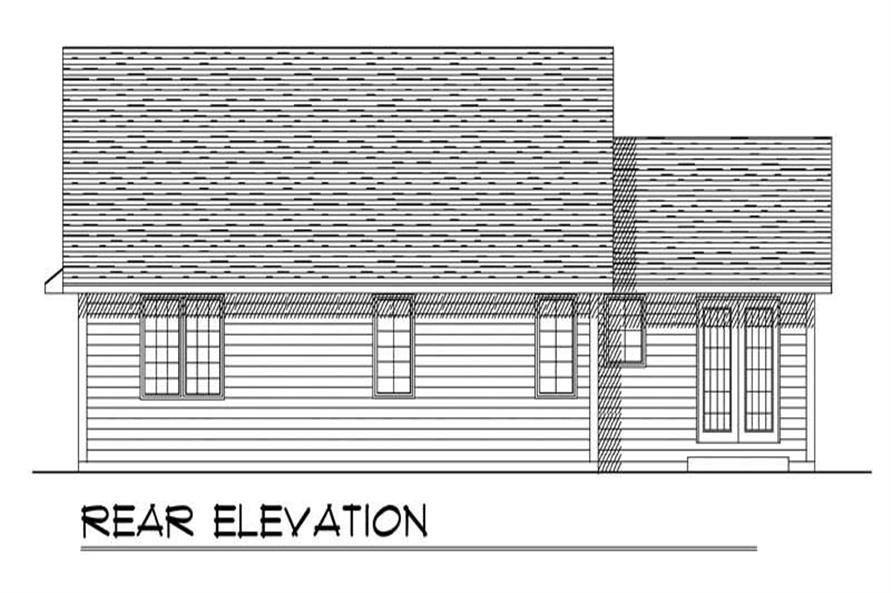

- Front, Back & Side Elevations
- Floor Plans
- Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
- Roof Plan (Birdseye view)
- Foundation Layout
- Wall & Stair Sections
- Cross Section
- Kitchen Layout
- General Notes
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Framing layouts with beam sizes and locations.
- Energy calculations - handled locally when required.
Write Your Own Review
FLOOR PLANS Flip Images

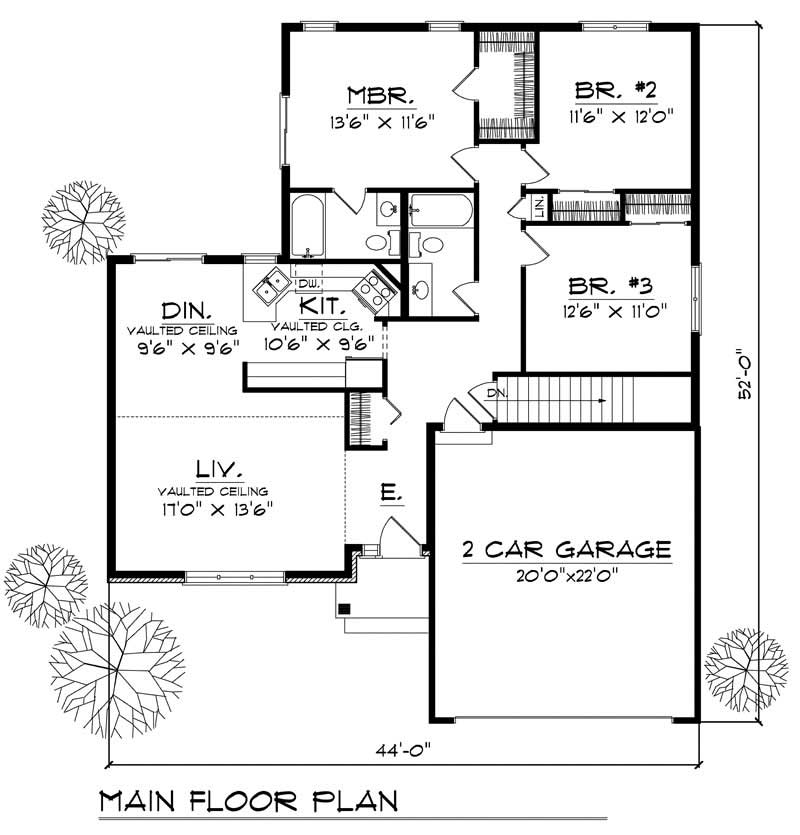

Home Plan: #101-1606 Floor Plan First Story
-
