4-Bedroom, 2716 Sq Ft Cape Cod Plan with Walk In Closet

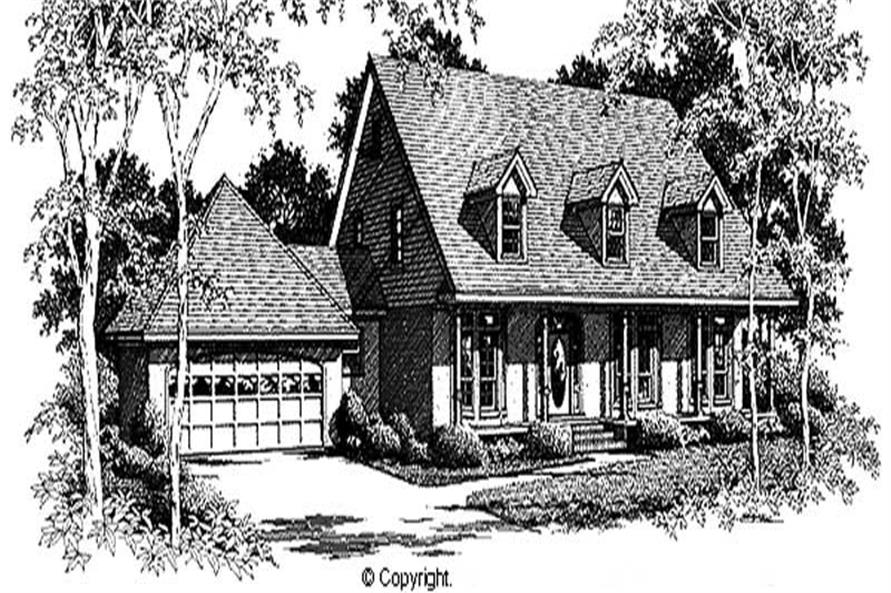

Main image for house plan # 11285
4-Bedroom, 2716 Sq Ft Cape Cod Home Plan - 174-1016 - Main Exterior

About Plan # 174-1016

About Plan # 174-1016

2716 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
2 FLOOR 72' 0" WIDTH 46' 0" DEPTH 2 GARAGE BAY
This set of Cape Cod Homeplans has a style that is very unique. A simple roofline with three bright gable dormers and a long covered front porch give these houseplans some character, and the attached garage really boosts the home's resale value.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. Cabinet elevations are also included.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

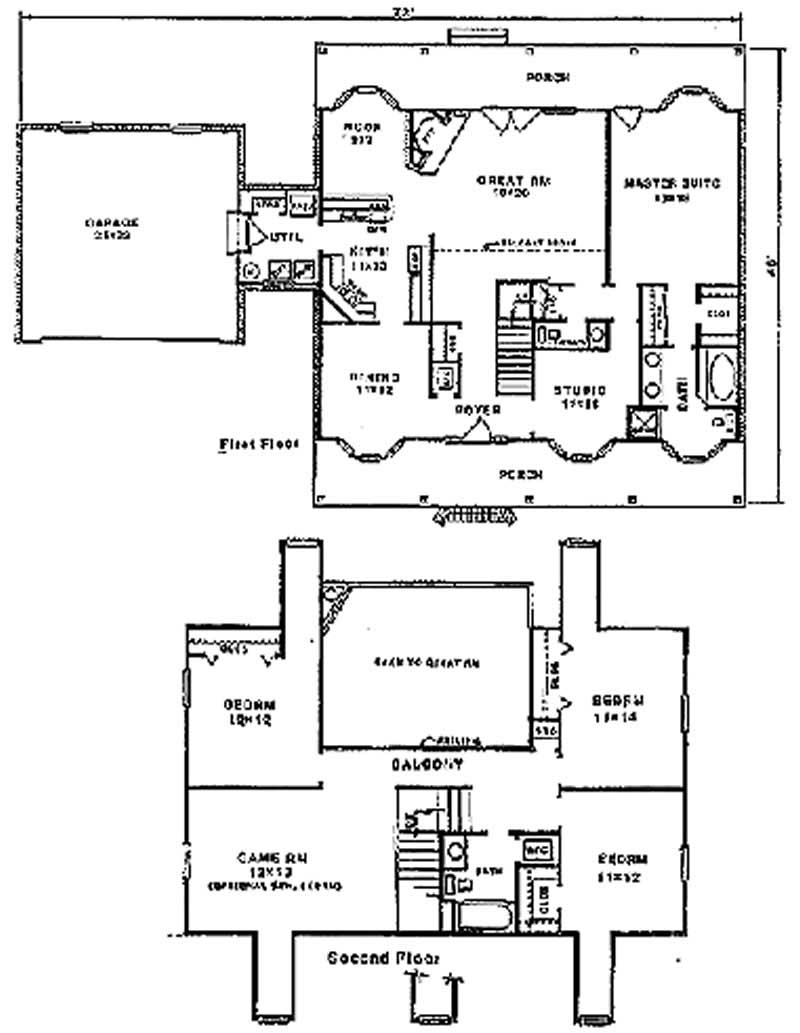

FLOOR PLANS Flip Images

Home Plan: #174-1016 Floor Plan First Story - first Floor Plan First Story of Cape Cod Plan #174-1016
Home Plan: #174-1016 Floor Plan First Story - first Floor Plan First Story of Cape Cod Plan #174-1016
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 174-1016
Floors:
2
Bedrooms:
4
Full Baths:
3

Square Footage

Heated Sq Feet:
2716
Main Floor:
2716
Unfinished Sq Ft:

Dimensions

Width:
72' 0"
Depth:
46' 0"

Architectural Styles

Cape Cod
Country
Traditional

Exterior Wall Material

Brick
Wood Siding

Roofing Type

Gable/Dormer

Roofing Material

Asphalt Shingles

Special Feature

Dining Room
Fireplace
Game Room
Main Level Laundry
Mud Room
Split Bathroom

Garage Type

Attached Garage
Front Entry

Building Lot Type

Flat Site

Kitchen Features

Nook/Breakfast Area

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

PRICING OPTIONS

Three full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Six full printed sets with a license to build one home. This is the minimum number of sets you can build from.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

A NON-modifiable, print-only PDF that is emailed. Includes a complete set of working drawings delivered in a digital format. Print as many sets as you need. No shipping costs. Comes with a license to build one home.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
