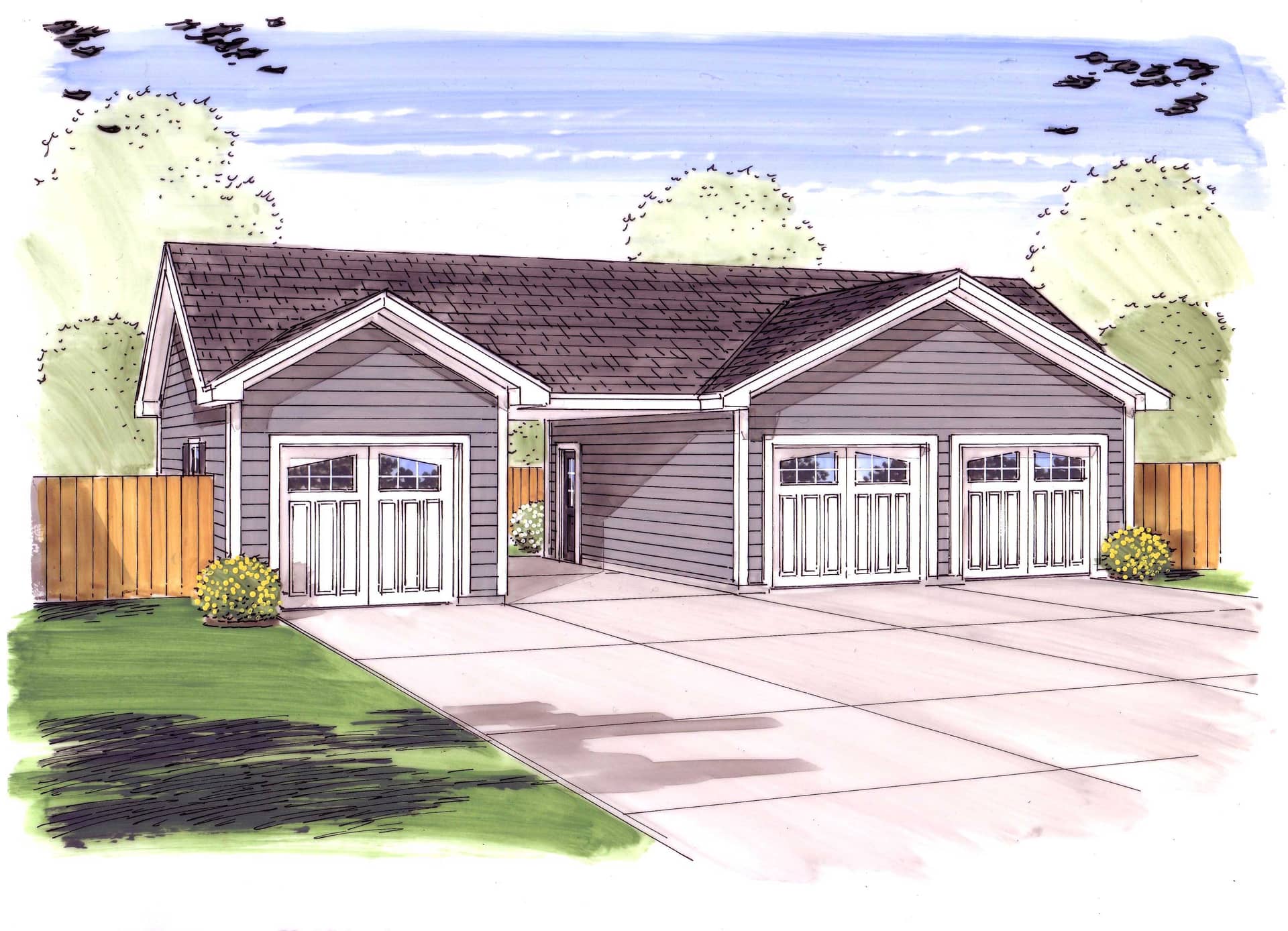

Front elevation of Garage home (ThePlanCollection: House Plan #100-1047)
3-Car. 851 Sq Ft Garage Home Plan - 100-1047 - Main Exterior

About Plan # 100-1047

About Plan # 100-1047

851 SQUARE FEET 0 BEDROOMS 0 FULL BATH 0 HALF BATH
1 FLOOR 49' 0" WIDTH 23' 0" DEPTH 3 GARAGE BAY

The #100-1047 is a unique set of garage plans. It offers three car stalls with a carport running right through the middle. It's definitely one of a kind!

Each plan set includes the following:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical stair section
  • Cabinets are shown on all plans.



These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

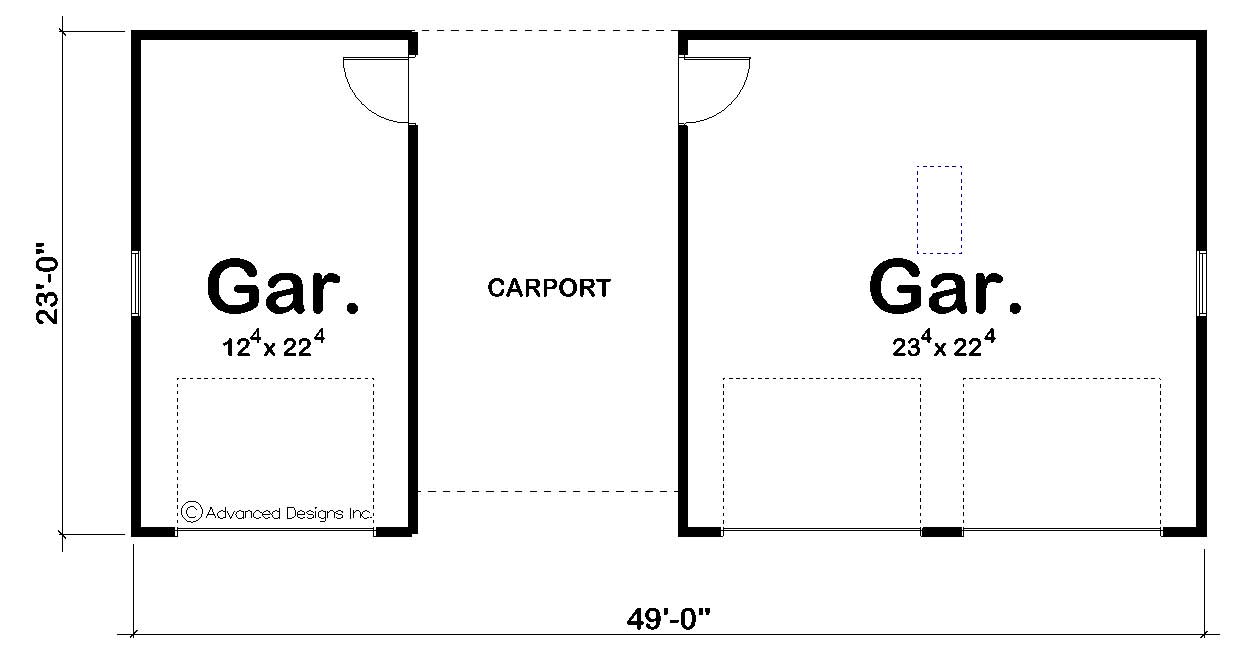

Home Plan: #100-1047 Floor Plan First Story - first story Floor Plan First Story of Garage Plan #100-1047
Home Plan: #100-1047 Floor Plan First Story - first story Floor Plan First Story of Garage Plan #100-1047
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
