RV Garage + Family Car Garage with Covered Porch

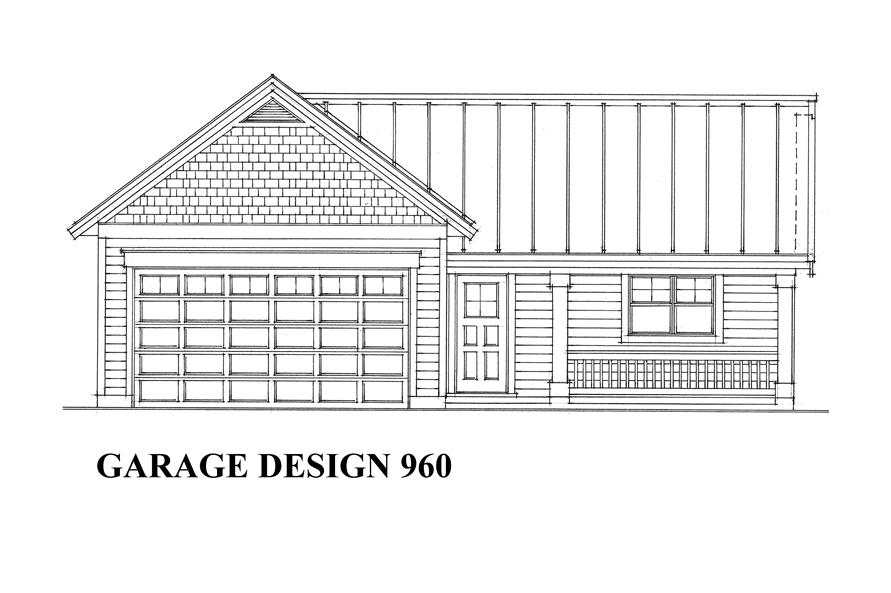

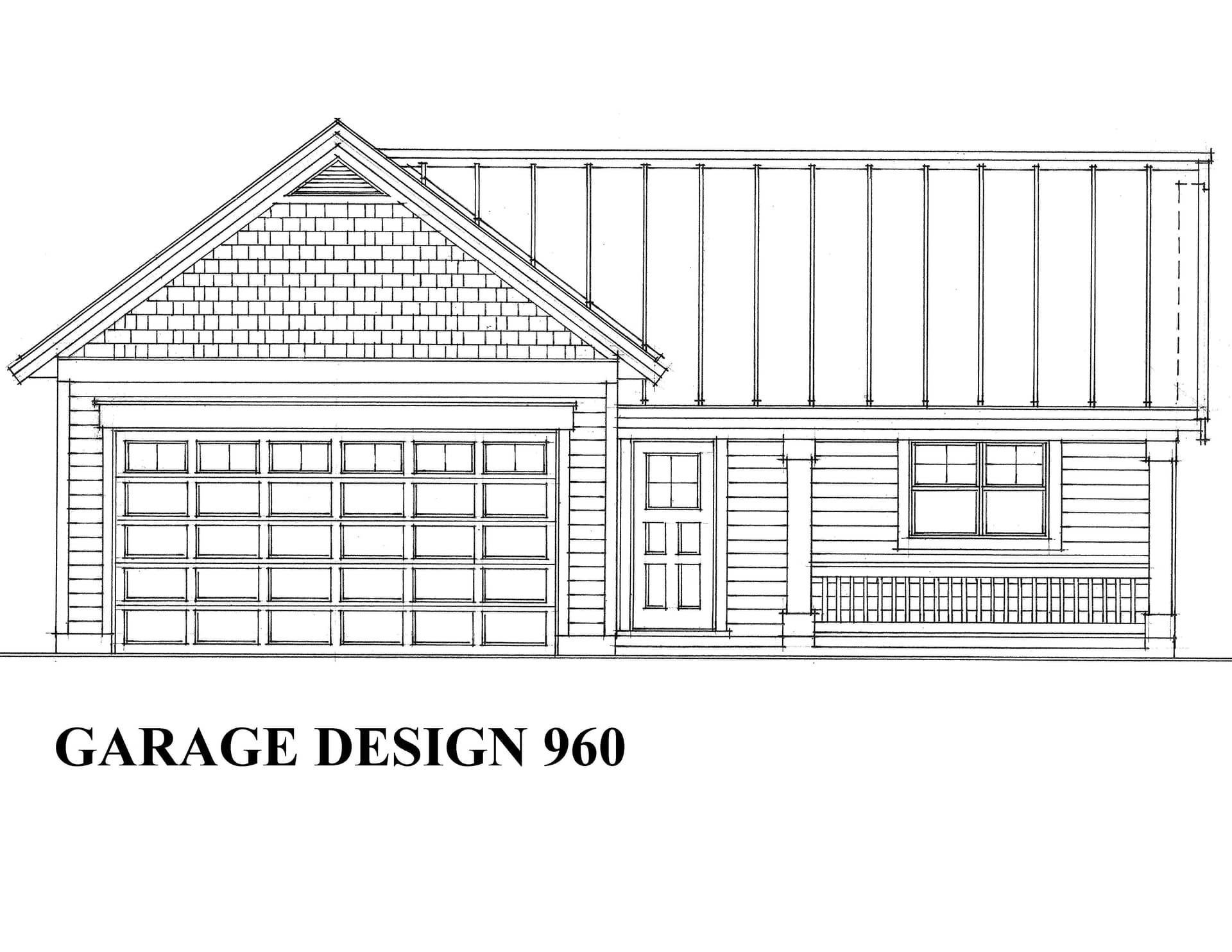

Front elevation of Garage home (ThePlanCollection: House Plan #160-1008)
RV + Car, 960 Sq Ft Garage Home Plan - 160-1008 - Main Exterior

About Plan # 160-1008

About Plan # 160-1008

960 SQUARE FEET 0 BEDROOMS 0 FULL BATH 0 HALF BATH
1 FLOOR 40' 0" WIDTH 30' 0" DEPTH 4 GARAGE BAY

This RV Garage combined with a Single Car Garage combines space for a recreational vehicle as well as the family or vintage vehicle, all within an economical footprint. The RV garage portion boasts a ten-foot plus ceiling height, perfect for storing either an RV or an oversized boat or providing car jacking clearance height for the car enthusiast. Plans accommodate a rear overhead garage door for drive-through ease. The side load Single Car Garage portion of this plan has an eight-foot ceiling height and boasts ample workbench space. Add a partition wall to separate the garage from the workshop and install heating to enable comfortable year-round use. Plans are designed with 2 x 6 exterior stud wall framing and a concrete slab foundation plan.

Each plan set includes the following:

  • Cover sheet with rendering and art floor plans.
  • General notes and specifications.
  • Foundation plan
  • Main floor plan
  • Second-floor plan (if applicable)
  • Structural floor/Roof information
  • Electrical layout
  • Minimum of two cross-sections Details
  • Exterior Elevations Generic detail sheet

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

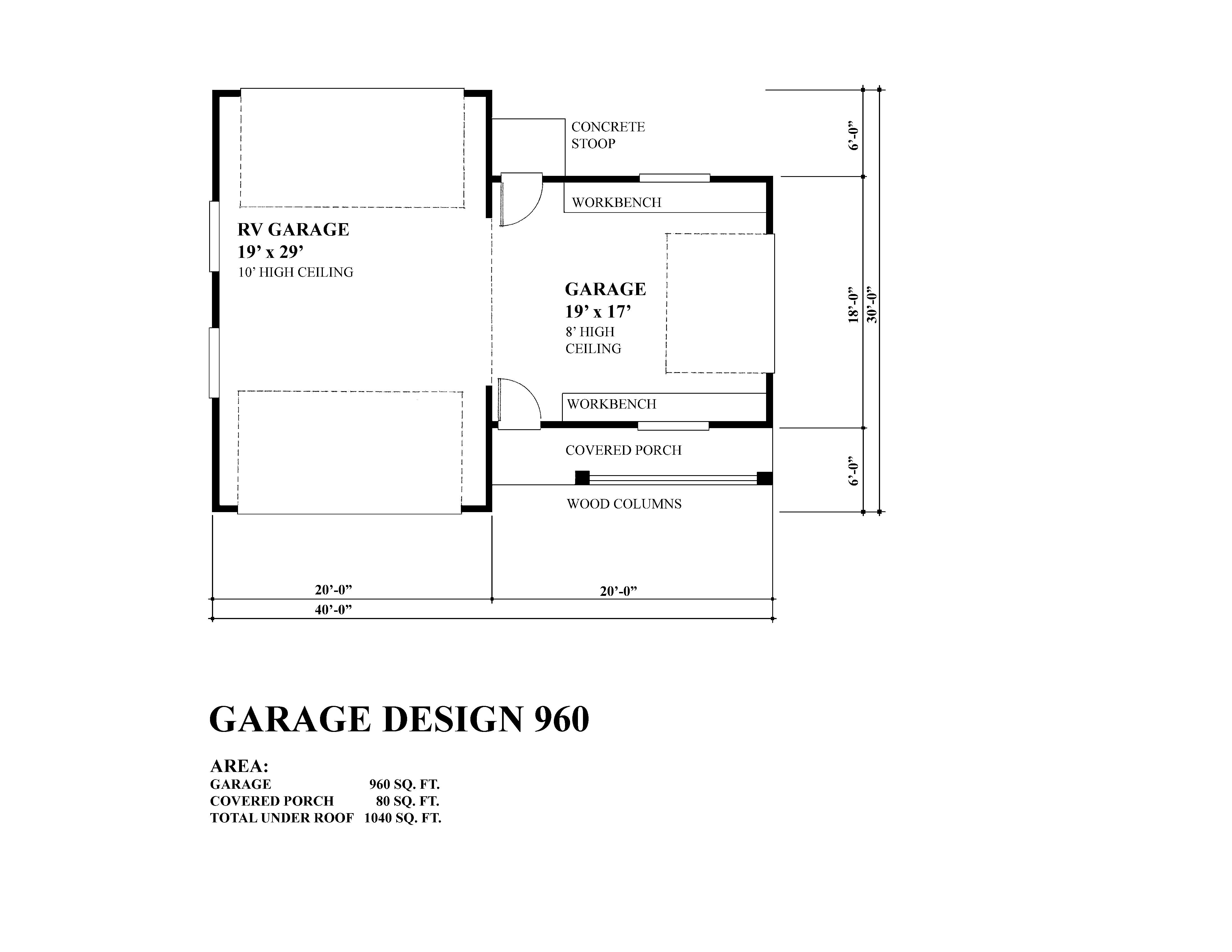

Home Plan: #160-1008 Floor Plan First Story - first story Floor Plan First Story of Garage Plan #160-1008
Home Plan: #160-1008 Floor Plan First Story - first story Floor Plan First Story of Garage Plan #160-1008
