5-Bedroom, 8319 Sq Ft Coastal Plan with Patio

Luxury House Plans Color Rendering.
HOUSE PLAN PHOTO
HOUSE PLAN PHOTO
HOUSE PLAN PHOTO
HOUSE PLAN PHOTO
HOME PLAN PHOTO
HOME PLAN PHOTO
HOME PLAN PHOTO
HOME PLAN PHOTO
HOME PLAN PHOTO

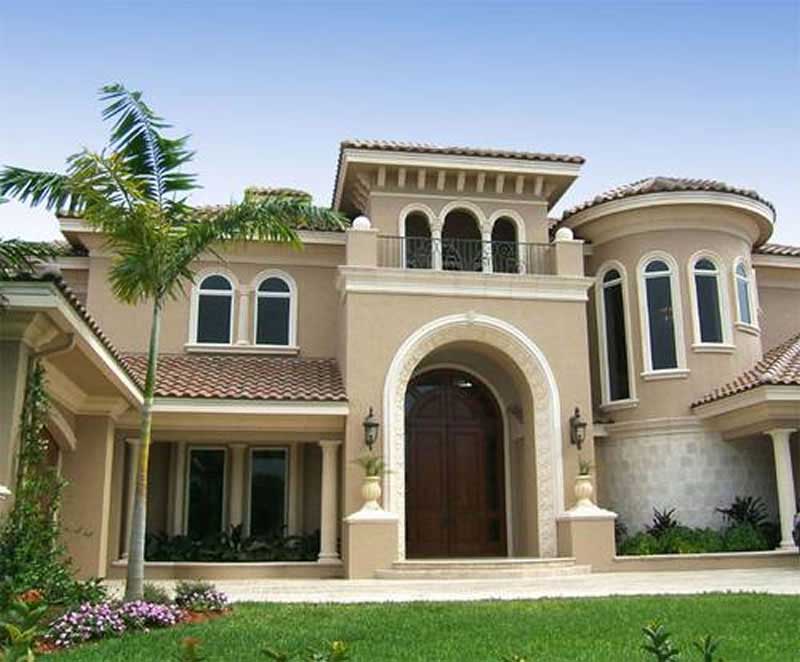

5-Bedroom, 8319 Sq Ft Coastal Home Plan - 175-1060 - Main Exterior
HOUSE PLAN PHOTO
HOUSE PLAN PHOTO
HOUSE PLAN PHOTO
HOUSE PLAN PHOTO
HOME PLAN PHOTO
HOME PLAN PHOTO
HOME PLAN PHOTO
HOME PLAN PHOTO
HOME PLAN PHOTO

About Plan # 175-1060

About Plan # 175-1060

8319 SQUARE FEET 5 BEDROOMS 5 FULL BATH 0 HALF BATH
2 FLOOR 124' 10" WIDTH 129' 8" DEPTH 4 GARAGE BAY

This Luxury House Plan is second to none--having recently been awarded the 2005 Sand Dollar Award for Outstanding Architecture for Product Design. This Tuscan style home plan was designed for a special lot with spectacular views. This spacious model has many rooms to entertain plus places for peace and tranquility. Plenty of rooms for family and friends to gather and play. Many amenities can be found within this beautiful Luxury design from the theatre room, parlor, outside covered lanais-both upstairs and down, bonus room, exercise room, and so much more. After reviewing this Florida plan, you can easily see why it won this prestigious award. These Mediterranean House Plans are not for sale for use in Collier County, Florida or Lee County, Florida or Marco Island, Florida without the consent of the designer. Please contact us if you want to build this plan in those areas of Florida.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size (if applicable), and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. Typical wall sections are also included. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

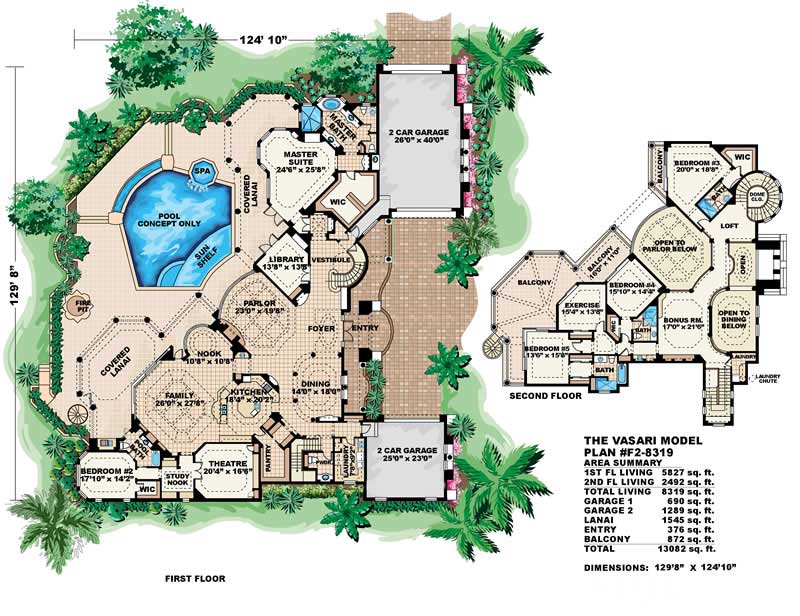

Home Plan: #175-1060 Floor Plan First Story Floor Plan First Story of Coastal Plan #175-1060
