4-Bedroom, 5777 Sq Ft Country Plan with Covered Front Porch

Luxury Home Plans front elevation.
4-Bedroom, 5777 Sq Ft Country House Plan - 165-1103 - Front Exterior

About Plan # 165-1103

About Plan # 165-1103

5777 SQUARE FEET 4 BEDROOMS 4 FULL BATH 0 HALF BATH
2 FLOOR 79' 0" WIDTH 74' 0" DEPTH 4 GARAGE BAY

This outstanding Tudor-style home exhibits detailed peaks, an exterior of brick and cedar shake shingles, and a chimney accented by brick and stone. Inside, a fabulous reception area opens to the formal dining room, which features a beamed ceiling. Straight ahead, a wall of windows and a two-way fireplace make up the expansive family room. The combined dinette and kitchen share the other half of the fireplace. Here, a bay window with sliding doors accesses a unique curved deck; the kitchen's island and butler's pantry make meal preparation a breeze. Discover the master bedroom on the other side of the home. A tray ceiling, a bay window and a secluded bath with dual walk-in closets and an angled garden tub are revealed here. A private guest room with a full bath and a nice-sized closet sits in the front of the home. Downstairs, more luxury awaits. A recreation room, a game room with a kitchenette, and a wine room make up one half of this level; an exercise room and two bedrooms with walk-in closets and direct access to a shared split bath finish it off. Plans are provided for a future office above the garage.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

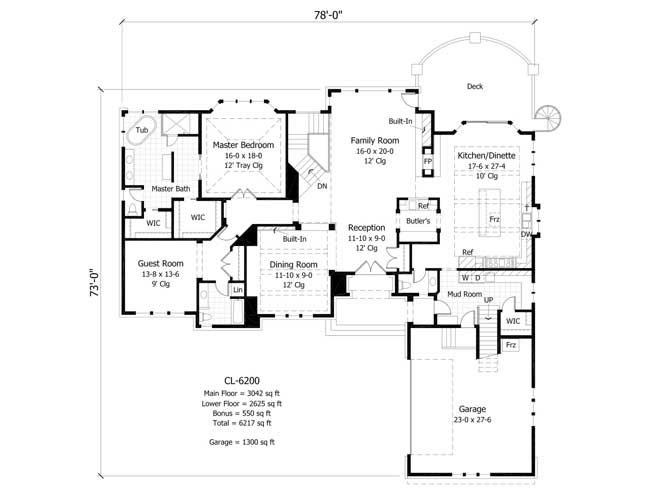

Home Plan: #165-1103 Floor Plan First Story - first story Floor Plan First Story of Country Plan #165-1103

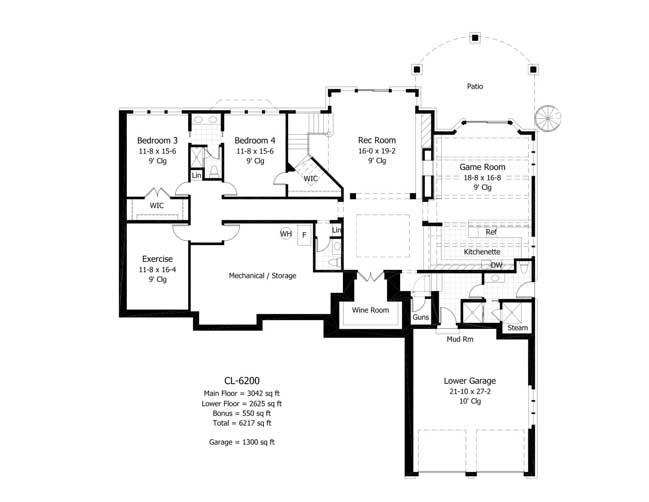

#165-1103 Floor Plan Basement - basement Floor Plan Basement of Country Plan #165-1103
Home Plan: #165-1103 Floor Plan First Story - first story Floor Plan First Story of Country Plan #165-1103
#165-1103 Floor Plan Basement - basement Floor Plan Basement of Country Plan #165-1103
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 165-1103
Floors:
2
Bedrooms:
4
Full Baths:
4

Square Footage

Heated Sq Feet:
5777
Main Floor:
3042
Upper Floor:
2735
Unfinished Sq Ft:

Dimensions

Width:
79' 0"
Depth:
74' 0"

Architectural Styles

Country
European
Luxury
Tudor

Exterior Wall Material

Brick

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

10/12

Ceiling Height

9 Foot Ceiling

Special Feature

Dining Room
Exercise Room
Family Room
Fireplace
Game Room
Guest Room
Main Level Laundry
Media Room
Mud Room
Split Bathroom
Storage
Wine Cellar

Garage Type

Attached Garage
Courtyard Entry
Front Entry
Under Main Floor Entry

Exterior Wall Framing

2x6

Building Lot Type

Down Site
Side Slope Site

Kitchen Features

Butler's Pantry
Eat-In Kitchen
Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
Secondary Kitchen
Walk-in Pantry

Porches and Exterior Features

Courtyard
Covered Front Porch
Covered Rear Porch
Sundeck

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

Stamped "Not for Construction," this PDF file set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
