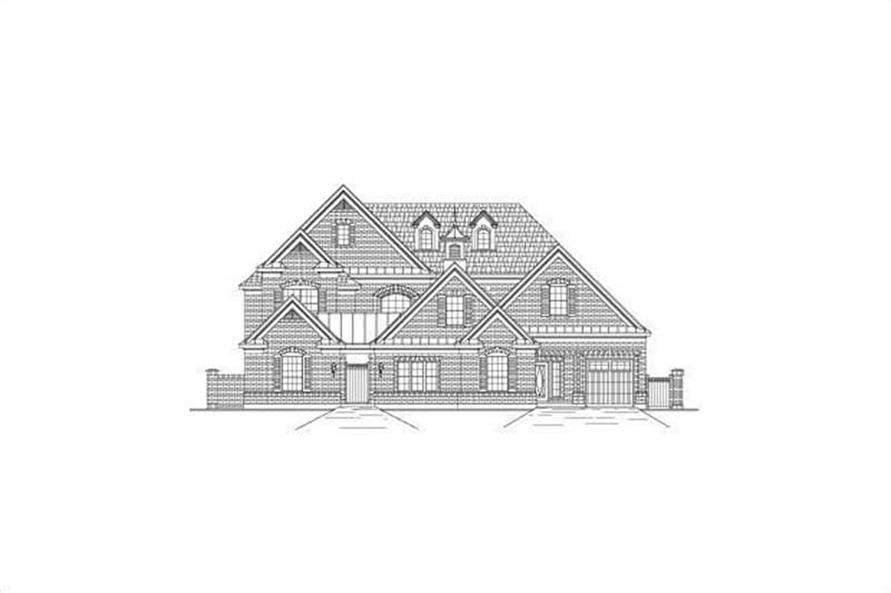

House Plan #990137-1-01 is a two story traditional brick luxury home with 5494 total living square feet. It has 6 bedrooms and 5 baths as well as a split front load 3 garage. This home plan also has 2 living areas, 2 dining areas, a bar, a computer alcove, a covered side porch, an exercise room, a hobby room, a master with sitting area, a quarters, a theater/media, a casita, a covered rear porch, an entry courtyard, an exterior balcony, a home office, a portico, and a separate master closet.
Each plan set includes the following:

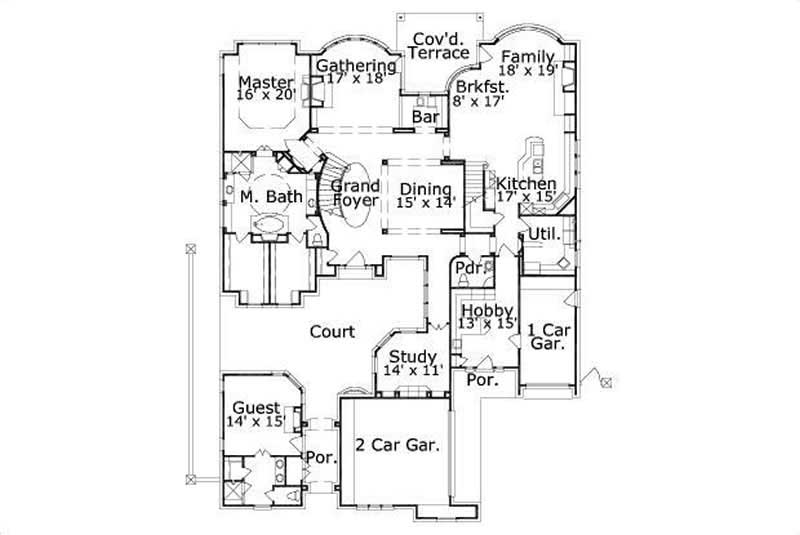

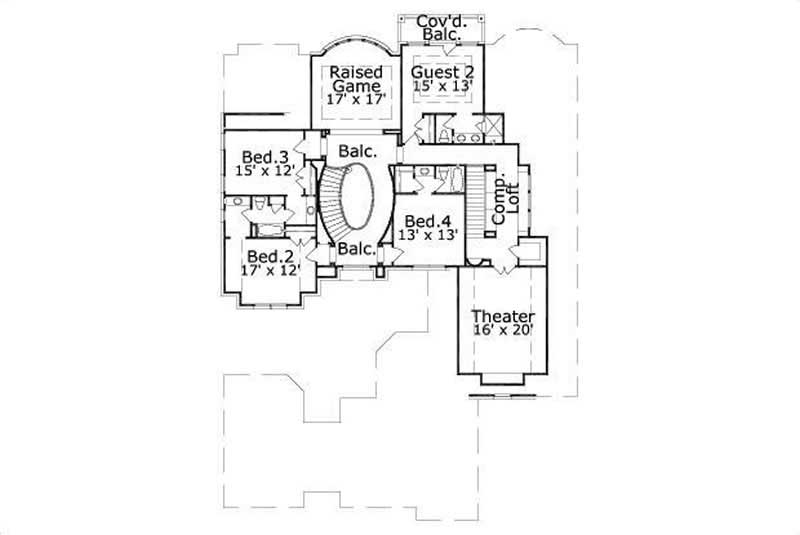

- Floor Plans
- Electrical Layout
- Building Sections
- Roofing Plan
- Interior Elevations
- General Details
- Wall Sections
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
