6-Bedroom, 4509 Sq Ft European Plan with Walk In Closet

Color Rendering of this house plan

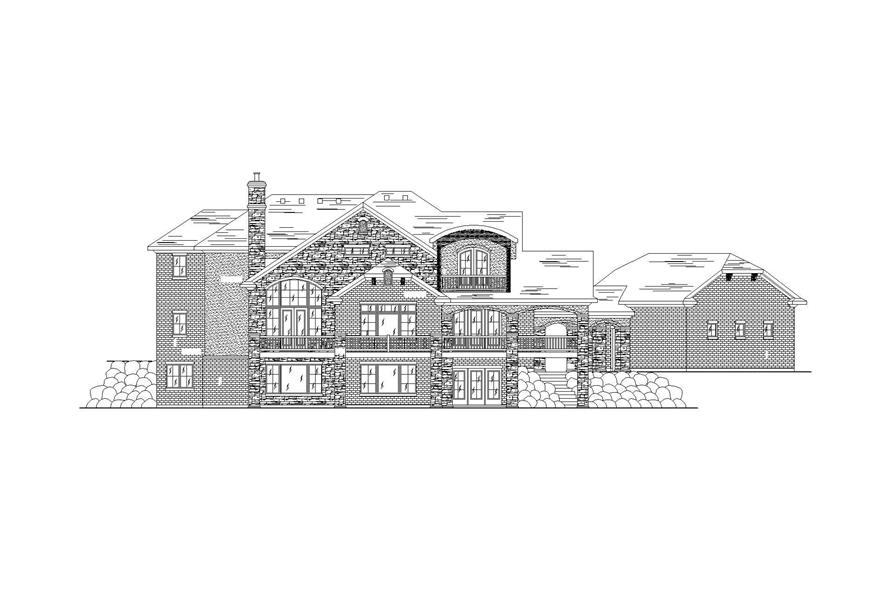

Home Plan Rear Elevation
6-Bedroom, 4509 Sq Ft European House Plan - 135-1117 - Front Exterior

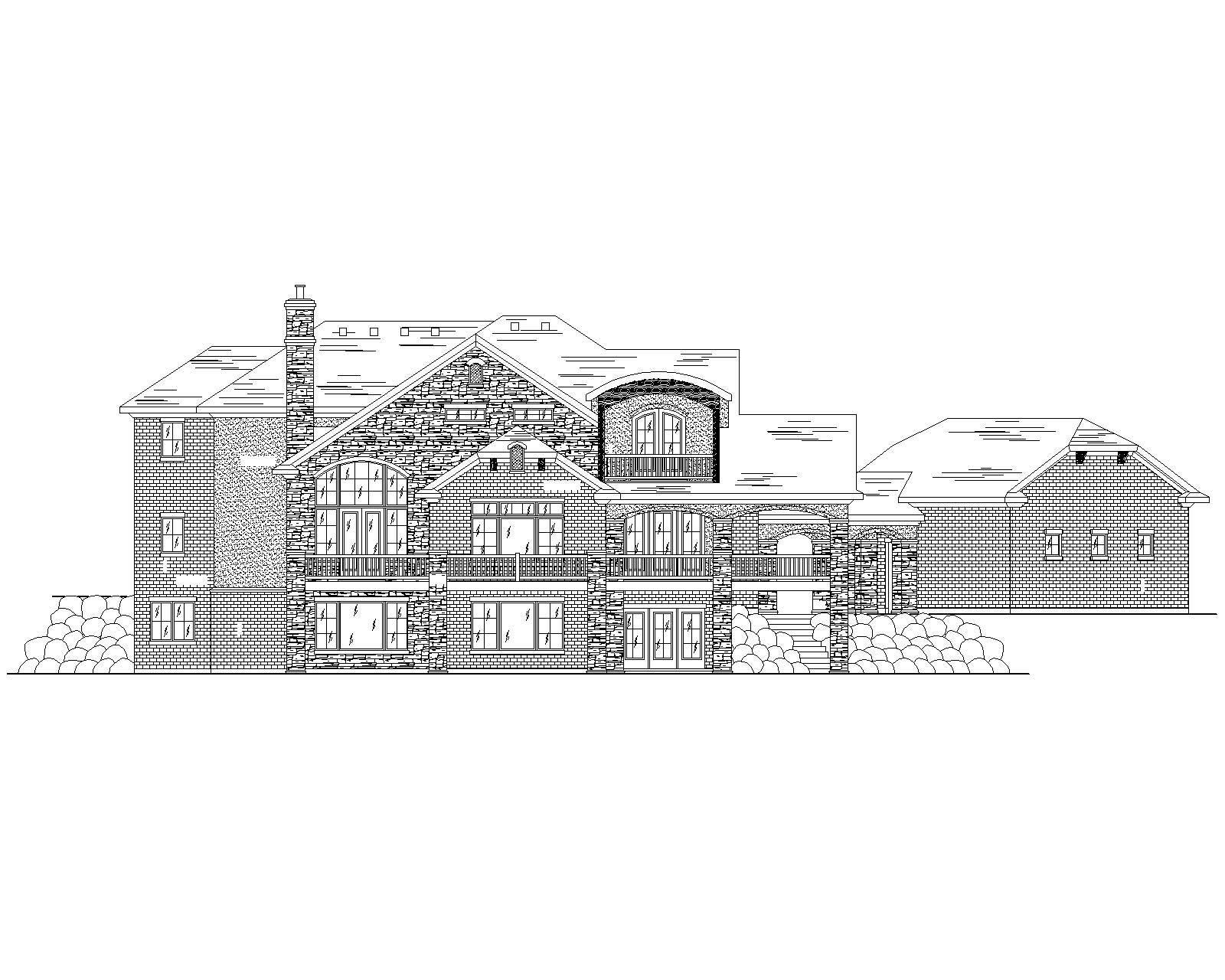

Home Plan Rear Elevation

About Plan # 135-1117

About Plan # 135-1117

4509 SQUARE FEET 6 BEDROOMS 5 FULL BATH 1 HALF BATH
2 FLOOR 117' 4" WIDTH 74' 4" DEPTH 4 GARAGE BAY
A European plan like this isn't a usual design. There is a normal front loading garage and then a separate double garage with a breezeway connecting it to the main garage. This has a kitchen island with a long eating bar attached. The basement has a big entertainment room for those parties that come up.

Each plan set includes the following:

  • FLOOR FRAMING PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF FRAMING PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

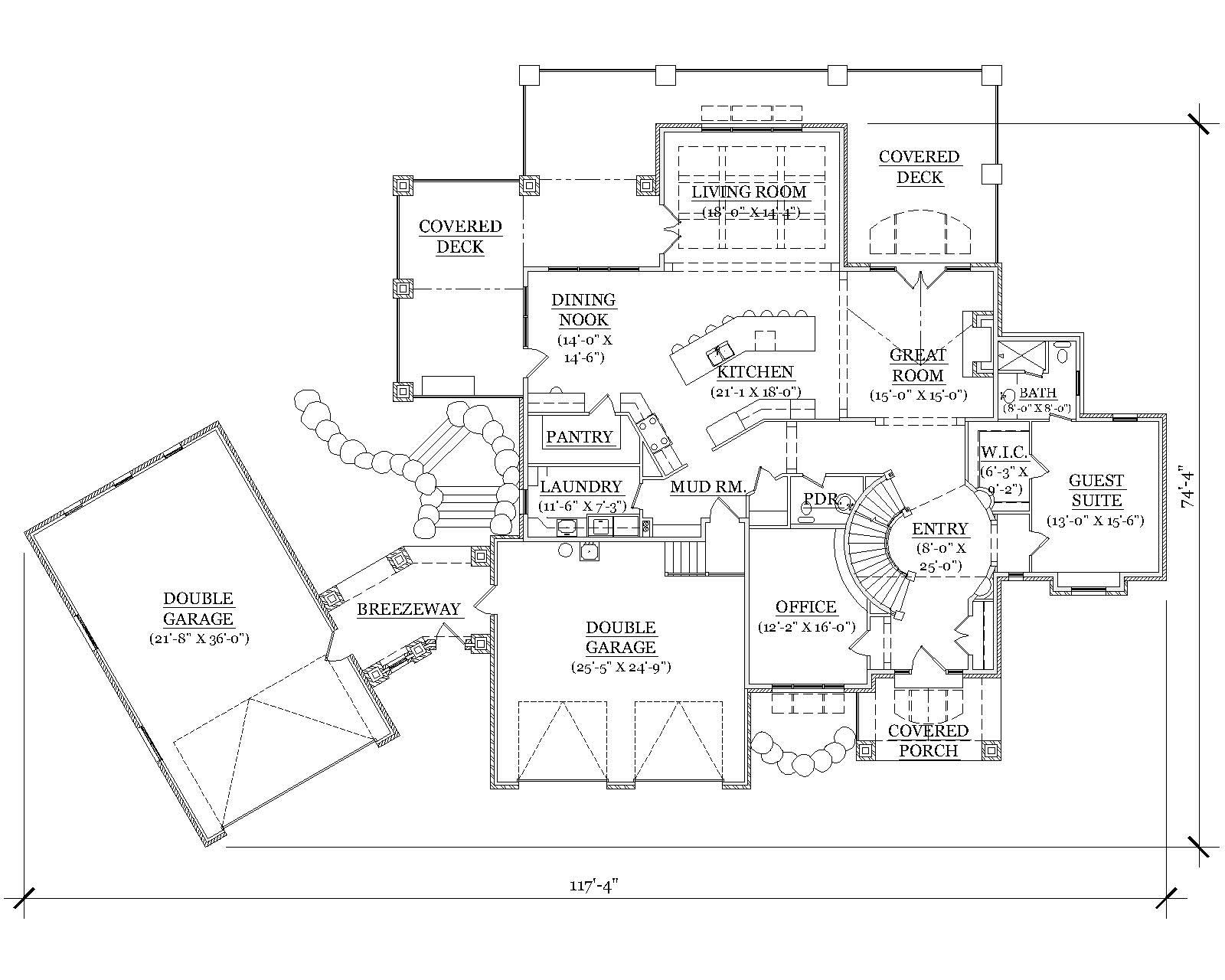

Home Plan: #135-1117 Floor Plan First Story - first story Floor Plan First Story of European Plan #135-1117

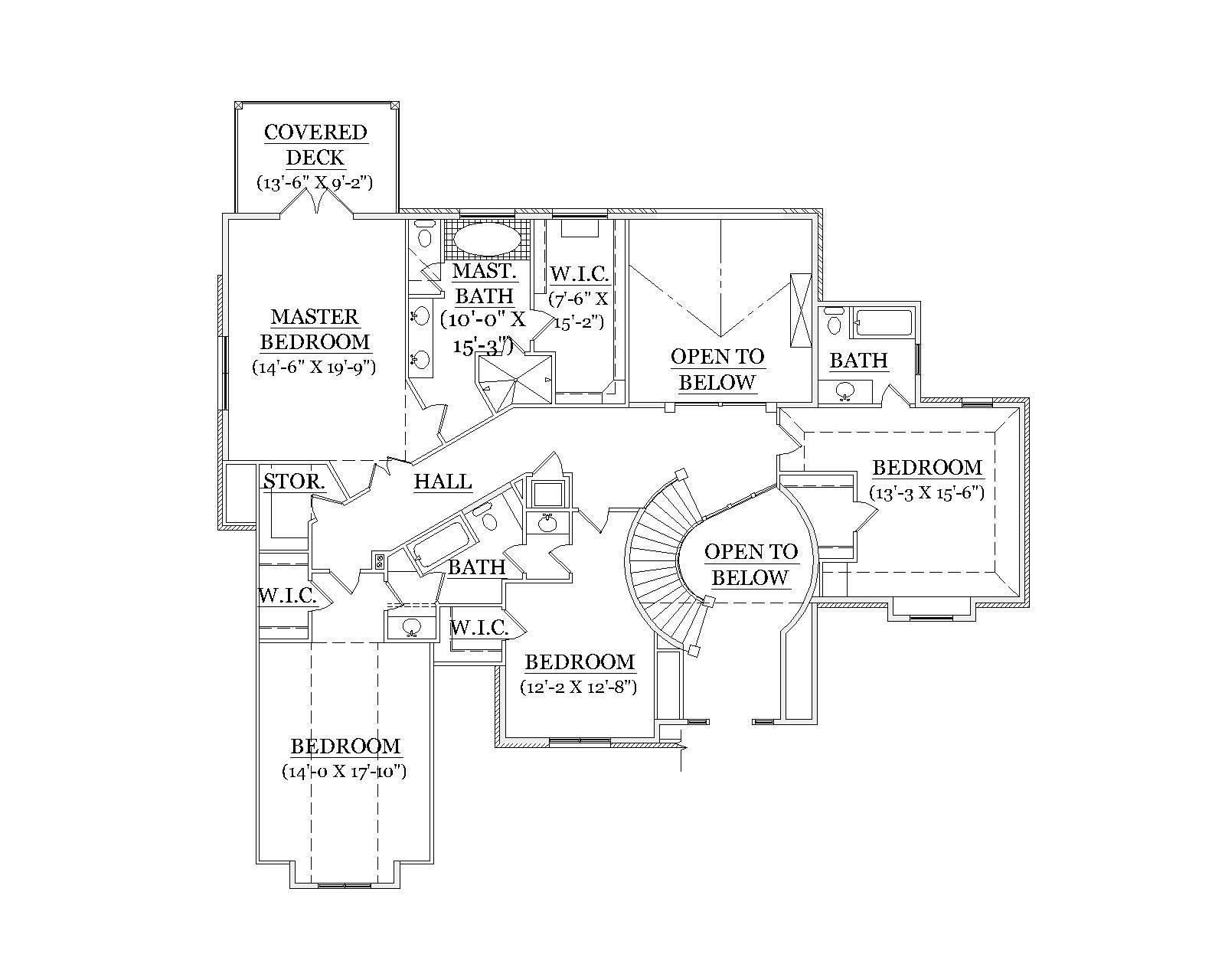

#135-1117 Floor Plan Second Story - second story Floor Plan Second Story of European Plan #135-1117

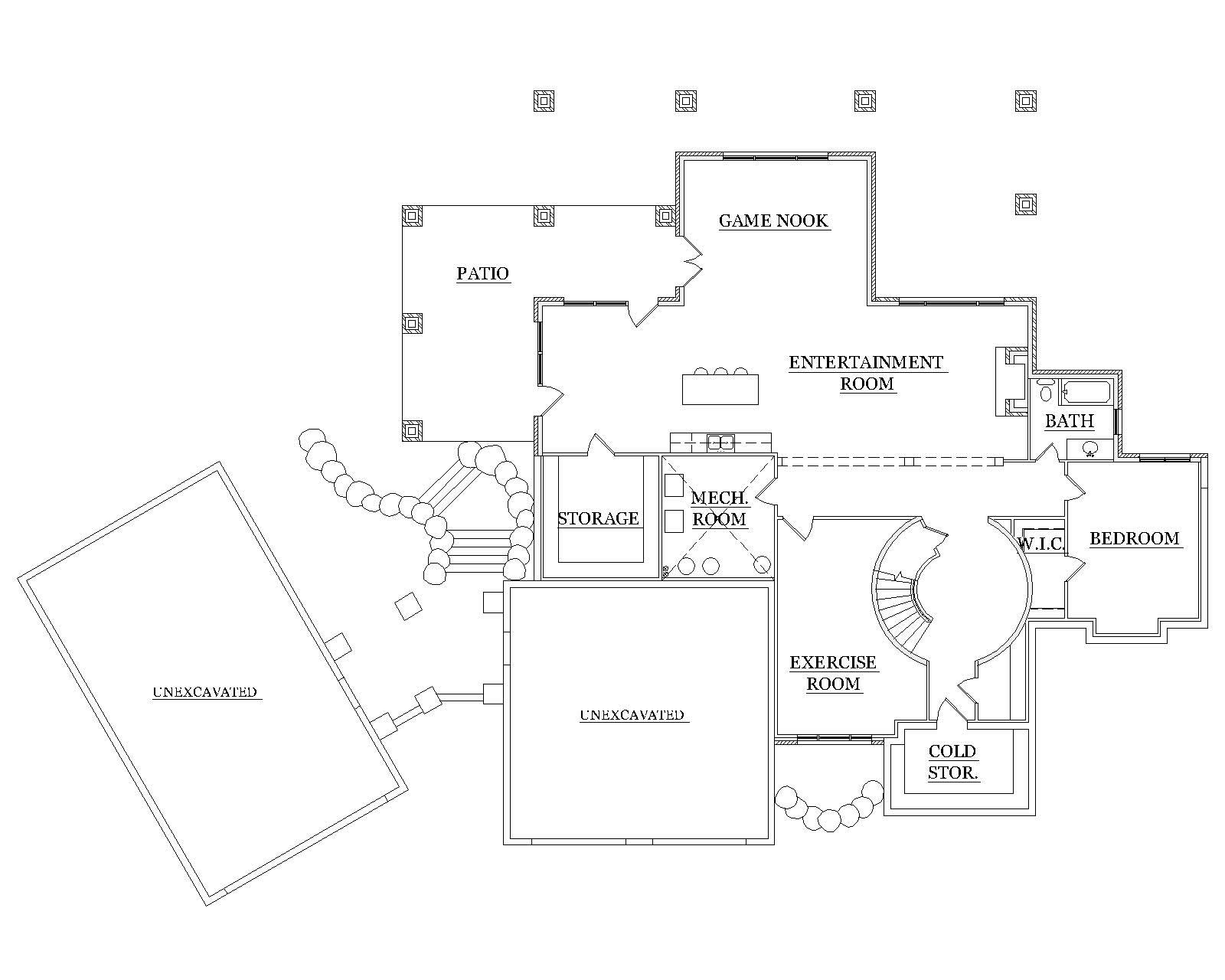

#135-1117 Floor Plan Basement - basement Floor Plan Basement of European Plan #135-1117
Home Plan: #135-1117 Floor Plan First Story - first story Floor Plan First Story of European Plan #135-1117
#135-1117 Floor Plan Second Story - second story Floor Plan Second Story of European Plan #135-1117
#135-1117 Floor Plan Basement - basement Floor Plan Basement of European Plan #135-1117
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 135-1117
Floors:
2
Bedrooms:
6
Full Baths:
5
Half Baths:
1

Square Footage

Heated Sq Feet:
4509
Main Floor:
2442
Upper Floor:
2067
Unfinished Sq Ft:
Lower Floor:
2155

Dimensions

Width:
117' 4"
Depth:
74' 4"
Ridge Height:
33'3"' 0"

Architectural Styles

European
Luxury

Exterior Wall Material

Brick
Rock/Stone
Stucco

Roofing Type

Hip

Roof Pitch

8/12

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Special Feature

Balcony
Exercise Room
Game Room
Guest Room
Home Office
Main Level Laundry
Mud Room
Storage

Garage Type

Courtyard Entry
Front Entry

Fireplaces

Two Fireplaces

Exterior Wall Framing

2x6

Building Lot Type

Down Site

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Master Bathroom
Private Deck
Second Floor Master
Walk In Closet
