4-Bedroom, 5377 Sq Ft Mediterranean Plan with Kitchen Island

175-1087 main image

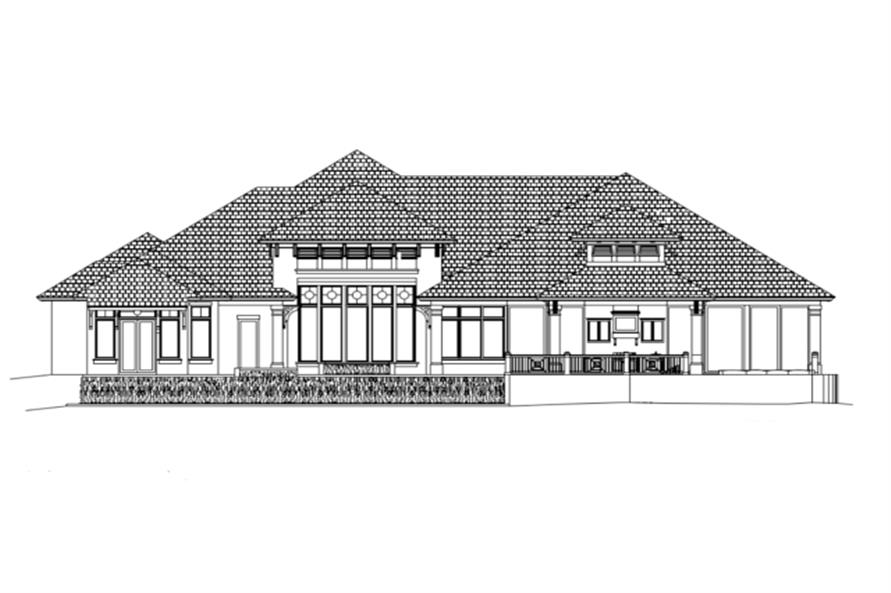

175-1087: Home Plan Rear Elevation
4-Bedroom, 5377 Sq Ft Mediterranean Home Plan - 175-1087 - Main Exterior
175-1087: Home Plan Rear Elevation

About Plan # 175-1087

About Plan # 175-1087

5377 SQUARE FEET 4 BEDROOMS 4 FULL BATH 2 HALF BATH
1 FLOOR 101' 6" WIDTH 129' 0" DEPTH 5 GARAGE BAY

Please Note: cannot be purchased for construction in the state of Florida. This stunning British West Indies house plan offers beauty and comfort within its 5,377 sq. ft. of living space. Enjoy entertaining friends and family with amenities like a large center island kitchen with seating for five, a radial wet bar with a dome ceiling design and an outdoor kitchen and lounge area with an open-air cupola. A formal living room with stone faced fireplace, split bedrooms, massive master suite with private outdoor shower and a 5 car garage are just a few reasons why this house plan is so great. With over 40 feet of sliding glass doors that pocket out-of-sight in the family room and a large swimming pool with sun shelf and spa, this plan is sure to please.

Each plan set includes the following:

  • Elevations
  • Floor Plans
  • Building Section Markers
  • Electrical Layout
  • Slab Plan
  • Roof Plan
  • Building Sections
  • Typical Wall Sections
  • Miscellaneous Notes & Details



Not Included with the Plan:

  • NO MEPs, NO Framing,
  • No Trusses: The client gets that from the truss manufacturer
  • No Engineering, You will need to get the plans stamped and engineered locally
  • HVAC and Plumbing is not included




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

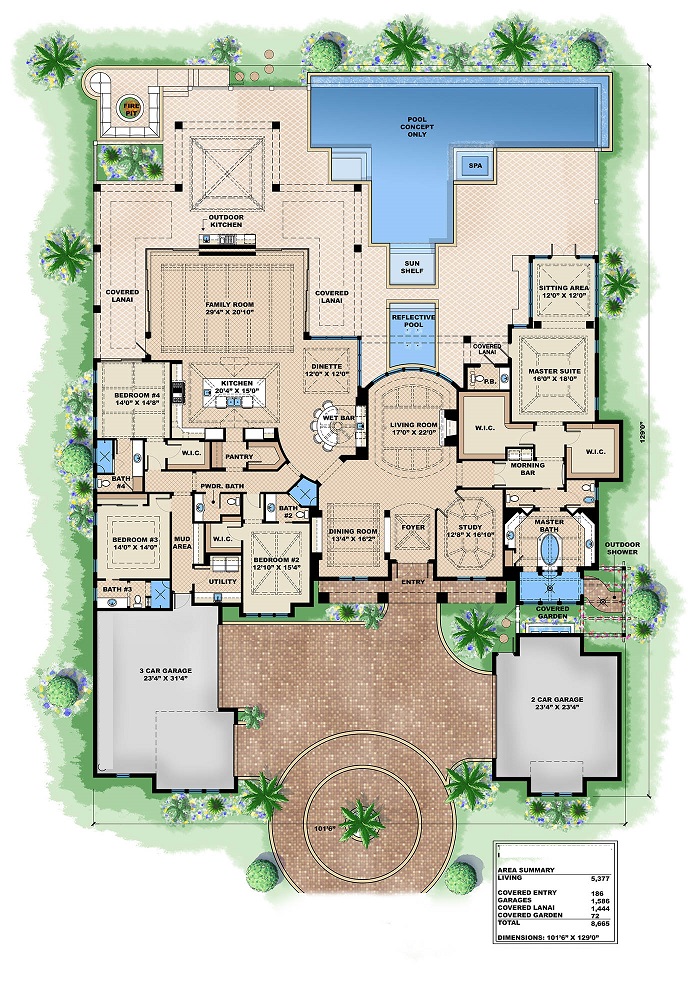

Home Plan: #175-1087 Floor Plan First Story - main level Floor Plan First Story of Mediterranean Plan #175-1087
Home Plan: #175-1087 Floor Plan First Story - main level Floor Plan First Story of Mediterranean Plan #175-1087
