5-Bedroom, 5030 Sq Ft Luxury Plan with Covered Rear Porch

Main image for luxury house plan # 18881
HOUSE PLAN AA
HOUSE PLAN AA
HOUSE PLAN AA
HOUSE PLAN AA
HOUSE PLAN AA
5-Bedroom, 5030 Sq Ft Luxury House Plan - 107-1010 - Front Exterior
HOUSE PLAN AA
HOUSE PLAN AA
HOUSE PLAN AA
HOUSE PLAN AA
HOUSE PLAN AA

About Plan # 107-1010

About Plan # 107-1010

5030 SQUARE FEET 5 BEDROOMS 5 FULL BATH 0 HALF BATH
2 FLOOR 75' 0" WIDTH 74' 0" DEPTH 3 GARAGE BAY
These Mediterranean-style waterfront designs feature five bedrooms, a cabana bathroom and three-car garage. There is a spacious and towering covered entrance and covered patio. The formal dining room has a coffered ceiling. On the first story, there is a VIP suite with a private entrance. The den/library is very cozy and a perfect place for simple solitude. The eight-foot high French doors have sidelights adding to the elegance and opulence of the design. Columns, arches and the baluster rail provide a strong curb appeal. A chef's "dream" island kitchen with an eating bar, butler's pantry and cafe opens into the family room. The master suite is luxurious with large walk-in closets, tray ceilings and a regal master bath with vanity and additional storage areas. This area opens onto a private balcony. The large living room features a two-story ceiling, wet bar and fireplace.

Each plan set includes the following:

  • Floor plan
  • Kitchen & Bath layout
  • Exterior elevations
  • Sections
  • Structural plans
  • Foundation plan
  • Roof plan
  • Mechanical layout
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

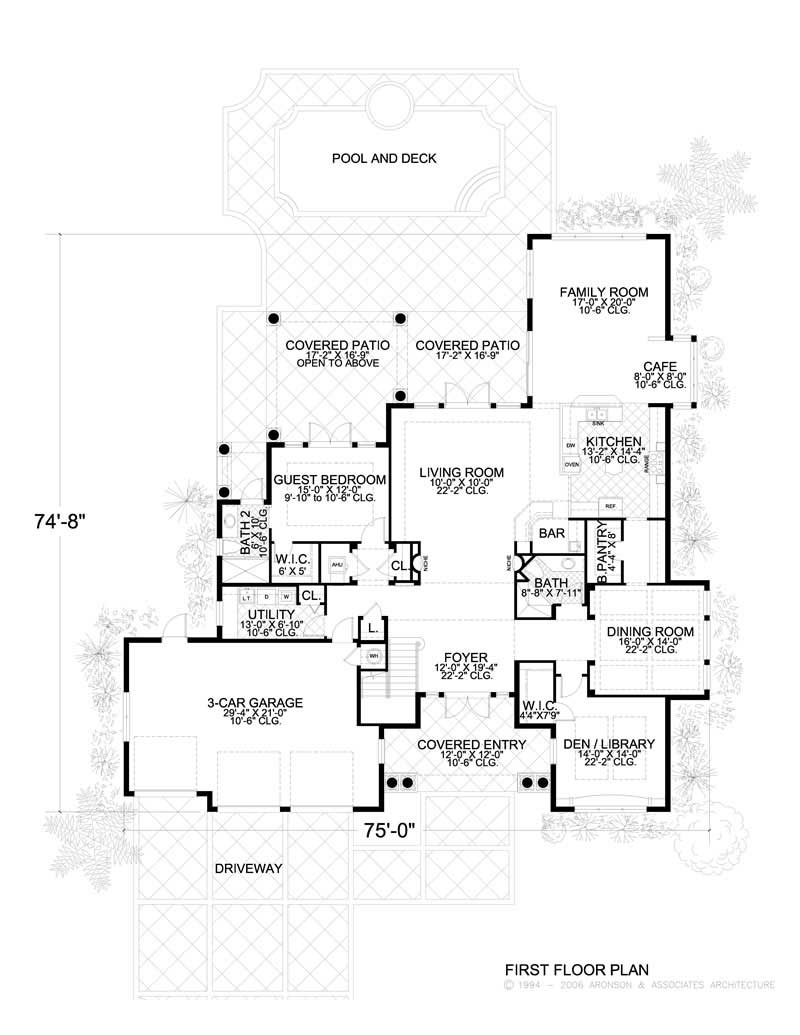

Home Plan: #107-1010 Floor Plan First Story - main Floor Plan First Story of Luxury Plan #107-1010

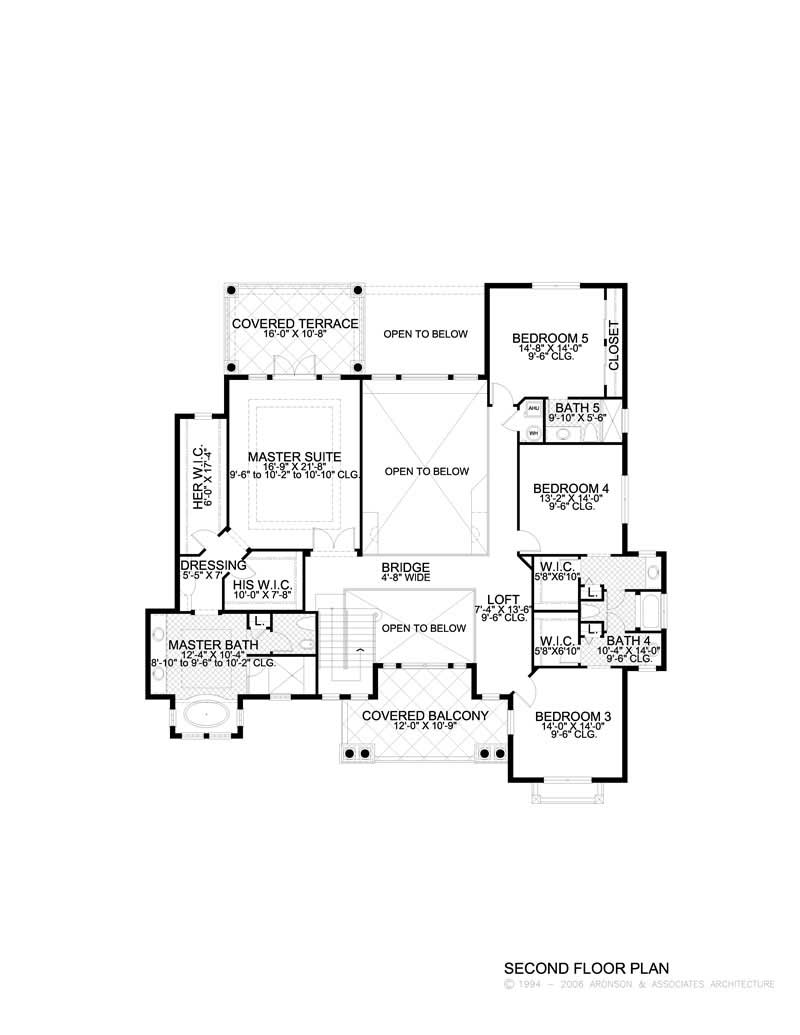

#107-1010 Floor Plan Second Story - second Floor Plan Second Story of Luxury Plan #107-1010
