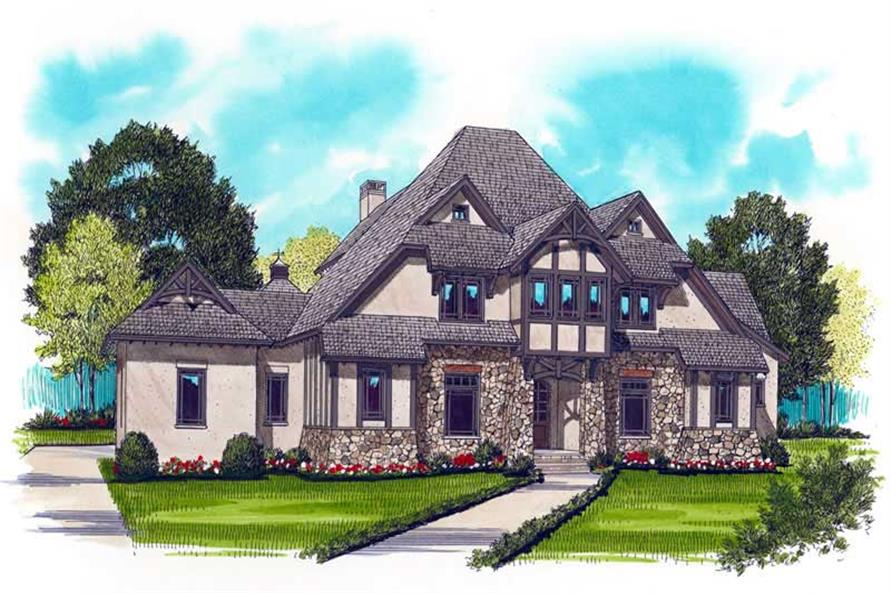

4-Bedroom, 4334 Sq Ft Craftsman Home Plan - 127-1010 - Main Exterior

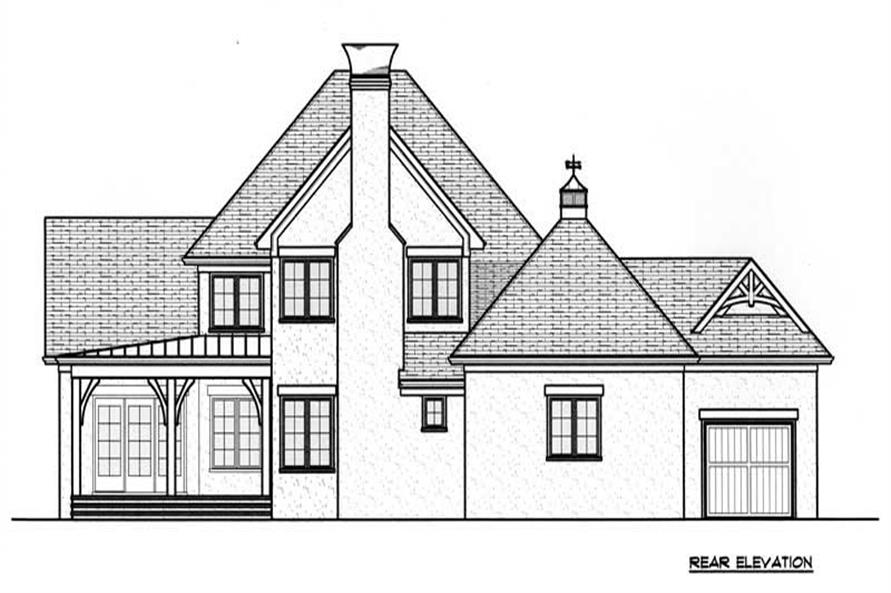

House Plan EDG-4334 Rear Elevation

About Plan # 127-1010

About Plan # 127-1010

4334 SQUARE FEET 4 BEDROOMS 3 FULL BATH 1 HALF BATH
2 FLOOR 80' 0" WIDTH 62' 2" DEPTH 3 GARAGE BAY
House Plan EDG-4334 has an inviting floor plan for entertaining, yet offers all the privacy you need. The entrance is covered. The rooms open up progressively throughout the home. The great room, dining room, and kitchen share one large space separated only by columns and defined with high ceilings and exposed beams. The master suite is spacious with a luxurious master bath with a deep shower, large tub, and a big walk-in closet. The upper floor houses the rest of the bedrooms. Other features are a game room, media room, large laundry room, three car garage, and a covered terrace on the back. For a similar floor plan with different style, see house plan EDG-3974. Note: this plan is not available within a 50 mile radius of Charlotte, NC.

Each plan set includes the following:

  • COVER PAGE
  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • FIRST FLOOR FRAMING (and Second and Third Floor Framing if applicable)
  • CEILING FRAMING
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

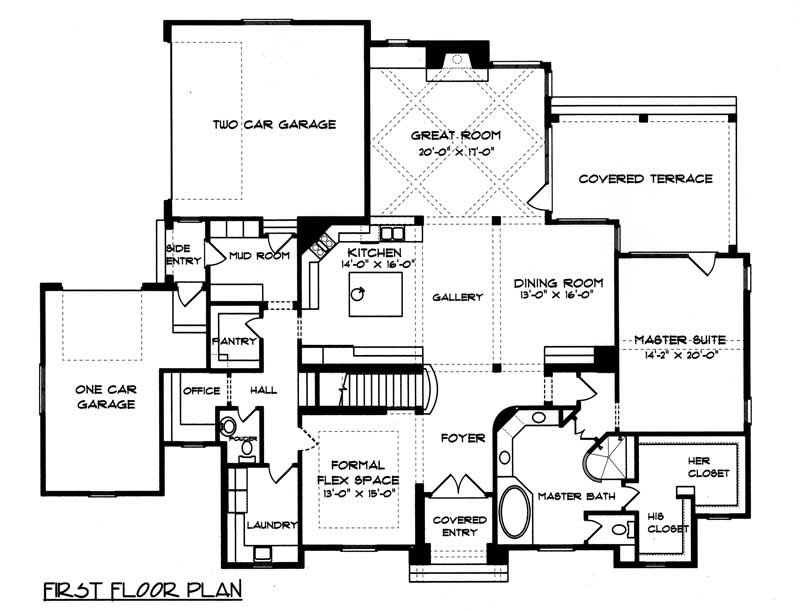

Home Plan: #127-1010 Floor Plan First Story - main Floor Plan First Story of Craftsman Plan #127-1010

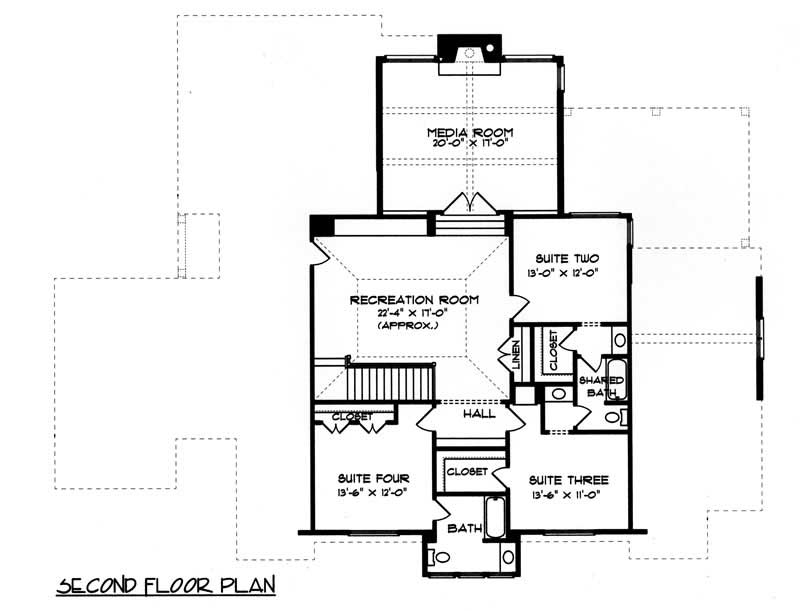

#127-1010 Floor Plan Second Story - second Floor Plan Second Story of Craftsman Plan #127-1010
Home Plan: #127-1010 Floor Plan First Story - main Floor Plan First Story of Craftsman Plan #127-1010
#127-1010 Floor Plan Second Story - second Floor Plan Second Story of Craftsman Plan #127-1010
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 127-1010
Floors:
2
Bedrooms:
4
Full Baths:
3
Half Baths:
1

Square Footage

Heated Sq Feet:
4334
Main Floor:
2642
Upper Floor:
1692
Unfinished Sq Ft:
Garage :
890

Dimensions

Width:
80' 0"
Depth:
62' 2"
Ridge Height:
36'5' 0"

Architectural Styles

Craftsman
Tudor

Exterior Wall Material

Stucco
Rock/Stone

Roofing Type

Hip

Roof Pitch

12/12

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Special Feature

Dining Room
Game Room
Media Room

Garage Type

Attached Garage
Side Entry

Fireplaces

Two Fireplaces

Exterior Wall Framing

2x6
2x4

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
