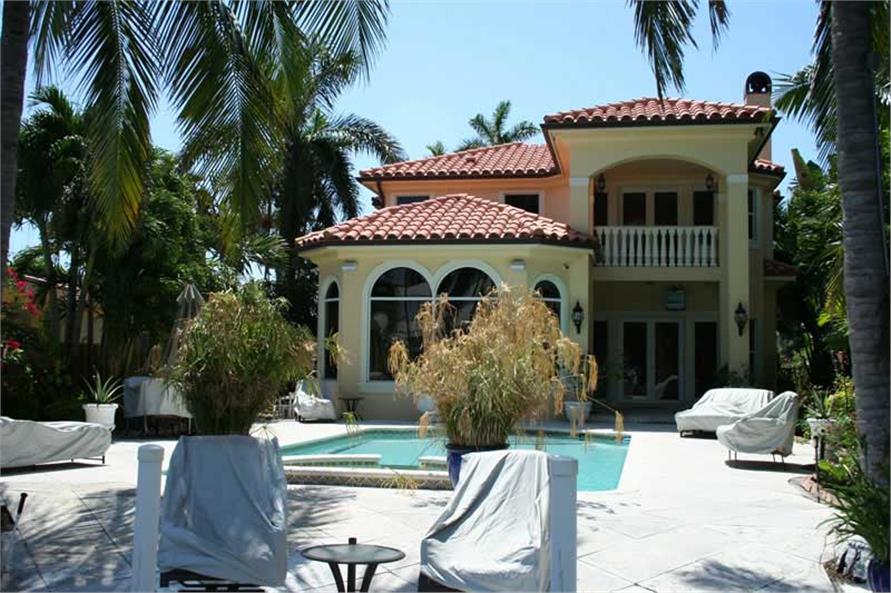

This image shows the exterior image of the house plan.

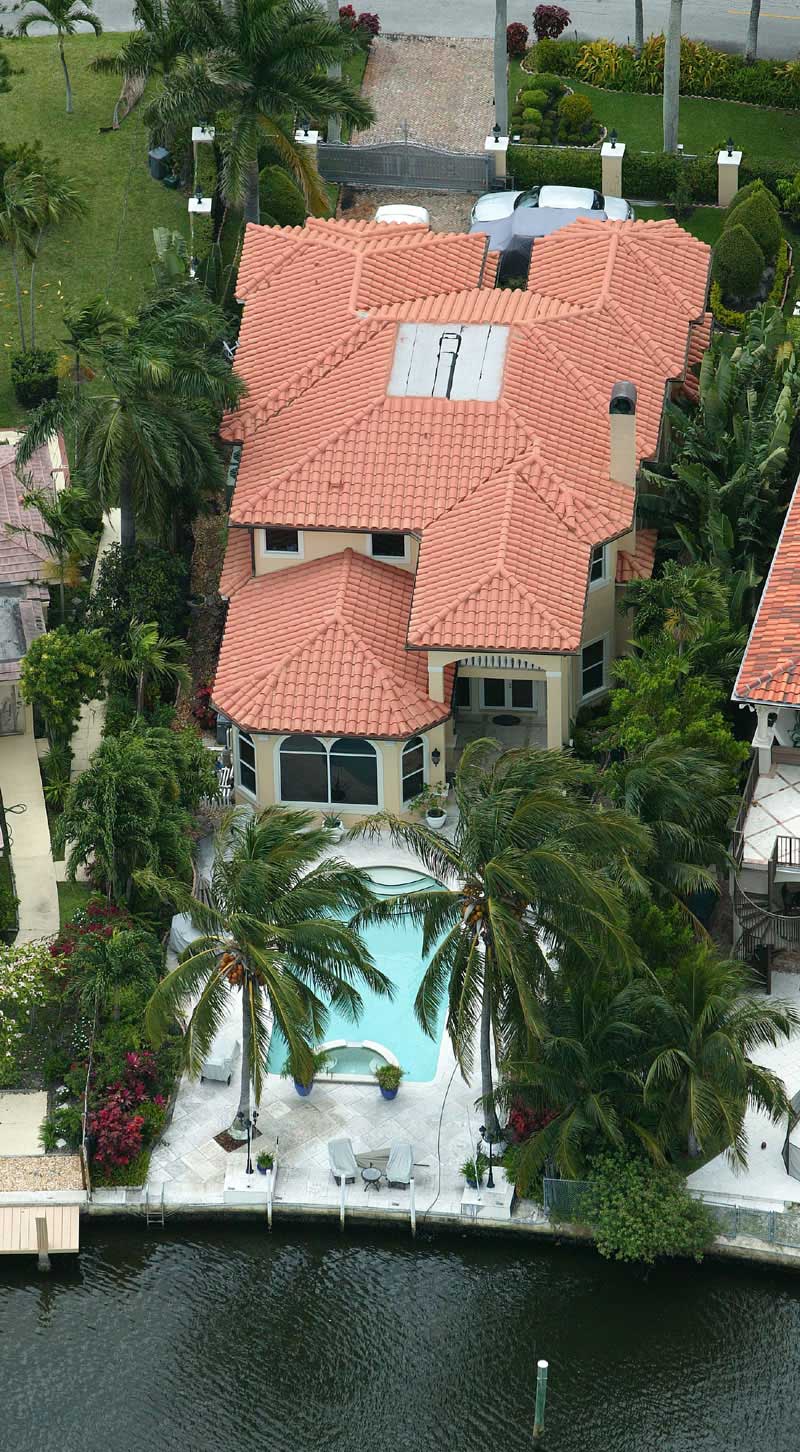

This image shows the aerial view of the house plan.

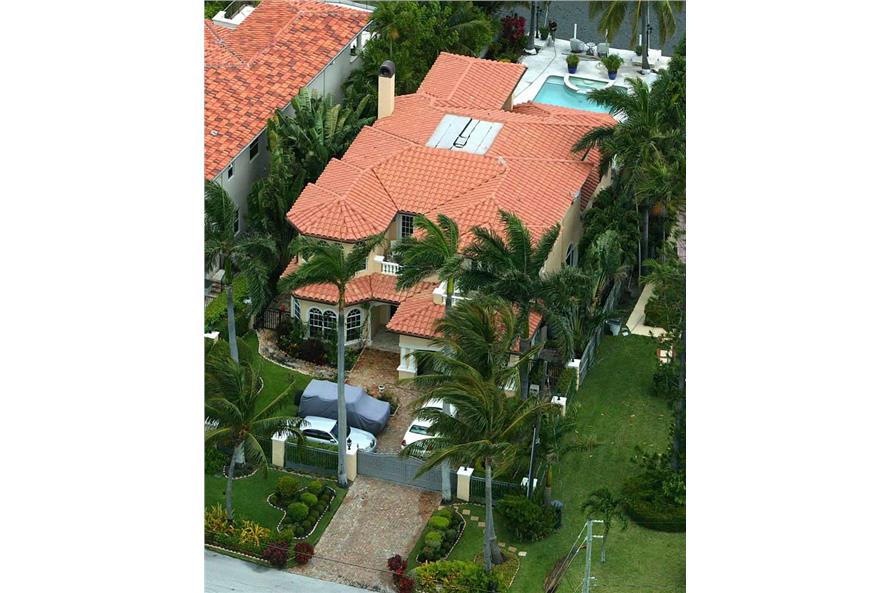

This image shows the aerial view of the house plan.

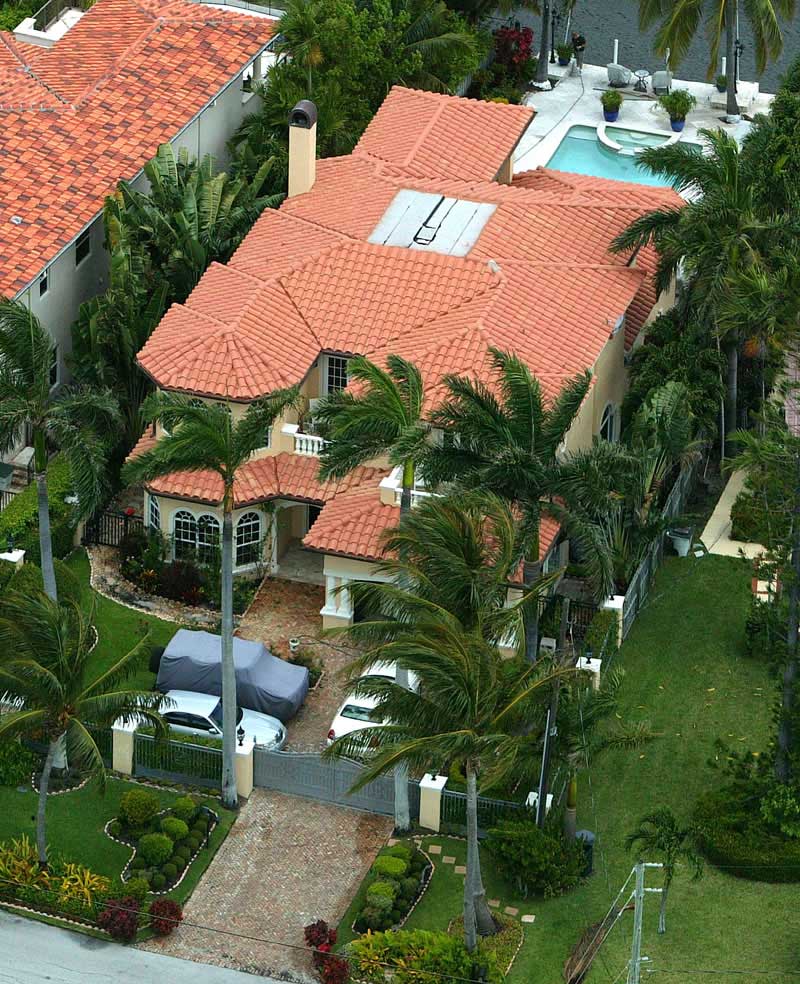

This image shows the aerial view of the house plan.

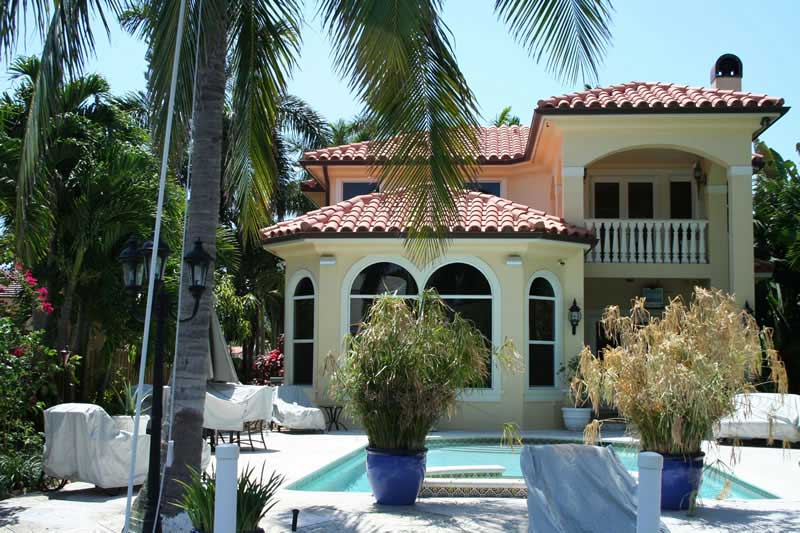

This image shows the water view of the house plan.

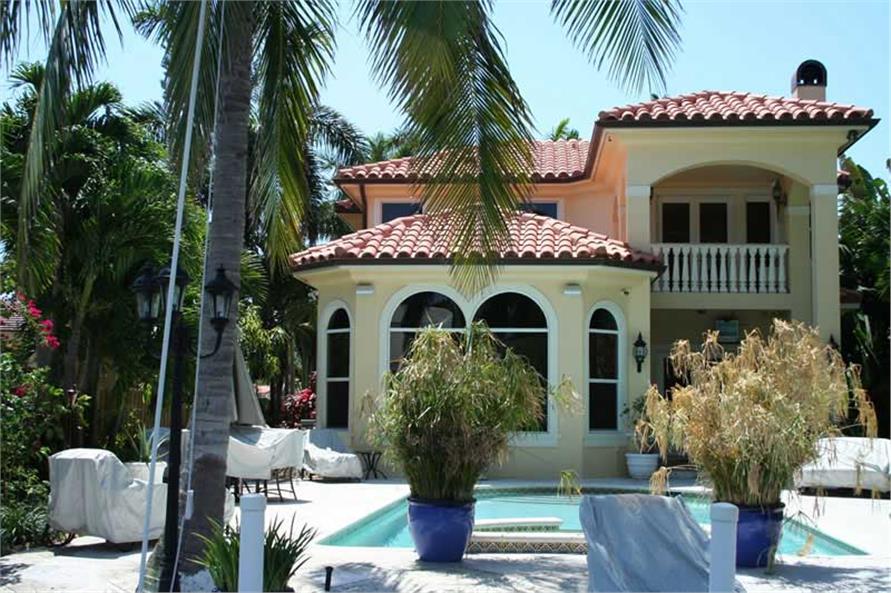

This image shows the water view of the house plan.
107-1193: Home Other Image-Front View

About Plan # 107-1193

About Plan # 107-1193

4210 SQUARE FEET 5 BEDROOMS 4 FULL BATH 0 HALF BATH
2 FLOOR 44' 10" WIDTH 82' 10" DEPTH 2 GARAGE BAY
Home Plan #107-1193 is a two story Mediterranean style home with 5 bedrooms and a 2 car garage. This home plan also has a den, a covered lanai, and a balcony.

Each plan set includes the following:

  • Floor plan
  • Kitchen & Bath layout
  • Exterior elevations
  • Sections
  • Structural plans
  • Foundation plan
  • Roof plan
  • Mechanical layout
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

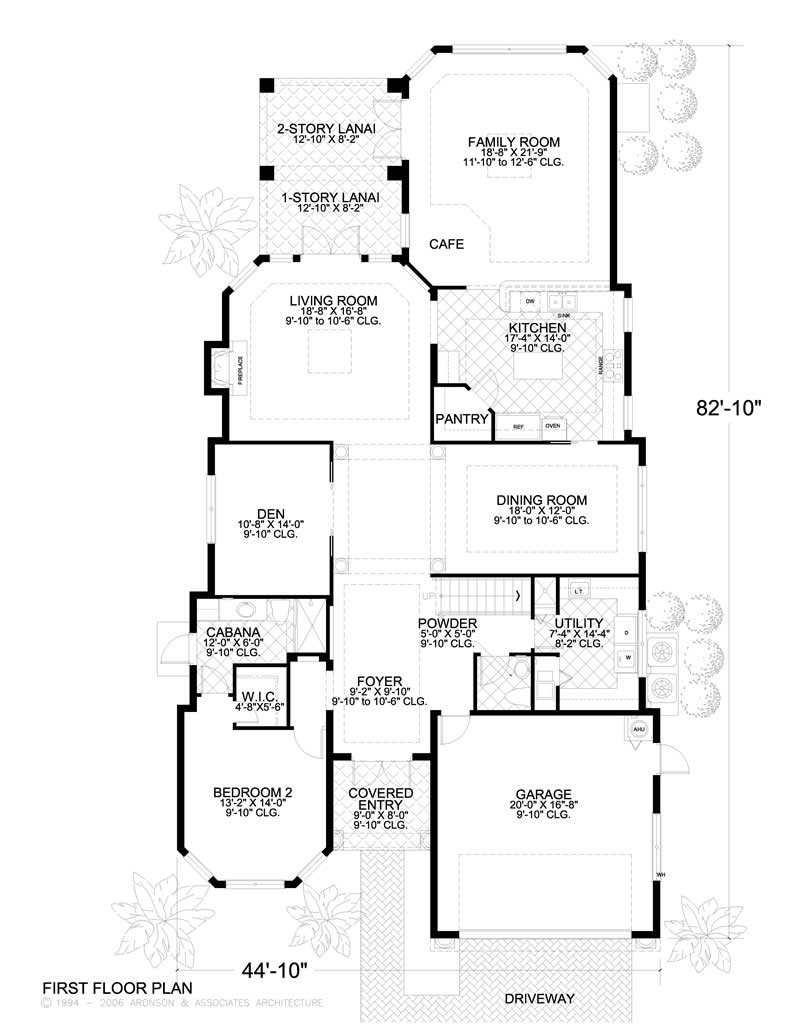

Home Plan: #107-1193 Floor Plan First Story - first Floor Plan First Story of Mediterranean Plan #107-1193

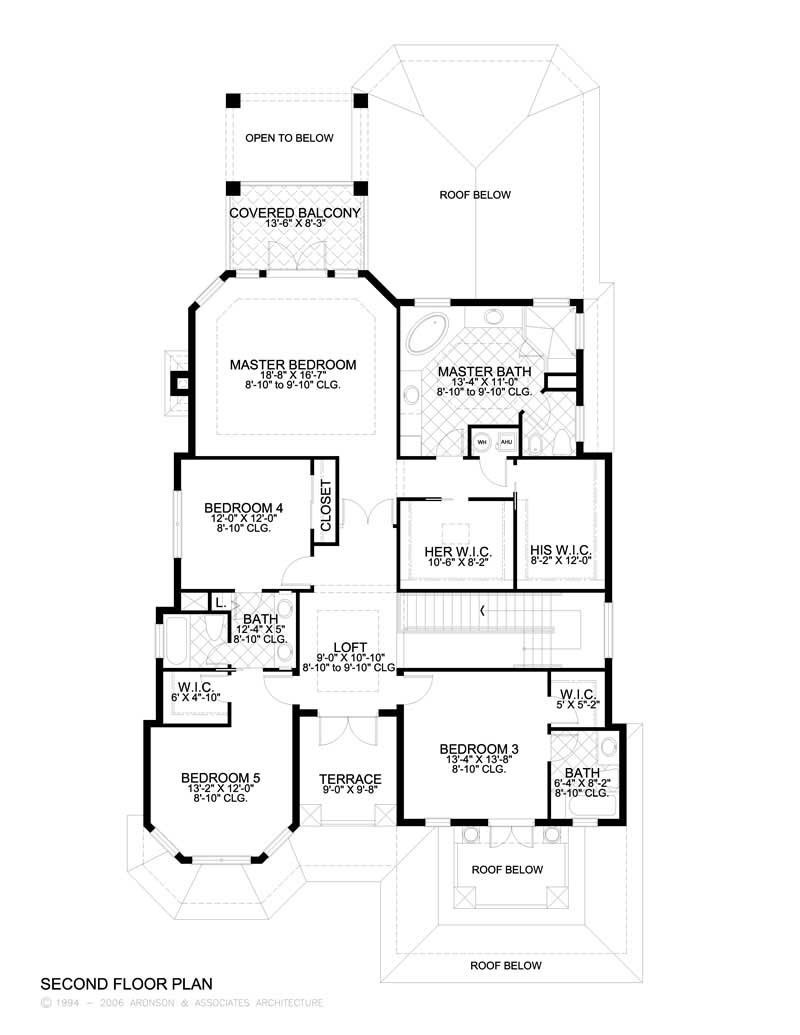

#107-1193 Floor Plan Second Story - second Floor Plan Second Story of Mediterranean Plan #107-1193
