5-Bedroom, 3850 Sq Ft Mediterranean Plan with Covered Rear Porch

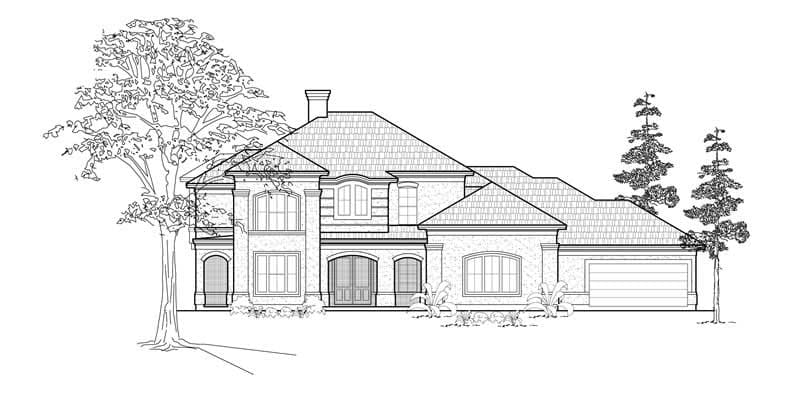

Front elevation of Mediterranean home (ThePlanCollection: House Plan #177-1041)

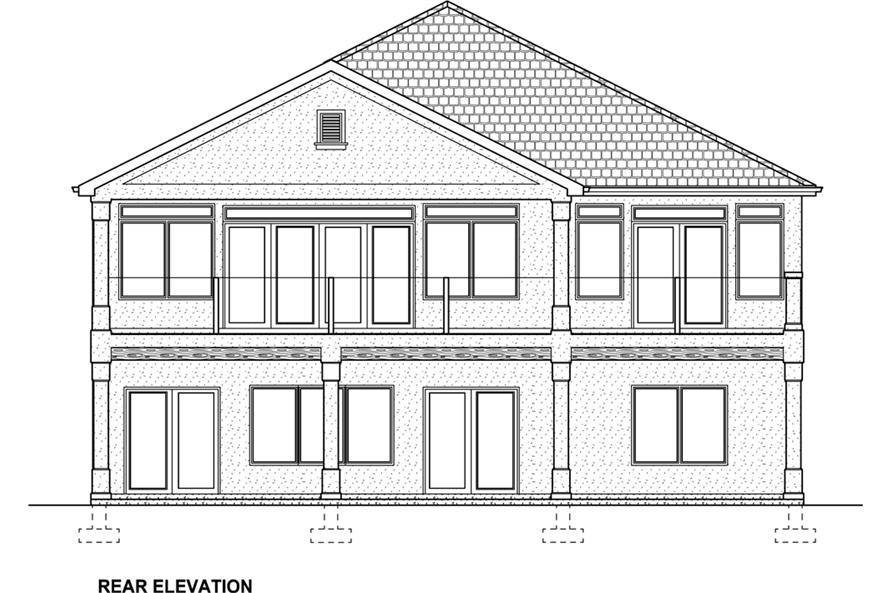

177-1041: Home Plan Rear Elevation

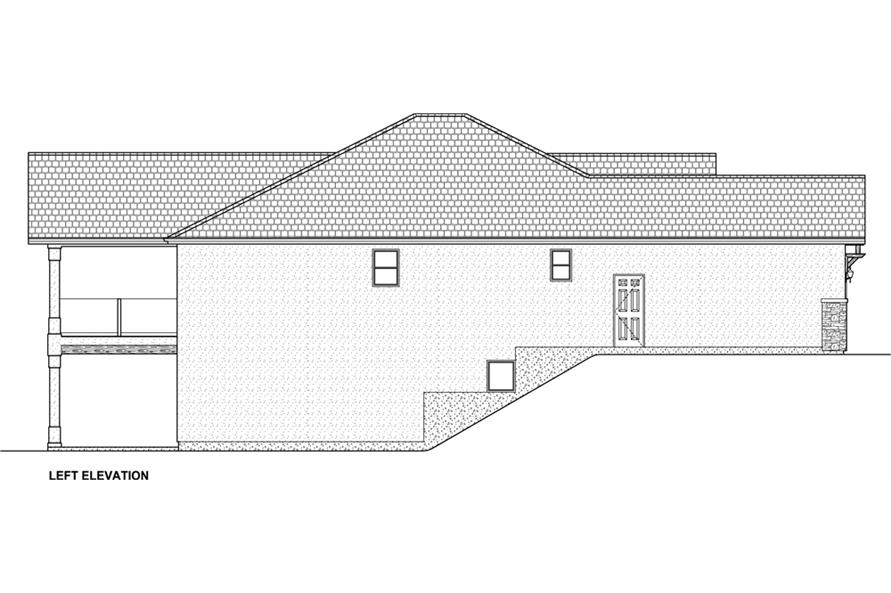

177-1041: Home Plan Left Elevation

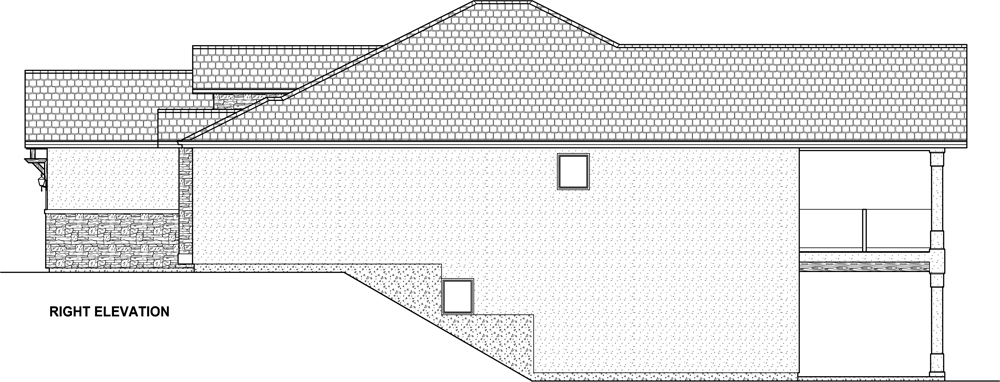

177-1041: Home Plan Right Elevation

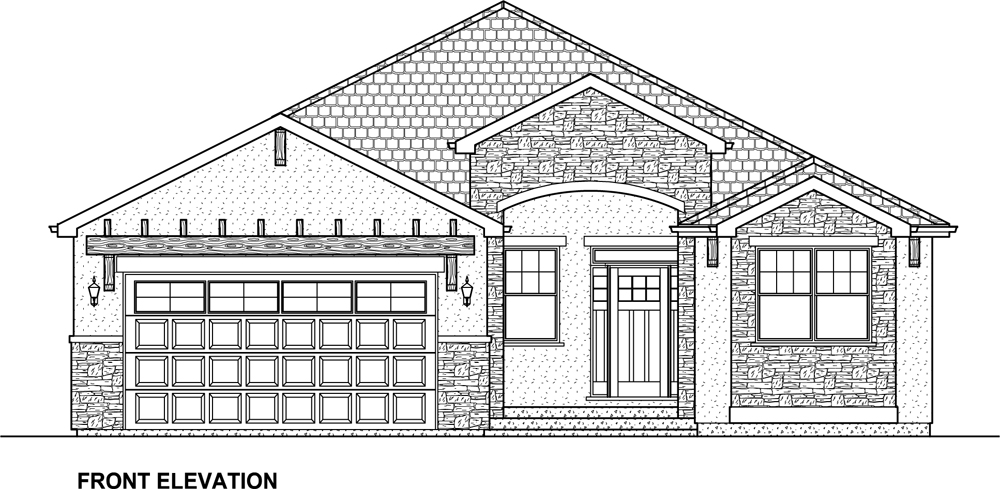

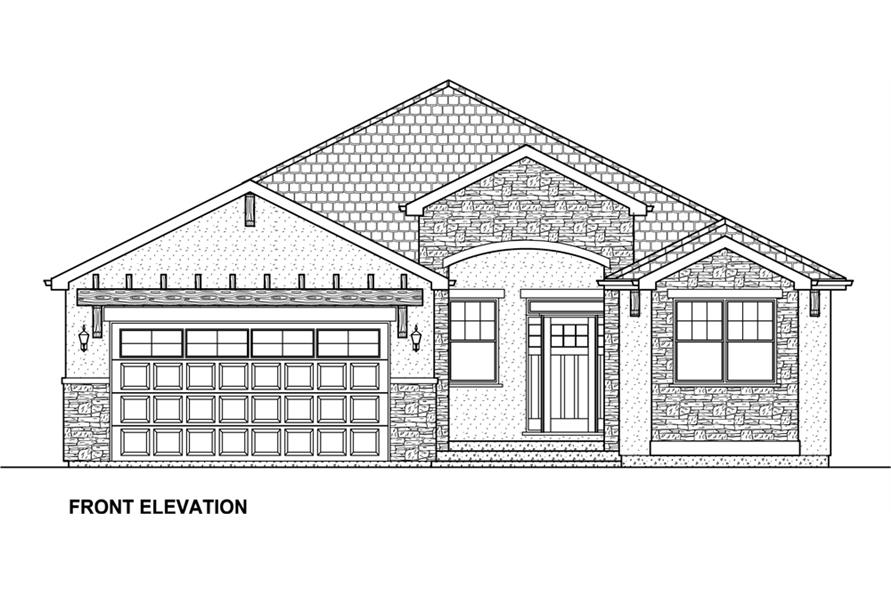

177-1041: Home Plan Front Elevation
5-Bedroom, 3850 Sq Ft Mediterranean Home Plan - 177-1041 - Main Exterior

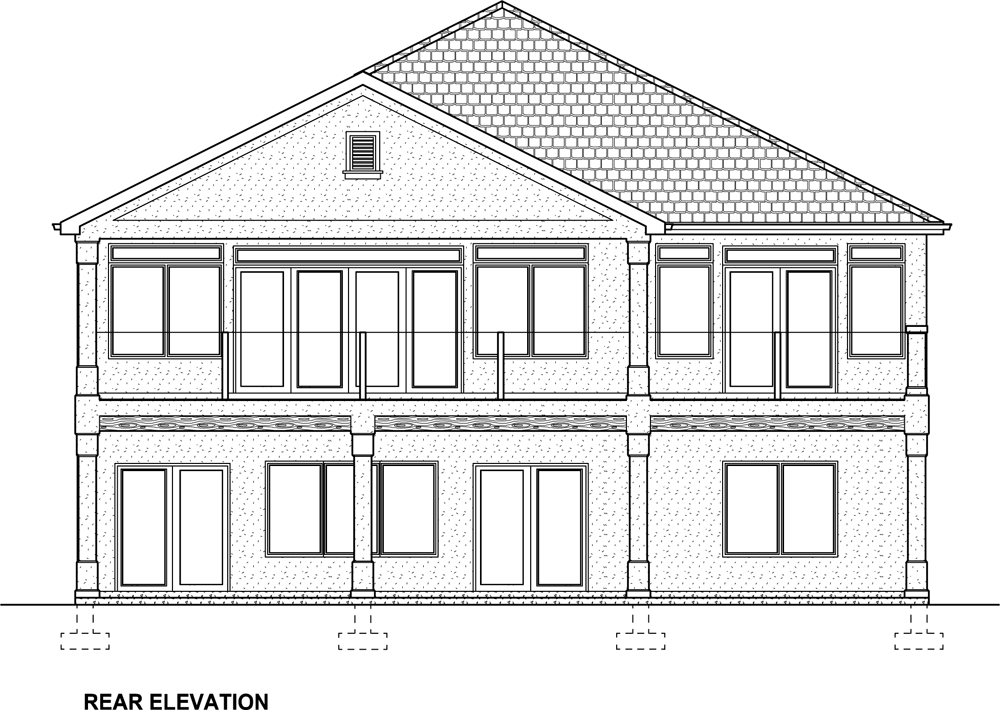

177-1041: Home Plan Rear Elevation

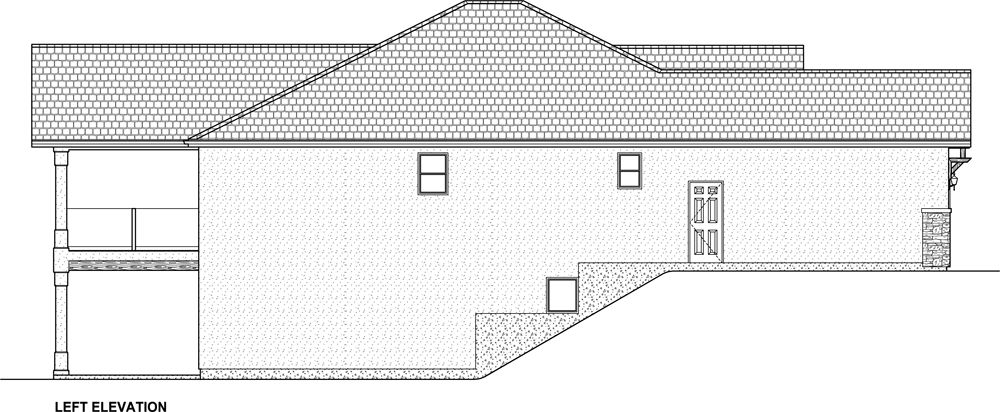

177-1041: Home Plan Left Elevation
177-1041: Home Plan Right Elevation
177-1041: Home Plan Front Elevation

About Plan # 177-1041

About Plan # 177-1041

3850 SQUARE FEET 5 BEDROOMS 4 FULL BATH 1 HALF BATH
2 FLOOR 44' 0" WIDTH 74' 0" DEPTH 2 GARAGE BAY

This lovely Mediterranean style home with Ranch influences (House Plan #177-1041) has 3850 square feet of living space. The 2 story floor plan includes 5 bedrooms.

Each plan set includes the following:

  • Electrical Layout
  • Elevations
  • Foundation
  • Typically Roof Trusses, a few A-Frames might have the Stick Frame, but mostly roof trusses
  • Wall Section
  • Building Sections
  • Material list available for purchase
  • Cabinet elevations will vary depending on the plan (plans with inside modeling will typically have the cabinet elevations)

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

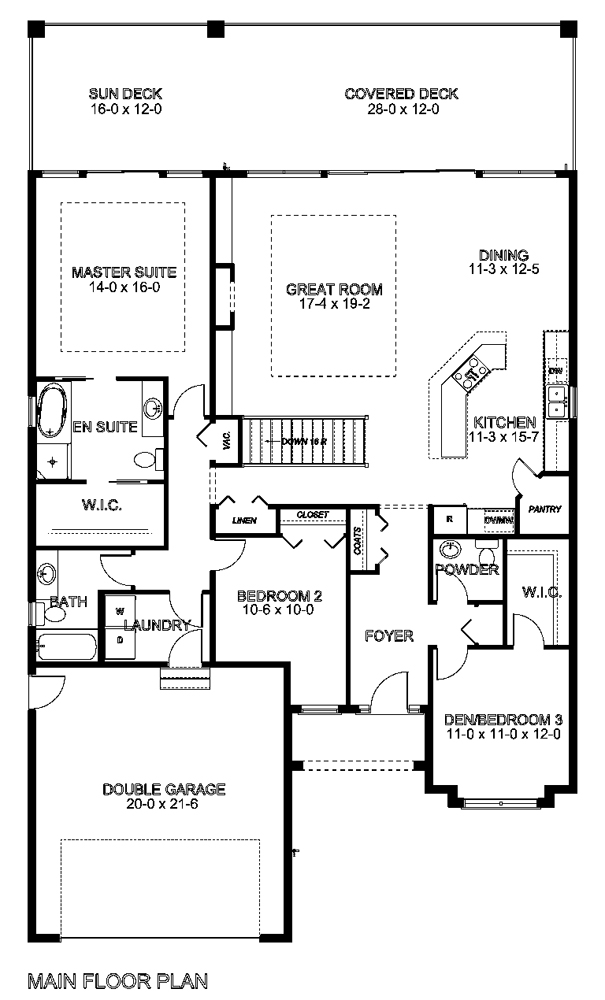

Home Plan: #177-1041 Floor Plan First Story - main level Floor Plan First Story of Mediterranean Plan #177-1041

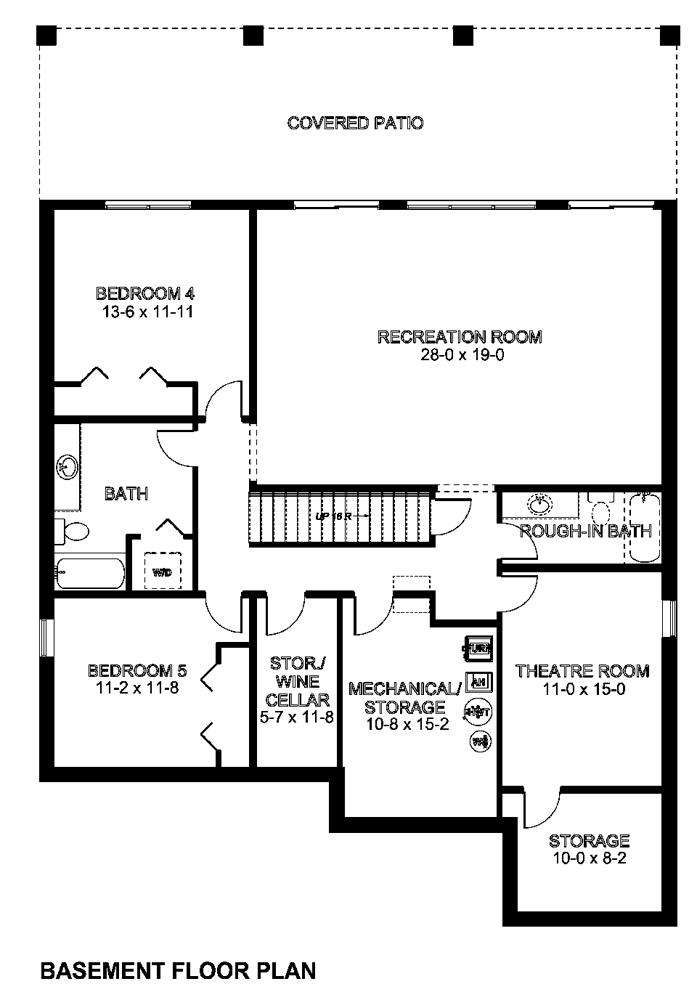

#177-1041 Floor Plan Basement - basement Floor Plan Basement of Mediterranean Plan #177-1041
